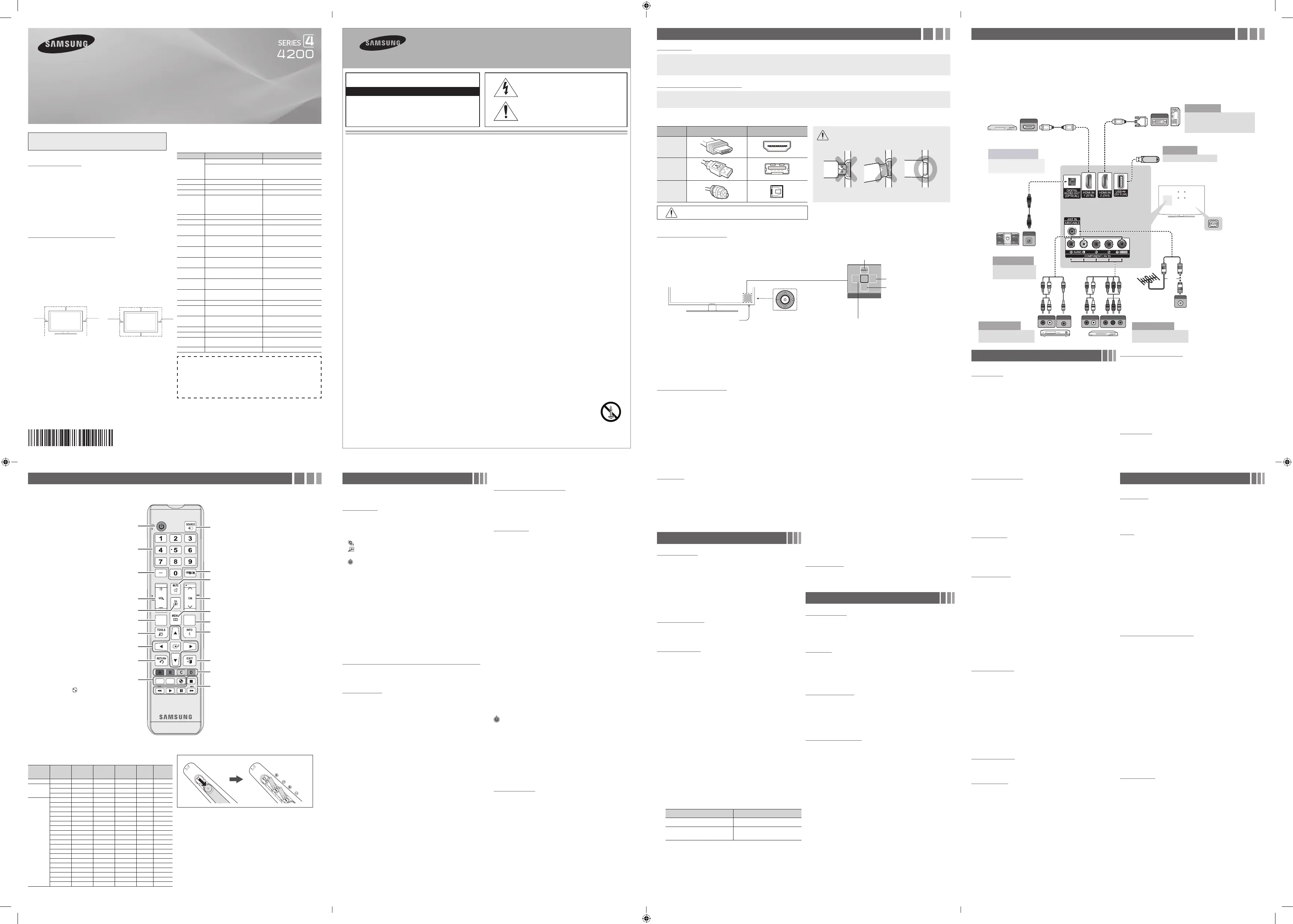

Connections

yFor the best picture and audio quality, connect digital devices using

an HDMI cable.

yIf you connect an external device to the TV that uses an older version

of HDMI, the video and audio may not work. If this occurs, ask the

manufacturer of the device about the HDMI version and, if it is out of

date, request an upgrade.

yBe sure to purchase a certiﬁed HDMI cable. Otherwise, the picture

may not display or a connection error may occur.

yPC/DVI AUDIO IN input is not supported.

yFor an HDMI to DVI cable connection, you must use the HDMI IN

2 (DVI) port.

yConnecting through the HDMI cable may not be supported

depending on the PC.

yIf an HDMI to DVI cable is connected to the port, HDMI IN 2 (DVI)

the audio does not work.

yFor Set-top box connection using HDMI cable, we highly

recommend you to connect the port.HDMI IN 1 (STB)

Getting Started

Accessories

Input Cables (Sold Separately)

yAudio

yComposite (AV)

yComponent

yCoaxial (RF)

yHDMI

yHDMI-DVI

✎Make sure you have the correct cable before plugging it in. Illustrations of common plugs and jacks are shown below.

Cable Plugs Ports/Jacks Do not plug in opposite or wrong direction. It could

damage the TV port.

HDMI

USB

Optical

Do not plug cables in upside down. Be sure to check the orientation

of the plug before plugging it in.

TV Controller (Panel Key)

The TV’s Controller, a small joy stick like button on the rear left side of the TV, lets you control the TV without the remote control.

Remote control sensor TV Controller

The image is drawn by facing

the front side of the TV.

Function menu

m R s

Return

Selecting the Media Play

Selecting a Source

Power Off

Selecting the Menu

✎Exits the menu when pressing the controller more than 1 second.

✎When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first,

you cannot operate it to move the up/down/left/right directions.

Plug & Play (Initial Setup)

When you turn the TV on for the ﬁrst time, a sequence of screens and on-screen prompts will assist you in conﬁguring the TV’s basic settings. Press

the button. is available only when the Input source is set to TV. Set the initial setup following instructions that the TV guides.POWER Plug & Play

✎Connecting the power cord and antenna. (refer to ‘Connections’)

Channel Menu

Seeing Channels

Channel List

Add, delete or set Favorite channels and use the program guide for

digital broadcasts. Select a channel in the , All Channels Added

Channels Favorite Programmed, or screen by pressing the ▲/▼

buttons, and pressing the ENTER

button. Then you can watch the

selected channel.

■

All Channels: Shows all currently available channels.

■

Added Channels: Shows all added channels.

■*

Favorite: Shows all favorite channels.

■

Programmed: Shows all currently reserved programs.

✎Using the remote control buttons with the Channel List

xGreen ( ): Enlarges or shrinks a channel number.Zoom

xYellow ( ): Selects multiple channel lists. Select desired Select

channels and press the Yellow button to set all the selected

channels at the same time. The

mark appears to the left of

the selected channels.

(Tools Channel List): Displays the option menu. (The Options

menus may differ depending on the situation.)

Channel Status Display icons

: A channel selected.

: A channel set as a Favorite.

)

: A reserved program.

(

: A program currently being broadcast.

Memorizing channels

Antenna (Switch to Cable / Switch to Air

)

Before your television can begin memorizing the available channels, you

must specify the type of signal source that is connected to the TV (i.e.

an or a system).Air Cable

Auto Program

✎When selecting the Cable TV system: Selects the cable system.

STD HRC IRC, and identify various types of cable TV systems.

Contact your local cable company to identify the type of cable

system that exists in your particular area. At this point, the signal

source has been selected.

✎After all the available channels are stored, it starts to remove

scrambled channels. The menu then reappears.Auto Program

✎Press the ENTER

button to stop the channel store during Auto

Program.

How to Stop Auto Programming

1. Press the ENTER

button.

2. Stop Auto Program?A message will ask . Select Yes by pressing

the or button.◄ ►

3. Press the ENTER

button.

Other Features

Clear Scrambled Channel

This function ﬁlters out scrambled channels after is Auto Program

completed. This process may take up to 20~30 minutes.

✎Press the ENTER

button to stop the Clear Scrambled

Channel.

✎This function is only available in mode. Cable

Channel List

Channel List Option Menu

OChannel List →

Set each channel using the menu options. Option menu Channel List

items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels you

want.

✎All deleted channels will be shown on the menu.All Channels

✎A gray-colored channel indicates the channel has been deleted.

✎The menu only appears for deleted channels.Add

✎Delete a channel from the or menu in Added Channels Favorite

the same manner.

■

Add to Favorite / Delete from Favorite

: Set channels you

watch frequently as Favorites.

■

Timer Viewing: You can set a desired channel to be displayed

automatically at the set time; even when you are watching another

channel. Set the current time ﬁrst to use this function.

✎Only memorized channels can be reserved.

✎Reserved programs will be displayed in the menu.Programmed

✎When a digital channel is selected, press the ( ) ►Next Program

button to view the digital program. If you select the ENTER

( ) button on the next program, you can set Schedule Timer

Viewing directly.

■

Channel Name Edit: (analog channels only) Assign your own

channel name.

■

Select All: Select all the channels in the channel list.

■

Deselect All: Deselect all the selected channels.

✎You can only select when one or more channels Deselect All

are selected.

■

Auto Program: Scans for a channel automatically and stores in the

TV.

Programmed

(in )Channel List

OChannel List Programmed → →

You can view, modify or delete a show you have reserved to watch.

■

Change Info: Change a show you have reserved to watch.

■

Cancel Schedules: Cancel a show you have reserved to watch.

■

Information: Display a show you have reserved to watch. (You can

also change the reservation Information.)

■

Select All / Deselect All: You can select or deselect all channels in

the channel list.

Channel Mode

Change the channel mode directly between and Added Channels

Favorite Channels.

✎The is enabled only when you set Favorite Channels Add to

Favorite.

Fine Tune

(analog channels only)

If the reception is clear, you do not have to ﬁne tune the channel, as this

is done automatically during the search and store operation. If the signal

is weak or distorted, ﬁne tune the channel manually.

✎Fine tuned channels that have been saved are marked with an

asterisk “*” on the right-hand side of the channel number in the

channel banner.

✎To reset the fine-tuning, select .Reset

Picture Menu

Mode

Select your preferred picture type.

✎When connecting a PC, you can only select and Entertain

Standard.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

■

Entertain: Suitable for watching movies and games.

✎Only available when connecting a PC.

Backlight / Contrast / Brightness / Sharpness /

Color / Tint (G/R)

Your television has several setting options for picture quality control.

✎When connecting a PC, you can only make changes to , Backlight

Contrast Brightness Sharpness, and .

Picture Options

✎When connecting a PC, you can only make changes to the Color

Tone Size HDMI Black Level, , and .

■

Color Tone Warm: Cool makes the picture bluer (cooler). make the

picture redder (warmer).

■

Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use 16:9 mode

most of the time.

✎The menu is deactivated, when the H. 264 (1080p) DTV is being

played.

16:9: Sets the picture to 16:9 wide mode.

Zoom1: Use for moderate magniﬁcation.

Zoom2: Use for a stronger magniﬁcation.

Wide Fit: Enlarges the aspect ratio of the picture to ﬁt the entire

screen.

4:3: Sets the picture to basic (4:3) mode.

✎Do not watch in 4:3 format for a long time. Traces of borders

displayed on the left, right and center of the screen may cause

image retention (screen burn) which are not covered by the

warranty.

Screen Fit: (DTV) Displays the full image without any cut-off when

HDMI (720p / 1080i / 1080p) or Component (1080i / 1080p) signals

are inputted.

✎HD (High Definition): 16:9 - 1080i/1080p (1920x1080), 720p

(1280x720)

✎Settings can be adjusted and stored for each external device you

have connected to an input on the TV.

✎Picture Sizes available by Input Source:

Input Source Picture Size

ATV, AV, Component (480i, 480p) 16:9, Zoom1, Zoom2, 4:3

DTV (1080i), Component (1080i,

1080p), HDMI (720p, 1080i, 1080p) 16:9, Wide Fit, 4:3, Screen Fit

■

Digital Clean View: If the broadcast signal received by your TV is

weak, you can activate the feature to reduce any Digital Clean View

static and ghosting that may appear on the screen.

✎When the signal is weak, try other options until the best picture

is displayed.

■

HDMI Black Level: Selects the black level on the screen to adjust the

screen depth.

✎Available only in mode (RGB signals).HDMI

■

Film Mode: Sets the TV to automatically sense and process ﬁlm

signals from all sources and adjusts the picture for optimum quality.

✎Available in ATV, DTV(interlace), AV, COMPONENT (480i / 1080i)

and HDMI (480i / 1080i).

■

Motion Lighting (Off / On): Reduce power consumption by

brightness control adapted motion.

✎Available in mode only.Standard

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently

selected mode to the default settings.

Sound Menu

Mode

■

Standard: Selects the normal sound mode.

■

Music: Emphasizes music over voices.

■

Movie: Provides the best sound for movies.

■

Clear Voice: Emphasizes voices over other sounds.

Equalizer

(standard sound mode only)

■

Balance L/R: Adjusts the balance between the right and left speaker.

■

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):

Adjusts the level of speciﬁc bandwidth frequencies.

■

Reset: Resets the equalizer to its default settings.

DTS TruSurround

(standard sound mode only)

DTS TruSurround is a patented DTS technology that solves the problem

of playing 5.1 multichannel content over two speakers. TruSurround

delivers a compelling, virtual surround sound experience through any

two-speaker playback system, including internal television speakers. It is

fully compatible with all multichannel formats.

Preferred Language

(digital channels only)

Digital-TV broadcasts are capable of simultaneous transmission of many

audio tracks (for example, simultaneous translations of the program into

foreign languages).

✎You can only select a language from among the ones being

broadcasted.

Multi-Track Sound

(analog channels only)

■

Mono: Choose for channels that are broadcasting in mono or if you

are having difﬁculty receiving a stereo signal.

■

Stereo: Choose for channels that are broadcasting in stereo.

■

SAP: Choose to listen to the Separate Audio Program, which is

usually a foreign-language translation.

✎Depending on the program being broadcast, you can listen to

Mono, Stereo SAP or .

Auto Volume

Because each broadcasting station has its own signal conditions, the

volume may ﬂuctuate each time channel is changed. This feature lets

you automatically adjust the volume of the desired channel by lowering

the sound output when the modulation signal is high or by raising the

sound output when the modulation signal is low.

SPDIF Output

The SPDIF (Sony Philips Digital InterFace) outputs an uncompressed

digital audio signal when you connect the digital audio jack on the back

of the TV to a digital audio in jack on a receiver or home theater.

■

Audio Format: You can select the Digital Audio output (SPDIF)

format. The available Digital Audio output (SPDIF) format may differ

depending on the input source.

✎By connecting the TV to a receiver or home theater with Dolby

Digital Dolby Digital and 5.1ch speakers and selecting , you can

maximize your interactive 3D sound experience.

■

Audio Delay: Lets you correct timing mismatches between the audio

track and the video when you are watching the TV and listening to

digital audio output from the TV through an external device such as

an AV receiver. When you select , a slider appears. Use Audio Delay

the left and right arrow buttons to adjust the slider. Press ENTER

when done (0ms ~ 250ms).

Speaker Select

If you are listening to the sound track of a broadcast or movie through an

external receiver, you may hear a sound echo caused by the difference in

decoding speed between the TV’s speakers and the speakers attached

to your audio receiver. If this occurs, set the TV to .External Speaker

✎When you set to , the TV’s Speaker Select External Speaker

speakers are turned off. You will hear sound through the external

speakers only. When you set to Speaker Select TV Speaker

both the TV’s speakers and the external speakers are on. You will

hear sound through both.

✎When is set to , the Speaker Select External Speaker VOLUME

and buttons will not operate and the sound settings will MUTE

be limited.

✎If there is no video signal, both the TV’s speakers and the external

speakers will be mute.

Visual Impaired

(digital channels only)

Adds verbal description to the main audio to help the visually impaired.

Sound Reset

■

Reset All: Resets all sound settings to the factory defaults.

Setup Menu

Language

Set the menu language.

✎Choose between , , and .English Español Français

Setting the Time

Time

✎The current time will appear every time you press the button.INFO

■

Clock: Setting the clock is for using various timer features of the TV.

✎If you disconnect the power cord, you have to set the clock again.

Clock Mode: Set the current time manually or automatically.

Clock Set Month Day Year Hour Minute am/pm: Set the , , , , and .

✎Available only when is set to .Clock Mode Manual

Time Zone: Select your time zone.

DST: (Daylight Saving Time) Switches the DST (Daylight Saving Time)

function on or off.

✎DST Time Zone Clock and function is only available when the

Mode Auto is set to .

■

Sleep Timer

Automatically shuts off the TV after a preset period of time. (30, 60,

90, 120, 150 and 180 minutes).

✎To cancel the , select .Sleep Timer Off

Timer 1 / Timer 2 / Timer 3

Three different on / off timer settings can be made. You must set the

clock ﬁrst.

■

On Time / Off Time: Set the hour, minute, am/pm and Activate /

Inactivate. (To activate the timer with the setting you have chosen, set

to .)Activate

■

Volume: Set the desired volume level.

■

Contents On Time: When the is activated, you can turn on a speciﬁc

channel or play back contents such as photo or audio ﬁles.

− TV/USB: Select or . (Make sure that an USB device is TV USB

connected to your TV.)

−Antenna: Displays the current antenna source.

−Channel: Select the desired channel.

− Music/Photo: Select the folder containing MP3/JPEG ﬁles on the

USB device.

✎The maximum displayed number of files, including sub folders, in

one folder of USB storage device is 2000.

✎The media may not be playing smoothly when using the device

lower than USB 2.0.

■

Repeat Once Everyday Mon~Fri Mon~Sat Sat~Sun: Select , , , , or

Manual Manual to set at you convenience. If you select , you can set

up the day you want to activate the timer.

Other Features

Game Mode

When connecting to a game console such as PlayStation™ or Xbox™,

you can enjoy a more realistic gaming experience by selecting the game

menu.

✎Precautions and limitations for game mode

xTo disconnect the game console and connect another external

device, set to in the setup menu.Game Mode Off

xIf you display the TV menu in , the screen shakes Game Mode

slightly.

xGame Mode TV is not available when the input source is set to .

xAfter connecting the game console, set to . Game Mode On

Unfortunately, you may notice reduced picture quality.

LED TV

user manual

Changing the Input Source

Source List

Use to select TV or an external input source such as a DVD player / Blu-

ray player / cable box / STB satellite receiver.

1. Press the SOURCE button.

2. Select a desired external input source.

■

TV / AV / Component / HDMI1 / HDMI2/DVI

✎You can only choose external devices that are connected to the TV.

In the , connected inputs will be highlighted.Source List

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access , press the button in . Name the Edit Name TOOLS Source List

device connected to the input jacks to make your input source selection

easier.

✎When connecting a PC to the port with HDMI cable, HDMI IN 2(DVI)

you should set the TV to mode under .PC Edit Name

✎When connecting a PC to the port with HDMI HDMI IN 2(DVI)

to DVI cable, you should set the TV to mode under DVI PC Edit

Name.

✎When connecting an AV devices to the port with HDMI IN 2(DVI)

HDMI to DVI cable, you should set the TV to mode under DVI Edit

Name.

Information

You can see detailed information about the connected external device.

yThe slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this

apparatus, and to protect it from overheating, these slots and openings must never be blocked or covered.

- Do not cover the slots and openings with a cloth or other materials.

- Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

- Do not place this apparatus in a confined space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

yDo not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

yDo not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of ﬁre or electric shock.

yDo not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near

a swimming pool etc.). If this apparatus accidentally gets wet, unplug it and contact an authorized dealer immediately.

yMake sure to pull out the power cord from the outlet before cleaning.

yThis apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect

the environment. Please contact your local authorities for disposal or recycling information.

yDo not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in ﬁre or electric shock.

yPower-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay

particular attention to cords at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.

yTo protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet

and disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

yBefore connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local

electrical supply. (depending on the model)

yNever insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

yTo avoid electric shock, never touch the inside of this apparatus. Only a qualiﬁed technician should open this apparatus.

yMake sure to plug the power cord in until it is ﬁrmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do

not touch the power cord with wet hands.

yIf this apparatus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and

contact an authorized dealer or service center.

yBe sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time

(especially when children, elderly or disabled people will be left alone in the house).

- Accumulated dust can cause an electric shock, an electric leakage, or a fire by causing the power cord to generate sparks and heat,

or cause the insulation to deteriorate.

yBe sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity,

chemical substances or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious

damage to your set.

yUse only a properly grounded plug and receptacle.

- An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

yTo turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily

accessible at all times.

yDo not allow children to hang onto the product.

yStore the accessories (batteries, etc.) in a location safely out of the reach of children.

yDo not install the product in an unstable location such as a shaky self, a slanted ﬂoor, or a location exposed to vibration.

yDo not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

yTo clean the product, unplug the power cord from the power outlet and wipe the product using a soft cloth dipped in a small amount of water.

Do not use any chemicals such as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the

appearance or erase the printing on the product.

yDo not expose the apparatus to dripping or splashing.

yDo not dispose of batteries in a ﬁre.

yDo not short circuit, disassemble, or overheat the batteries.

yThere is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.

yWARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL

TIMES.

Warning! Important Safety Instructions

Please read the safety instructions below before installing and using the product.

CAUTION

CAUTION: TO REDUCE THE RISK OF ELECTRIC

SHOCK, DO NOT REMOVE COVER (OR BACK). THERE

ARE NO USER SERVICEABLE PARTS INSIDE. REFER

ALL SERVICING TO QUALIFIED PERSONNEL.

RISK OF ELECTRIC SHOCK. DO NOT OPEN.

This symbol indicates that high voltage is

present inside. It is dangerous to make any kind

of contact with any internal part of this product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

BN68-05737N-01

Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and speciﬁcations

may be changed without notice.

Still image warning

Avoid displaying still images (such as jpeg picture ﬁles) or still image elements (such

as TV channel logos, panorama or 4:3 image format, stock or news bars at screen

bottom etc.) on the screen. Constant displaying of still pictures can cause ghosting of

LED screen, which will affect image quality. To reduce risk of this effect, please follow

below recommendations:

yAvoid displaying the same TV channel for long periods.

yAlways try to display any image on full screen, use TV set picture format menu for

best possible match.

yReduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

yFrequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to

ensure proper ventilation.

Failing to do so may result in ﬁre or a problem with the product due to an increase in

the internal temperature of the product.

✎When using a stand or wall-mount, use parts provided by Samsung Electronics

only.

• If you use parts provided by another manufacturer, it may result in a problem

with the product or an injury due to the product falling.

✎The appearance may differ depending on the product.

✎Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

4inches

4inches4inches

4inches

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products,

please contact the SAMSUNG customer care center.

Country Customer Care Center Web Site

MEXICO 01-800-SAMSUNG (726-7864) www.samsung.com

Dirección: GENERAL MARIANO ESCOBEDO 476 PISO 8

COL. ANZURES, DELEGACIÓN MIGUEL HIDALGO MÉXICO, DISTRITO

FEDERAL C.P. 11590

ARGENTINE 0800 333 3733 www.samsung.com.ar

URUGUAY 000 405 437 33 www.samsung.com

PARAGUAY 009 800 542 0001 www.samsung.com.py

BRAZIL 0800-124-421 (Demais cidades

e regiões)

4004-0000 (Capitais e grandes

centros)

www.samsung.com.br

CHILE 800-SAMSUNG(726-7864) www.samsung.com/cl

BOLIVIA 800-10-7260 www.samsung.com

COLOMBIA 01 8000 112 112

Bogotá 600 12 72

www.samsung.com/co

COSTA RICA 0-800-507-7267 www.samsung.com/latin (Spanish)
