Figures and illustrations in this User Manual are provided for reference only and

may differ from actual product appearance. Product design and specifications

may be changed without notice.

Still image warning

Avoid displaying still images (like jpeg picture files) or still image element (like TV

programme logo, panorama or 4:3 image format, stock or news bar at screen bottom

etc.) on the screen. Constant displaying of still picture can cause ghosting of LED

screen, which will affect image quality. To reduce risk of this effect, please follow below

recommendations:

yAvoid displaying the same TV channel for long periods.

yAlways try to display any image on full screen, use TV set picture format menu for

best possible match.

yReduce brightness and contrast values to minimum required to achieve desired

picture quality, exceeded values may speed up the burnout process.

yFrequently use all TV features designed to reduce image retention and screen

burnout, refer to proper user manual section for details.

For India Only

This product is RoHS compliant.

Correct Disposal of This Product

(Waste Electrical & Electronic Equipment)

This marking on the product & accessories literature indicates

that the product and its electronic accessories (e.g. charger,

headset, USB cable) should not be disposed of with other

household waste at the end of their working life. To prevent

possible harm to the environment or human health from

uncontrolled waste disposal, please separate these items from

other types of waste and recycle them responsibly to promote

the sustainable reuse of material resources House hold users

should contact either the retailer where they purchased this

product, or their local government office, for details of where and

how they can take these items for environmentally safe recycling.

Business user should contact their supplier and check the terms

and conditions of the purchase contract. This product and its

electronic accessories should not be mixed other commercial

wastes for disposal.

For more information on safe disposal and recycling visit our website www.

samsung.com/in or contact our helpline number - 18002668282, 180030008282

For personal and non-commercial use only.

Usage is subject to following the guidelines in the User Manual and may not be

available in all regions.

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please

contact the SAMSUNG customer care centre.

Country Customer Care Centre Web Site

SINGAPORE www.samsung.com/sg/support1800-SAMSUNG(726-7864)

AUSTRALIA 1300 362 603 www.samsung.com/au/support

NEW

ZEALAND

0800 726 786 www.samsung.com/nz/support

VIETNAM 1800 588 889 www.samsung.com/vn/support

THAILAND 0-2689-3232,

1800-29-3232

www.samsung.com/th/support

MYANMAR +95-01-2399-888 www.samsung.com/support

MALAYSIA 1800-88-9999

603-77137477 (Overseas

contact)

www.samsung.com/my/support

INDONESIA 021-56997777

08001128888

www.samsung.com/id/support

PHILIPPINES 1-800-10-7267864 [PLDT]

1-800-8-7267864 [Globe

landline and Mobile]

02-4222111 [Other landline]

www.samsung.com/ph/support

TAIWAN 0800-329999 www.samsung.com/tw/support

JAPAN 0120-363-905 www.samsung.com/jp/support

INDIA 1800 3000 8282 - Toll Free

1800 266 8282 - Toll Free

www.samsung.com/in/support

BANGLADESH 9612300300 www.samsung.com/in/support

SRI LANKA 94117540540 www.samsung.com/support

EGYPT 08000-7267864

16580

www.samsung.com/eg/support

ALGERIA 021 36 11 00 www.samsung.com/n_africa/

support

IRAN 021-8255 [CE] www.samsung.com/iran/support

SAUDI

ARABIA

8002474357 www.samsung.com/sa/support

www.samsung.com/sa_en/

support (English)

PAKISTAN 0800-Samsung (72678) www.samsung.com/pk/support

TUNISIA 80-1000-12 www.samsung.com/n_africa/

support

U.A.E 800-SAMSUNG (800 - 726

7864) www.samsung.com/ae/support

(English)

www.samsung.com/ae_ar/

support (Arabic)

OMAN 800-SAMSUNG (800 - 726

7864)

KUWAIT 183-CALL (183-2255)

BAHRAIN 8000-GSAM (8000-4726)

QATAR 800-CALL (800-2255)

TURKEY 444 77 11 www.samsung.com/tr/support

JORDAN 0800-22273

06 5777444

www.samsung.com/Levant/

support (English)

SYRIA 18252273 www.samsung.com/Levant/

support (English)

MOROCCO 080 100 22 55 www.samsung.com/n_africa/

support

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). THERE ARE NO USER SERVICEABLE

PARTS INSIDE. REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It

is dangerous to make any kind of contact with any internal

part of this product.

This symbol alerts you that important literature concerning

operation and maintenance has been included with this

product.

• The slots and openings in the cabinet and in the back or bottom are provided for necessary ventilation. To ensure reliable operation of this apparatus,

and to protect it from overheating, these slots and openings must never be blocked or covered.

−Do not cover the slots and openings with a cloth or other materials.

−Do not block the slots and openings by placing this apparatus on a bed, sofa, rug or other similar surface.

−Do not place this apparatus in a conﬁned space, such as a bookcase or built-in cabinet, unless proper ventilation is provided.

• Do not place this apparatus near or over a radiator or heat register, or where it is exposed to direct sunlight.

• Do not place a vessel containing water (vases etc.) on this apparatus, as this can result in a risk of ﬁre or electric shock.

• Do not expose this apparatus to rain or place it near water (near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a

swimming pool etc.). If this appratus accidentally gets wet, unplug it and contact an authorized dealer immediately.

• Make sure to pull out the power cord from the outlet before cleaning.

• This apparatus use batteries. In your community, there might be regulations that require you to dispose of these batteries properly to protect the

environment. Please contact your local authorities for disposal or recycling information.

• Do not overload wall outlets, extension cords, or adaptors beyond their capacity, since this can result in ﬁre or electric shock.

• Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular

attention to cords at the plug end, where connected to adaptors, and at the point where they exit from the apparatus.

• To protect this apparatus from a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and

disconnect the antenna or cable system. This will prevent damage to the set due to lightning and power line surges.

• Before connecting the AC power cord to the DC adaptor outlet, make sure the voltage designation of the DC adaptor corresponds to the local

electrical supply. (depending on the model)

• Never insert anything metallic into the open parts of this apparatus. Doing so may create a danger of electric shock.

• To avoid electric shock, never touch the inside of this apparatus. Only a qualiﬁed technician should open this apparatus.

• Make sure to plug the power cord in until it is ﬁrmly inserted. Pull on the plug, not the cord, when removing the power cord from the outlet. Do not

touch the power cord with wet hands.

• If this appratus does not operate normally - in particular, if there are any unusual sounds or smells coming from it - unplug it immediately and contact

an authorized dealer or service center.

• Be sure to pull the power plug out of the outlet if the TV is to remain unused or if you are to leave the house for an extended period of time (especially

when children, elderly or disabled people will be left alone in the house).

−Accumulated dust can cause an electric shock, an electric leakage, or a ﬁre by causing the power cord to generate sparks and heat, or cause

the insulation to deteriorate.

• Be sure to contact an authorized service center, when installing your set in a location with heavy dust, high or low temperatures, high humidity,

chemical substances or where it will operate for 24 hours a day such as in an airport, a train station, etc. Failure to do so may cause serious damage

to your set.

• Use only a properly grounded plug and receptacle.

−An improper ground may cause electric shock or equipment damage. (Class l Equipment only.)

• To turn off the apparatus completely, you must pull the power plug out of the wall socket. Consequently, the power plug should be readily accessible

at all times.

• Do not allow children to hang onto the product.

• Store the accessories (batteries, etc.) in a location safely out of the reach of children.

• Do not install the product in an unstable location such as a shaky self, a slanted ﬂoor, or a location exposed to vibration.

• Do not drop or impart a shock to the product. If the product is damaged, disconnect the power cord and contact a service center.

• To clean the product, unplug the power cord from the power outlet and wipe the product using a soft, dry cloth. Do not use any chemicals such

as wax, benzene, alcohol, thinners, insecticide, air freshener, lubricant or detergent. This may damage the appearance or erase the printing on the

product.

• Do not expose the apparatus to dripping or splashing.

• Do not dispose of batteries in a ﬁre.

• Do not short circuit, disassemble, or overheat the batteries.

• There is a danger of explosion if you replace the batteries with the wrong type of battery. Replace only with the same or equivalent type.

• WARNING - TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

Warning! Important Safety Instructions

(Please read the safety instructions below before installing and using the product.)

Important Safety Instructions Getting Started

Accessories

yRemote Control & Batteries (AAA x 2)

yUser Manual

yRegulatory Guide / Warranty Card (Not available in some locations)

yPower Cord

yCable Holder (1EA)

(Not available in some locations)

Assembling the Cable Holder

Input Cables (Sold Separately)

yComposite (AV)

yComponent

yCoaxial (RF)

yHDMI

TV Controller (Panel Key)

Function menu

MEDIA.P

m R s

Return

Selecting the Media Play

Selecting a Source

Power off

Selecting the Menu

Remote control sensor TV Controller

The image is drawn by facing

the front side of the TV.

✎To close the , List, or List, press the Controller for more than 1 second.Menu Media Play Source

✎When selecting the function by moving the controller to the up/down/left/right directions, be sure not to press the controller. If you press it first, you cannot operate it to move

the up/down/left/right directions.

Plug & Play (Initial Setup)

When you turn the TV on for the first time, a sequence of screens and on-screen prompts will assist you in configuring the TV’s basic settings. Plug the

power cord into a wall outlet, and then press the button to turn on the TV. Set the initial setup following instructions that the TV guides.POWER

✎If you are not using a cable box or satellite box, make you sure have connected the TV to an Aerial or cable connection before you turn on the TV.

✎Connecting the power cord and antenna. (refer to ‘Connections’)

Connections

yFor better picture and audio quality, connect to a digital device using an

HDMI

cable.

yThe picture may not display normally (if at all) or the audio may not work if an

external device that uses an older version of HDMI mode is connected to the TV.

If such a problem occurs, ask the manufacturer of the external device about the

HDMI version and, if out of date, request an upgrade.

yBe sure to purchase a certified HDMI cable. Otherwise, the picture may not

display or a connection error may occur.

yPC / DVI AUDIO IN input is not supported.

yFor HDMI/DVI cable connection, you must use the port. HDMI IN (STB)

yConnecting through the cable may not be supported depending on the PC. HDMI

yIf an HDMI to DVI cable is connected to the port, the audio does HDMI IN (STB)

not work.

yFor Set-top box connection using HDMI cable, we highly recommend you to

connect the port.HDMI IN (STB)

Power Input

TV Rear Panel

TV Side Panel

USB

Audio connection

(Analog)

DVD / Home Theater

Component connection

Blu-ray player / DVD

AV connection

VCR

HDMI connection

Blu-ray player / DVD / Set-

top box

yThe rear panel may differ

depending on the model.

Changing the Input Source

Source List

Use to select TV or other external input sources such as DVD / Blu-ray

players / cable box / STB satellite receiver connected to the TV.

1. Press the SOURCE button.

2. Select a desired external input source.

■

TV / / Component / HDMIAV

✎You can only choose external devices that are connected to the TV. In the

Source List, connected inputs will be highlighted.

How to use Edit Name

Edit Name lets you associate a device name to an input source. To

access , enter menu and select . Name Edit Name Support Edit Name

the device connected to the input jacks to make your input source

selection easier.

✎When connecting a PC to the port with HDMI cable, you should HDMI IN (STB)

set the TV to PC mode under . Edit Name

✎When connecting a PC to the port with HDMI to DVI cable, you HDMI IN (STB)

should set the TV to DVI PC mode under .Edit Name

✎When connecting an AV devices to the port with HDMI to DVI HDMI IN (STB)

cable, you should set the TV to DVI mode under .Edit Name

Remote Control

✎This remote control has Braille points on the Power, Channel, Volume, and Enter buttons and can be used by visually impaired persons.

Sound Menu

Sound Mode

■

Standard: Selects the normal sound mode.

■

Music: Emphasizes music over voices.

■

Movie: Provides the best sound for movies.

■

Clear Voice: Emphasizes voices over other sounds.

Equalizer

(standard sound mode only)

■

Balance: Adjusts the balance between the right and left speaker.

■

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment):

Adjusts the level of specific bandwidth frequencies.

■

Reset Equalizer: Resets the to its default settings.

DTS TruSurround

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience

through a pair of speakers using HRTF (Head Related Transfer Function)

technology.

Auto Volume

Because each broadcasting station has its own signal conditions, the

volume may fluctuate each time channel is changed. This feature lets you

automatically adjust the volume of the desired channel by lowering the

sound output when the modulation signal is high or by raising the sound

output when the modulation signal is low.

Speaker Select

A sound echo may occur due to a difference in decoding speed between

the main speaker and the audio receiver. In this case, set the TV to

External Speaker.

✎When you set to , the TV’s speakers are Speaker Select External Speaker

turned off. You will hear sound through the external speakers only. When you

set to , both the TV’s speakers and the external Speaker Select TV Speaker

speakers are on. You will hear sound through both.

✎When is set to , the volume and Speaker Select External Speaker MUTE

buttons will not operate and the sound settings will be limited.

✎If there is no video signal, both speakers will be mute.

TV Installation Type

This is the feature that set sound filter to fit into the installation condition

of TV. Adjust TV Sound to suit either stand or Wall Mount Installation.

Sound Reset

■

Reset All: Reset all sound settings to the factory defaults.

Selecting the Sound Mode

When you set to , the current sound mode is displayed on Dual I-Dual II

the screen.

Audio Type Dual I-II Default

A2 Stereo

Mono Mono Automatic

change

Stereo Stereo ↔ Mono

Dual Dual I ↔ Dual II Dual I

NICAM

Stereo

Mono Mono Automatic

change

Stereo Mono ↔ Stereo

Dual Mono

↔ Dual I

 Dual II Dual I

✎If the stereo signal is weak and an automatic switching, occurs, then switch to

the mono.

✎Only activated in stereo sound signal.

✎This function is available for all input sources.

Setup Menu

Language

Set the menu language.

✎Press or button to select menu language. (According to the different areas, ▲ ▼

some countries have only one language.)

Time

✎The current time will appear every time you press the button.INFO

■

Clock Set Year Month Day Hour Minute: Set the , , , , .

■

On Timer/Off Timer

✎Current time should be set first by .Clock Set

Repeat Once Everyday Mon~Fri: Set the timer to repeat by , , ,

Mon~Sat Sat~Sun Sun, , .

Select to turn of .Off Repeat

Hour Minute/ : Enter the hour and minute for the TV to turn on or off.

Contents: Select TV.

Channel: Select the channel to be played when the TV turns on

automatically.

Volume: Select the volume level when TV turns on automatically.

■

Sleep Timer

Automatically shuts off the TV after a preset period of time. ( , Off 30

min 60 min 90 min 120 min 150 min 180 min, , , , and )

✎To cancel , select .Sleep Timer Off

Melody

Set so that a melody plays when the TV is turned , , Off Low Medium

and .High

✎The does not play.Melody

- When no sound is output from the TV because the volume has been reduced to

minimum with the button.VOL –

- When the TV is turned off by function.Sleep Timer

Auto Power Off

The TV will be automatically turned off when no user operation is

received for 4 hours.

✎If the option is set to , the TV will stay on even if no Auto Power Off Off

operations are performed on the TV.

Channel Menu

Seeing Channels

Channel List

Select a channel in the , screen by All Channels Added Channels

pressing the

▲/▼ buttons, and pressing the ENTER

button. Then

you can watch the selected channel.

✎Using the remote control buttons with the Channel List

Channel Status Display icons

Icons Operations

A channel deleted.

Retuning Channels

Area

You can change the desired area.

Auto Store

(Depending on the country)

Scans for a channel automatically and stores in the TV.

Manual Store

Scans for a channel manually and stores in the TV.

✎According to channel source, may be supported.Manual Store

✎Programme Colour System Sound System Channel Search Store, , , , , : If there

is abnormal sound or no sound, reselect the sound standard required.

Channel List Option Menu

Set each channel using the menu options ( / ). Channel List Add Delete

Option menu items may differ depending on the channel status.

Set each channel using the menu options. Option menu Channel List

items may differ depending on the channel status.

■

Add / Delete: Delete or add a channel to display the channels you

want.

✎All deleted channels will be shown on the menu.All Channels

✎A “ ” beside the channel indicates the channel has been deleted.

✎The menu only appears for deleted channels.Add

Fine Tune

If the reception is clear, you do not have to fine tune the channel, as this

is done automatically during the search and store operation. If the signal

is weak or distorted, fine tune the channel manually.

✎Fine tuned channels that have been saved are marked with an asterisk “*” on the

right-hand side of the channel number in the channel banner.

✎This is available for analogue broadcasts only.

Picture Menu

Picture Mode

Select your preferred picture type.

■

Dynamic: Suitable for a bright room.

■

Standard: Suitable for a normal environment.

■

Movie: Suitable for watching movies in a dark room.

Backlight Contrast Brightness Sharpness / / / /

Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎In analogue , modes of the PAL system, the function is not TV AV Tint (G/R)

available.

✎When connecting a PC, you can only make changes to , , Backlight Contrast

Brightness Sharpness and .

✎Settings can be adjusted and stored for each external device connected to

the TV.

✎Lowering picture brightness reduces power consumption.

Picture Options

■

Colour Tone: Select the colour temperature.

✎Warm Dynamic will be deactivated when the picture mode is .

■

Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use mode 16:9

most of the time.

16:9: Sets the picture to 16:9 wide mode.

4:3: Sets the picture to basic (4:3) mode.

Zoom1/Zoom2: Zoom out 16:9 wide mode vertically to fit the screen

size.

✎Do not watch in 4:3 format for a long time. Traces of borders displayed on the

left, right and centre of the screen may cause image retention (screen burn)

which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when

HDMI(720p/1080i/1080p) signals are inputted.

Custom: Magnifies or shrinks 16:9 pictures vertically and/or

horizontally. A magnified or shrunk picture can be moved left, right,

up, and down.

✎NOTE

xDepending on the input source, the picture size options may vary.

xThe available items may differ depending on the selected mode.

xSettings can be adjusted and stored for each external device connected to an

input on the TV.

■

Digital Clean View Auto Low Medium High: ( / Off / / / ) If the

broadcast signal received by your TV is weak, you can activate the

Digital Clean View feature to reduce any static and ghosting that may

appear on the screen.

✎When the signal is weak, try other options until the best picture is displayed.

■

HDMI Black Level: Selects the black level on the screen to adjust the

screen depth.

✎Available only in mode (RGB signals).HDMI

■

Film Mode Auto : ( / Off) Sets the TV to automatically sense and

process film signals from all sources and adjust the picture for

optimum quality.

✎Available in TV mode, AV, COMPONENT (480i / 1080i) and HDMI (480i /

1080i).

■

Motion Lighting: Reduce power consumption by brightness control

adapted motion.

✎Only available in mode.Standard

Picture Reset

Resets your current picture mode to its default settings.

■

Reset Picture Mode: Returns all picture values in the currently.

Display Modes (HDMI/DVI Input)

Optimal resolution

4 series:1366 x 768@60Hz

Mode Resolution Horizontal Frequency (KHz) Vertical Frequency (Hz) Pixel Clock Frequency (MHz) Sync Polarity (H / V) 1366 x 768

IBM 720 x 400 31.469 70.087 28.322 -/+

MAC

640 x 480 35.000 66.667 30.240 -/-

832 x 624 49.726 74.551 57.284 -/-

1152 x 870 68.681 75.062 100.000 -/-

VESA DMT

640 x 480 31.469 59.940 25.175 -/-

640 x 480 37.861 72.809 31.500 -/-

640 x 480 37.500 75.000 31.500 -/-

800 x 600 37.879 60.317 40.000 +/+

800 x 600 48.077 72.188 50.000 +/+

800 x 600 46.875 75.000 49.500 +/+

1024 x 768 48.363 60.004 65.000 -/-

1024 x 768 56.476 70.069 75.000 -/-

1024 x 768 60.023 75.029 78.750 +/+

1152 x 864 67.500 75.000 108.000 +/+

1280 x 720 45.000 60.000 74.250 +/+

1280 x 800 49.702 59.810 83.500 -/+

1280 x 1024 63.981 60.020 108.000 +/+

1280 x 1024 79.976 75.025 135.000 +/+

1366 x 768 47.712 59.790 85.500 +/+

1440 x 900 55.935 59.887 106.500 -/+

1600 x 900RB 60.000 60.000 108.000 +/+

1680 x 1050 65.290 59.954 146.250 -/+

1920 x 1080 67.500 60.000 148.500 +/+

Installing batteries (Battery size: AAA)

✎NOTE

xUse the remote control within 7m from TV.

xBright light may affect the performance of the remote control. Avoid using nearby special fluorescent light or neon signs.

xThe Colour and shape may vary depending on the model.

Alternately select Teletext ON, Double, Mix or OFF. Returns to the previous channel.

Press to directly access to channels.

Turns the TV on and off.

Use these buttons in a specific feature.

E-MANUAL: Not available.

PIC SIZE: Selects the picture size.

SLEEP: Automatically shuts off the TV at a preset time.

Cuts off the sound temporarily.

Turns the on or off.Sports Mode

Displays the channel list on the screen.

Displays information on the TV screen.

Quickly select frequently used functions.

Selects the on-screen menu items and changes the

values seen on the menu.

Exit the menu.

Returns to the previous menu.

Displays and selects the available video

sources.

Use these buttons according to the direction on

screen.

Changes channels.

Displays the main on-screen menu.

Views the .Media Play

Adjusts the volume.

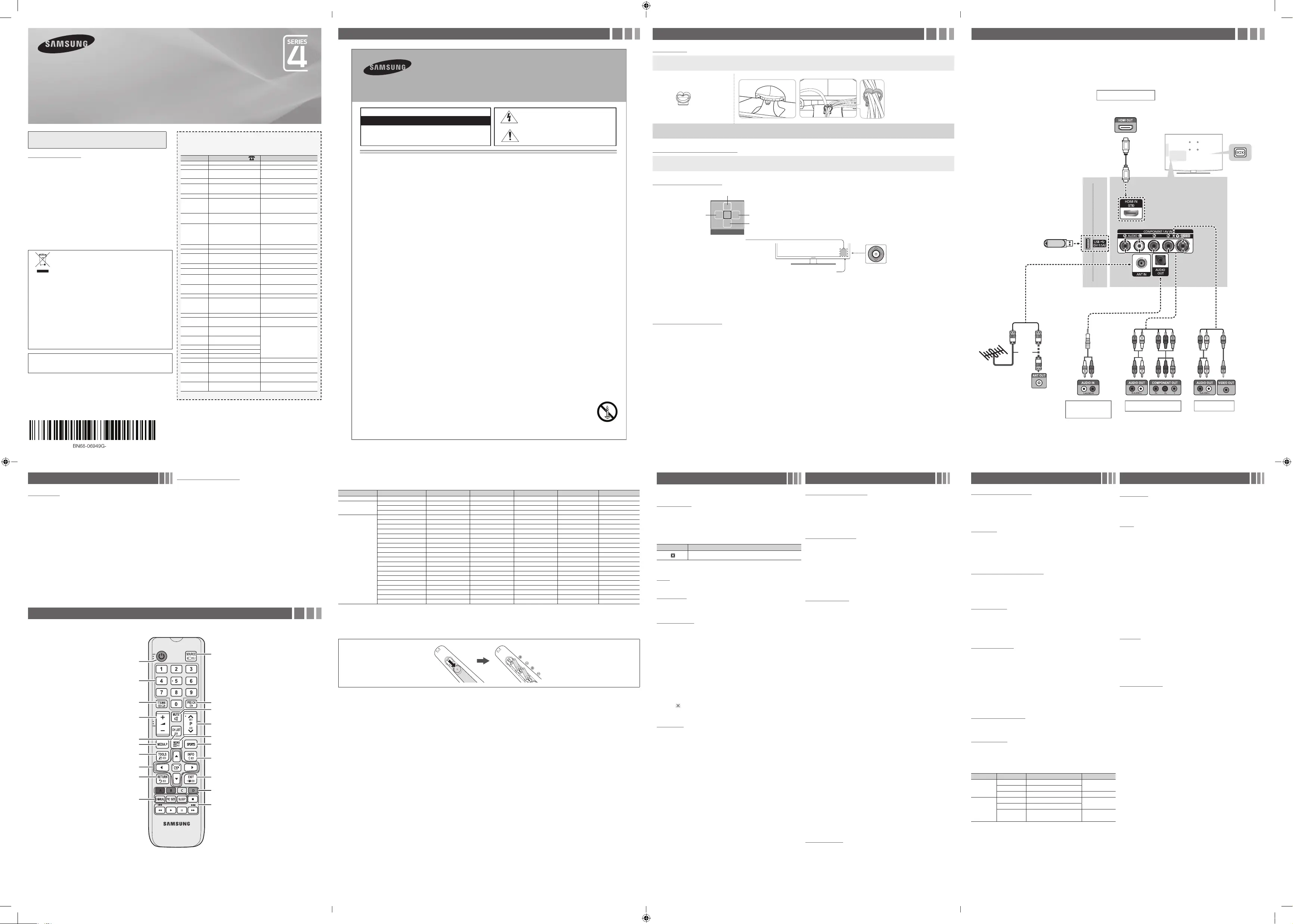

LED TV

user manual

Cable

VHF/UHF Antenna

- 2 -- 1 -

- 6 -- 5 -

- 3 -

- 7 -

- 4 -

- 8 -

[UJ4003-XD]BN68-06949G-00ENG.indb 1 2015-04-02 �� 1:02:46

Support Menu

Using the Media Play

Enjoy photos, music and/or movie files saved on a USB

Mass Storage Class (MSC) device.

Connecting a USB Device

1. Turn on your TV.

2. Connect a USB device containing photo, music and/or movie files to

the jack on the side of the TV.USB

3. Media PlayWhen USB is connected to the TV, you can select .

✎The maximum displayed number of partition is 4.

Using the Media Play Menu

1. Press the MENU button. Press the ▲ or ▼ button to select , Support

then press the ENTER

button.

2. Press the ▲ or ▼ button to select , then press the Media Play (USB)

ENTER

button.

3. Press the ◄ or ► button to select an icon ( , , ), Videos Music Photos

then press the ENTER

button.

✎It might not work properly with unlicenced multimedia files.

✎If you want to view detailed information of the file being played, press TOOLS

button in the file list, and then select .Information

✎Need-to-Know List before using Media Play (USB)

• Supported file systems are FAT and NTFS.

• Certain types of USB Digital camera and audio devices may not

be compatible with this TV.

• Media Play only supports USB Mass Storage Class (MSC)

devices. MSC is a Mass Storage Class Bulk-Only Transport

device. Examples of MSC are Thumb drives and Flash Card

Readers. Devices should be connected directly to the TV’s USB

port. (USB HDD is not supported.) Does not support smart

devices connected in MTP or PTP protocol.

• Before connecting your device to the TV, please back up your files

to prevent them from damage or loss of data. SAMSUNG is not

responsible for any data file damage or data loss.

• A USB device that requires high power may not be supported.

(more than 0.5A)

• Do not disconnect the USB device while it is loading.

• The higher the resolution of the image, the longer it takes to

display on the screen.

• The maximum supported JPEG resolution is 15360 x 8640 pixels.

• If a file is corrupted or the TV does not support the file type, the “Not

Supported File Format” message appears.

• If a USB extension cable is used, the USB device may not be

recognized or the files on the device may not be read.

• The TV cannot play MP3 files with DRM that have been

downloaded from a for-pay site. Digital Rights Management

(DRM) is a technology that supports the creation, distribution, and

management of digital content in an integrated and comprehensive

way, including protecting the rights and interests of content

providers, preventing illegal copying of contents, and managing

billings and settlements.

• PTP device is not supported.

• If an over-power warning message is displayed while you are

connecting or using a USB device, the device may not be

recognized or may malfunction.

• The power-saving mode of some external hard disk drives may be

released automatically when your connect them to the TV.

• If a USB device connected to the TV is not recognized, the list of

files on the device is corrupted, or a file in the list is not played,

connect the USB device to a PC, format the device, and check

the connection.

• If a file you deleted from the PC is still found when you run Media

Play, use the “Empty the Recycle Bin” function on the PC to

permanently delete the file.

• Photos only supports sequential jpeg format.

• The scene search and thumbnail functions are not supported in

the .Videos

• If the number of files and folders saved on a USB storage device is

approximately over 4000, the files and folders may not appear and

some folders may not be opened.

• The maximum displayed number of files, including sub folders, in

one folder of USB storage device is 1000.

• The media may not be playing smoothly when using the device

higher than USB 2.0.

✎The maximum displayed number of partition is 4.

• The file name only works in supported menu language. The other

language is not displayed properly.

■

Videos

1. Press the ◄ or ► button to select , then press the Videos ENTER

button in the menu.Media Play

2. Press the ◄/►/▲/▼ buttons to select the desired video in the file list.

3. Press the ENTER

button or (Play) button.

- The selected file is displayed on the top with its playing time.

- If video time information is unknown, playing time and the progress bar are not

displayed.

- During video playback, you can search using the and button.◄ ►

- You can use ( ) (REW) and ( ) (FF) buttons during playback.

✎In this mode, you can play movie clips contained in a game, but you cannot play

the game itself.

MEDIA.P

ySupported Subtitle Formats

- External

Name File extension

MPEG-4 timed text .ttxt

SAMI .smi

SubRip .srt

SubViewer .sub

Micro DVD .sub or .txt

SubStation Alpha .ssa

Advanced SubStation Alpha .ass

- Internal

Name Container Format

Xsub Picture FormatAVI

SubStation Alpha MKV Text Format

Advanced SubStation Alpha MKV Text Format

SubRip MKV Text Format

MPEG-4 Timed text MP4 Text Format

ySupported Video Formats

File

Extension Container Video Codec Resolution Frame

rate(fps) Bit rate(Mbps) Audio Codec

*.mp4 MP4

DivX 3.11/4.12/5.x/6.0 1920x1080 6~30 20Mbps

MP3 / ADPCM /

AAC

H.264 1920x1080 6~30 20Mbps

VC-1 1920x1080 6~30 20Mbps

MJPEG 640x480 6~30 10Mbps

*.avi

*.mkv

AVI

MKV

DivX 3.11/4.12/5.x/6.0 1920x1080 6~30 20Mbps

MP3 / AC3 /

LPCM / ADPCM

/ DTS

MPEG 1/2/4 1920x1080 6~30 20Mbps

H.264 1920x1080 6~30 20Mbps

MJPEG 640x480 6~30 10Mbps

*.asf

*.wmv ASF

DivX 3.11/4.12/5.x/6.0 1920x1080 6~30 20Mbps MP3 / AC3 /

LPCM /ADPCM /

WMA / WMA Pro

MPEG 1/2/4 1920x1080 6~30 20Mbps

H.264 1920x1080 6~30 20Mbps

*.ts

*.trp

*.tp

MPEG2-TS 1920x1080 6~30 20Mbps AC3 / AAC /

MP3 / DD+

H. 264 1920x1080 6~30 20Mbps

*.dat

*.mpg

*.mpeg

*.vob

MPEG1 1920x1080 6~30 20Mbps

AC3 / MPEG /

LPCM / AAC

MPEG2 1920x1080 6~30 20Mbps

H. 264 1920x1080 6~30 20Mbps

*.3gp 3GPP MPEG 1/2/4 1920x1080 6~30 20Mbps MP3

H.264 1920x1080 6~30 20Mbps

*.flv flash formats H.264 1920x1080 6~30 20Mbps MP3

Sorenson H.263 1920x1080 6~30 20Mbps

Other Restrictions

yVideo content will not play, or not play correctly, if there is an error in the

content or the container.

ySound or video may not work if the contents have a standard bit rate/

frame rate above the compatible Frame/sec listed in the table above.

yIf the Index Table is in error, the Seek (Jump) function is not supported.

yThe menu may take longer to appear if the video’s bit rate exceeds

10Mbps.

yVideo content can not be played, if there are many contents in one file.

Video Decoder

Supports up to H.264, Level 4.1

H.264 FMO / ASO / RS, VC1 SP / MP / AP L4 and AVCHD are not supported.

MPEG4 SP, ASP :

– : 60 frame maxBelow 1280 x 720

– : 30 frame maxAbove 1280 x 720

H.263 is not supported.

GMC is not support.

Audio Decoder

Supports up to WMA7, 8, 9 STD, 9 PRO, 10 PRO

WMA 9 PRO and WMA 10 PRO support 5.1 channel. (LBR mode of WMA Pro is not

supported)

WMA Lossless is not supported.

■

Music

1. Press the ◄ or ► button to select , then press the Music ENTER

button in the menu.Media Play

2. Press the ◄/►/▲/▼ buttons to select the desired Music in the file list.

3. Press the ENTER

button or (Play) button.

✎During music playback, you can search using the and button.◄ ►

✎

(REW) and (FF) buttons do not function during play.

✎Only displays the files with MP3 file extension. Other file extensions are not

displayed, even if they are saved on the same USB device.

✎If the need to change - when playing MP3, then exit , adjust Equalizer Media Play

the in the menu. (An over-modulated MP3 file may cause a sound Equalizer Sound

problem.)

■

Photos

1. Press the ◄ or ► button to select , then press the Photos ENTER

button in the menu.Media Play

2. Press the ◄/►/▲/▼ buttons to select the desired photo in the file list.

3. Press the ENTER

button or (Play) button.

✎NOTE

xWhile a photo list is displayed, press the (Play) / ENTER

button on the remote

control to start the slide show.

xAll files in the file list section will be displayed in the slide show.

xDuring the slide show, files are displayed in order.

xDuring the slide show, you can adjust the slide show speed using ( ) (REW) or (

) (FF) button.

xYou can move to other file using or button.◄ ►

✎Press button and select . Music files can be TOOLS Background Music

automatically played during the Slide Show if the is set to .Background Music On

✎The in cannot be changed until the BGM has finished Mode Background Music

ySupported Photo Formats

Image Photo Resolution

JPEG Base-line 15360 x 8704

Progressive 1024 x 768

Other Restrictions

CMYK, YCCK Colour space JPEG are not supported.

■

Playing Multiple Files

Playing selected video/music/photo files

1. Press the Yellow button in the file list to select the desired file.

2. Repeat the above operation to select multiple files.

✎NOTE

xThe

mark appears to the left of the selected files.

xTo cancel a selection, press the Yellow button again.

xTo deselect all selected files, press the button and select .TOOLS Deselect All

■

Playing the video/music/photo file group

While a file list is displayed, move to any file in desired group.

■

Media Play - Additional Functions

Videos Music Photos Play Option menus/ /

When playing a file, press the button.TOOLS

Category Operation Videos Music Photos

Title

You can move the other file directly.

Repeat Mode

You can play movie and music files repeatedly.

c c

Picture Size

You can adjust the picture size to your preference.

Picture Mode

You can adjust the picture setting.

c c

Sound Mode

You can adjust the sound setting.

c c

Subtitle

Settings

You can play the video with Subtitles. This

function only works if the subtitles are the same

file name as the video.

Audio language

You can change the audio language if the video

has more than one language.

Stop Slide

Show Start /

Slide Show

You can start or stop a Slide Show.

Slide Show

Speed

You can select the slide show speed during the

slide show.

Background

Music

You can set and select background music

when watching a Slide Show.

Zoom

You can zoom into images in full screen mode.

Rotate

You can rotate images in full screen mode.

Information

You can see detailed information about the played file.

c c c

Using the Sports Mode

Sports Mode

This mode provides optimised condition for watching sports games.

: Pause playback and dived the picture into 9 parts. Select a part Zoom

to zoom it in. Press this button again to resume.

✎When is , the picture and sound modes are set to Sports Mode On Stadium

automatically.

✎If you turn the TV off while watching , the will be Sports Mode Sports Mode

disable.

✎Mode name may vary depending on nations. , , Cricket Mode Soccer Mode

Sports Mode.

Game Mode

Game Mode On (Off / ):When you have connected a game console such

as PlayStation™ or Xbox™ to the TV, you can enjoy a more realistic

gaming experience if you set on.Game Mode

yPrecautions and limitations for Game Mode

- Before disconnecting a game console and connecting another external device, set

Game Mode to Off.

- If you display the TV menu in , the screen shakes slightly.Game Mode

- Game Mode TV is not available when you’ve set the input source to .

- Set to only after connecting a game console. If you turn Game Game Mode On

Mode on before you have attached the game console, you may notice reduced

picture quality.

- If is : is set to and is Game Mode On Picture Mode Game Mode Sound Mode

set to .Game Mode

Software Upgrade

Software Upgrade can be performed by downloading the latest firmware

from “www.samsung.com” to a USB memory device.

Changing the Use Mode

Select the suitable for your place. We strongly recommend you Use Mode

select .Home Use

yHome Use Home Use: is the default setting.

yStore Demo Store Demo: is for retail environments only. If you select

Store Demo, some functions will not work, and the picture settings will

be reset every 5 minutes.

DivX® Video On Demand

Shows the registration code authorized for the TV. If you connect to

the DivX web site and register with 10-digit registration code, you can

download the VOD activation file. Once you play it using , the Media Play

registration is completed.

✎For more information on DivX® VOD, visit http://vod.divx.com.

HD Connection Guide

You can read a guide to connect external devices for HD sources.

Contact Samsung

View this information when your TV does not work properly or when you

want to upgrade the software. You can find information regarding our call

centres, and how to download products and software.

Other Information

Installing the Wall Mount

The wall mount kit (sold separately) allows you to mount the TV on

the wall. For detailed information on installing the wall mount, see the

instructions provided with the wall mount. Contact a technician for

assistance when installing the wall mount bracket. We do not advice you

to do it yourself.

Samsung Electronics is not responsible for any damage to the product

or injury to yourself or others if you select to install the TV on your own.

Wall Mount Kit Specifications (VESA)

✎The wall mount kit is not supplied, but sold separately.

✎Install your wall mount on a solid wall perpendicular to the floor. When attaching

to other building materials, please contact your nearest dealer. If you install the

TV on a ceiling or slanted wall, it may fall and result in severe personal injury.

✎NOTE

• Standard dimensions for wall mount kits are shown in the table

below.

• When purchasing our wall mount kit, a detailed installation manual

and all parts necessary for assembly are provided.

• Do not use screws that do not comply with the VESA standard

screw specifications.

• Do not use screws longer than the standard dimension, as they

may cause damage to the inside of the TV set.

• For wall mounts that do not comply with the VESA standard screw

specifications, the length of the screws may differ depending on

the wall mount specifications.

• Do not fasten the screws too firmly. This may damage the product

or cause the product to fall, leading to personal injury. Samsung is

not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when

a non-VESA or non-specified wall mount is used or the consumer

fails to follow the product installation instructions.

• Do not mount the TV at more than a 15 degree tilt.

• Always have two people mount the TV on a wall.

Product

Family Models VESA scew hole specs

(A * B) in millimeters

Standard

Screw Quantity

LED-TV M4UA20J4003 75 x 75 4

Do not install your Wall Mount

Kit while your TV is turned on.

It may result in personal injury

due to electric shock.

Securing the TV to the Wall

Caution: Pulling, pushing, or climbing onto the TV may cause

the TV to fall. In particular, ensure that your children do not hang

over or destabilize the TV; doing so may cause the TV to tip over,

resulting in serious injuries or death. Follow all safety precautions

provided on the included Safety Flyer. For added stability, install

the anti-fall device for safety purposes, as follows.

To prevent the TV from falling

✎Since the necessary clamps, screws, and string are not supplied, please

purchase these additionally.

1. Put the screws into the clamps and firmly fasten them onto the wall.

Confirm that the screws have been firmly installed onto the wall.

✎You may need additional material such as an anchor depending on the type of

wall.

✎Since the necessary clamps, screws, and string are not supplied, please

purchase these additionally.

2. Remove the screws from the back Centre of the TV, put the screws

into the clamps, and then fasten the screws onto the TV again.

✎Screws may not be supplied with the product. In this case, please purchase the

screws of the following specifications.

3. Connect the clamps fixed onto the TV and the clamps fixed onto the

wall with a strong cable and then tie the string tightly.

✎Note

xInstall the TV near to the wall so that it does not fall backwards.

xIt is safe to connect the string so that the clamps fixed on the wall are equal to

or lower than the clamps fixed on the TV.

xUntie the string before moving the TV.

4. Verify all connections are properly secured. Periodically check

connections for any sign of fatigue for failure. If you have any doubt

about the security of your connections, contact a professional

installer.

Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used

to physically fix the system when using it in a public place. Refer to the

manual provided with the Kensington Lock for additional information on

proper use.

✎Please find a “

” icon on the rear of the TV. The Kensington slot is beside the

“

” icon.

✎The position and colour may differ depending on the model.

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object

such as desk or chair.

2. Slide the end of the cable with the lock attached through the looped

end of the Kensington lock cable.

3. Insert the locking device into the Kensington slot on the product.

4. Lock the lock.

✎These are general instructions. For exact instructions, see the User manual

supplied with the locking device.

✎The locking device has to be purchased separately.

✎The location of the Kensington slot may be different depending on the TV model.

Troubleshooting

If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www.samsung.com,” then click

on Support, or contact the call centre listed on the back-cover of this manual.

Problem Possible Solution

Picture Quality

The TV image does not look as good as it

did in the store.

yIf you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI or Component cables to deliver HD

(high definition) picture quality.

yAntenna connection: Try HD stations after performing Auto tuning.

✎Many HD channels are up scaled from SD(Standard Definition) contents.

yAdjust the Cable/Set top box video output resolution to 1080i or 720p.

yMake sure you are watching the TV at the minimum recommended distance based on the size and definition of the signal.

The picture is distorted: macroblock error,

small block, dots, pixelization

yCompression of video contents may cause picture distortion especially in fast moving pictures such as sports and action

movies.

yLow signal level or bad quality can cause picture distortion. This is not a TV issue.

yMobile phones used close to the TV (cca up to 1m) may cause noise in picture on analogue and digital TV.

Colour is wrong or missing.

yIf you’re using a component connection, make sure the component cables are connected to the correct jacks. Incorrect or

loose connections may cause colour problems or a blank screen.

There is poor colour or brightness.

yAdjust the options in the TV menu. (go to / / / )Picture Picture Mode Colour Brightness Sharpness

yTry resetting the picture to view the default picture settings. (go to - - )MENU Picture Picture Reset

There is a dotted line on the edge of the

screen.

yIf the picture size is set to , change it to .Screen Fit 16:9

yChange cable/satellite box resolution.

The picture is black and white.

yIf you are using an AV composite input, connect the video cable (yellow) to the Green jack of component input 1 on the TV.

When changing channels, the picture

freezes or is distorted or delayed.

yIf connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until the cable box

reboots. It may take up to 20 minutes.

ySet the output resolution of the cable box to 1080i or 720p.

Sound Quality

There is no sound or the sound is too low at

maximum volume.

yPlease check the volume of external device connected to your TV.

The picture is good but there is no sound.

ySet the option to in the sound menu.Speaker Select TV Speaker

yIf you are using an external device, make sure the audio cables are connected to the correct audio input jacks on the TV.

yIf you are using an external device, check the device’s audio output option (ex. you may need to change your cable box’s

audio option to HDMI when you have a HDMI connected to your TV).

yIf you are using a HDMI cable, a separate audio cable is required.

yIf your TV has a headphone jack, make sure there is nothing plugged into it.

The speakers are making an inappropriate

noise.

yCheck the cable connections. Make sure a video cable is not connected to an audio input.

yFor antenna or cable connections, check the signal strength. Low signal level may cause sound distortion.

No Picture, No Video

The TV will not turn on.

yMake sure the AC power cord is securely plugged in to the wall outlet and the TV.

yMake sure the wall outlet is working.

yTry pressing the button on the TV to make sure the problem is not the remote. If the TV turns on, refer to “The POWER

remote control does not work” below.

The TV turns off automatically.

yEnsure the is set to in the menu. Sleep Timer Off Time

yIf your PC is connected to the TV, check your PC power settings.

yMake sure the AC power cord is plugged in securely to the wall outlet and the TV.

yWhen watching TV from an antenna or cable connection, the TV will turn off after 10 ~ 15 minutes if there is no signal.

There is no picture/video.

yCheck cable connections (remove and reconnect all cables connected to the TV and external devices).

ySet your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the connections to the TV input.

For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the TV.

yMake sure your connected devices are powered on.

yBe sure to select the TV’s correct source by pressing the button on the TV remote.SOURCE

Problem Possible Solution

RF(Cable/Antenna) Connection

The TV is not receiving all channels.

yMake sure the Antenna cable is connected securely.

yPlease try (Plug & Play) to add available channels to the channel list. Go to - - (Plug & Play) and Setup MENU System Setup

wait for all available channels to be stored.

yVerify the Antenna is positioned correctly.

The picture is distorted: macroblock error,

small block, dots, pixelization

yCompression of video contents may cause picture distortion, especially on fast moving pictures such as sports and action

movies.

yA low signal can cause picture distortion. This is not a TV issue.

PC Connection

A “ ” message Mode Not Supported

appears.

ySet your PC’s output resolution so it matches the resolutions supported by the TV.

The video is OK but there is no audio.

yIf you are using a HDMI connection, check the audio output setting on your PC.

Others

The picture will not display in full screen.

yHD channels will have black bars on either side of the screen when displaying up scaled SD (4:3) contents.

yBlack bars on the top and bottom will appear during movies that have aspect ratios different from your TV.

yAdjust the picture size options on your external device or TV to full screen.

The remote control does not work.

yReplace the remote control batteries with the poles (+/–) in the right direction.

yClean the transmission window located on the top of the remote control.

yTry pointing the remote directly at the TV from 5~6 feet away.

The cable/set top box remote control does

not turn the TV on or off, or adjust the

volume.

yProgramme the Cable/Set top box remote control to operate the TV. Refer to the Cable/Set top box user manual for the

SAMSUNG TV code.

A “ ” message Mode Not Supported

appears.

yCheck the supported resolution of the TV, and adjust the external device’s output resolution accordingly. Refer to resolution

settings in this manual.

There is a plastic smell from the TV.

yThis smell is normal and will dissipate over time.

TV is tilted to the right or left side.

yRemove the stand base from the TV and reassemble it.

There are difficulties assembling the stand

base.

yMake sure the TV is placed on a flat surface. It is necessary to use magnetized screw driver if you cannot remove the screws

from the TV.

The menu is grey out Broadcasting

(unavailable).

yThe menu is only available when the TV source is selected. Broadcasting

Your settings are lost after 5 minutes or

every time the TV is turned off.

yIf the TV is in the mode, it will reset audio and picture settings every 5 minutes. If you want to change the settings Store Demo

from mode to . Store Demo Home Use

You have intermittent loss of audio or video.

yCheck the cable connections and reconnect them.

yLoss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables are flexible enough for long

term use. If mounting the TV to the wall, we recommend using cables with 90 degree connectors.

You see small particles when you look

closely at the edge of the frame of the TV.

yThis is part of the product’s design and is not a defect.

There are recurrent picture/sound issues.

yCheck and change the signal/source.

A reaction may occur between the rubber

cushion pads on the base stand and the

top finish of some furniture.

yTo prevent this, use felt pads on any surface of the TV that comes in direct contact with furniture.

✎This TFT LED panel uses a panel consisting of sub pixels which require sophisticated technology to produce. However, there may be a few bright or dark pixels on the screen.

These pixels will have no impact on the performance of the product.

✎You can keep your TV as optimum condition upgrading the latest firmware on web site (www.samsung.com Support) by USB.→

Storage and Maintenance

✎If you remove the attached sticker on the TV screen, clean the residues and then watch TV.

Do not spray water directly onto the product. Any liquid that goes into the

product may cause a failure, fire, or electric shock.

Clean the product with a soft cloth dampened with in a small amount of water.

Do not use a flammable liquid (e.g. benzene, thinners) or a cleaning agent.

Licence

DivX Certified® to play DivX® video up to HD 1080p, including premium content.

This DivX Certified® device has passed rigorous testing to ensure it plays DivX® video.

To play purchased DivX movies, first register your device at vod.divx.com. Find your registration code in the DivX VOD section of your device setup menu.

DivX Certified® to play DivX® video up to HD 720p, including premium content.

DivX®, DivX Certified® and associated logos are trademarks of DivX, LLC and are used under license.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274.

Manufactured under license from Dolby Laboratories.

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, & DTS and the Symbol

For DTS patents, see http://patents.dts.com. Manufactured under license from DTS Licensing Limited. DTS, the Symbol, DTS in combination with

the Symbol, and DTS Studio Sound are registered trademarks or trademarks of DTS, Inc. in the United States and/or other countries. © DTS, Inc. All

Rights Reserved.

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in

the United States and other countries.

Open Source License Notice

Open Source used in this product can be found on the following webpage. (http://opensource.samsung.com)

Open Source License Notice is written only English.

Specifications

Environmental Considerations

Operating Temperature

Operating Humidity

Storage Temperature

Storage Humidity

10°C to 40°C (50°F to 104°F)

10% to 80%, non-condensing

-20°C to 45°C (-4°F to 113°F)

5% to 95%, non-condensing

Model Name UA20J4003

Display Resolution 1366 x 768

Screen Size 50 cm

Sound Output 5W x 2

Dimensions (W x H x D)

Body

With stand

46.8 x 29.1 x 4.6 cm

46.8 x 32.6 x 16.3 cm

Weight

Without Stand

With stand

2.63 kg

2.81 kg

✎Design and specifications are subject to change without prior notice.

✎For information about the power required and more about power consumption, refer to the label attached to the product.

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation.

Failing to do so may result in fire or a problem with the product due to an increase in the internal temperature of the product.

✎When using a stand or wall-mount, use parts provided by Samsung Electronics only.

xIf you use parts provided by another manufacturer, it may result in a problem with the product or an injury due to the product falling.

✎The appearance may differ depending on the product.

✎Be careful when you contact the TV because some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

10 cm

Recommendation - Jordan Only

Hereby, Samsung Electronics, declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.

The original Declaration of Conformity may be found at http://www.samsung.com, go to Support > Search Product Support and enter the model name.

This equipment may be operated in Jordan.

- 10 -- 9 -

- 14-- 13 -

- 11 -

- 15 -

- 12 -

- 16 -

[UJ4003-XD]BN68-06949G-00ENG.indb 2 2015-04-02 �� 1:02:51
