Features
USB4 Male (Connect to a host computer)
Rocstor introduces the 6-in-1 USB4 adapter, providing a comprehensive solution for
video, data, power, and Ethernet needs. This adapter features an HDMI port
(supporting 8K/60Hz) for high-denition video transmission, along with 3 USB data
ports (2 USB-A 10G, 1 Type-C 10G) for ecient data transfer. Additionally, it oers a
2.5Gbps Ethernet port for seamless online surng. Furthermore, equipped with a
Type-C PD Charging port capable of delivering up to 100W power supply. Compatible
with USB4, Thunderbolt4, Thunderbolt3, and DP Alt mode supported Type-C hosts,
ensuring versatile compatibility across various systems.
Before attempting to use this unit, please check the packaging and make sure the
following items are contained in it:
• Main Unit x1
• User Manual
HDMI X1
• Supports max 8k/60Hz video output
• Supports High Dynamic Range(HDR10+)
• Supports multiple color formats:
RGB; YCbCr4:4:4; YCbCr4:2:2;YCbCr4:2:0;
• Supports 8/10/12 bit Color depth
• Supports HDCP2.3 and HDCP1.4R
Host Video Resolution
Support USB4&DSC8K/60Hz
Only support DP1.4 Alt mode（ ）Not support DSC 4K/60Hz
Only support DP1.2 Alt mode（ ）Not support DSC 4K/30Hz
Note: The above list is only for reference.
The actual output resolution is
determined by the computer, monitor
and the product
Upstream:
Downstream:
• Supports USB4 Specication with max 40Gbps bandwidth
• Compliant USB4 Gen3(40Gbps),USB4 Gen2(20Gbps) and backwards compatible
USB3.2&USB2.0
• Compliant DP1.4 alt mode with max 32.4Gbps
• Supports positive and negative connection
USB-A 10G X2
• Supports USB 3.2 Gen2 SuperSpeed
10Gbps per port
• One port(close to RJ45) supports max
5V/1.5A downstream charging，other ports
support max 900mA downstream charging
• Supports short-circuit, over-current,
over-voltage protection
• USB-C and 2 USB-A ports share max
2.4A(12W) downstream charging
RJ45 X1
• Supports 10M/100M/1000M/2.5G bandwidth
• Supports twisted pair crossover
detection and auto-correction
• Supports WOL(Wake-On-LAN), Full
Duplex ow(10M/100M/1G/2.5G Rate),
Auto-Negotiation
• Light indicates the state, no light when
no Internet connected, orange light
turns on when network connection is
established, green light ashes when
transmitting data.
USB-C 10G X1
• Supports USB 3.2 Gen2 SuperSpeed 10Gbps
• Supports max 5V/1.5A downstream charging
• Supports short-circuit, over-current,
over-voltage protection
Package Contents
Specication
Input
Output HDMI (8K/60Hz) x1
USB-C Gen 2 10G x1
USB-A Gen 2 10G x2
RJ45 (2.5G Ethernet) x1
Type-C PD Charging x1
USB-C Male x1
3 Years
Operating Temperature
Storage Humidity
Storage Temperature
Operating Humidity
0°C to 45°C (32°F to 113°F)
5% to 90 % RH (no condensation)
-10°C to 70°C (14°F to 158°F)
10% to 85% RH (no condensation)
Introduction
Environmental
Input / Output Connector
Certications FCC, CE
Regulatory Approvals
User Manual English Version
Accessory Adapter
Warranty
Limited Warranty
Operating Temperature
Size 6x1.2x0.7in - (142x30.5x18mm)
Mechanical
Weight 3.2lbs - (92.4g)
Power
100W (max 85W for host)Type-C PD Charging
®
USB4 to HDMI(8K/60Hz)/USB-AX2（10G）/
Type-C Data （10G）/RJ45/Type-C PD Charging Adapter
User Manual
Y10A316-S1
Congratulations
Thank you for purchasing this premium Rocstor product. For optimum performance and
safety, please read these instructions carefully before connecting, operating or using this
product. Please keep this manual for future reference.
Technical Support / RMA
Hours: 9:00 am - 5:00 pm PST
Monday to Friday (except holidays)
Tell: +1 (818) 727-7000
( )National and international
Fax: +1 (818) 875-0002
Email: support@rocstor.com
Support
Warranty Information
Technical support is available to all the registered users of Rocstor products.

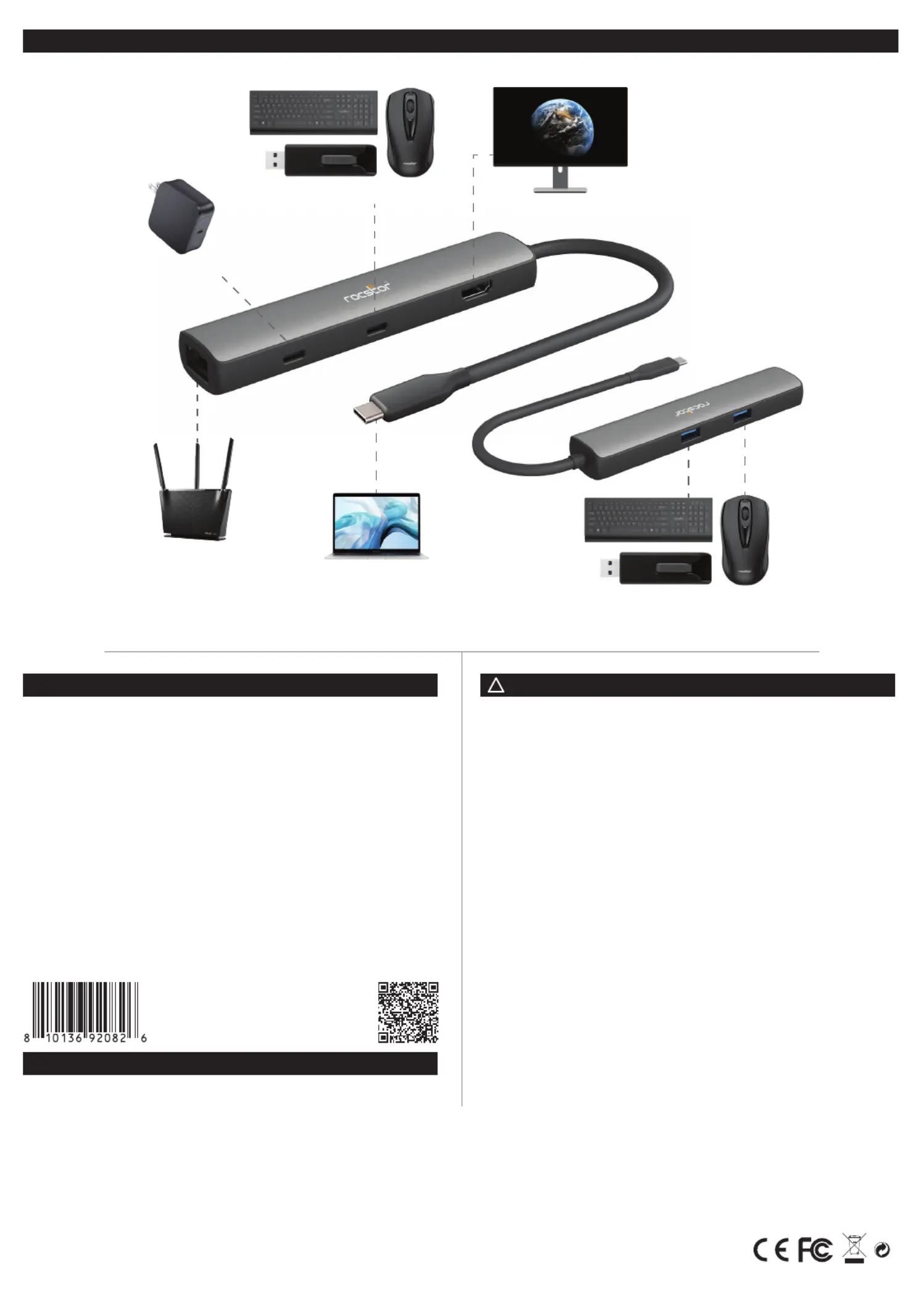

Connection Diagram
Safety Information:
©2024 Rocstor, Inc. All rights reserved. Rocstor is registered trademark of Rocstor, Inc.
Apple®, the Apple logo, Mac®, MacBook®, MacBook Pro®, MacBook Air®, iPad®, iPad Air®, iPad mini®,
iPad Air®, iPhone®, MacOS® are registered trademarks of Apple, Inc. Google® and Chromebook™ are
registered trademarks of Google, LLC. Microsoft® is registered trademarks of Microsoft corporation. Al
other product names and logos mentioned herein may be trademarks of their respective companies.
Thunderbolt is a trademark of Intel Corporation or its subsidiaries. USB Type-C® and USB-C® are
registered trademark of USB Implementers Forum. The terms HDMI, HDMI High-Denition
Multimedia Interface, HDMI Trade dress and the HDMI Logos are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. Feature and specication are subject to change without notice.
All trademarks and registered trademarks are the property of their respective. All rights reserved.
WARNING:
Please follow these safety instructions. Failure to do so may result damages or injury.
It is normal that the device adapter becomes very warm during use.
Please note that:
Continuous contact with warm surfaces for extended time may cause discomfort or injury. In order to
reduce the possibility of overheating or heat-related injuries, always allow needed ventilation around
the device and use care when handling it. Avoid instances where your skin is in extended contact
with the device when plugged into the host computer. It is not recommended to sleep with the
device when plugged into a host computer. Avoid placing the device under a pillow, blanket, or your
body when connected to a host computer. If you have a medical condition that aects your ability to
detect heat against the body, extra care should be used. Never use the device in locations with water,
such as a sink, bathtub, or shower stall. Never connect or disconnect the device with wet hands.
!
Limitation of Liability
In no event shall the liability of Rocstor, Inc. and Rocstor (or their ocers, directors, employees or
agents) for any damages (whether direct or indirect, special, punitive, incidental, consequential, or
otherwise), loss of prots, loss of business, or any pecuniary loss, arising out of or related to the use of
the product exceed the actual price paid for the product. Some states do not allow the exclusion or
limitation of incidental or consequential damages. If such laws apply, the limitations or exclusions
contained in this statement may not apply to you.
Warranty Information
This product is backed by a (3) three-year warranty. Rocstor warrants its products against defects in
materials and workmanship for the periods noted, following the initial date of purchase. During this
period, the products may be returned for repair, or replacement with equivalent products at our
discretion. The warranty covers parts and labor costs only. Rocstor does not warrant its products from
defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Host Computer with
USB4 or
Thunderbolt 3
Ethernet Router
Max 2.5Gbps
USB-A Devices Max 10Gbps
HDMI Display
Max 8K/60Hz
PD Adapter 100W
USB-C Devices Max 10Gbps
Max 1.5A
