Installation
& Operation Manual
Flat Top Bottle Cooler
BC Series
Form No. Z2295
Rev. 07.06.2017
C
US

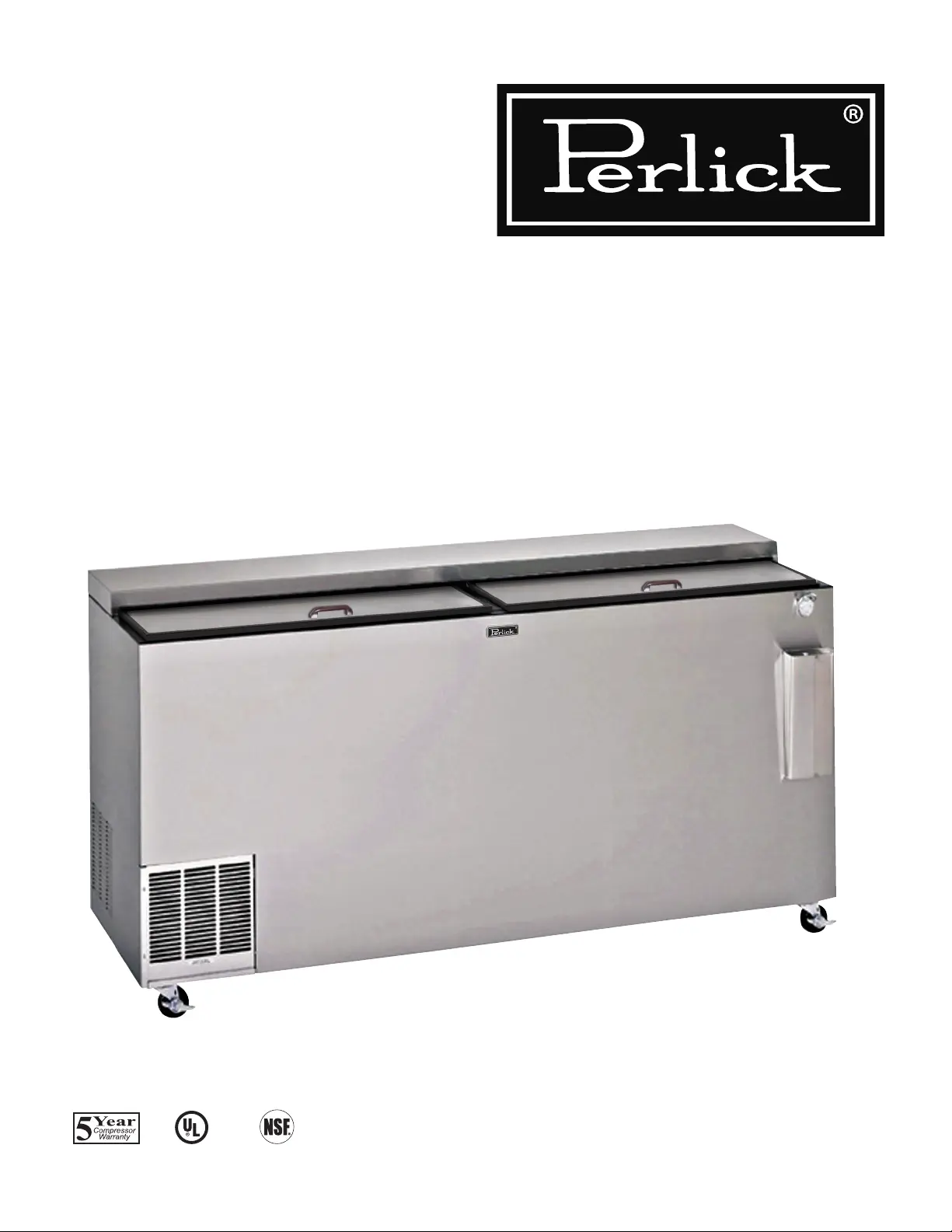

BC72 shown
Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 2
MODEL NUMBERS BC24 BC36 BC48/BC48LT BC60/BC60LT BC72/BC72LT BC96
LENGTH (mm) 24” (610) 36” (915) 48” (1219) 60” (1524) 72” (1828) 96” (2438)
INTERIOR CU. FT. (m
3) 3.75 (0.10) 7.83 (0.22) 11.68 (0.33) 15.53 (0.44) 19.38 (0.55) 27.08 (0.77)
CASE CAPACITY (12 bottles) 5.5 9.75 17.2 21 28.3 41
CASE CAPACITY (12 cans) 7.0 16 25 30 36 58
CONDENSING UNIT H.P. 1/5 1/5 1/4 1/4 1/3 1/3
AMPS 3.2 3.0 5.2 7.0 6.9 7.6
SHIPPING WEIGHT Lbs. (kg.) 190 (86) 245 (111) 300 (136) 353 (160) 405 (184) 515 (235)
INTERIOR All models have stainless steel walls and oor.
EXTERIOR
Choice of black, stainless steel and all stainless.
Black Option: Front and ends are black vinyl coated steel, back and bottom are galvanized.
Stainless Steel Option: Front and ends are stainless steel, back and bottom are galvanized.
All Stainless Option: Front, ends, back and bottom are all stainless steel.
TEMPERATURE
(Approx. factory settings) 38ºF/Standard Model. 30ºF Low-Temp Model
DOORS (Siding) Stainless steel top and bottom pans. Die cast handle. Option locks.
ELECTRICAL 115V, 60Hz, 1 Phase. Furnished with 6 foot rubber plug-in cord (115V model only). Also available in 230V, 50Hz, 1 phase AC.
PLUMBING No drain required. Condensate evaporates automatically.
INSULATION 2 inch foamed-in-place polyurethane insulation.
REFRIGERATION R134a capillary tube/type with hermetric condensing unit. Pulls out for service and cleaning.
VENTILATION 2’ model is front vented, all other models require 2” clearance from wall on either left end or back of cabinet for proper air ow.
OPTIONAL ACCESSORIES
• Floor racks • Casters • Bottle opener and receiver • Interior light
• Bin dividers • Speed rails • Wine temperature (specify red or white)
• Interior light kits • Adjustable legs • Roller basket shelving • Door locks
JOB
AREA
ITEM NO.
MODEL NO.
BC24 SERIES
BC36 SERIES
BC48 SERIES
BC48LT SERIES
BC60 SERIES
BC60LT SERIES
BC72 SERIES
BC72LT SERIES
BC96 SERIES
C
US
BC72 shown
* BC36 Model Only
* Shown with optional opener and receiver.
BC24 shown
Flat Top Bottle Coolers Installation & Operation Manual
Printed in USA 3
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without prior notice.
TABLE OF CONTENTS
IMPORTANT!
Read and understand all information in this manual before attempting the installation.
All plumbing and electrical work must be performed by a qualied technician and
conform to all applicable state and local codes.
GENERAL INFORMATION
Warranty
To register your product, visit our web site at
www.perlick.com. Click on “Commercial”, then
“Service”. Click on the link “Warranty Registration
Form”. You must complete and submit this form
or the installation date will revert back to the ship
date.
Please record the purchase date and the dealer’s
name, address and telephone number below.
Model Number: ________________________
Serial Number: _________________________
Purchase Date: _______________________
Dealer Name & Address __________________
______________________________________
______________________________________
Phone Number__________________________
SAFETY
PLEASE READ all instructions completely
before attempting to install or operate the unit.
Take particular note of the DANGER, WARNING
an CAUTION information in the manual. The
information is important for the safe and ecient
installation, operation and care of your Perlick unit.
DANGER
Indicates a hazard that WILL
result in serious injury or
death if precautions are not followed.
W GARNIN
Indicates a hazard MAY
cause serious injury or
death if precautions are not followed.
CAU NTIO
Indicates a hazard where
minor injury or product
damage may occur if precautions are not
followed.
Introduction
This manual has been prepared to assist you
in the installation of your Bottle Cooler and to
acquaint you with its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, call Perlick at
1-800-777-7267 or your dealer who can provide
you with a list of qualied service agents. For
your own protection, never return merchandise
for credit without our approval.
We thank you for selecting a Perlick product
and assure you of our continuing interest in your
satisfaction.
Cabinet Specications ............................................................................................................................. 2
Installing
- Uncrating and Inspection...................................................................................................................... 4
- Plumbing 4 ..............................................................................................................................................
- Electrical ............................................................................................................................................... 4
- Adjusting Partitions 4 ...............................................................................................................................
- Installing Casters and Legs 4 ..................................................................................................................
- Placing the Cabinet 4 ..............................................................................................................................
- Sealing to the Floor 4 ..............................................................................................................................
Temperature Control 5 ................................................................................................................................
Cleaning the Cabinet 5 ...............................................................................................................................
Wiring Diagrams 7/8 ...................................................................................................................................
Replacement Parts 8/9 ...............................................................................................................................
