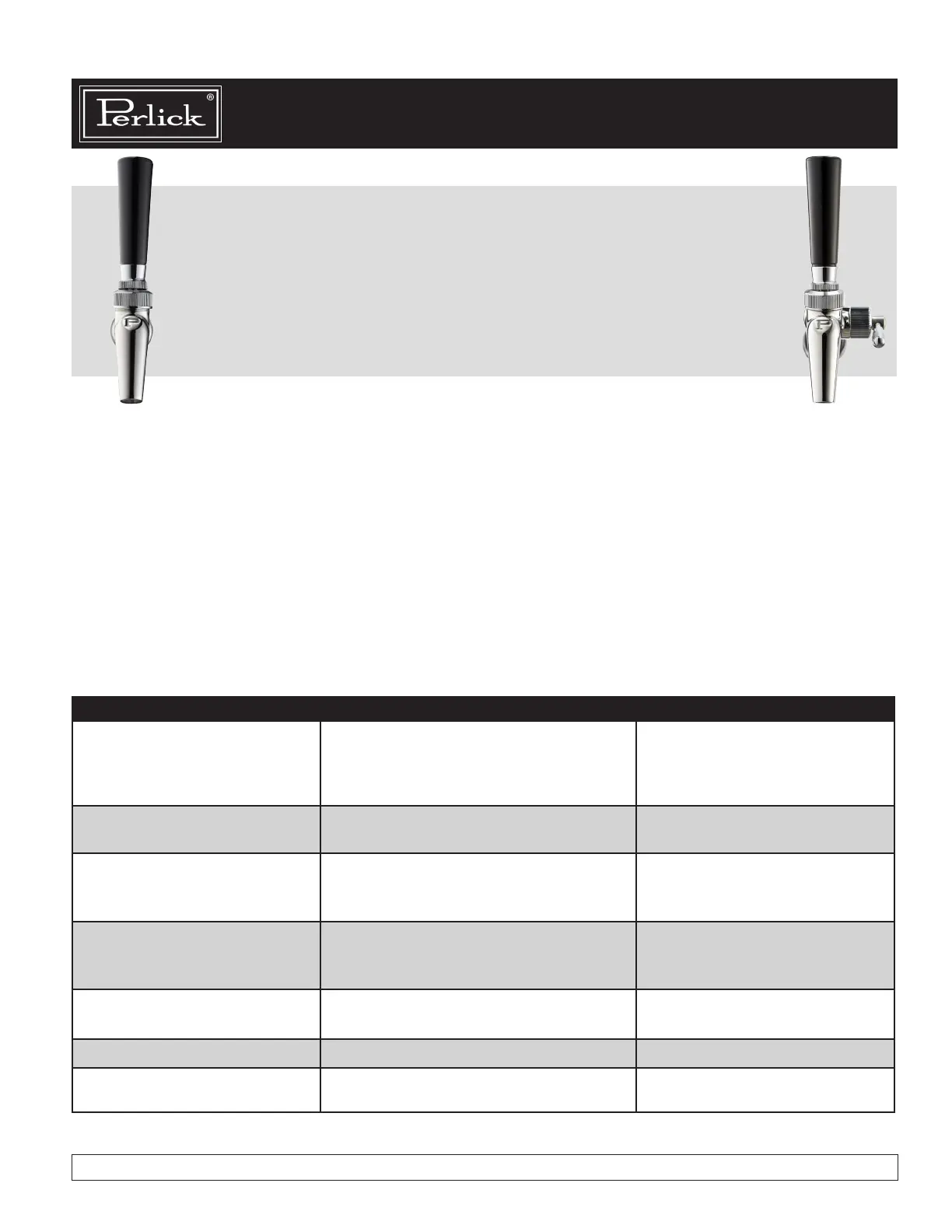

Perlick’s Forward Sealing Beer Faucets are unique in both appearance and
function. The revolutionary ball and oating O-ring design eliminates
the need for a valve shaft. Beer is not exposed to air so the handle lever
doesn’t stick, and there is no build up of mold and bacteria in the faucet body. The
polished interior produces a smooth ow with less foaming, ensuring a perfect
pour each and every time. Fewer internal parts means better reliability and fewer
service calls. This faucet will t all standard North American shanks.
Cleaning Instructions
Before using your new Perlick faucet, clean the faucet as you would for regular cleaning (see cleaning instructions below.)
This will ensure that the faucet is clear of any materials that may be present from the manufacturing process.
We recommend that the faucet be cleaned when the beer system is cleaned. Regular cleaning of the faucet is extremely
important. The faucet can be cleaned “in place” by simply pumping your cleaning solution through the beer system with the
beer faucet in the opened position (handle forward). There is no need to remove or disassemble the faucet! By leaving the
faucet installed, the cleaning solution will thoroughly clean all internal parts including the oating O-ring and its groove.
If your specic cleaning procedure requires removing the faucet from the dispensing head, soak the faucets in cleaning
solution for 10-15 minutes. Use a faucet brush inside the spout, then brush out from the back of the faucet (there is no need
to remove the handle assembly.) Rinse with clean water and install back on the dispensing head.
Symptom Possible Cause (see back for Parts diagram) Possible Solution
Faucet drips or leaks from
the spout
• Front Seat (7) is damaged or worn
• Handle Lever (5A or 5B) is damaged
• Bearing Cup (4) is not installed properly
• Bonnet is loose
• Replace Front Seat
• Replace Handle Lever
• Reinstall Bearing Cup
• Tighten Bonnet
Faucet leaks from ow control
lever
• Worn or damaged seal
• Loose cap
• Replace seals
• Tighten cap
Faucet leaks from bonnet O-ring (6) is not installed properly in •
O-ring groove
• O-ring (6) may be damaged
• Replace O-ring
Flow control handle lever does not
change ow rate
• Handle lever orientation incorrect Install faucet onto shank with •
handle lever orientated to front
of faucet (towards spout)
Faucet leaks at the shank Faucet not connected tightly•
• Bad Coupling Gasket (8)
• Tighten Coupling Nut
• Replace Coupling Gasket
Beer pours in a semi-circular shape CO2 may be low or turned o Check and adjust CO2 pressure• •
Faucet cannot be removed
from shank
• May not have been removed recently Pour hot water on the Coupling •
Nut on the shank to loosen it
Troubleshooting
Form No. 67952
Rev. 06.05.14
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS Assembly, Disassembly and Cleaning Instructions
FORWARD SEALING BEER FAUCETS
U.S. PATENT #8066257
650SS Flow Control630SS
Form No. 67952
Rev. 06.05.14
Follow these instructions if you need to take the faucet apart to replace worn parts.
Note: Anytime the Front Seat (I), O-ring (H) or Coupling Gasket(s) are removed, they should be replaced.
Always use OEM replacement parts.
TO DISASSEMBLE:
1. If faucet is USED, soak faucet in warm cleaning solution for 1-2 minutes to free up bonnet and handle jacket.
If the faucet is NEW, submerge the faucet in warm water for 5 seconds.
2. Unscrew and remove Jacket (1).
3. Unscrew and remove Compression Bonnet (2).
4. Remove Coupling Gasket (8) only if cut or worn.
5. To remove the Handle Lever Assembly (5A or 5B), lift it upward and push back.
6. To remove use a small screwdriver from the bonnet end of the faucet.Front Seat (7)
7. To remove use a small screwdriver from the bonnet end of the faucet.O-ring (6)
8. Inspect O-rings for wear or damage and replace as necessary.
9. To remove ow control lever, unscrew cap and pull out.
10. Remove ow control compensator from rear of faucet.
TO ASSEMBLE:
1. Re-install O-ring (6) into O-ring groove from bonnet end (use a small blunt screwdriver).
2. Re-install front into O-ring groove (use a small blunt screwdriver). : Seat must move freely in seat Seat (7) Note
groove.
3. Re-install Handle Lever Assembly (5A or 5B).
4. Re-install Bearing Cup (4).
5. Re-install Bonnet Washer (3) into Compression Bonnet (2).
6. Re-install Compression Bonnet (2). Tighten by hand only. Do not use any tool, as this can damage the faucet.
7. Re-install Handle Jacket (1).
8. Re-install Coupling Gasket (8) if removed.
9. Install ow control compensator into rear of faucet and orientate so level engagement hole is facing lever insertion
hole.
10. Install ow control lever, ensure pin on end of lever is aligned with compensator engagement hole and tighten cap.
PERLICK CORPORATION 8300 W. Good Hope Rd., Milwaukee, WI 53223 • 800.558.5592 • perlick.com
PRODUCT SPECIFICATION SHEETS Assembly, Disassembly and Cleaning Instructions
FORWARD SEALING BEER FAUCETS
U.S. PATENT #8066257
Faucet Replacement Parts
Item 630 680 650 690 Description
167829-1 67829-1 67829-1 67829-1 Handle Jacket, Chrome
67829-1TF 67829-1TF N/A N/A Handle Jacket, Tarnish Free
267820-1 67820-1 67820-1 67820-1 Compression Bonnet, Chrome
67820-1TF 67820-1TF N/A N/A Compression Bonnet, Tarnish Free
3 67828-1 67828-1 67828-1 67828-1 O-Ring, Compression
4 67819-2 67819-2 67819-2 67819-2 Bearing Cup
5A 68726-1 N/A 68626-1 N/A Handle Lever
5B N/A 68810 N/A 68810 Handle Lever, Push Back Creamer
6 67830-1 67830-1 67830-1 67830-1 O-Ring, Pivot Ball
7 67933-1 67933-1 67933-1 67933-1 O-Ring, Front Seat
8 308-3-2P 308-3-2P 308-3-2P 308-3-2P Coupling Gasket
9 N/A N/A 68206-1 68206-1 Flow Control: Compensator
10 N/A N/A 67989SK 67989SK Flow Control: Seal Kit
11 N/A N/A 67989LK 67989LK Flow Control: Lever & Seal Kit
