Thank you for purchasing this Panasonic product.
Please read these instructions carefully before operating this product and retain
them for future reference.
The images shown in this manual are for illustrative purposes only.
English UK and Ireland model
Model No.
TX-P42GT30B
TX-P46GT30B
TX-P50GT30B
Operating Instructions
Plasma Television
2
Features
3D technology -
Viewing 3D images on the Full HD panel
You can enjoy viewing 3D images on this TV by wearing the 3D Eyewear.
RealD 3D
This TV and 3D Eyewear use the 3D technology of RealD. RealD is one of the inventors in 3D technology.
freesat HD tuner built-in
This TV has a built-in freesat HD tuner. freesat is a free digital TV service which broadcasts via satellite so you can receive TV,
radio, interactive TV, and HD TV with crystal clear reception.
DVB-T tuner built-in
Receives DVB (Digital Video Broadcasting) digital terrestrial broadcasts.
DVB-T2 tuner built-in
DVB-T2 is an advanced digital terrestrial system for more efficient transmission.
Available DVB-T2 broadcasts will be tuned automatically when you perform DVB Auto Setup.
GUIDE Plus+ (p. 23)
This TV supports the TV Guide services sent from the GUIDE Plus+ system.
Sharp pictures and clear sound with HDMI connection (p. 110)
Enjoy high definition digital picture and high quality sound by using an HDMI cable.
Using USB devices
Enjoy recording and playback the digital TV programmes to the USB HDD. (p. 68, 80)
Enjoy the photo, video and music in the USB Flash Memory on Media Player. (p. 72)
Wireless LAN Adaptor for the network connection. (p. 6, 12, 14) USB keyboard, gamepad, etc. are available. (p. 111)
Timer Programming (p. 24, 58)
Timer Programming enables you to use functions such as programme reminder and programme recording to the external
recorder / formatted USB HDD.
SDXC Card
This TV supports SDXC Card. SDXC is the latest standard of SD Card and a higher storage capacity card.
DLNA
DLNA is a standard that makes digital electronics easier and more convenient to use on a home network. (p. 91)
VIERA Connect - Enjoy great web entertainment (p. 17, 94)
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.
Link up and control the connected equipment with โQ-Linkโ and โVIERA Linkโ (p. 95)
Q-Link and VIERA Link provide easy recording and playback, creation of a home theatre without complicated settings, etc.
VIERA TOOLS - Display special feature icons for easy accessibility (p. 36)
Special features (such as VIERA Link and Media Player) can be accessed easily by using the VIERA TOOLS button.
Dolby Digital Plus / Dolby Pulse decoders
It is possible to decode Dolby Digital Plus / Dolby Pulse multi-channel audio tracks and output as Dolby Digital Bitstream
(multi-channel sound signal) from DIGITAL AUDIO OUT / HDMI2 (ARC function) terminals.
CONEQ (p. 39)
CONEQ is a technology to transduce the sound from speakers. You can enjoy sophisticated sound true to the original one.
Owner ID (p. 63)
Owner ID is an anti-theft function. Entering the PIN number and ownerโs personal information will help the Police to
determine the owner in the case of theft.
Supports Audio Description signal (p. 19, 40)
Audio Description (when broadcast) adds an additional soundtrack to describe events on screen (narration) and aids
understanding and enjoyment, particularly for visually-impaired viewers.
Digital Switchover for Terrestrial broadcasts
Starting in late 2007 and ending in 2012, TV services in the UK will go completely digital, TV region by TV region.
If you have any questions, please call Digital UK on or visit 08456 50 50 50 www.digitaluk.co.uk
Digital Switchover will cover a period of several weeks. When it starts you will lose all Analogue TV channels and some Digital
TV channels will be missing.
You will need to retune your TV each time this happens to recover your digital channels. Analogue channels are permanently
turned off, it will not be possible to recover them.
โข
To retune your TV [Auto Setup] in [DVB Tuning Menu]-DVB mode (p. 49)
Users of cable or satellite boxes should still retune the TV to continue to receive Freeview channels via their aerial. (Your
Analogue channel for viewing Cable or Satellite services will change to a new position.)
โข
Due to the digital reception technologies involved, quality of the digital signals may be relatively low in some cases, despite
good reception of analogue channels.
3
Do not display a still picture for a long time
This causes the image to remain on the plasma screen (โimage
retentionโ). This is not considered a malfunction and is not
covered by the warranty.
Typical still images
โข
Channel number and other logos
โข
Image displayed in 4:3 mode
โข
Video game
โข
Computer image
To prevent image retention, contrast is lowered automatically
after a few minutes if no signals are sent or no operations are
performed. (p.๎114)
The recording and playback of content on this or any other
device may require permission from the owner of the copyright
or other such rights in that content. Panasonic has no authority
to and does not grant you that permission and explicitly
disclaims any right, ability or intention to obtain such permission
on your behalf. It is your responsibility to ensure that your use
of this or any other device complies with applicable copyright
legislation in your country. Please refer to that legislation for
more information on the relevant laws and regulations involved
or contact the owner of the rights in the content you wish to
record or playback.
This product is licensed under the AVC patent portfolio license
for the personal and non-commercial use of a consumer to (i)
encode video in compliance with the AVC Standard (โAVC Videoโ)
and/or (ii) decode AVC Video that was encoded by a consumer
engaged in a personal and non-commercial activity and/or was
obtained from a video provider licensed to provide AVC Video.
No license is granted or shall be implied for any other use.
Additional information may be obtained from MPEG๎LA, LLC.
See http://www.mpegla.com.
ROVI CORPORATION AND/OR ITS RELATED AFFILIATES ARE NOT
IN ANY WAY LIABLE FOR THE ACCURACY OF THE PROGRAM
SCHEDULE INFORMATION PROVIDED BY THE GUIDE PLUS+
SYSTEM. IN NO EVENT SHALL ROVI CORPORATION AND/
OR ITS RELATED AFFILIATES BE LIABLE FOR ANY AMOUNTS
REPRESENTING LOSS OF PROFITS, LOSS OF BUSINESS,
OR INDIRECT, SPECIAL, OR CONSEQUENTIAL DAMAGES
IN CONNECTION WITH THE PROVISION OR USE OF ANY
INFORMATION, EQUIPMENT, OR SERVICES RELATING TO THE
GUIDE PLUS+ SYSTEM.
http://www.europe.guideplus.com/
Notice for DVB / Data broadcasting / IPTV functions
This TV is designed to meet the standards (as of August, 2009) of
digital services.
โข
The compatibility with future services is not guaranteed.
โข
Check the latest information on the available services at the
following website.
http://panasonic.jp/support/global/cs/tv/
Contents
Be Sure to Read
Safety Precautionsยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท4
Quick Start Guide
Accessories / Options ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท6
Identifying Controls ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท9
Basic Connection ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 11
Auto Setup ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท13
Enjoy your TV!
Basic Features
Using โVIERA Connectโ ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 17
Watching TV ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท18
Using TV Guide ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 22
Viewing Teletext ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท27
Watching External Inputs ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท30
Viewing 3D images ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท32
How to Use VIERA TOOLS ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 36
How to Use Menu Functions ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 37
Advanced Features
Retuning from Setup Menu ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 48
Tuning and Editing Channels ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 50
Timer Programming ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท58
Child Lock ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท60
Input Labels ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท61
Shipping Condition ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท 62
Owner IDยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท63
Using Common Interface ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท64
Updating the TV Software ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท65
Advanced Picture Settings ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท66
USB HDD Recording ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท68
Using Media Player ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท72
Using Network Services (DLNA / VIERA Connect / freesat)
ยทยทยท 84
Link Functions (Q-Link / VIERA๎Link) ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท95
External Equipment ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท103
FAQs, etc.
Technical Information ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท106
FAQs ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท114
On screen messages ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท116
Maintenance ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท119
Glossaryยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท119
Index ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท120
Licence ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท121
Specifications ยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยทยท122
Safety Precautions
4
Safety Precautions
Warning
โ Mains plug and lead
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
โข
This TV is designed to operate on AC 220-240 V, 50 / 60 Hz.
โข
Insert the mains plug fully into the socket outlet.
โข
Ensure that the mains plug is easily accessible.
โข
Remove the mains plug when cleaning the TV.
โข
Do not touch the mains plug with a wet hand.
If you detect anything unusual, immediately
switch off the mains supply switch and remove the
mains plug.
โข
Do not damage the mains lead.
AC 220-240 V
50 / 60 Hz
โข Do not place a heavy
object on the lead.
โข Do not place the lead near
a high temperature object.
โข Do not pull on the lead.
Hold onto the mains plug
body when disconnecting
the plug.
โข Do not move the TV with the lead plugged into a socket outlet.
โข Do not twist the lead, bend it excessively or stretch it.
โข Do not use a damaged mains plug or socket outlet.
โข Ensure the TV does not crush the mains lead.
โข
Ensure the earth pin on the mains plug is securely connected to prevent electrical shock.
โข An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing
connection.
IMPORTANT: THE MOULDED MAINS PLUG
FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY.
This TV is supplied with a moulded three pin mains plug for your safety and convenience. A 10 amp fuse is fitted in this
mains plug. Shall the fuse need to be replaced, please ensure that the replacement fuse has a rating of 10 amps and that it
is approved by ASTA or BSI to BS1362.
Check for the ASTA mark or the BSI mark on the body of the fuse.
If the mains plug contains a removable fuse cover, you must ensure that it is refitted when the fuse is replaced.
If you lose the fuse cover the mains plug must not be used until a replacement cover is obtained.
A replacement fuse cover may be purchased from your local dealer.
Do not cut off the mains plug.
Do not use any other type of mains lead except the one supplied with this TV.
The supplied mains lead and moulded plug are designed to be used with this TV to avoid interference
and for your safety.
If the socket outlet in your home is not suitable, get it changed by a qualified electrician.
If the plug or mains lead becomes damaged, purchase a replacement from an authorized dealer.
WARNING: โ THIS TV MUST BE EARTHED.
How to replace the fuse.
Open the fuse compartment with a screwdriver and replace the fuse.
Safety Precautions
5
Warning
โ Take care
To help avoid risk of electrical shock, fire, damage or injury, please follow the warnings below:
โข
Do not remove covers and never modify the TV yourself as live parts are accessible when they are
removed. There are no user serviceable parts inside.
โข
Do not expose the TV to rain or excessive moisture. This TV must not be exposed to
dripping or splashing water and objects filled with liquid, such as vases, must not be
placed on top of or above the TV.
โข
Do not expose the TV to direct sunlight and other sources of heat. To prevent fire
never place any type of candle or naked flame on top or near the TV.
โข
Do not place the TV on sloped or unstable surfaces, and ensure that the TV does not
hang over the edge of the base.
โข
Do not insert foreign objects into the TV through the air vents.
โข
Do not use an unapproved pedestal / mounting equipment. Be sure to ask your local Panasonic dealer to perform the
setup or installation of approved wall-hanging brackets.
โข
Do not apply strong force or impact to the display panel.
To prevent the spread of fire, keep candles or other open
flames away from this product at all times
โ Small object
This product contains possibly dangerous parts that can be breathed in or swallowed by young children accidentally.
โข
Keep the dangerous parts out of reach of young children.
โข
Do not allow children to handle SD Card. As with any small object, the SD Card could be
swallowed by young children. Please remove SD Card immediately after use and store out of
reach of young children.
Caution
โ Ventilation
Allow sufficient space around the TV in order to help prevent excessive heat, which
could lead to early failure of some electronic components.
Minimum distance
10
10
10 7
(cm)
โข
Ventilation should not be impeded by covering
the ventilation openings with items such as
newspapers, tablecloths and curtains.
โข
Whether you are using the pedestal or not, always ensure the vents in the bottom of the
TV are not blocked and there is sufficient space to enable adequate ventilation.
โ Moving the TV
Before moving the TV, disconnect all cables.
โข
The TV is heavy. Move the TV with at least two people. Support as shown to avoid
injury by the TV tipping or falling.
โข
Transport only in upright position. Transporting the TV with its display panel facing
upward or downward may cause damage to the internal circuitry.
โ When not in use for a long time
This TV will still consume some power even in the Off mode, as long as the mains plug is still connected to a live socket
outlet.
โข
Remove the mains plug from the wall socket when the TV is not in use for a prolonged period of time.
โ Excessive volume
Do not expose your ears to excessive volume from the headphones. Irreversible
damage can be caused.
Accessories / Options
6
Accessories / Options
Standard accessories
Remote Control
โข
N2QAYB000572
Batteries for the
Remote Control (2)
โข
R6
๎(p.๎7)
Pedestal
TX-P42GT30B :
โข
TBL5ZX0063
โข
TXFBL5Z0007
โข
TXFBL5Z0017
๎(p.๎7)
TX-P46GT30B/
TX-P50GT30B :
โข
TBL5ZX0067
โข
TXFBL5Z0009
โข
TXFBL5Z0019
Clamper
โข
TMME289
(p.๎11)
Ferrite core (2)
(Large size)
โข
J0KG00000014
(p. 12, 104)
Ferrite core
(Small size)
โข
J0KG00000011
(p. 105)
Use the Ferrite cores to comply with
the EMC standard.
Operating Instructions Product Registration Leaflet
Terminal adaptors
Satellite adaptor
โข
K1TYYYY00158
๎(p.๎11, 103)
RF adaptor
โข
K1TYYYY00159
๎(p.๎11, 12, 103)
SCART adaptor
โข
K1HY20YY0008
๎(p.๎11, 12, 103)
COMPONENT adaptor
โข
K2KYYYY00137
๎(p.๎103)
Composite adaptor
โข
K2KYYYY00136
๎(p.๎104)
Audio adaptor
โข
K2KYYYY00138
๎(p.๎103, 104)
Optical digital audio adaptor
โข
K7CXGYC00001
๎(p.๎104)
โข
Accessories may not be placed all together. Take care not to throw them away unintentionally.
โข
This product contains possibly dangerous parts (such as plastic bags), that can be breathed in or swallowed by young
children accidentally. Keep these parts out of reach of young children.
Optional accessories
Please contact your nearest Panasonic dealer to purchase the recommended optional accessories. For additional details, please
refer to the manual of the optional accessories.
3D Eyewear set
(Battery type) (Rechargeable type)
โข
TY-EW3D10E โข
TY-EW3D2LE
โข
TY-EW3D2ME
โข
TY-EW3D2SE
โข
If you need 3D Eyewears additionally, please purchase this optional accessory.
โข
For more information :
http://panasonic.net/avc/viera/3d/eu.html
Wireless LAN Adaptor
โข
DY-WL10E-K Caution
โข
To use the Wireless LAN Adaptor, an access point needs to be obtained.
โข
It is recommended to use the Wireless LAN Adaptor with the extension cable.
โข
To avoid malfunctions caused by radio wave interference, keep the TV away from the devices such
as other wireless LAN devices, microwaves and the devices that use 2.4 GHz and 5 GHz signals when
using the Wireless LAN Adaptor.
โข
Depending on the area, this optional accessory may not be available.
โข
Additional information for Wireless LAN Adaptor and access point may be on the following website.
http://panasonic.jp/support/global/cs/tv/
Quick Start Guide
Accessories / Options
7
Communication Camera
โข
TY-CC10W Caution
โข
This camera can be used on VIERA Connect (p. 17, 94).
โข
Please also read the manual of the camera.
โข
Depending on the area, this optional accessory may not be available.
For details, consult your local Panasonic dealer.
Wall-hanging bracket
โข
TY-WK4P1RW Rear of the TV
Holes for wall-hanging bracket installation
400 mm
Depth of screw : minimum 10 mm,
maximum 16 mm
Diameter : M8
300 mm
(View from the side)
Screw for fixing the TV onto the wall-hanging bracket
(not supplied with the TV)
Warning
โข
Using other wall-hanging brackets, or installing a wall-hanging bracket by yourself have the risk of personal injury and
product damage. In order to maintain the unitโs performance and safety, be absolutely sure to ask your dealer or a licensed
contractor to secure the wall-hanging brackets. Any damage caused by installing without a qualified installer will void your
warranty.
โข
Carefully read the instructions accompanying optional accessories, and be absolutely sure to take steps to prevent the TV
from falling off.
โข
Handle the TV carefully during installation since subjecting it to impact or other forces may cause product damage which
will void your warranty.
โข
Take care when fixing wall brackets to the wall. Always ensure that there are no electrical cables or pipes in the wall before
hanging bracket.
โข
To prevent fall and injury, remove the TV from its fixed wall position when it is no longer in use for an extended period of
time.
Installing / removing remoteโs batteries
1
Pull open
Hook
Caution
โข
Incorrect installation may cause battery leakage and corrosion, resulting
in damage to the remote control.
โข
Do not mix old and new batteries.
โข
Replace only with same or equivalent type. Do not mix different battery
types (such as alkaline and manganese batteries).
โข
Do not use rechargeable (Ni-Cd) batteries.
โข
Do not burn or break up batteries.
Batteries must not be exposed to excessive heat such as sunshine, fire, etc.
โข
Make sure you dispose of batteries correctly.
โข
Ensure batteries are replaced correctly, there is danger of explosion and
fire if battery is reversed.
โข
Do not disassemble or modify the remote control.
2
Note the correct
polarity (+ or -)
Close
Attaching / removing the pedestal
To help avoid risk of damage or injury by the TV tipping or falling, please follow the warnings and cautions below:
Warning
โข
Do not disassemble or modify the pedestal.
Caution
โข
Do not use any pedestal other than the one provided with this TV.
โข
Do not use the pedestal if it becomes warped or physically damaged. If this occurs, contact your nearest Panasonic dealer immediately.
โข
During setup, make sure that all screws are securely tightened.
โข
Ensure that the TV does not suffer any impact during installation of the pedestal.
โข
Ensure that children do not climb onto the pedestal.
โข
Install or remove the TV from the pedestal with at least two people.
Quick Start Guide
Accessories / Options
8
Quick Start Guide
A Assembly screw (4)
(silver)
โข
XYN5+F20FN
M5 ร 20
CAssembly screw
(black)
โข
XSB4+8FNK
M4 ร 8
EBase
โข
TBL5ZX0063
(TX-P42GT30B)
โข
TBL5ZX0067
( )
TX-P46GT30B
TX-P50GT30B
FCover
โข
TXFBL5Z0017
(TX-P42GT30B)
โข
TXFBL5Z0019
( )
TX-P46GT30B
TX-P50GT30B
B Assembly screw (4)
(black)
โข
THEL087N
(TX-P42GT30B)
โข
THEL088N
( )
TX-P46GT30B
TX-P50GT30B
M5 ร 25
DPole
โข
TBL5ZA3055
(TX-P42GT30B)
โข
TBL5ZA3065
( )
TX-P46GT30B
TX-P50GT30B
1Assembling the pedestal
Use the assembly screws A to fasten the pole D to
the base E securely.
โข
Make sure that the screws are securely tightened.
โข
Forcing the assembly screws the wrong way will
strip the threads.
2Securing the TV
Use the assembly screws B to fasten securely.
โข
Tighten the four assembly screws loosely at first, then
tighten them firmly to fix securely.
โข
Carry out the work on a horizontal and level surface.
B
E
Hole for pedestal
installation
(View from the bottom)
Arrow mark
A
E
D
Front
Attach the cover F with assembly screw C
F
C
Removing the pedestal from the TV
Be sure to remove the pedestal in the following way when using the wall-hanging bracket or repacking the TV.
1 Remove the assembly screws B from the TV.
2 Pull out the pedestal from the TV.
3 Remove the assembly screw
C from the cover.
4 Pull out the cover.
5 Remove the assembly screws A from the pole.
Adjusting the panel to your desired angle
โข
Do not place any objects within the full rotation range.
(View from the top)
: 15ยฐ
(TX-P42GT30B)
: 10ยฐ
(TX-P46GT30B, TX-P50GT30B)
Identifying Controls
EXIT
OPTION
TEXT
REC
PROGRAMME
STTL
INDEX HOLD
BACK/
RETURN
ASPECT
INPUT
LAST VIEW
TV
G
U
I
D
E
V
I
E
R
A
T
O
O
L
S
V
I
E
R
A
L
i
n
k
DVD/VCR
TV
AVTV
abc def
jkl
ghi
mno
tuvpqrs
wxyz
DIRECT TV REC
MENU
15
16
18
19
20
21
22
23
25
26
27
17
24
1
2
4
6
11
3
5
7
8
9
10
12
13
14
9
Identifying Controls
Remote Control
1Standby On / Off switch
โข
Switches TV On or Off standby
2 3D button ๎(p.๎34)
โข
Switches to the viewing mode
between 2D and 3D
3[Main Menu] ๎(p.๎37)
โข
Press to access Picture, Sound,
Timer and Setup Menus
4Aspect ๎(p.๎21)
โข
Changes aspect ratio
5Information ๎(p.๎18)
โข
Displays channel and
programme information
6VIERA๎TOOLS ๎(p.๎36)
โข
Displays some special feature
icons and accesses easily
7[VIERA Link Menu] ๎(p.๎99)
8OK
โข
Confirms selections and choices
โข
Press after selecting channel
positions to quickly change
channel
โข
Displays the Channel List
9[Option Menu] ๎(p.๎20)
โข
Easy optional setting for viewing,
sound, etc.
10 Teletext ๎(p.๎27)
โข
Switches to teletext mode
11 Subtitles ๎(p.๎21)
โข
Displays subtitles
12 Numeric buttons
โข
Changes channel and teletext
pages
โข
Sets characters
โข
When in Standby mode, switches
TV On (Press for about 1 second)
13 Sound Mute
โข
Switches sound mute On or Off
14 Volume Up / Down
15 Input mode selection
โข
TV - switches freesat / DVB /
Analogue / Other Sat. / Satellite
mode ๎(p.๎18)
โข
AV - switches to AV input
mode from Input Selection list
๎(p.๎30)
16
Direct TV Recording ๎(p.๎97, 99)
โข
Records programme
immediately in DVD Recorder /
VCR with Q-Link or VIERA Link
connection
17 [VIERA Connect] ๎(p.๎17, 94)
โข
Displays VIERA๎Connect home
screen
18 Exit
โข
Returns to the normal viewing
screen
19 TV Guide ๎(p.๎22)
20 Cursor buttons
โข
Makes selections and
adjustments
21 Return
โข
Returns to the previous menu
/ page
22 Coloured buttons
(red-green-yellow-blue)
โข
Used for the selection,
navigation and operation of
various functions
23 Hold
โข
Freeze / unfreeze picture
๎(p.๎20)
โข
Holds the current teletext page
(teletext mode) ๎(p.๎28)
24 Index ๎(p.๎29)
โข
Returns to the teletext index
page (teletext mode)
25 Last view ๎(p.๎19)
โข
Switches to previously viewed
channel or input mode
26 Channel Up / Down
27 Connected equipment
operations
๎(p.๎31, 71, 79, 81, 101)
Quick Start Guide
Identifying Controls
6
7
5
2
3
4
12
1
9 10 11 8
10
Using the On Screen Displays - Operation guide
Many features available on this TV can be accessed via the On Screen Display menu.
Operation guide
Operation guide will help you to operate by
using the remote control.
Example : [Owner ID]
0 9
* * * *
Please enter new PIN
PIN
Owner ID
EXIT PIN entry
Operation guide
How to use remote control
MENU
Open the main menu
Move the cursor / select the menu item / select from a
range of options
Move the cursor / adjust levels / select from a range of
options
Access the menu / store settings after adjustments have
been made or options have been set
BACK/
RETURN
Return to the
previous menu
EXIT
Exit the menu system
and return to the normal
viewing screen
Auto power standby function
The TV will automatically go to Standby mode in the following conditions:
โข no signal is received and no operation is performed for 30 minutes in Analogue TV mode
โข [Off Timer] is active in the Timer Menu (p. 20)
โข no operation is performed for the period selected in [Auto Standby] (p. 41)
โข
This function does not affect the recording of Timer Programming, Direct TV Recording and One Touch Recording.
Quick Start Guide
TV
1CI slot ๎(p.๎64)
2SD Card slot ๎(p.๎72)
3USB 3 port ๎(p.๎68, 104)
4HDMI1 - 4 terminal ๎(p.๎103)
5Function select
โข
[Volume] / [Contrast] / [Brightness] / [Colour] /
[Sharpness] / [Tint] (NTSC signal) / [Bass]โ
/ [Treble]โ /
[Balance] / [Auto Setup] (p.๎48, 49)
โ
[Music] or [Speech] mode in the Sound Menu
6Channel Up / Down, Value change (when using the F
button), Switching the TV On (press either button for
about 1 second when in Standby mode)
7Changes the input mode
8Mains power On / Off switch
โข
Use to switch the mains power.
If you turned the TV Off during Standby mode by the
remote control last time, the TV will be in Standby
mode when you turn the TV On with Mains power On
/ Off switch.
9Remote control signal receiver
โข
Do not place any objects between the TV remote
control signal receiver and remote control.
10 C.A.T.S. (Contrast Automatic Tracking System)
sensor
โข
Senses brightness to adjust picture quality when
[C.A.T.S.] in the Picture Menu is set to [On] ๎(p.๎38)
11 Power and Timer LED
โข
Red : Standby
Green : On
Orange : Timer Programming On
Orange (flash) :
Recording of Timer Programming, Direct TV
Recording or One Touch Recording in progress
Red with orange flash :
Standby with Timer Programming On, Direct TV
Recording or One Touch Recording
โข
The LED blinks when the TV receives a command
from the remote control.
12 Infrared transmitter for 3D Eyewear
โข
Do not place any objects between the transmitter
and 3D Eyewear.

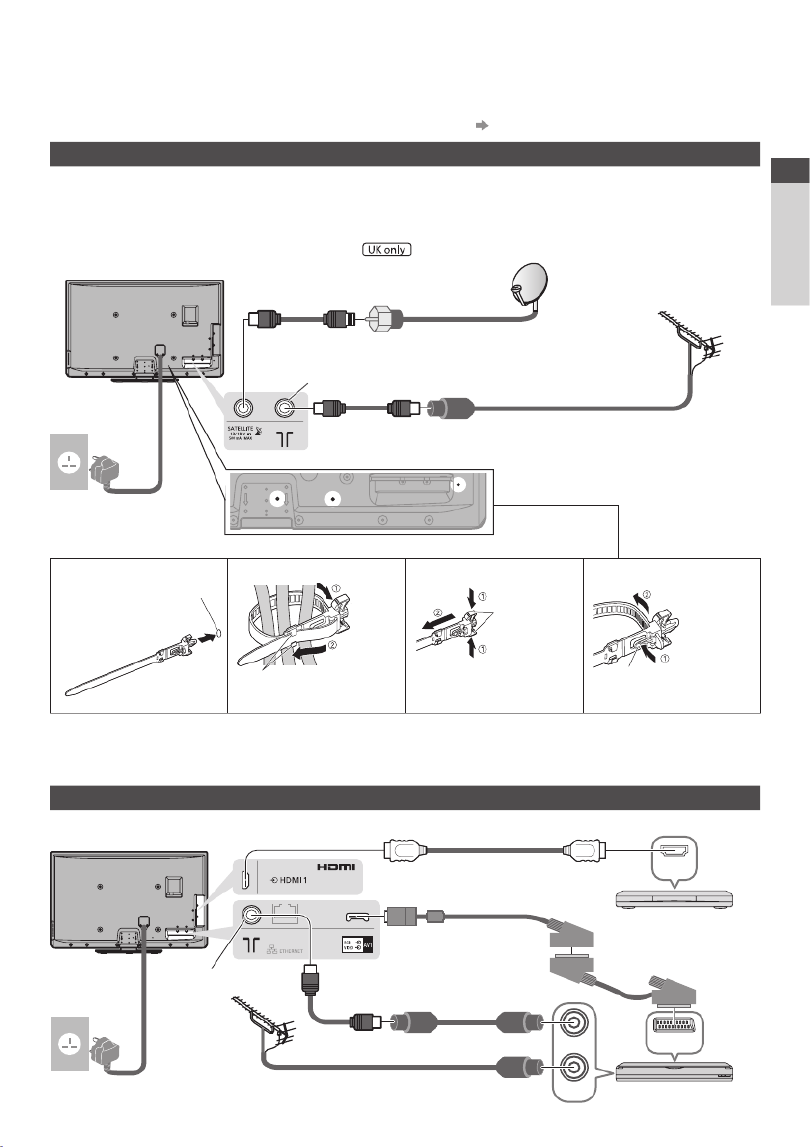

Basic Connection
11
Quick Start Guide
Basic Connection
External equipment and cables shown are not supplied with this TV.
Please ensure that the unit is disconnected from the mains socket before attaching or disconnecting any leads.
There are some restrictions on placement for viewing 3D images. For details ๎(p. 32, 33)
Example 1 Connecting dish or aerial
TV only
To ensure your satellite dish is correctly installed, please consult your local dealer.
โข
Also please consult the received satellite broadcasting companies for details.
โข
The freesat channel uses Astra 2 at 28.2ยฐ East, and Eurobird 1 at 28.5ยฐ East satellites. To ensure your satellite dish is correctly
installed please consult your freesat registered dealer.
Aerial input terminal
Rear of the TV
Terrestrial aerial
AC 220-240 V
50๎/๎60 Hz
Mains lead
RF cable
โข
For digital satellite broadcasts
Satellite dish
Satellite cable
Satellite adaptor
(supplied)
RF adaptor
(supplied) โข
For digital terrestrial and analogue broadcasts
โ Clamper (Standard accessory / Attached with the mains lead)
Attach the clamper Bundle the cables To remove from the TV: To loosen:
hole
Insert the
clamper in a
hole
hooks
Set the
tip in the
hooks
Keep pushing
both side
snaps
snaps
knob
Keep pushing
the knob
โข
Do not bundle the Satellite cable, RF cable and mains lead together (could cause distorted image).
โข
Fix cables with clampers as necessary.
โข
When using the optional accessory, follow the optionโs assembly manual to fix cables.
Example 2 Connecting DVD Recorder / VCR and Player
TV, DVD Recorder / VCR and Player
RF IN
RF OUT
Rear of the TV
Terrestrial
aerial
AC 220-240 V
50๎/๎60 Hz
Mains lead RF cable
RF adaptor
(supplied)
RF cable
DVD Recorder or VCR
Player /
3D-compatible player
Fully wired SCART cable
Fully wired HDMI
compliant cable
SCART adaptor
(supplied)
Aerial input terminal
HDMI
AV
Basic Connection
12
Quick Start Guide
Example 3 Connecting DVD Recorder / VCR and Cable TV Box
TV, DVD Recorder / VCR and Cable
RF IN
RF OUT
RF OUT RF IN
Rear of the TV
Terrestrial
aerial
Mains lead
AC 220-240 V
50๎/๎60 Hz
Fully wired HDMI
compliant cable
Fully wired
SCART cable
Fully wired
SCART cable
RF adaptor
(supplied)
SCART adaptor
(supplied)
Cable TV Box
DVD Recorder or VCR
RF cable
RF cable
AV 2
Recorder/AV
HDMI
AV 1
RF cable
Cable
Aerial input
terminal
โ Connecting to the network environment (Network connections)
To enable the network service functions (VIERA Connect, etc.), you need to connect the TV to a broadband network
environment.
โข
If you do not have any broadband network services, please consult your retailer for assistance.
โข
Connect with LAN cable (Wired connection) or Wireless LAN Adaptor (Wireless connection).
โข
Setup of the network connection will start after the tuning (when first using the TV) ๎(p. 14, 15)
Internet
environment
Internet
environment
Wired connection
Wireless connection
Access point
LAN cable
Wireless LAN Adaptor and Extension cable
๎โOptional accessoriesโ (p. 6)
โข
Connect to the USB 1, 2 or 3 port.
Rear of the TV
Less
than
10๎cm
Less
than
10๎cm
Ferrite core - Large size (supplied)
Installing the Ferrite core
Pull back the tabs
(in two places)
Wind the cable
twice
Press the cable
through and close
Note
โข
For more information of the network connections ๎(p. 85)
Note
โข
To watch 3D contents ๎(p. 32)
โข
Connect to the TVโs AV1 for a DVD Recorder / VCR supporting Q-Link (p.๎97).
โข
For HDMI-compatible equipment, possible to connect to HDMI terminals (HDMI1 / HDMI2 / HDMI3 / HDMI4) by using HDMI cable (p.๎103).
โข
Q-Link and VIERA Link connection ๎(p. 95, 96)
โข
Please also read the manual of the equipment being connected.
โข
Keep the TV away from electronic equipment (video equipment, etc.) or equipment with an infrared sensor. Otherwise,
distortion of image / sound may occur or operation of other equipment may be interfered.
Auto Setup
13
Auto Setup
Search and store TV channels automatically.
โข
These steps are not necessary if the setup has been completed by your local dealer.
โข
Please complete connections (p.๎11, 12) and settings (if necessary) of the connected equipment before starting Auto Setup.
For details of settings for the connected equipment, read the appropriate manual.
1Plug the TV into mains socket and switch On
โข
Takes a few seconds to be displayed.
โข
If the red LED shows on the TV, press the Standby On / Off switch on
the remote control for at least 1 second to turn the TV On.
2Select your country
Country Selection
United Kingdom Ireland
set
select
Example : Example :
10
10
0
0
8
2
1
freesat Auto Setup
Signal Quality
Searching
Signal Strength
TV Channels Found
Radio Channels Found
Data Channels Found
Channels found, creating channel list.
CH 21 68
CH 21 68
62
62
62
10
10
CBBC Channel
BBC Radio Wales
E4
10
62 10Cartoon Nwk
29 -
33 -BBC1
Searching
CH Channel Name Type
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Quality
Free TV: 8 Pay TV: 0 Radio: 0 Data: 0 Analogue: 2
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
0% 100%
Satellite Auto Setup
Satellite Checking Satellite
Progress
This will take up to 5 minutes.
0% 100%
6
7
8
10
10
ETV
BBC TES 2
BBC TES 3
9 10BBC FOUR
10 10CBBC Channel
11 10CBeebies
10
Searching
Satellite Auto Setup
Satellite Astra1
Progress
This will take up to 30 minutes.
No. Channel Name Type
Free TV
Free TV
Free TV
Free TV
Free TV
Free TV
Quality
Free TV: 11 Pay TV: 0 Radio: 0
CH 5 69
62
62
62
10
10
CBBC Channel
BBC Radio Wales
E4
10
62 10Cartoon Nwk
CH29 -
CH33 -BBC1
CH 1 99 41H: 21
Searching
CH Channel Name Type
Free TV
Free TV
Free TV
Free TV
Analogue
Analogue
Quality
Free TV: 8 Pay TV: 0 Radio: 0 Analogue: 2
Auto Setup - DVB and Analogue
DVB Scan
Analogue Scan
This will take about 6 minutes.
Search Mode
Free Channels All Channels
start
select
Auto Setup will start to search for TV
channels and store them.
โข
Actual number of channels may differ
due to channel duplication.
0% 00%1
Sending Preset Data
Please wait!
Remote control unavailable
If Q-Link or similar technology (p. 97)
compatible recorder with analogue tuner
is connected, analogue channel setting is
automatically downloaded to the recorder.
(Digital channel setting is not downloaded.)
โข
If downloading has failed, you can download later through the Setup Menu.
๎โQ-Link Downloadโ (p. 41)
3Enter your postcode
1
.!:#
2
abc
3
def
4
ghi 5
jkl 6
mno
7
pqrs 8
tuv 9
wxyz
0
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9
Enter Postcode for local channels including space
Postcode โข
Your postcode is required to receive
local services and sort the channel order.
Please ensure to include a space when
entering your postcode.
โข
If you skip this step, the default
postcode (central London) will be set.
โ How to enter the postcode
Set characters Exit to go to next step
select
set
(green) โข
You can set characters by using
numeric buttons.
๎ โCharacters table for numeric
buttonsโ (p.๎110)
Quick Start Guide
Auto Setup
14
4Setup the network connection
Setup the network connection to enable the network service functions such as VIERA Connect, etc. (p.๎17, 94).
โข
To setup the wireless connection, the Wireless LAN Adaptor (optional accessory) is required.
Please note that this TV does not support wireless public access points.
โข
Ensure the network connections (p. 12) and network environment are completed before starting setup.
Select the network type
Network Setup
Select Wired or Wireless
Wired Wireless Set later
[Wired] ๎โWired connectionโ (p. 12)
[Wireless] ๎โWireless connectionโ (p. 12)
access
select โข
To setup later on or skip this step
Select [Set later] or
EXIT
โ [Wired]
1. Select [Auto]
Check network cable connection.
Check acquired IP address.
Check for devices using same IP address.
Check gateway connection.
Check server connection for VIERA Connect.
Connection Test : succeeded
The test is successful
and the TV is connected
to the network.
: failed
Check the settings and
connections. And then
select [Retry].
Acquire IP Address
Auto Manual
access
select
Automatically setup is done and the test of the network
connection starts.
โข
To set manually, select [Manual] and set each item. For
details ๎(p.๎87)
2. Go to the next step 4
(Press twice)
โ [Wireless]
Select the connection type
Connection Type
Please select network connection type.
Search for access point
WPS(Push button)
access
select
[Search for access point]
Access points found automatically are listed.
1. Select your desired access point
1
2
3
Access Point A
SSID
Access Point B
Access Point C
11n(2.4GHz)
11n(5GHz)
11n(5GHz)
Available Access Points
No. Wireless type Encr ypt Reception
access
select
: Encrypted access point
โข
To search access points again
(yellow)
โข
For the information of the
highlighted access point โข
To set manually (p.๎90)
(red)
2. Access the encryption key input mode
Encryption Key Setting
Connection will be made with the following settings:-
SSID : Access Point A
Authentication type : WPA-PSK
Encryption type : TKIP
Please input the encryption key.
Encryption key
โข
If the selected access point is not encrypted, the confirmation screen
will be displayed. It is recommended to select the encrypted access
point.
3. Enter the encryption key of the access point
1
.!:# 2
abc 3
def
4
ghi 5
jkl 6
mno
7
pqrs 8
tuv 9
wxyz
0
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
Access Point Settings
Encryption key
Set characters Store
BACK/
RETURN
select
set
โข
You can set characters by using
numeric buttons.
โCharacters table for numeric
buttonsโ (p.๎110)
Quick Start Guide
Auto Setup
16
5 โ How to input Owner ID
1 Enter the PIN number (4๎digits)
* * * *
Please enter new PIN
PIN
Owner ID
abc def
jkl
ghi
mno
tuvpqrs
wxyz
โข
Enter the PIN number twice at first setting.
2 Select the item (NAME / HOUSE NO / POSTCODE)
* * * *
PIN
NAME
HOUSE NO
POSTCODE
Owner ID-Data Entry
access
select
3 Enter your name, house number and postcode
Set characters
1
.!:# 2
abc 3
def
4
ghi 5
jkl 6
mno
7
pqrs 8
tuv 9
wxyz
0
A B C D E F G H I J K L M N O P Q R S T
U V W X Y Z 0 1 2 3 4 5 6 7 8 9 ! : #
a b c d e f g h i j k l m n o p q r s t
u v w x y z ( ) + - . * _
User input
NAME
select
set
Return to select other items
BACK/
RETURN
โข
You can set characters by using
numeric buttons.
๎ โCharacters table for numeric
buttonsโ (p.110)
โข
Select the next item and repeat
the operations.
4 Exit to go to next step
EXIT
6Select [Home]
Select [Home] viewing environment (highlight [Home] in yellow) to use๎in๎your home environment.
Please select your viewing environment.
Home Shop
set
select
โ [Shop] viewing environment (for shop display only)
[Shop] viewing environment is the demonstration mode to explain main features of this TV.
Select [Home] viewing environment to use in your home environment.
โข
You can return to viewing environment selection screen at the stage of Shop confirmation screen and Automatic
Demo Off / On selection screen.
1 Return to viewing environment selection
screen
2 Select [Home]
Please select your viewing environment.
Home Shop
set
select
Shop
You have selected shop mode
BACK/
RETURN
Automatic Demo
Off On
To change viewing environment later on, you will need to initialise all settings by accessing Shipping Condition.
๎[Shipping Condition]๎(p.๎62)
Auto Setup is now complete and your TV is ready for viewing.
If tuning has failed, check the connection of the Satellite cable, RF cable, and then, follow the on screen instructions.
โข
To check channel list at-a-glance ๎โUsing TV Guideโ (p. 22)
โข
To edit or hide (skip) channels ๎โTuning and Editing Channelsโ (p. 50 - 57)
โข
To retune all channels ๎[Auto Setup]๎(p.๎48, 49, 56)
โข
If you wish to tune in other satellite channels ๎[Auto Setup] in [Other Sat. / Satellite Tuning Menu] (p. 56)
โข
To initialise all settings ๎[Shipping Condition] (p.๎62)
If you connect the Wireless LAN Adaptor later on, the confirmation screen will be
displayed for the setup. Wireless LAN adaptor connected, do you want to
set it up?
No - Exit
Current network type : Wireless
No
Wireless LAN adaptor connection
Yes
โข
To setup the wireless connection ๎(p.๎88 - 90)
Quick Start Guide
Using โVIERA Connectโ
17
Using โVIERA Connectโ
VIERA Connect is a gateway to the internet services unique to Panasonic and has expanded VIERA CAST features greatly.
VIERA Connect allows you to access some specific websites supported by Panasonic, and enjoy internet contents such as
photos, videos, games, etc. from VIERA Connect home screen.
โข
This TV has no full browser function and all features of websites may not be available.
1Turn power on โข
Press for about 1 second
โข
Mains power On / Off switch should be On.
(p.๎10)
Every time you turn on the TV, VIERA Connect introduction
banner appears. The banner is subject to change.
Enjoy select ed internet content with VIERA Connect.
Simply press the OK / INTERN ET button
2Access VIERA Connect
While the banner is displayed โข
The button marking varies
depending on the remote
control supplied with your
TV.
or
INTERNET
Example :
Wel come t o โขVIERA Connect
VIERA Conne home reen subje hang e withou t noti c tโข cs is c tto c c e.
T c c c c c he servi est hrough VI ERACon ne tโข are operated by thei r respe tive s ervi e provide rs, and servi em ay
bedi s temporari c ontinued either l l cyor perman ent y with out noti e. Therefore,Panas oni wi ma ke no c ll
warranty for cthe ontent corth e ontinuity cofthe s ervi es.
A ofwebsites or ofthe ser vi ema y n ot be abll features content c avail le.
Some may be inappropriate som e viewers. content for
Some may on y be ab e s pe i ountries and m ay be in spe i ang uages. content l avail l for c ๎c c presente d c ๎c l
EN ERT
Donโt show this m essa ge again
โข
Depending on the usage conditions, it may take a
while to read all the data.
โข
Messages might be displayed before VIERA๎Connect
home screen.
Please read these instructions carefully and follow the
on screen instructions.
Example : VIERA๎Connect home screen
MORE
BACK
โข
To go to the next level
๎[MORE]
โข
To back to the previous level
๎[BACK]
โ To exit from
VIERA Connect
EXIT
โข
To set the VIERA
Connect instruction
banner display off
๎ [VIERA Connect
Banner] (p. 43)
โ How to operate VIERA๎Connect (current as of January, 2011)
โข
To move the cursor / select the item
โข
When the key words are displayed on colour bar
(red) (green) (yellow) (blue)
โข
To access
โข
When options with
numbers are displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
โข
To return to the previous screen
BACK/
RETURN
โข
To return to VIERA Connect home
screen
INTERNET
โข
Video communication (ex. Skypeโข) requires an exclusive Communication Camera TY-CC10W.
๎โOptional accessoriesโ (p.๎6)
For details, read the manual of the Communication Camera.
โข
You can connect a keyboard and a gamepad via USB port for character input and playing games in VIERA Connect.
You can also operate the TV with a keyboard or a gamepad other than VIERA Connect features.
For more information ๎โUSB connectionโ (p. 111)
Note
โข
If you cannot access VIERA Connect, check the network connections (p. 12) and settings (p. 14, 15).
โข
For more information of VIERA Connect ๎(p. 94)
Watching TV
18
Watching TV
Volume
1Turn power on โข
Press for about 1 second
โข
Mains power On / Off switch should be On. (p.๎10)
โ VIERA Connect introduction banner appears
You can access to VIERA Connect and enjoy the various contents. ๎(p.๎17)
โข
To remove this banner, leave for about 5 seconds or press any buttons
(except the buttons to access VIERA Connect).
โข
To set this banner display off [VIERA Connect Banner] (p. 43)
2
Select the mode (freesat, DVB, Analogue , Other Sat. or Satellite)
TV โข
The selectable modes vary depending on the selected country
and stored channels (p.๎13).
TV Selection
freesat
DVB
Analogue
Other Sat.
Satellite
Displayed if [Other Satellite Auto Setup]
(p. 56) is completed. access
select
1
BBC ONE WALES
Coronation St reet
20:00 - 20:55
20:35
Now Inf o
All DVB Channels
Select f avourites
โข
Also possible to select the mode pressing the TV
button repeatedly on the remote control or side
panel of the TV (p.10).
Information banner (p. 19)
3Select a channel
up
down
or
abc def
jkl
ghi
mno
tuvpqrs
wxyz
freesat channel position numbers run in the ranges 100 -
999 and 0100 - 0999.
โข
To select a three or four-digit channel position number,
e.g. 0246
mno
DVB and Other Sat. / Satellite channel position numbers run
from 1 onwards.
Analogue channel position numbers run in the ranges 0 - 99.
โข
To select a two or three-digit channel position number,
e.g. 399
def
wxyz
wxyz
โ Select a channel using Information banner (p. 19)
It is possible to confirm the channel name and programme information by using the Information banner before changing channels.
1 Display Information banner if it is not displayed 2 While the banner is displayed, select the channel
watch
select channel
โ Select a channel using TV Guide (p. 22)
It is possible to confirm the channel and programme information by using the TV Guide (EPG) before changing channels.
1 Display TV Guide 2
Select a current programme or channel
3 Select [View] (DVB mode)
G
U
I
D
E
select
access
Eastender
19:30- 20:00
View Timer Programming watch
select
Note
โข
To watch pay-TV ๎โUsing Common Interfaceโ (p. 64)
Watching TV
19
Other useful functions
Display Information banner
Display Information banner
โข
Also appears when changing a channel
1
ZDF
Coronation Street
HDTV
20:00 - 20:55
Mute STTLAD TEXT Multi Audio
20:35
45
Now
All DVB Channels
Select favouritesInfo
Bad signal
Example : DVB
12 3 6 7 45
1Channel position and name
2Channel type ([Radio], [Data], [HDTV], etc.) /
Encrypted channel ( ) /
TV mode ( , , , )
3Programme
4Current time
5Programme Start๎/๎Finish time (except Analogue)
Channel number, etc. (Analogue)
6
Progress time indicator of the selected programme (except Analogue)
7[All DVB Channels] , [freesat Channel List], [All Other Sat.
Channels], [All Satellite Channels] or [Favourites1-4] (p. 53)
โข
To switch (DVB or Other Sat. / Satellite)
(blue)
Features available / Message meanings
[Mute]
Sound mute On
[Bad signal]
Poor TV signal quality
[Also in ]
Same programme available as HD broadcast
โข
To display the extra information for details
[AD]
Audio Description service available
โข
This function can aid visually-
impaired viewers by adding an
additional audio track to describe
events
on screen.
โข
For settings (p. 40)
[STLL]
Subtitle service available
[TEXT]
Teletext service available
[Multi Audio]
Multiple audio available
[Stereo], [Mono], [NICAM]
Audio mode
1 - 90
Off Timer remaining time
โข
For settings ๎(p.๎20)
โข
To confirm another tuned channel name
โข
To watch the channel listed in the banner
โข
Information on the next programme
(except Analogue)
โข
To hide โข
Extra information (except Analogue) โข
To set display timeout
EXIT
(Press again to hide the banner)
๎[Banner Display Timeout] (p.๎43)
โข
[AD], [STTL], [TEXT], [Multi Audio] indications are displayed as available on particular programmes, but may not be available for all
individual programmes being broadcast. Display the extra information to confirm availability of these functions.
Example :
1
BBC ONE WALES
Coronation Street
20:00 - 20:55
20:35
Now
All DVB Channels
Select f avourites
[AD]
AD
Last view
Switch to previously viewed channel or input mode easily
LAST VIEW
โข
Press again to return to the present view.
Note
โข
Switching channel is not available while the recording of Timer Programming, Direct TV Recording or One Touch Recording is
in progress.
โข
Watching less than 10 seconds is not regarded as the previously viewed channel or input mode.
Watching TV
20
Hold
Freeze / unfreeze picture
HOLD
Display the selectable settings for the current status
Check or change the current status instantly
OPTION
โข
To change
access
select select / change
store
[Multi Audio / AD]
(freesat mode)
Allows you to select between alternative
language or Audio Description for
sound tracks (if available)
โข
Set Audio Description [Auto] in the
Sound Menu (p. 39) to select the
audio description sound track. In
freesat mode, Audio Description
cannot be controlled separately from
the audio description sound track.
โข
This setting is not memorized and it
will return to the default setting once
you exit the current programme.
[Audio Description]
(DVB mode)
Set to [Auto] if the programme has
Audio Description service, then you
will hear an additional audio track to
describe events on screen
โข
To adjust the volume for Audio Description
๎[Audio Description Menu] (p.๎40)
[Multi Audio]
(DVB, Other Sat. or Satellite mode)
Allows you to select between alternative
language for sound tracks (if available)
โข
This setting is not memorized and it will
return to the default setting once you
exit the current programme.
[Monaural Audio]
(except Analogue mode)
Allows you to select stereo / monaural
(if available)
โข
This setting is not memorized and it will
return to the default setting once you
exit the current programme.
[Sub Channel]
(Other Sat. or Satellite mode)
Allows you to select the multifeed
programme - sub channel (if available)
[Subtitle Language]
(except Analogue mode)
Allows you to select the language in which
subtitles should appear (if available)
โข
This setting is not memorized and it will
return to the default setting once you
exit the current programme.
[Teletext Character Set]
Sets the teletext language font
๎[Setup Menu] (p.๎42)
[Teletext Language]
(DVB or Satellite mode)
Allows you to select between
alternative language for teletext (if
available)
[NICAM]
(Analogue mode)
Switches NICAM sound (if available)
๎[Sound Menu] (p. 40)
[Volume Correction]
Adjusts volume of individual channel
or input mode
[Safely remove USB]
Takes this operation to remove the
connected USB device safely from
the TV
Off Timer
Turn the TV off automatically after a fixed period (Off / 15 / 30 / 45 / 60 / 75 / 90 minutes)
1 2 Display the menu Select [Timer]
MENU
Main Menu
Sound
Timer
Setup
access
select
3 Select [Off Timer] and set the time
15
30
45
60
75
90
Off
minutes
Timer Programming
Off Timer
Auto Standby minutes
minutes
minutes
minutes
minutes
access
select [Off Timer]
store
select the time
โข
To cancel ๎Set to [Off] or turn the TV off.
โข
To display the remaining time ๎โDisplay Information bannerโ (p.๎19)
โข
When the remaining time is within 3 minutes, the remaining time will flash on the
screen.
Using TV Guide
23
(DVB or Analogue)
โข
This TV supports the GUIDE Plus+ system.
โข
The Rovi branding partner will supply the rating information in the programme information and the recommended group in the Search list.
โข
DVB and Analogue channels are displayed on the same TV Guide screen. [D] means DVB channel and [A] means Analogue
channel. There will be no programme listings for Analogue channels.
โ To return to TV
EXIT
or
G
U
I
D
E
1Select DVB or Analogue
๎(p.๎18)
TV
2View TV Guide
G
U
I
D
E
GUIDE
OPTION
Das Erste DIY SOS Holiday News
19:30 20:00 20:30 21:00
The Bill
Good bye
Hot Wars Holiday Program
Pepsi Char.
Emmerdal.
10 Oโ clock News BBC
CoastSpring watchPanorama
NewsPop IdolIโm A Celebrity
Sports15 To 1Rugby
D
D
D
D
D
D
D
BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
1 BBC ONE
BBC THREE
E4
BBC FOUR
BBC 2W
BBCi
BBC Radi
1
7
14
70
72
105
719
Coronation Street
0 9
Time:
TV Guide
Wed 27 Oct 2010
10:46
Wed 27 Oct Search All Channels
Select channel
Timer Programming
EXIT
Select programme
RETURN
-24 hours +24 hours Search Category
Info
RETURN
Select Advert
Page up
Page down
Also in
Enter Channel
Example :
2
1
6 7 8 9
3
4
5
1Current date and time
2TV Guide time
3Advertisement
4[D] : DVB
[A] : Analogue
5Channel position and
name
6TV Guide date
7Some programmes may also be broadcast in HD
โข
You can select HD or SD broadcast before viewing or setting Timer Programming.
8Programme
9Logo of the Rovi branding partner
โ To change the layout of TV Guide [TV Guide View] (p. 41)
โ To watch the programme
1 Select a current
programme or channel
2 Select [View] (DVB mode)
Eastender
19:30- 20:00
View Timer Programming
โข
If a programme exists in both HD and SD broadcasts, the
[View Options] screen will be displayed to select HD or
SD broadcast. (DVB mode)
select
access
or
abc def
jkl
ghi
mno
tuvpqrs
wxyz
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
View Options
DIY SOS
watch
select
watch
select
โข
To use Timer๎Programming ๎(p.๎24)
โ
To search programme types and view a channel list of the searched programmes
(yellow)
(Search list)
Se ar ch
Search Titles...
Movie
News and Factual
view
select type
โ To search programme titles and view a list of the searched programmes
(yellow)
(Search list)
Se ar ch
Search Titles...
Movie
News and Factual
1 Select
[Search Titles...]
2 Set characters
(maximum: 19 characters)
3 Start [Search] โข
All the programme titles
including the word you
set will be listed.
โข
Searching without any
characters will list all
programmes including
current programmes.
(green)
access
select select
set
โข
To use numeric buttons
๎ โCharacters table for
numeric buttonsโ (p. 110)
Using TV Guide
24
โ To the previous day (DVB mode) โ To view a channel list of the selected category
(red) (blue)
โ To the next day (DVB mode)
Category
Al l C han ne l s
Al l C han ne l s
Al l D VB Ch a nn els
All HD Channels
All Analogue Channels
Fr e e DVB C h an nel s
TV / Da ta DV B C han ne l s
Fav our ite s1
Fav our ite s2
Fav our ite s3
Fav our ite s4
(Category list)
โข
To list favourite channels
๎(p.๎53)
Only Analogue channels
are listed
(green)
โ View details of the programme (DVB mode)
1 2 Select the programme View details
select โข
Press again to return to TV
Guide.
โ
To search programme types and view a channel list of the searched programmes (DVB mode)
(yellow)
(Search list)
Se ar ch
Search Titles...
Movie
News and Factual
(Type list)
Pr og .Ty pe
Al l Typ es
All Types
Movie
Ne ws
view
select type
โ To search programme titles and view a list of the searched programmes
(DVB mode)
(yellow)
(Search list)
Se ar ch
Search Titles...
Movie
News and Factual
1 Select
[Search Titles...]
2 Set characters
(maximum: 19 characters)
3 Start [Search] โข
All the programme titles
including the word you
set will be listed.
โข
Searching without any
characters will list all
programmes including
current programmes.
(green)
access
select select
set
โข
To use numeric buttons
๎ โCharacters table for
numeric buttonsโ (p.๎110)
Timer Programming (freesat or DVB mode)
Timer Programming is a timer to remind watching or record the programme to the external recorder or the USB HDD.
1 Select the forthcoming programme 2 Select the function ([Ext Rec.],๎[USB HDD Rec.] or [Reminder])
select
set 19:30119 BBC HD 20:00
- -- --/-- --:-- --:---- -
D
Timer Programming
Function No. Channel Name Date Start End
Wed 27.10.2010 10:46
Ext Rec. Wed 27 Oct
(30 min.)
(--- min.)
DIY SOS
(Timer Programming screen)
store
select
LED will turn to orange if
Timer Programming is set.
(Orange LED will flash if the recording of
Timer Programming is in progress.)
LED
[Ext Rec.] / [USB HDD Rec.] :
to record the programme to the external recorder or the USB HDD
When the start time comes, the channel will be switched automatically and the
video and audio signals will be output. 2 minutes before the starting time, a
reminder message appears if you are watching TV.
[Reminder] :
to remind you to watch the programme
When you are watching TV, a reminder message appears 2 minutes before the
start time. Press the OK button to switch to the programmed channel.
Using TV Guide
25
โ To check / change / cancel a timer
programming event
โ To return to TV Guide
BACK/
RETURN
๎โTimer Programmingโ (p. 58, 59)
โ If you select a current programme โ
If a programme exists in both HD and SD broadcasts
A confirmation screen asking whether you wish to watch or
record the programme will appear.
Select [Timer Programming] and set [Ext Rec.] or [USB
HDD Rec.] to record from the time you finish the timer
programming event setting.
The [Timer Options] screen will be displayed to select HD or SD
broadcast.
101 BBC ONE 19:30-20:00 Wed 27 Oct 2010
119 BBC HD 19:30-20:00 Wed 27 Oct 2010
Timer Options
DIY SOS
set
select
Eastender
19:30- 20:00
View Timer Programming access
select
19:30119 BBC HD 20:00
-- - --/-- --:-- --:---- -
D
Timer Programming
Function No. Channel Name Date Start End
Wed 27.10.2010 10:46
Ext Rec. Wed 27 Oct
(30 min.)
(--- min.)
DIY SOS
(Timer Programming screen)
will be displayed if
HD broadcast is set.
Note
โข
This function is not available in Analogue mode.
โข
Timer Programming reminder messages will remain displayed until one of the following occurs:
โข You press the OK button to view the programme or the EXIT button to cancel the reminder.
โข The timer programming event that the reminder is set for ends.
โข
No other channel can be selected while the recording of Timer Programming is in progress.
โข
When recording programmes, be sure to make the proper settings on the recorder connected to the TV. (p. 58)
โข
When recording programmes to the USB HDD, be sure to format the USB HDD and enable it for recording in [Recording
Setup] (p.๎68).
Guide link programming (Timer Programming from the TV Guide signal)
Guide link programming is Timer Programming which is controlled by information from the TV Guide; if programme start and
end times are changed by the broadcaster, the timer programming event will follow the change.
A Split Programme programming is a Guide link programming which is interrupted by one or more other programmes.
Note that Guide link programming (including Split Programme programming) only works reliably if correct information is
received from broadcasters.
(Timer Programming screen)
---
------
0
7 BBC ONE
DIY SOS
The Bill
Red Cap
20:00 20:30
14 E4 21:00 22:30
72 BBC 2W
BBC ONE1
22:45 23:00
10:30 11 : 3 0
--:----:-- --:--
91/1
S/P
Guide
Guide
D
D
D
D
500GB (50%)
Timer Programming
Function No. Date Start EndChannel Name
Wed 27 Oct 2010 10:46
Ext Rec.
Ext Rec.
Reminder
Ext Rec. Wed 27 Oct
(30 min.)
(90 min.)
(15 min.)
(60 min.)
(--- min.)
Wed 27 Oct
Wed 27 Oct
Thu 28 Oct
<TIMER>
Change function
EXIT
Select
RETURN
Remaining Capacity:
Store timer
โS/Pโ is displayed if the timer is set from the TV
Guide and the programme is a Split Programme
โGuideโ is displayed if the timer is set from the TV Guide
(Guide link programming)
Das Erste DIY SOS Holiday News
19:30 20:00 20:30 21:00
The Bill
Good bye
Hot Wars Holiday Program
Pepsi Char.
Emmerdal.
10 Oโ clock News BBC
CoastSpring watchPanorama
NewsPop IdolIโm A Celebrity
Sports15 To 1Rugby
D
D
D
D
D
D
D
BBC ONE
20:00 - 20:30 DIY SOS : We open in the Battersbys
1 BBC ONE
BBC THREE
E4
BBC FOUR
BBC 2W
BBCi
BBC Radi
1
7
14
70
72
105
719
Coronation Street
Time:
TV Guide
Wed 27 Oct 2010
10:46
Wed 27 Oct Search All Channels
Example :
โ โ or โ โ will be displayed in the TV Guide if
Timer Programming is set as the Guide link
programming.
Note
โข
If you edit the start time or end time of a Guide link programming event by more than 10 minutes, it will no longer follow
the broadcasterโs changes to the start or end time. The start and end times will become fixed.
โข
Whilst making the Split Programme programming event for [Ext Rec.] or [USB HDD Rec.], you cannot record any channels
between the interrupted programmes.
โข
The Split Programme programming event for Reminder will be cleared by pressing the OK button once to view.
โข
The Split Programme programming event for Reminder will switch to the programmed channel by pressing the OK button
even if it is between the interrupted programmes.
โข
The Split Programme programming does not work if the separated parts are broadcast on different channels.
Viewing Teletext
27
Viewing Teletext
You can enjoy news, weather forecasts and subtitles, etc. (depending on the broadcaster)
โข
The availability of teletext services for a programme is indicated by [TEXT] in the information banner.
1
BBC ONE WALES
Coronation Street
TEXT
20:00 - 20:55
20:35
Now
All DVB Channels
Select favourites Displayed if programme has teletext service
Information banner (p. 19)
Depending on the broadcaster, the digital teletext (MHEG) services may not be available. In this case, the operation of the
teletext services may be the same as the analogue teletext services (p. 28).
Digital teletext (MHEG)
Digital teletext services differ greatly from analogue teletext.
When you switch to a digital teletext service, the images you see can contain graphics and text, laid out and controlled in a
manner decided by the broadcaster.
โ To return to TV
TEXT
1Select freesat or DVB
๎(p.๎18)
TV โข
freesat and DVB programmes have digital
teletext services (MHEG).
2Switch to Teletext
TEXT
17:51 28 Feb
Example :
โ How to operate services
In all cases, it is possible to navigate the pages using buttons on the remote control, but
because the commands available must apply to all manufacturers of digital equipment, some
on screen commands may not correspond exactly to the remote control buttons.
โข
Select, go โข
Symbol :
โข
Back key
BACK/
RETURN
โข
Coloured characters
Coloured button
โข
When options with numbers are
displayed
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Note
โข
As soon as you switch to a digital channel with links to a teletext service, software is downloaded
in the background to enable the teletext function. This means that when switching to a digital
channel, you should wait for approximately 5 seconds before pressing the TEXT button - this will
allow the software to download. If you press the TEXT button before download is complete, it will
be ignored and you will have to press the TEXT button again when the download is complete.
โข
While navigating digital teletext, you will find there is a short delay when moving between
pages while the page downloads. There is often a prompt shown somewhere on the page (for
example โLoadingโ) to let you know that this is happening.
Viewing Teletext
28
Analogue teletext
Analogue teletext services are the text information provided by the broadcasters.
The features may vary depending on the broadcasters.
What is FASTEXT (FLOF) mode?
In FASTEXT mode, four differently coloured subjects are situated at the bottom of the screen. To access more information about
one of these subjects, press the appropriately coloured button. This facility enables fast access to information on the subjects
shown.
What is List mode?
In List mode, four differently coloured page numbers are situated at the bottom of the screen. Each of these numbers can be
altered and stored in the TVโs memory. โStore frequently viewed pagesโ (p.๎29)
โ To change mode ๎[Teletext] (p.๎42)
โ To return to TV
EXIT
1Select Analogue
๎(p.๎18)
TV
2Switch to Teletext
TEXT
โข
Displays the index page (content varies
depending on the broadcasters)
<< 01 02 03 04 05 06 07 >>
TELETEXT
INFORMATION
17:51 28 Feb
Time / date
Sub page number
Colour bar
Current page number
3Select the page
abc def
jkl
ghi
mno
tuvpqrs
wxyz
or
up
down
or
Coloured button
(Corresponds to the colour bar)
โ To adjust contrast
MENU
(Press twice)
As the blue bar is displayed
FULL / TOP / BOTTOM
MENU
(green)
(TOP) (BOTTOM) Normal (FULL)
(Expand the TOP half) (Expand the BOTTOM half)
Reveal hidden data HOLD
Reveal hidden words e.g. quiz page answers Stop automatic updating
MENU
(red) โข
Press again to rehide (If you wish to hold the current page without updating)
HOLD
โข
Press again to resume
Viewing Teletext
29
INDEX Subtitles
Return to the main index page View a favourite page stored
INDEX
STTL
โข
Factory setting is โP888โ
(subtitle service) on the blue
button (List mode).
View in multi window
Watch TV and Teletext in two windows at once
TEXT
โข
Operations can be made only in Teletext screen.
โข
Each time pressed: Teletext TV and Teletext
TV
Store frequently viewed pages
Store frequently viewed pages in the colour bar (List mode only)
As page is displayed
(Corresponding
coloured button)
press and hold
The number changes to
white.
โข
If you wish to use Subtitles,
do not change number on
blue button.
โ To change stored pages
Coloured button you want to
change
Enter new page number
press and hold
abc def
jkl
ghi
mno
tuvpqrs
wxyz
View sub page
View sub page (Only when teletext is more than one page)
Appears at top of the screen โข
The number of sub pages varies depending on the
broadcasters (up to 79 pages).
โข
It may take some time for searching, during which time
you can watch TV.
โ To view specific sub page
MENU
(blue)
Enter the 4-digit number
example : P6
mno
Watch TV while waiting for update
View the TV picture while searching for a teletext page
Teletext automatically updates itself when new information becomes available.
MENU
(yellow)
Changes to TV screen temporarily View the updated
page
P108 Appears when updating
is completed (yellow)
(You cannot change the channel.)
โข
The news page provides a function that indicates arrival of latest news (โNews Flashโ).
Watching External Inputs
30
Watching External Inputs
Connect the external equipment (VCRs, DVD equipment, etc.) and you can watch through the AV input.
โข
To connect the equipment ๎(p.11, 12, 103 - 105)
The Remote Control is capable of operating some functions of selected external equipment.
โOperating the equipment with the TV remote controlโ (p.๎31)
โ To return to TV
TV
1Turn the TV on
When connecting with SCART as example 2 or 3 (p.๎11, 12)
Receives input signals automatically when playback starts
โข
Input signals are automatically identified by the SCART (pin 8) terminal.
โข
This function is also available for HDMI connections (p.๎110).
If input mode is not switched automatically
Perform 2 and 3
โข
Check the setup of the equipment.
2Display the input selection menu
AV
3Select the input mode connected to the equipment
AV1
AV2
COMPONENT
HDMI1
HDMI2
HDMI3
HDMI4
TV
Input Selection
SD Card/USB
select
watch
โข
You can also select the input using the AV button on the remote control or the side
panel of the TV (except [SD Card/USB]).
Press the button repeatedly until the desired input is selected.
โข
[SD Card/USB] : Switches to Media Player ๎[Using Media Player] (p.๎72)
โข
You can label or skip each input mode (except [SD Card/USB]). ๎โInput Labelsโ (p.๎61)
Skipped inputs will not be displayed when the AV button is pressed.
4View
AV1 Displays the selected mode
Terminal AV1 AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4
Manual input
(default setting
in โInput๎Labelsโ)
AV1
AV1-RGB AV2 COMPONENT HDMI1 HDMI2 HDMI3 HDMI4
Auto input
(EC mode or
VIERA Link)
EC/AV1
EC/AV1-RGB
โ โ
EC/HDMI1
Applicable for
EC mode and
VIERA Link
EC/HDMI2
Applicable
for
VIERA Link
EC/HDMI3
Applicable
for
VIERA Link
EC/HDMI4
Applicable
for
VIERA Link
โข
If the above information is permanently displayed on the top left of the screen, press the button to clear.
Note
โข
If the external equipment has an aspect adjustment function, set it to [16:9].
โข
For details, see the manual of the equipment or ask your local dealer.
Watching External Inputs
31
Operating the equipment with the TV remote control
The equipment connected to the TV can be directly operated with the below buttons of this TV remote control.
DVD/VCR
TV
Selection Switch for operating the connected equipment
Select โDVD/VCRโ to operate Panasonic DVD Recorder, DVD Player, Player theatre, Blu-ray Disc
theatre or VCR
๎โHow to change the code for the type of the equipmentโ (see below)
Select โTVโ to use USB HDD Recording, Media Player or VIERA Link
๎โUSB HDD Recordingโ (p. 71)
๎โMedia Playerโ (p. 79, 81)
๎โVIERA Link Controlโ (p.๎101)
Standby
Set to Standby mode / Turn on
Play
Playback videocassette / DVD / video content
Stop
Stop the operations
Rewind / Skip / Search
VCR :
Rewind, view the picture rapidly in reverse
DVD / video content :
Skip to the previous track, title or chapter
Press and hold to search backward
Fast-forward / Skip / Search
VCR :
Fast-forward, view the picture rapidly forward
DVD / video content :
Skip to the next track, title or chapter
Press and hold to search forward
Pause
Pause / Resume
DVD : Press and hold to play at slow speed
PROGRAMME
Channel Up / Down
Select channel
REC
Record
Start recording
How to change the code for the type of the equipment
Each type of the Panasonic equipment has its own remote control code.
Please change the code according to the equipment you want to operate.
1 Set the position to โDVD/VCRโ
DVD/VCR
TV
2 Press and hold during the following operations
Enter the appropriate code, see
table below
abc def
jkl
ghi
mno
tuvpqrs
wxyz
Press
Type of the equipment Code
DVD Recorder, DVD Player, Blu-ray Disc Player 70 (default)
Player theatre, Blu-ray Disc theatre 71
VCR 72
Note
โข
Confirm if the remote control works correctly after changing the code.
โข
The codes may be reset to default values if batteries are replaced.
โข
Some operations may not be possible on some equipment models.
Viewing 3D images
33
โ 3D photos and 3D videos taken by 3D-compatible Panasonic products
โข
Available in Media Player (p. 73 - 75, 78, 79) and Network services (p.๎92)
โ 2D images converted to 3D
Set to [2D 3D] mode in [3D Mode Selection] (p. 34)
1 Turn the 3D Eyewear on
2 Put on the 3D Eyewear
3 Watch the 3D images
โข
Safety precautions will be displayed when you first watch the
3D image. Select [Yes] or [No] to continue to view 3D images.
If you select [Yes], this message will be displayed again in the
same condition after Mains power On / Off switch is next turned
On. Select [No] if you do not wish to display this message again.
Example :
To enjoy 3D images safely and comfortably, please read the Operating Instructions fully.
Please stop using the 3D Eyewear immediately, if you feel tired, are not feeling well or
experience any other uncomfortable sensation.
Always put the 3D Eyewear in the case provided after use.
Would you like to display this message again later?
Safety Precautions
Yes No
4 Turn off the 3D Eyewear after using it
Note
โข
3D Eyewear is not included. Please purchase as necessary. (p.๎6)
โข
For more detail about using and wearing the 3D Eyewear, please refer to the manual of the 3D Eyewear.
โข
The 3D image or 3D effect may not be available while VIERA๎Connect home screen (p.๎17) is displayed or Ext Rec. of Timer
Programming (p.๎59) / Direct TV Recording (p.๎97, 99) is in progress. As for the contents of the Frame Sequential format and
Side by Side (Full), no images will be displayed in these conditions.
โข
If the room is lit by fluorescent lights / dimmers (50 Hz) and light appears to flicker when using the 3D Eyewear, switch off the
fluorescent light or set [3D Refresh Rate] to [100Hz] (p.39).
โข
3D content will not be correctly visible if the 3D Eyewear is worn upside down or back-to-front.
โข
Do not wear the 3D Eyewear when watching anything other than 3D images. Liquid crystal displays (such as computer
screens, digital clocks or calculators, etc.) may be difficult to see while wearing the 3D Eyewear.
โข
Do not use the 3D Eyewear as sunglasses.
โข
3D effects may be perceived differently depending on the person.
Available range for the 3D Eyewear
If the 3D Eyewear is placed outside the coverage area for about 5 minutes, the 3D Eyewear will be turned off automatically.
35ยฐ35ยฐ
View from the top View from the side
20ยฐ
20ยฐ
: Coverage area for using
the 3D Eyewear
Note
โข
You cannot view the 3D images with the 3D Eyewear too far from the TV, because of the difficulty of receiving infrared signals from the TV.
โข
The range may be shortened depending on the obstacles between the infrared sensors on the TV and the 3D Eyewear, the
dirt on the infrared sensors or the surrounding environment.
โข
If you do not look toward the TV screen for a while when viewing 3D images, the 3D Eyewear may be turned off automatically
even if in the coverage area.
Viewing 3D images
34
Changing 2D - 3D mode
You can easily change the viewing mode between 2D and 3D using the 3D button.
Select the mode
2D
3D
3D
2D
3D Mode Selection
set
select โข
Items of [3D Mode Selection] vary
depending on the condition.
[3D] / [2D] / [2D 3D] :
Displays the appropriate image that you desire without selecting 3D format
โข
This mode may not work properly depending on the source image format. In this case, select the appropriate 3D format manually.
โ To change 3D format manually
When the image is not changed properly using [3D], [2D] or [2D 3D] mode, use this manual setting.
During the above operation Select the mode
(red)
2D 3D
3D Mode Selection (Manual)
Top and Bottom - 2D
Top and Bottom - 3D
Side by Side - 2D
Side by Side - 3D
Frame Sequential - 2D
Frame Sequential - 3D
Original
set
select
[Original] :
Displays the source image as it is
โข
Use to identify the format type of the source image.
โTable of images that can be seen for each [3D Mode Selection (Manual)] and the source image formatโ (see below)
[Frame Sequential - 3D] / [Frame Sequential - 2D] / [Side by Side - 3D] / [Side by Side - 2D] /
[Top and Bottom - 3D] / [Top and Bottom - 2D] :
Displays the mode you select
โข
Not valid on Analogue and AV mode
[2D 3D] :
Converts 2D images into 3D
โข
For DVB, Analogue, AV, Component, HDMI, Media Player and network service operations
โข
On-screen displays are also seen in 3D in this mode.
โข
Please note the 3D images appear slightly different from the originals.
โข
Using this function for profit-making purposes, or publically showing images converted from 2D to 3D in places such as
shops or hotels etc. may infringe on the rights of the copyright holder protected under copyright law.
Table of images that can be seen for each [3D Mode Selection (Manual)] and the source image format
If the picture appears to be abnormal, refer to the table below to choose the correct 3D mode.
[3D Mode Selection]
Source image
format
[Original]
[Frame
Sequential
- 3D]
[Side by Side
- 3D]
[Top and
Bottom - 3D] [2D 3D]
Frame Sequential
Normal 3Dโ
1
Side by Side (Full)
Normal 3Dโ
1
Side by Side
Normal 3Dโ
1
Top and Bottom
Normal 3Dโ
1
Normal format (2D)
Normal 3D
โ
1 :๎
When selecting [Frame Sequential - 2D], [Side by Side - 2D] or [Top and Bottom - 2D], the images will be displayed without 3D effect.
โข
Depending on the player or broadcasts, the image may be different from the above illustrations.
Specyfikacje produktu
| Marka: | Panasonic |
| Kategoria: | Telewizor plazmowy |
| Model: | Viera TX-P42GT30B |
Potrzebujesz pomocy?
Jeลli potrzebujesz pomocy z Panasonic Viera TX-P42GT30B, zadaj pytanie poniลผej, a inni uลผytkownicy Ci odpowiedzฤ
Instrukcje Telewizor plazmowy Panasonic
4 Lipca 2024
4 Lipca 2024
4 Lipca 2024
4 Lipca 2024
28 Czerwca 2024
28 Czerwca 2024
28 Czerwca 2024
28 Czerwca 2024
28 Czerwca 2024
28 Czerwca 2024
Instrukcje Telewizor plazmowy
- Telewizor plazmowy Samsung
- Telewizor plazmowy LG
- Telewizor plazmowy Pioneer
- Telewizor plazmowy Philips
- Telewizor plazmowy Grundig
- Telewizor plazmowy HP
- Telewizor plazmowy JVC
Najnowsze instrukcje dla Telewizor plazmowy
4 Lipca 2024
4 Lipca 2024
3 Lipca 2024
3 Lipca 2024
3 Lipca 2024
3 Lipca 2024
2 Lipca 2024
1 Lipca 2024
1 Lipca 2024
1 Lipca 2024
