Dear customer,

Congratulations on choosing the Noctua NH-L9a-AM4

chromax.black.

This small cooler packs all essential technologies of our

award-winning high-end models into a highly compact

package in order to give you the best possible quiet cool-

ing experience for HTPCs and small form factor builds. I’m

condent that you will be able to sense some of the research,

attention and care we’ve put into making this product.

Enjoy your NH-L9a-AM4 chromax.black!

Yours sincerely,

Roland Mossig, Noctua CEO

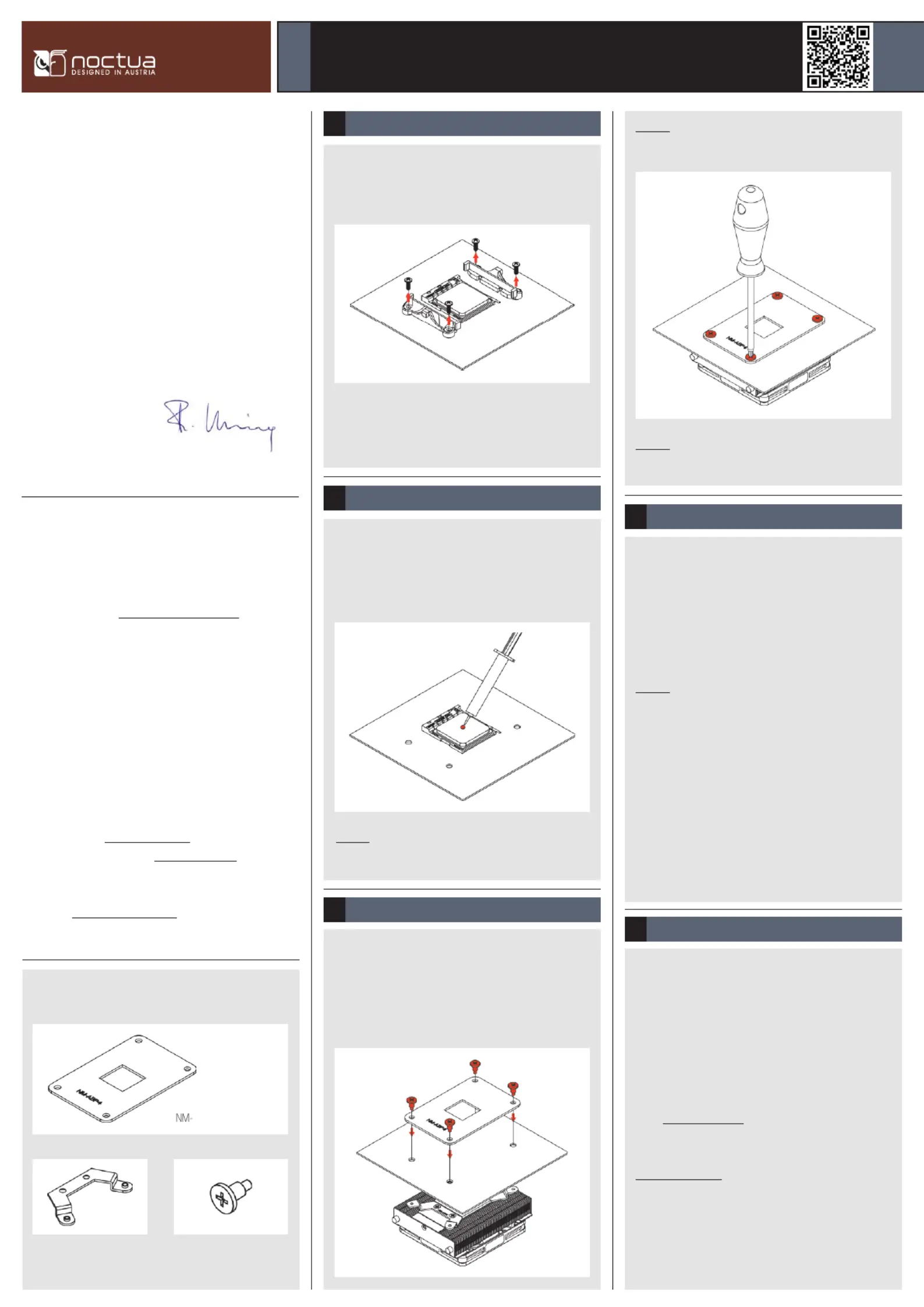

This manual will guide you through the installation process

of the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

list on our website (www.noctua.at/compatibility) and verify

that the cooler is fully compatible with your motherboard.

In particular, if your motherboard does not come with a

pre-installed stock backplate, double check that there are

no components on the rear side that would prevent the

installation of the NM-ABP4 backplate.

Noctua cannot be held responsible for any damage or

losses caused by compatibility issues.

Should you encounter any difculties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

NOCTUA NH-L9a-AM4 chromax.black

INSTALLATION MANUAL

AMD

Scan this code to display

multilingual manuals on

your phone.

Required mounting parts:

Removing the stock retention module & backplate1

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and

direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-L9a-AM4

chromax.black, please don’t hesitate to contact our support

team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs

Warranty, support and FAQs!

Connect the fan to the motherboard.

Depending on your CPU and the temperature inside the

case, you may interconnect the supplied NA-RC7 Low-Noise

Adaptor (L.N.A.) in order to further reduce the fan’s operating

noise.

Caution: When using the L.N.A., check the temperature of

your CPU using appropriate software (e.g. the respective

applications of your motherboard manufacturer), in order to

evade automatic throttling of the CPU due to the increased

temperature. If the cooling performance is insufcient, please

increase case ventilation or remove the L.N.A.

In case you would like to use a 92x25mm fan for further

improved performance, please rst unscrew the preinstalled

NF-A9x14 fan and use the supplied longer screws to install

the 92x25mm fan.

Fan setup4

Caution: Gently tighten the screws until they stop, but don’t

use excessive force (max. torque 0.6 Nm).

Put the heatsink onto the CPU and the supplied NM-ABP4

backplate to the rear side of the motherboard. Now stick the

mounting screws through the holes of the backplate and x the

cooler. Perform 3 turns on each screw, then repeat until all are

fully tightened.

Fastening the heatsink to the CPU3

2x NM-AFB6

fastening brackets

4x NM-ABT1

mounting screws

NM-ABP4 backplate

If your motherboard comes with a pre-installed CPU cooler

retention module, please rst remove it by unscrewing it from

the backplate. Then remove the backplate.

If your motherboard does not come with a pre-installed CPU

cooler retention module and backplate, please proceed with

step 2.

If there are residual traces of thermal paste or thermal pads on

your CPU, please clean them off rst. Then press a small drop

(4-5mm diameter) of the supplied NT-H1 thermal compound

onto the centre of the heatspreader.

Applying the thermal paste2

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Caution: Please make sure that the insulated side of the back-

plate is facing the motherboard.

Specyfikacje produktu

Marka:	Noctua
Kategoria:	Sprzęt komputerowy
Model:	NH-L9A-AM4
Kolor produktu:	Beige, Nickel
Odpowiednia lokalizacja:	Procesor
Wysokość produktu:	114 mm
Szerokość produktu:	92 mm
Głębokość produktu:	37 mm
Waga produktu:	465 g
Szerokość opakowania:	148 mm
Wysokość opakowania:	212 mm
Głębokość opakowania:	53 mm
Kod zharmonizowanego systemu (HS):	84733080
Waga wraz z opakowaniem:	770 g
Wysokość skrzyni wzorcowej (zewnętrznej):	460 mm
Długość skrzyni głównej (zewnętrznej):	250 mm
Waga brutto obudowy głównej (zewnętrznej):	19700 g
Szerokość skrzyni zbiorczej (zewnętrznej):	440 mm
Napięcie:	12 V
Model:	Chlodnica/wentylator
Liczba wentylatorów:	1 went.
Procesor:	AMD A
Zasilanie:	2.52 W
Złącze wentylatora:	4-pin
Materiały:	Aluminium, Copper, Nickel
Obsługiwane gniazda procesora:	Socket AM4
Produkty w skrzyni głównej (zewnętrznej):	24 szt.
MTBF (Średni okres międzyawaryjny):	150000 h
Poziom hałasu (wysoka prędkość):	23.6 dB
Średnica czaszy wentylatora:	92 mm
Prędkość obrotowa (min):	600 RPM
Prędkość obrotowa (max):	2500 RPM
Przepływ powietrza:	57.5 m³/h
Typ łożyska:	Self-Stabilising Oil-pressure Bearing (SSO)
Wymiary wentylatora (szer. x głęb. x wys.):	92 x 14 x 92 mm
Modulacja szerokości impulsu (PWM) wsparcie:	Tak
Maksymalne ciśnienie powietrza:	2.11 mmH2O
Wymiary radiatora (S x G x W):	92 x 23 x 114 mm
Waga radiatora:	390 g
