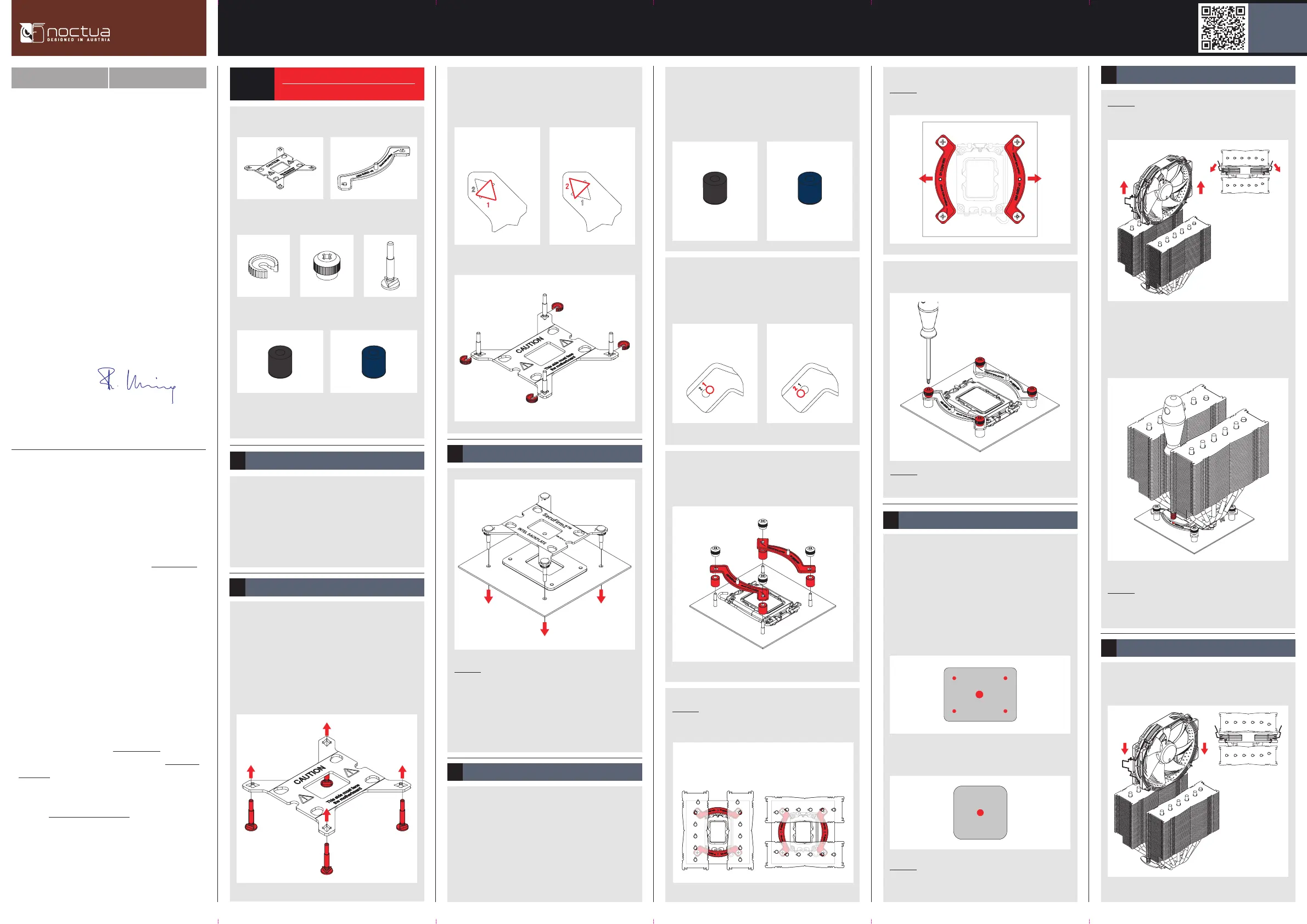

Strona 1/6

In case you want to use the cooler on an assembled system

and your case doesn’t have a cut-out at the rear side of the

motherboard tray, you rst have to remove the motherboard

from the case in order to be able to install the supplied

backplate.

Removing the motherboard1

NOCTUA NH-D15S chromax.black

INSTALLATION MANUAL

Scan this code to display

multilingual manuals on

your phone.

Required mounting parts:

2x NM-IMB2 mounting bars1x NM-IBP2 backplate

4x NM-ITS1s thumb screws4x NM-IPS1 plastic spacers

Caution: The supplied backplate will install over the mother-

board’s stock backplate, so the motherboard’s stock backplate

must not be taken off.

Attaching the backplate2

Place the backplate on the rear side of the motherboard so that

the bolts stick through the mounting holes.

Caution: Please make sure that the three cut-outs in the

supplied backplate align with the screws of the motherboard’s

stock backplate.

First put the plastic spacers onto the bolts of the backplate, then

add the mounting bars.

Installing the mounting bars3

Dear customer,

Congratulations on choosing the Noctua NH-D15S chromax.

black. Built on the basis of the legendary NH-D14 and carrying

on its quest for ultimate quiet cooling performance, our agship

model NH-D15 is an elite class dual tower cooler for the

highest demands. I’m condent that you will be able to sense

some of the research, attention and care we’ve put into making

this cooler.

Enjoy your NH-D15S chromax.black!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

list on our website (www.noctua.at/compatibility) and verify

that the cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufcient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card or other PCIe cards. Noctua

cannot be held responsible for any damage or losses caused

by compatibility issues.

Should you encounter any difculties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at .support@noctua.at

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

LGA115x & LGA1200!

Caution: Make sure that the curved sides of the mounting bars

are pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off rst. Then press a small

drop (3-4mm diameter) of NT-H1 onto the centre of the heat-

spreader.

Applying the thermal paste

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Orientation A Orientation B

Caution: Choose the alignment of the mounting bars according

to the desired nal orientation of the cooler:

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars. Perform 2-3 turns on each

screw, then repeat until both are fully tightened.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

Caution: Please rst take off the fan as well as the protection

cover at the bottom side of the heatsink.

Fastening the heatsink to the CPU5

Reattach the fan using the supplied steel clips:

Fan setup6

Even with high-grade products and strict quality control, the

possibility of defects cannot be eliminated entirely. Therefore,

we aim at providing the highest possible level of reliability and

convenience by offering a warranty period of 6 years and

direct, fast and straightforward RMA service.

Should you encounter any problems with your NH-D15S

chromax.black, please don’t hesitate to contact our support

team (support@noctua.at).

Please also consult the FAQ section on our website:

www.noctua.at/faqs.

Warranty, support and FAQs!

As it is not possible to reliably calculate or control the forces

that act upon a system during transport (e.g. in shipping), we

generally recommend, for safety reasons, taking the cooler off.

Noctua cannot be held responsible for any damage that may

arise due to excessive stress during transport if you keep the

heatsink installed.

Transporting your system!

Caution:

• It is not possible to install 140mm fans with square frames

(124.5mm hole spacing) such as the NF-A14 or NF-P14s

redux.

• If you add a second fan to the front n stack, it will sit above

the RAM modules. Please verify that you have sufcient room

inside your case before adding a second fan. For example, if

you add a 140mm fan and use RAM modules that are 50mm

high, you will need 190mm of clearance, adding a 120mm

fan while using 50mm RAM requires 170mm, etc.

Connect the fan to the motherboard’s CPU fan header.

Depending on your CPU and the temperature inside the case,

you may interconnect the supplied NA-RC7 Low-Noise Adaptor

(L.N.A.) in order to further reduce the fan’s operating noise.

Caution: When using the L.N.A., check the temperature of

your CPU using appropriate software (e.g. the respective

applications of your motherboard manufacturer), in order to

evade automatic throttling of the CPU due to the increased

temperature. If the cooling performance is insufcient, please

increase case ventilation or remove the L.N.A..

Adding a second fan

The NH-D15S chromax.black includes an extra set of fan clips

for installing a second fan to the front n stack in push/pull

mode in order to further improve cooling performance. The

fan clips support:

• Round frame 140mm fans with 120mm mounting (105mm

hole spacing) such as the NF-A15 PWM or the NF-P14r

redux models

• Standard 120mm fans (105mm hole spacing) such as the

NF-A12x25, NF-F12 or NF-P12 redux models

NOCTUA NH-D15S chromax.black

INSTALLATION MANUAL

Scan this code to display

multilingual manuals on

your phone.

First screw the NM-IBT2 bolts into the screw threads of the

LGA20xx socket frame.

Installing the mounting bars1

Then put the NM-IMB2 mounting bars onto the bolts.

Caution: Choose the alignment of the mounting bars according

to the desired nal orientation of the cooler:

Orientation A Orientation B

Required mounting parts:

2x NM-IMB2 mounting bars

4x NM-ITS1s thumb screws4x NM-IBT2 bolts

Caution: Make sure that the curved sides of the mounting bars

are pointing outwards.

Fix the mounting bars using the 4 thumb screws.

Caution: Gently tighten the screws until they stop, but don’t use

excessive force (max. torque 0.6 Nm).

If there are residual traces of thermal paste or thermal pads

on your CPU, please clean them off rst. Then press a small

drop (4-5mm diameter) of NT-H1 onto the centre of the heat-

spreader.

Applying the thermal paste

Caution: Applying too much thermal paste will lower heat

conductivity and cooling performance!

Caution: Please rst take off the fan as well as the protection

cover at the bottom side of the heatsink.

Fastening the heatsink to the CPU3

NOCTUA NH-D15S chromax.black

INSTALLATION MANUAL

Scan this code to display

multilingual manuals on

your phone.

Dear customer,

Congratulations on choosing the Noctua NH-D15S chromax.

black. Built on the basis of the legendary NH-D14 and carrying

on its quest for ultimate quiet cooling performance, our agship

model NH-D15 is an elite class dual tower cooler for the

highest demands. I’m condent that you will be able to sense

some of the research, attention and care we’ve put into making

this cooler.

Enjoy your NH-D15S chromax.black!

Yours sincerely,

Roland Mossig, Noctua CEO

This manual will guide you through the installation process of

the SecuFirm2™ mounting system step by step.

Prior to installing the cooler, please consult the compatibility

list on our website (www.noctua.at/compatibility) and verify

that the cooler is fully compatible with your motherboard.

Please also make sure that your PC case offers sufcient

clearance for the cooler and that there are no compatibility

issues with any other components (e.g. tall RAM modules).

Double check that the heatsink and fan clips do not make

contact with the VGA card or other PCIe cards. Noctua

cannot be held responsible for any damage or losses caused

by compatibility issues.

Should you encounter any difculties, please check the FAQs

on our website (www.noctua.at/faqs) and don’t hesitate to

contact our support team at support@noctua.at.

Multilingual versions of this manual are available on our

website: www.noctua.at/manuals

LGA20xx!

Then put the heatsink onto the CPU and screw it to the screw

threads of the mounting bars. Perform 2-3 turns on each

screw, then repeat until both are fully tightened.

Specyfikacje produktu

Marka:	Noctua
Kategoria:	Sprzęt komputerowy
Model:	NH-D15S chromax.black
Kolor produktu:	Czarny
Odpowiednia lokalizacja:	Procesor
Wysokość produktu:	160 mm
Szerokość produktu:	150 mm
Głębokość produktu:	135 mm
Waga produktu:	1150 g
Ilość na paczkę:	1 szt.
Kod zharmonizowanego systemu (HS):	84733080
Pobór mocy:	1.56 W
Napięcie:	12 V
Model:	Chlodnica/wentylator
Liczba wentylatorów:	1 went.
Rodzaj opakowania:	Pudełko
Złącze wentylatora:	4-pin
Materiały:	Aluminium, Cooper
Obsługiwane gniazda procesora:	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1200 (Socket H5), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket FM1, Socket FM2, Socket FM2+
Zestaw do montażu:	Tak
Dołączone śruby:	Tak
MTBF (Średni okres międzyawaryjny):	150000 h
Poziom hałasu (wysoka prędkość):	24.6 dB
Średnica czaszy wentylatora:	140 mm
Prędkość obrotowa (min):	300 RPM
Prędkość obrotowa (max):	1500 RPM
Przepływ powietrza:	140.2 m³/h
Typ łożyska:	Self-Stabilising Oil-pressure Bearing (SSO)
Tworzywo płyta podstawy:	Miedź
Tworzywo chłodnicy:	Aluminium
Ilość ciepłowodów:	6
Modulacja szerokości impulsu (PWM) wsparcie:	Tak
