Strona 1/4
I-00508 Rev C

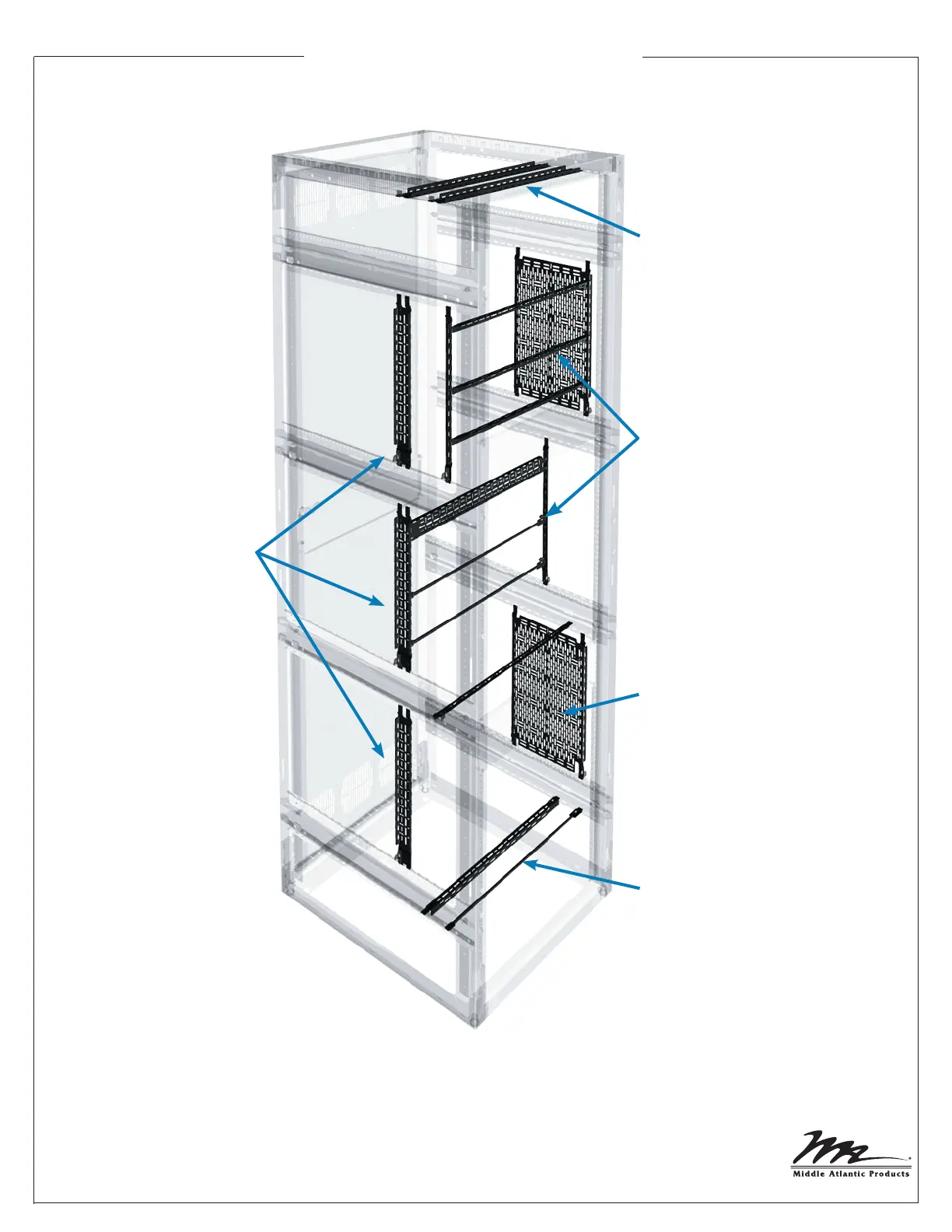

Lever Lock™ TOOL FREE INTERNAL MANAGEMENT SYSTEM
PATENT PENDING
BGR Serie Enclosure Optionss
use horizontal channels
in the top of the rack
to manage cables
between bays
install horizontal lacer
bars, angles, and
channels between
vertical Lever Lock
accessories, for strain
relief and cable
management
use vertical plates to
mount small devices
install horizontal
Lever Lock
lacer bars,
angles, and channels
on any location on
rackrail brackets to
provide offset
cable management
use vertical
channels or
angles to
lace cable
bundles from
top to bottom
VERTICAL INSTALLATION
Lever Lock ™ OPERATION EXAMPLE S
1) Insert the Lever Lock™ accessory into the mating slots in the top rackrail brackets. Ensure the lock
mechanism is installed in the bottom rackrail bracket for proper securement.
2) Fully insert into the top rackrail slots, and then push down into the corresponding slots in the lower
rackrail bracket to lock the accessory into place. The Lever Lock™ will click into place when
engaged.
- Shown here is an example of Lever Lock™ operation
(horizontal installation shown).
- Included with the Lever Lock™ accessory are plastic securing
- When using Din Rail, the clip must go to the outside if the rack.
- Face the flanges to the outside of the rack for the most usable
surface (plate and channel).
rivets. See page 3 for rivet installation.
Page 2
Page 3

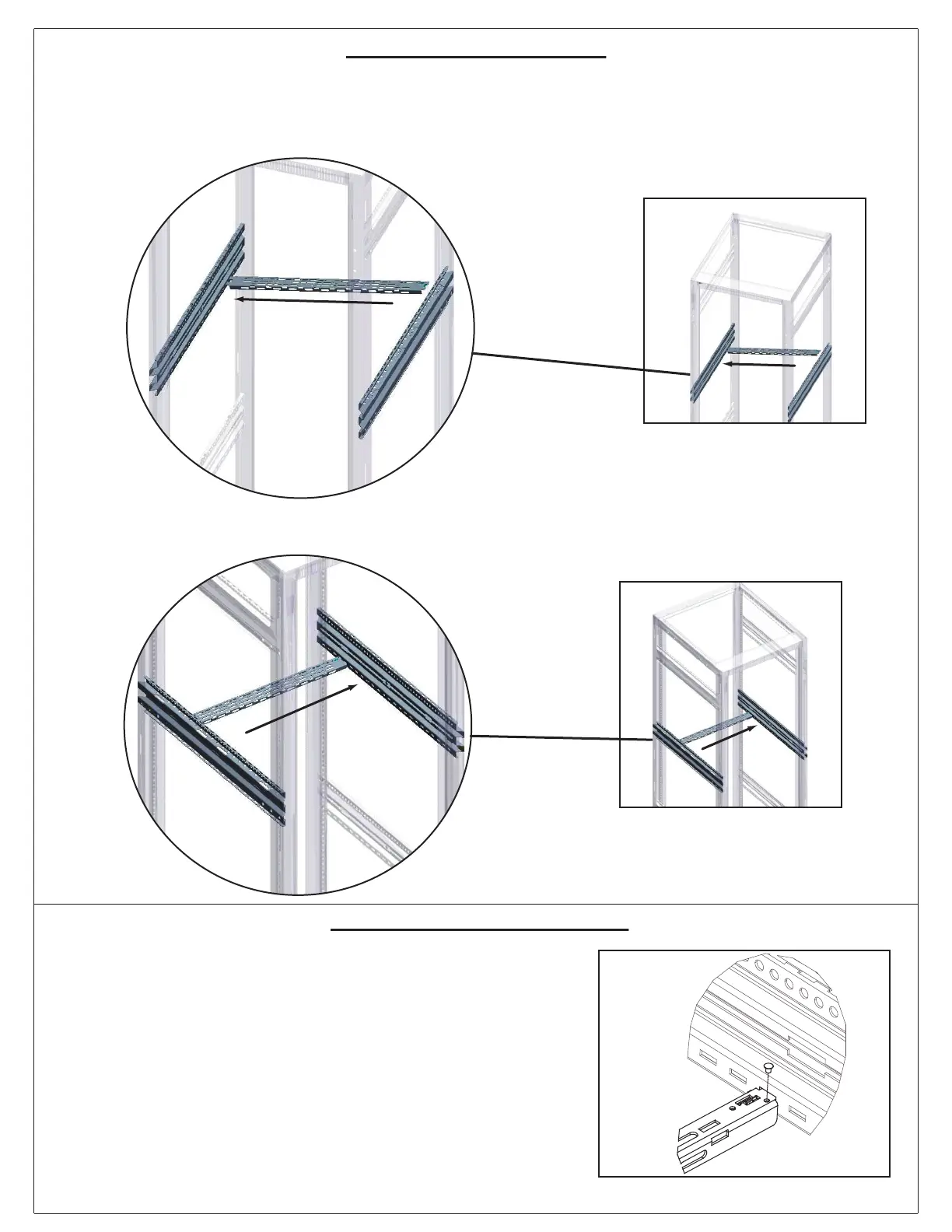

HORIZONTAL INSTALLATION
SECURING RIVET INSTALLATION
1) Insert the Lever Lock™ accessory into the mating slots in the side rackrail brackets or vertical
Lever Lock.
NOTE: All horizontal Lever Lock™ accessories can be installed using any vertical Lever Lock™
accessory.
2) Fully insert into the opposite side rackrail slots, and then push into place to lock the accessory. The
Lever Lock™ will ‘click’ into place when engaged.
- Install plastic securing rivet into the inner holes as shown. This
rivet can be used for seismic installations and for transporting
a populated Lever Lock™ accessory.
