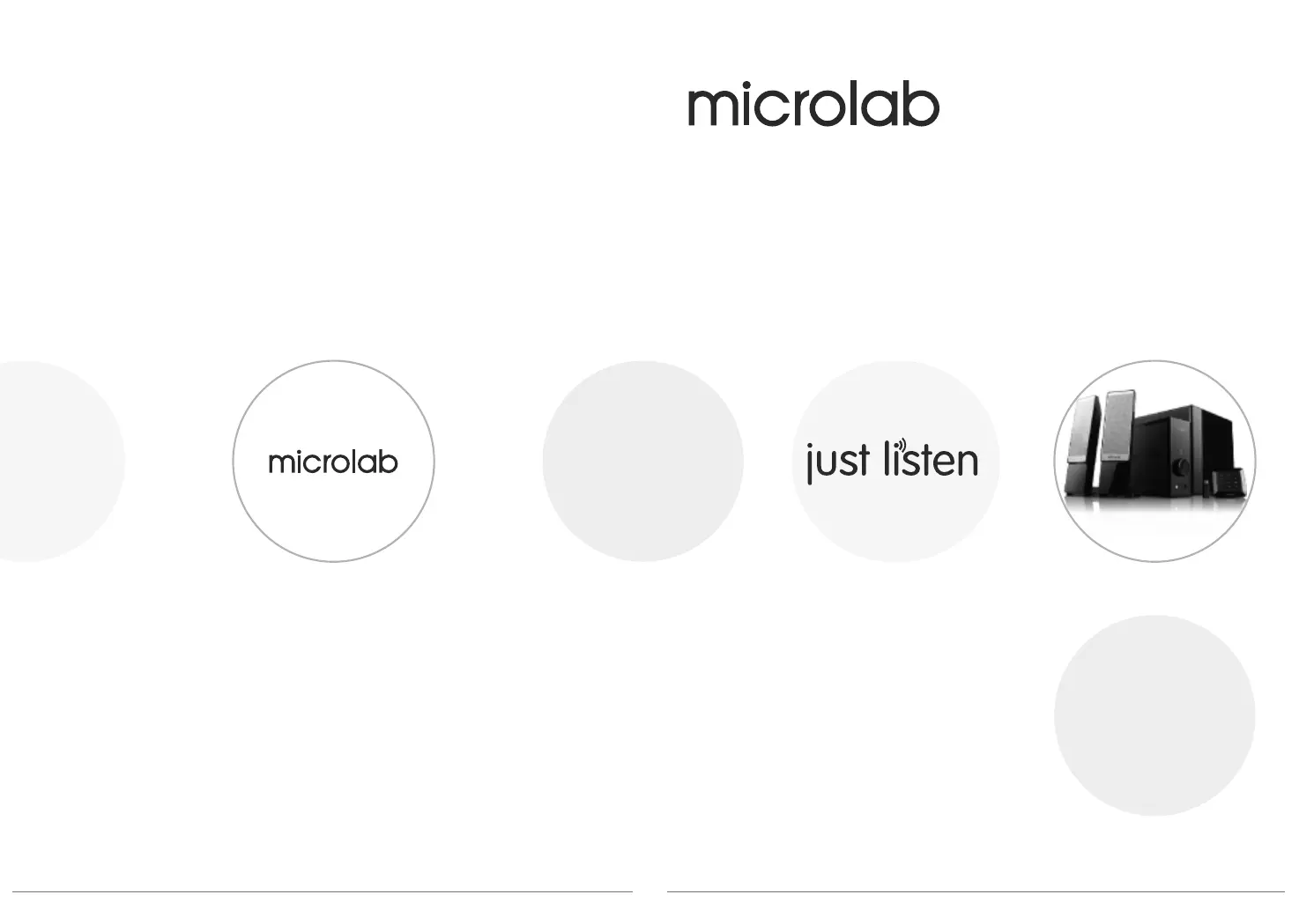

Strona 1/12
FC-362W
User Manual
FineCone Speakers
Before using, please read the manual carefully
www.microlab.com
www.microlab.cn
Microlab Electronics Company Limited
Made in China
All symbols and logo belong to the respective brand holder or registered holder. All specifications and information are subject to changes without
further notice. Slight variations and differences might appear between the printed photos and actual product due to product enhancement.
EN
2
Important Safety Instructions
Important Safety Instructions
Important Safety Instructions
Important Safety InstructionsImportant Safety Instructions
Caution:
Caution:
Caution:
Caution:Caution:
To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain
or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.
Explanation of Graphical Symbols:
Explanation of Graphical Symbols:
Explanation of Graphical Symbols:
Explanation of Graphical Symbols:Explanation of Graphical Symbols:
The lightning flash within an equilateral triangle is intended to alert you to the presence of
uninsulated “dangerous voltage” within the product's enclosure that may be of sufficient magnitude
to constitute an electric shock to a person or persons.
The exclamation point within an equilateral triangle is intended to alert you to the presence of
important operating and maintenance (servicing) instructions in the literature accompanying the
product.
W
W
W
WWarnings:
arnings:
arnings:
arnings:arnings:
1. Read Instructions All the safety and operating instructions must be read before the product is -
operated.
2. Retain Instructions - The safety and operating instructions should be kept for future reference.
3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.
4. Follow instructions - All operating and use instructions should be followed.5. Installation － Install in
accordance with the manufacturer's instructions.
6. Power sources - This product should be operated only from the type of power source indicated by the
marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home,
consult your product dealer or local power company.
7. Grounding or polarization the product is not required to be grounded. Ensure the plug is fully -
inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions
of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having
one blade wide than the other). This plug will fit onto the power outlet only one way. This is a safety
feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still
fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the
polarized plug. When using an extension power-supply cord or a power-supply cord other than that
supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety
approval appropriate to the country of use.
8. Power cord protection - Power supply cords should be routed so that they are not likely to be walked
on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs,
receptacles and the point where they exit from the appliance.
9. Overloading - Do not overload wall outlets, extension cords or multiple sockets, as this can result in a
risk of fire or electric shock.
10. Ventilation The product must be properly ventilated. Do not place the product on a bed, sofa, or -
other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.
11. Heat The product should be situated away from heat sources such as radiators, heat registers, -
stoves, or other products) including amplifiers that produce heat. No naked flame sources, such as
lighted candles, should be placed on the apparatus.
12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train,
dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near
water - for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a
swimming pool and the like.
13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they
may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the
product.
14. Cleaning Unplug the product from the wall outlet before cleaning. The cabinet of the subwoofer -
may be cleaned by dusting with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray
directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.
English 2
Deutsch 7
Русский 11
Polska 14
1
15. Attachments - Do not use attachments not recommended by the product manufactures, as they may
cause hazards.
16. Accessories Do not place this product on an unstable cart, stand, tripod, bracket or table. The -
product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only
with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any
mounting of the product should follow the manufacturer's instructions and should use a mounting
accessory recommended by the manufacturer.
17. Moving the product A product and cart combination should be moved with care. Quick stops, -
excessive force and uneven surfaces may cause the product and cart combination to overturn.
18. Unused periods The power cord of the appliance should be unplugged from the outlet during -
lightning storms or when the apparatus is left unused for a long period of time.
19. Servicing Do not attempt to service this product yourself, as opening or removing covers may -
expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
20. Please remove the power plug form the main power source or wall power source when not in use.
When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.
21. Replacement parts - When replacement parts are required, ensure the service technician has used
replacement parts specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other hazards.
22. Mains fuses For continued protection against fire hazard, use fuses only of the correct type and -
rating. The correct fuse specification for each voltage range is marked on the product.
23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If
you do, the speaker may be damaged when a peak level section is suddenly played.
24. The only means of completely disconnecting the product from the power supply is by removing the
power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must
remain freely accessible at all times while the product is in use.
25. Try to install the product near a wall socket or extension cord and shall be easily accessible.
26. The highest environmental temperature suitable for this product is 40 C.°
EN
3Introduction
Introduction
Introduction
IntroductionIntroduction
Beautifully crafted, the all new FC362W lets you listen to songs from your personal
computer or notebook without cable. Select your input choices or adjust the audio levels
with our infrared remote control with ease.
Using state of the art 2.4 GHz technology for clear audio definition and clarity, FHSS
technology to allow wider availability bandwidth.
This wireless design follows strict discipline in speaker designs to achieve perfect linear
frequency response curve with V16 Finecone drivers. Comes with 2.4GHz ISM wireless
technology.
Features
Features
Features
FeaturesFeatures
2.1 subwoofer system with full range acoustic production and tower satellites eAirbass design,
Microlab own proprietory technology - Bass with natural depth and range 6.5" subwoofer system for deep
vocal and bass effects.
All magnetically shielded Driver designed by Denmark acoustic expert, Peter Larsen V16 FineCone
technology
Amplifier unit with 2.4GHz wireless technology Source transmission via 2.4GHz USB dongle
Packing list
Packing list
Packing list
Packing listPacking list
You should find following items while unpacking:
Illustrations
Illustrations
Illustrations
IllustrationsIllustrations
Front
1. Power LED: illuminates in green when
power is turn on
2. Master volume knob: adjust volume level
3. Earphone output jack: allows 3 5mm.
stereo plug connection for earphones
4. Audio source input jack: allows 3 5mm.
stereo plug for connection to media
player source such as computer sound
card, CD / DVD, Mp3 / Mp4 player, etc.
view Back view
1. Bass volume knob: allows bass volume
adjustment on the subwoofer.
2. Input 1: 2 x RCA jacks for input source
connection from any media sources such
as CD / DVD, Mp3 / Mp4 player or TV.
3. Output connections: connect to left and
right satellites, and subwoofer.
4. Fuse: fuse socket
5. Power line: AC power source input
Product connection and operation
Product connection and operation
Product connection and operation
Product connection and operationProduct connection and operation
Connections
Connections
Connections
ConnectionsConnections
1. Connect the left speaker to the main / right speaker binding post interfaces. Use the provided
interconnect speaker cable and lock between both binding posts with the bare copper wires.
For alternative pure distortion free connection, you can use third party “ ” banana plugs to connect.
2. Place both bookshelf speakers on extreme sides of the listening position.
3. Connect the playback device to the rear PC or AUX input interfaces of the right speaker.
Use the included 2RCA to 3 5mm. stereo cable.
4. The main / right speaker should be placed near a power source and near the playback device
such as CD DVD/ , Mp3 Mp4/ player or TV.
5. Last, connect the AC power cable at the rear of the main / right speaker to the AC power supply
source. Please ensure t he AC power supply match the power requirement printed at the rear
panel.
Operation
Operation
Operation
OperationOperation
1. Ensure the master volume is at the lowest setting.
2. Turn on the main AC power and switch at the rear of the main speaker.
3. Start the playback device and song.
4. Slowly adjust the volume to your preferred volume level and enjoy. Note that the volume knob
can be turn for level adjustment and toggle for input source change.
5. To change the input source, depress on the volume knob to change from PC input to AUX input
or vice versa. The red LED indicates PC source and when it turns orange, it will indicate AUX
source input.
6. For remote control, simply point directly at the amplifier unit and depress the button of choice on it.
7. For 2 4GHz. wireless operation,
a Connect. the 2 4GHz . USB dongle to the notebook or desktop Windows. ® operating system will
EN
4
Fc362 subwoofer
Fc362 satellites pcs 2
Fc362 amplifier 1pc
3 5mm stereo 2RCA cable pc. - 1
Interconnect speaker cable 2 5m 1pc , .
2 4GHz USB dongle 1pc.
Infrared remote control 1pc
User manual 1pc
1pc
Front View Back viewTop view
1
2
4 3
1
2
3
4
5
1 / 2
VOLUME / SEL
Power
button
Heat vent -
do not block
ve n til at i o n
