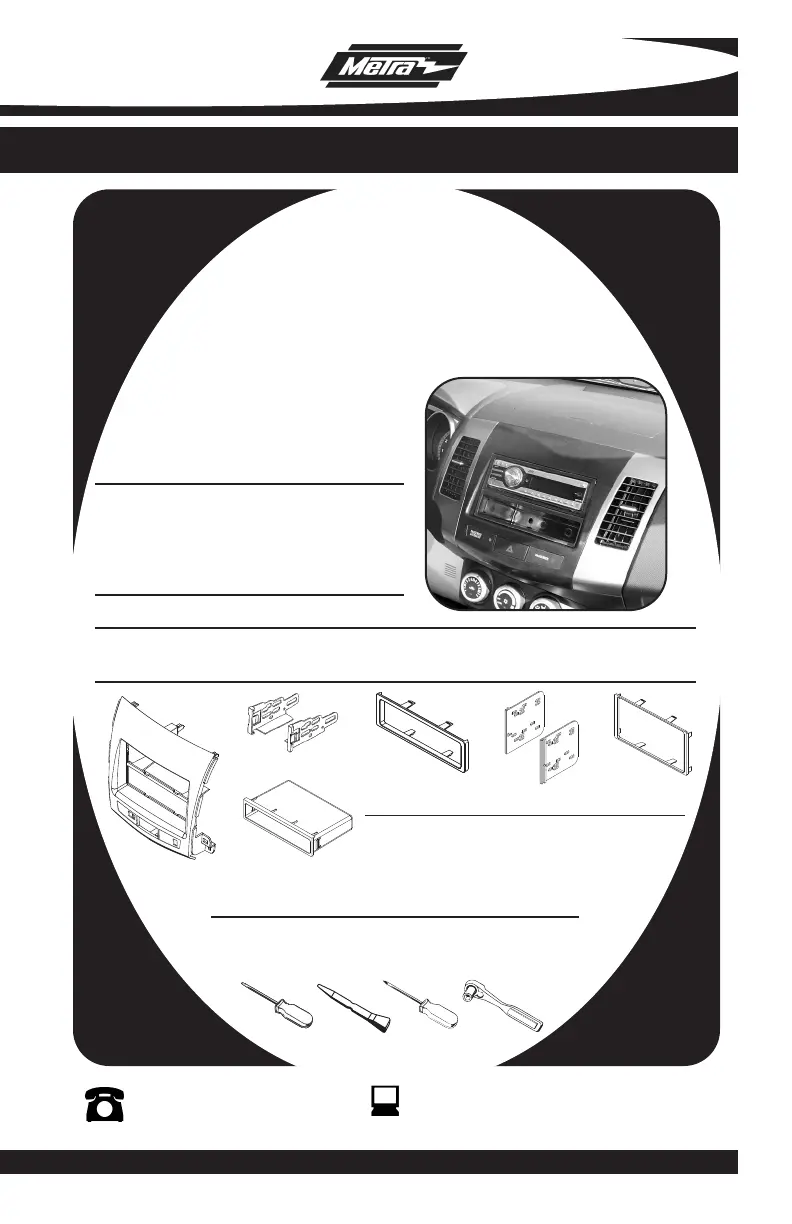

INSTALLATION INSTRUCTIONS FOR PART 99-7013TB
99-7013TB
APPLICATIONS
Mitsubishi Outlander
2007-up
KIT FEATURES
• DIN radio provision with pocket
• ISO mount radio provision with pocket
• Double DIN radio provision
• Stacked ISO mount units provision
Texured and painted to match factory finish
A) Radio Housing B) ISO Brackets C) ISO Trim Plate D) Double DIN Brackets
E) Double DIN Trim Plate F) Snap In Pocket
Harness & Antenna Connections (sold seperately)
70-7005 - Mitsubishi Harness 07-up
KIT COMPONENTS
A
Small Flat Blade Screwdriver • Panel Removal Tool
Phillips Screwdriver • Socket Set
1-800-221-0932
© COPYRIGHT 2007-2010 METRA ELECTRONICS CORPORATION
www.metraonline.com
TOOLS REQUIRED:
B C D E
F
Dash Disassembly
- Mitsubishi Outlander 2007-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,2
Kit Preparation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Kit Assembly
- DIN Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
- ISO Mount Radio Provision with Pocket . . . . . . . . . . . . . . . . . . . . . . . 5
- Double DIN/Stacked ISO Units Provision . . . . . . . . . . . . . . . . . . . . . . . 6
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
TABLE OF CONTENTS
99-7013TB
*Note:
Refer also to the instructions included with the aftermarket radio.
KNOWLEDGE IS POWER
Enhance your installation and fabrication skills by
enrolling in the most recognized and respected
mobile electronics school in our industry.
Log onto www.installerinstitute.com or call
800-354-6782 for more information and take steps
towa a better tomorrord w.
Metra recommends MECP
certified technicians
99-7013TB DASH DISASSEMBLY
MITSUBISHI OUTLANDER 2007-UP
PASSENGER
AIRBAG OFF
PASSENGER
PASSENGER
AIRBAG OFF
PASSENGER
B
C
1
Disconnect the negative battery ter-
minal to prevent an accidental short
circuit.
1
Unclip and remove the vents from the
left and right side of the factory radio
panel. (
Figure A)
Remove (4) Phillips screws securing
the radio chassis. Unplug and remove
the chassis.
(Figure C)
2
Remove (2) Phillips screws securing
the radio trim panel then unclip and
remove the panel.
(Figure B)
3
4
A
Continued on page 2.
