CAUTION!
All accessories, switches, climate
controls panels, and especially air bag indicator
lights must be connected before cycling the
ignition. Also, do not remove the factory radio
with the key in the on position, or while the
vehicle is running.
The World’s best kits.®metraonline.com © COPYRIGHT 2017 METRA ELECTRONICS CORPORATION REV. 8/2/17 INST99-5835G

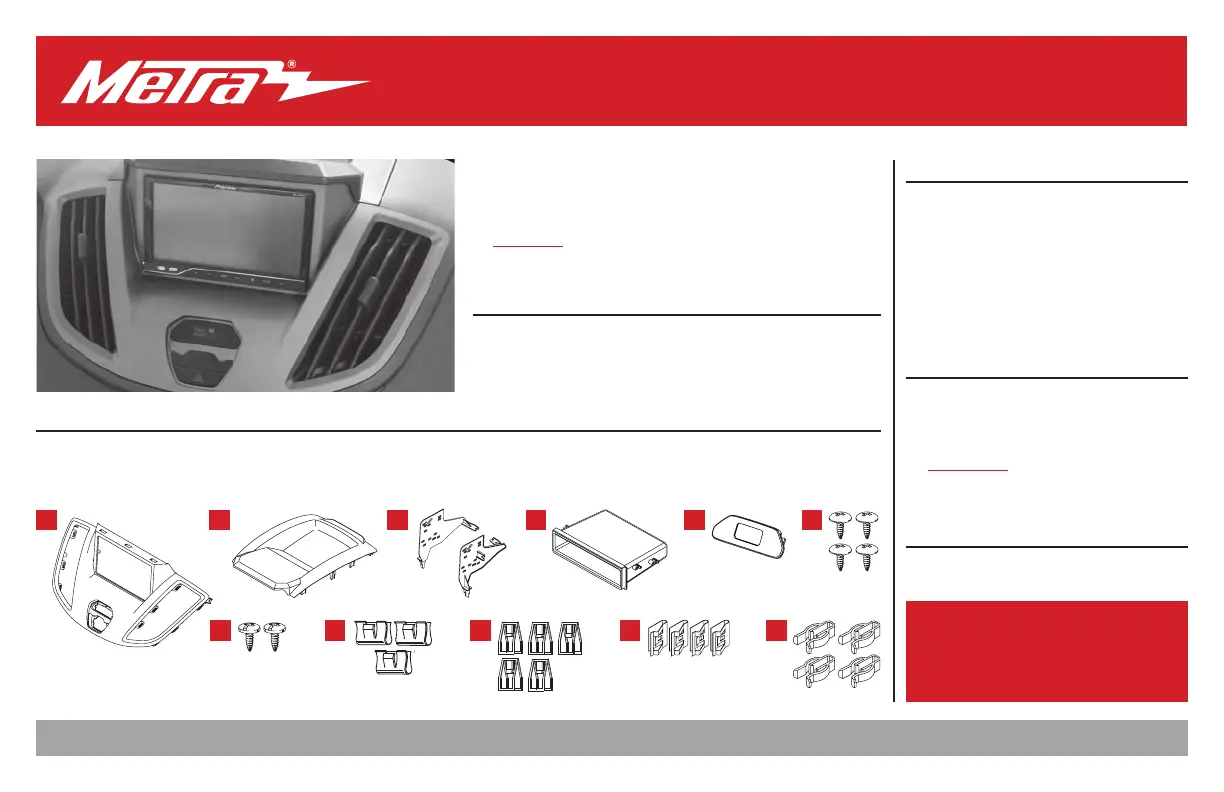

I N S TA L L AT I O N I N S T R U C T I O N S
99-5835G
KIT FEATURES
• ISO DIN radio provision with pocket
• ISO DDIN radio provision
• Radio trim panel is painted gray
KIT COMPONENTS
• A) Radio trim panel • B) Dash panel • C) Radio brackets • D) Pocket • E) Airbag light • F) (4) #8 x 3/8” Phillips truss head screws
• G) (2) #8 x 3/8” Phillips pan head screws • H) (3) Metal “U” panel clips • I) (5) Metal “D” panel clips • J) (4) Small metal “D” panel clips • K) (4) Plastic panel clips
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Socket wrench • T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Preparation .......................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
Final Assembly .......................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-5524
Antenna Adapter: 40-EU10
A B C F
G
D E
Ford Transit 2015-up*
H I J K
*Visit for up-to-date vehicle specific applications.metraonline.com

1.800.221.0932
|
MetraOnline.com
DASH DISASSEMBLY KIT PREPARATION
2
1. Unclip the dash panel above the radio.
(Figure A)
2. Remove (2) T-20 Torx screws securing the
factory radio/trim panel. (Figure B)
3. Unclip the factory radio/trim panel from
the dash, unplug and remove. (Figure B)
4. Remove (1) T-20 Torx screw per vent then
unclip and remove the vents from the
factory radio/trim panel. (Figure C)
5. Unclip and remove the hazard switch
assembly from the factory radio/trim
panel. (Figure D)
Continue to Kit Preparation
1. Secure the factory vents to the
radio
trim panel
using the (2) #8 x 3/8”
Phillips pan head screws provided.
(Figure A)
2. Snap the factory hazard button into the
radio trim panel.
An airbag light blank
has been included for models without a
passenger airbag indicator. (Figure A)
(Figure B)
(Figure A) (Figure D)
(Figure B) (Figure C)
(Figure C)
(Figure A)
3. Attach the (4)
plastic panel clips
provided, to the
radio trim panel.
(Figure B)
4. Attach the (12)
metal panel clips
provided, to the dash panel. (Figure C)
Continue to Kit Assembly

REV. 8/2/2017 INST99-5835G
KIT ASSEMBLY FINAL ASSEMBLY
3
ISO DIN radio provision with pocket
1. Attach the
pocket
to the
radio brackets
using the (4) supplied #8 x 3/8” Phillips
truss head screws. (Figure A)
2. Remove the metal DIN sleeve and trim
ring from the aftermarket radio.
3. Slide the radio into the completed
assembly and then secure it using the
screws supplied with the radio.
(Figure B)
Continue to Final Assembly
ISO DDIN radio provision
1. Attach the
radio brackets
to the radio
using screws supplied with the radio.
(Figure C)
Continue to Final Assembly
(Figure A)
1. Cut the shaded portion from the
sub-dash of the vehicle to allow the
radio to fit. (Figure A)
2. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS. Test the radio for
proper operation.
3. Secure the radio into the dash.
4. Snap the
radio trim panel
over the radio
and then reassemble the dash in reverse
order of disassembly.
Remove shaded area
(Figure A)
(Figure B)
(Figure C)
