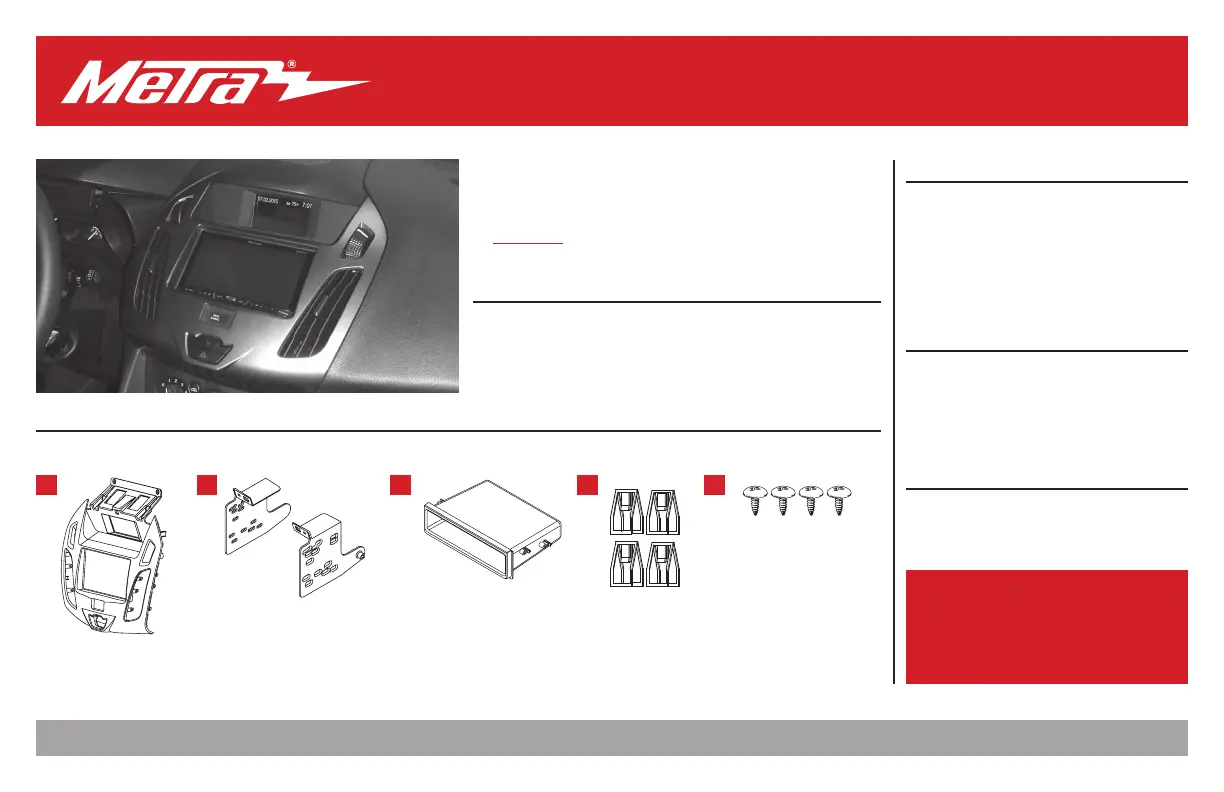

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2019 METRA ELECTRONICS CORPORATION REV. 2/26/19 INST99-5831
I N S TA L L AT I O N I N S T R U C T I O N S
99-5831
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
ISO DIN radio provision with pocket
ISO DDIN radio provision
Passenger airbag indicator
Painted black (99-5831B), or charcoal gray with black (99-5831G)
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) Panel clips • E) (4) #8 x 3/8” Phillips screws
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• T-15 Torx driver • T-20 Torx driver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly
–ISO DIN radio provision with pocket ..................3
–ISO DDIN radio provision .....................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: XSVI-5524-NAV or AX-ADBOX2
& AX-ADFD02
Antenna Adapter: 40-EU10
Ford Transit Connect (with factory 4.2” display)
2014-2018
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
A B C D E
1.800.221.0932
|
MetraOnline.com
2
DASH DISASSEMBLY
1. Remove the top panel above the display.
(Figure A)
2. Remove (2) T-15 Torx screws above the
display/radio panel. (Figure B)
3. Unplug and remove the display/radio
panel. (Figure C)
4. Remove the A/C vents and hazard switch
from the panel and set aside for kit
assembly.
5. Remove (2) T-20 Torx screws from the
top of the radio, and then unplug and
remove from the dash cavity. (Figure D)
Continue to Kit Assembly
(Figure A) (Figure C)
(Figure B) (Figure D)
REV. 2/26/2019 INST99-5831 3
KIT ASSEMBLY
(Figure A) (Figure A)
(Figure B)
ISO DIN radio provision with pocket
1. Secure the pocket radio brackets to the
using the (4) #8 x 3/8” Phillips screws
supplied. (Figure A)
2. Remove the metal “DIN” sleeve and
trim ring from the aftermarket radio.
3.
Slide the radio into the bracket/pocket
assembly, then secure the radio using the
screws supplied with the radio. (Figure B)
4. Snap the hazard switch into the radio
trim panel from the front.
5. Snap the A/C vents into the radio trim
panel from the back.
6. Plug in the passenger airbag light and
hazard connections.
7.
Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to the
radio. Metra recommends using the proper
mating adapter from Metra and/or AXXESS
.
8. Attach (4) to the panel clips radio trim
panel, then reassemble the dash in
reverse order of disassembly, using the
99-5831 radio trim panel.
ISO DDIN radio provision
1. Secure the radio brackets to the radio
using the screws supplied with the
radio. (Figure A)
2. Snap the hazard switch into the radio
trim panel from the front.
3. Snap the A/C vents into the radio trim
panel from the back.
4. Plug in the passenger airbag light and
hazard connections.
5. Locate the factory wiring harness and
antenna connector in the dash, and
complete all necessary connections to
the radio. Metra recommends using the
proper mating adapter from Metra and/
or AXXESS.
6. Attach (4) to the panel clips radio trim
panel, then reassemble the dash in
reverse order of disassembly, using the
99-5831 radio trim panel.
