The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 08/19/20 INST95-9612B
I N S TA L L A T I O N I N S T R U C T I O N S
95-9612B
Attention!
Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
• ISO DDIN radio provision
• Includes Axxess interface for retaining CAN data information
• Includes Axxess interface for retaining the fiber-optic MOST-25® amp
• Includes Axxess interface for retaining steering wheel control functionality
• Painted matte black
KIT COMPONENTS
• A) Radio bezel • B) Radio brackets • C) ISO DDIN trim ring •
D) Phillips
machine-thread
screws (4)
• E) Phillips
standard-thread
screws (4)
• F) Axxess interface (not shown) • G) Axxess MOST-25® interface (not shown) • H) Axxess SWC interface (not shown)
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
• Thin flat-blade screwdriver • T-27 Torx screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
Axxess Interface Installation ..............................4-6
Final Assembly .......................................................7
User Guide .......................................................... 7-11
A B C
E
D
Porsche Cayenne
(958)*†
2011-2016
* For amplified vehicles with OEM parking sensors and graphics on vehicle screen
† With fiber optic MOST-25® amp
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
WIRING & ANTENNA CONNETIONS
Wiring Harness: Included with kit
Antenna Adapter: Included with kit
Steering Wheel Control Interface: Included with kit
386-257-1187
|
MetraOnline.com
2
1. Unclip, unplug and remove the center
a/c vents. There are (6) clips † on each
vent that secure it to the dash. To
release the clips, insert a thin flat-blade
screwdriver into the vents, then push
on the clips outward. Release the
outermost clips first. (Figure A)
† The clips are located: (1) top, (1) bottom,
(2) each side. (Figure B)
2. Remove (4) T-27 Torx screws securing
the radio. Slide the radio out, then
unplug and remove. (Figure C)
Continue to Kit Assembly
DASH DISASSEMBLY
(Figure A)
(Figure B)
(Figure C)
REV. 08/19/2020 INST95-9612B 3

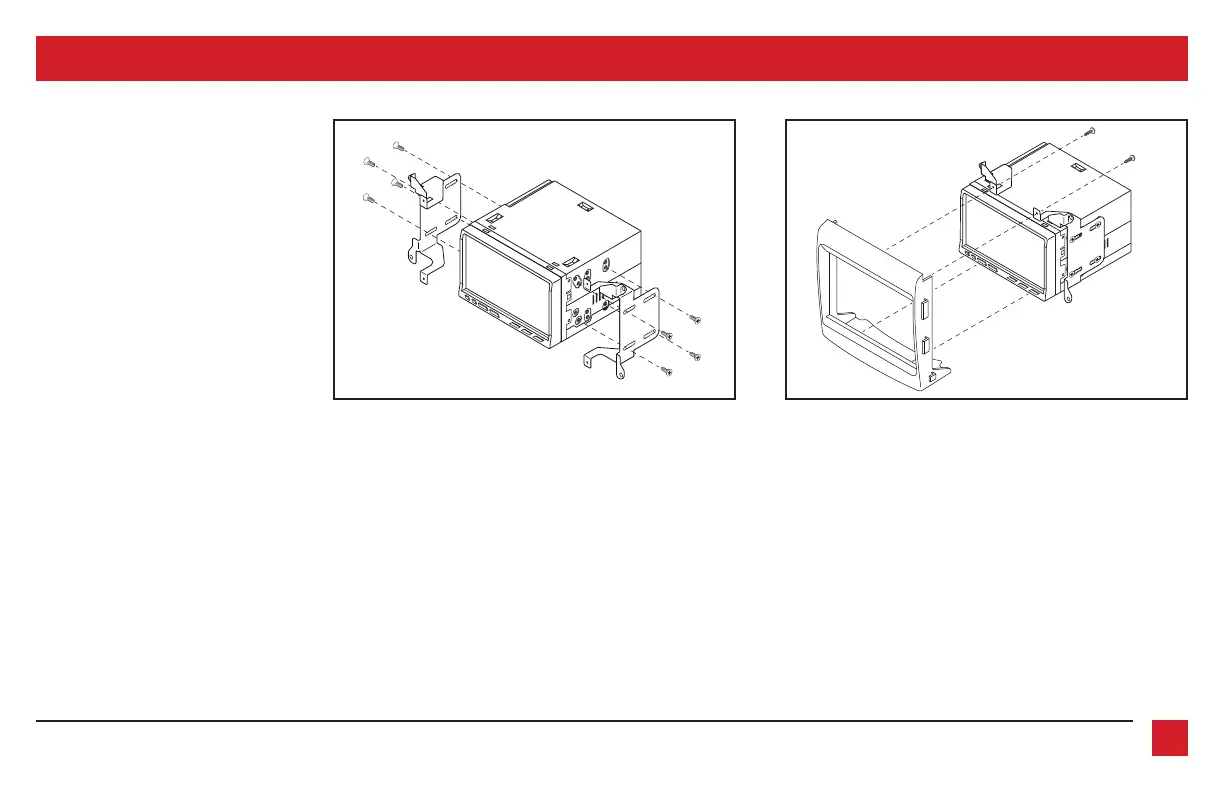

KIT ASSEMBLY
1. Secure the radio brackets to the radio
using screws supplied with the radio.
(Figure A)
There are (4) Phillips machine-Note:
thread screws provided in case the
radio doesn’t come with screws.
2. Place the radio bezel over the radio
assembly, then secure using (4) Phillips
standard-thread screws provided.
(Figure B)
An Note: ISO DDIN trim plate is
provided for smaller nose radios which
produce a gap around the radio.
Continue to Axxess
Interface Installation
(Figure B)(Figure A)
