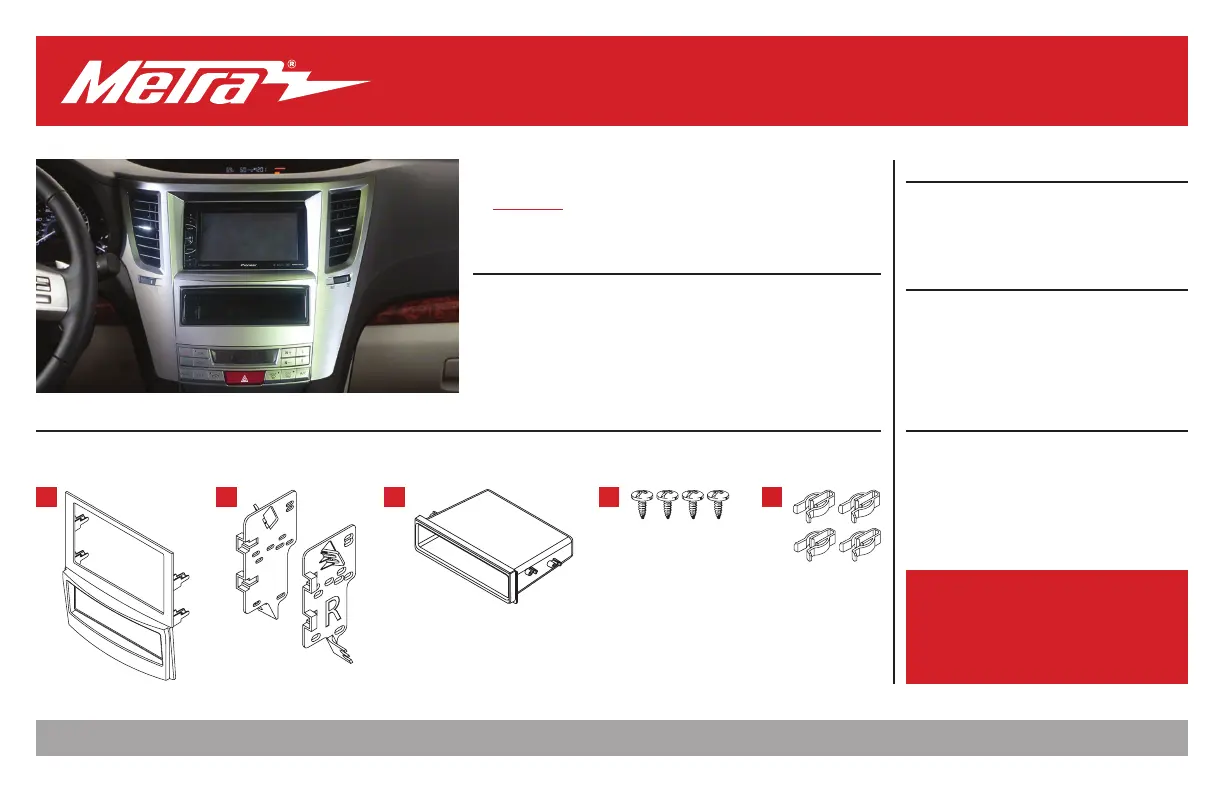

Metra. The World’s Best Kits.® MetraOnline.com © COPYRIGHT 2020 METRA ELECTRONICS CORPORATION REV. 10/21/20 INST95-8910S
I N S TA L L AT I O N I N S T R U C T I O N S
95-8910S
Attention! Let the vehicle sit with the key
out of the ignition for a few minutes before
removing the factory radio. When testing the
aftermarket equipment, ensure that all factory
equipment is connected before cycling the
key to ignition.
KIT FEATURES
ISO DDIN radio provision
Painted silver to match the factory finish
Includes a pocket to replace the factory radio controls
KIT COMPONENTS
• A) Radio trim panel • B) Radio brackets • C) Pocket • D) (4) #8 x 3/8” Phillips screws • E) (4) Panel clips
TOOLS REQUIRED
• Panel removal tool • Phillips screwdriver
TABLE OF CONTENTS
Dash Disassembly ..................................................2
Kit Assembly ..........................................................3
WIRING & ANTENNA CONNECTIONS
(sold separately)
Wiring Harness: 70-7553†
Antenna Adapter: 40-SB10-18
† Reference note in Kit Assembly
A B C D E
Subaru Legacy/Outback (with NAV) 2010-2012
Visit for more detailed information about the product and up-to-date vehicle MetraOnline.com
specific applications
2386.257.1187
|
MetraOnline.com
1. Unclip and remove the a/c vent trim
panel surrounding the radio. (Figure A)
2. Remove (6) Phillips screws securing the
radio/display. Slide the radio/display
out, then unplug and remove the
radio/display.
Note: The antenna cable is connected
down lower by the floorboard.
3. Cut and remove the shaded area shown
in the sub-dash to make clearance for
the aftermarket radio. (Figure B)
Continue to Kit Assembly
DASH DISASSEMBLY
(Figure A) (Figure B)
REV. 10/21/2020 INST95-8910S 3
KIT ASSEMBLY
(Figure B)
(Figure C)(Figure A)
1. Secure the
radio brackets
to the radio
using the screws supplied with the
radio. (Figure A)
2. Secure the
pocket
to the bottom portion
of the
radio brackets
using the (4) #8 x
3/8” Phillips screws provided. (Figure B)
3. Locate the factory wiring harness and
antenna connector in the dash and
complete all necessary connections to
the radio. Metra recommends using
the proper mating adapter from Metra
and/or Axxess. Test the radio for proper
operation.
The amplifier turn-on wire must Note:
be tapped into the factory radio harness.
Locate pin-23, a wire, in the 24-pin Pink
harness.
4. Secure the radio assembly to the dash
using the factory screws.
5. Attach the (4)
panel clips
provided onto
the
radio trim panel
, then clip the
radio
trim panel
onto the radio assembly.
(Figure C)
6. Reassemble the dash in reverse
order of disassembly to complete the
installation.
