CONTENTS

Preparation. . . . . . . . . . . . . . . .2-3

Assembly . . . . . . . . . . . . . . . . .4-5

Installation . . . . . . . . . . . . . . .6-13

Install the Door Control. . . . . . 14-15

Install the Protector System®. . 16-19

Power. . . . . . . . . . . . . . . . . . 20-21

Adjustments . . . . . . . . . . . . . 22-24

Battery Backup*. . . . . . . . . . . 25-26

Operation . . . . . . . . . . . . . . . . . 27

Features . . . . . . . . . . . . . . . . . . 28

Door Control . . . . . . . . . . . . . 29-30

Remote Control . . . . . . . . . . . 31-32

To Erase the Memory . . . . . . . . . 32

To Open the Door Manually . . . . . 33

Maintenance . . . . . . . . . . . . . . . 34

Troubleshooting. . . . . . . . . . . 35-36

Accessories. . . . . . . . . . . . . . . . 37

Warranty. . . . . . . . . . . . . . . . . . 38

Repair Parts . . . . . . . . . . . . . 39-41

* If applicable

ELITE Series

Garage Door Opener

LiftMaster

845 Larch Avenue

Elmhurst, Illinois 60126-1196

■ Please read this manual and the enclosed safety materials carefully!

■ Fasten the manual near the garage door after installation.

■ The door WILL NOT CLOSE unless the Protector System® is connected and properly

aligned.

■ Periodic checks of the garage door opener are required to ensure safe operation.

■ The model number label is located on the left side panel of your garage door opener.

■ This garage door opener is ONLY compatible with MyQ® and Security✚ 2.0™

accessories.

■ DO NOT enable the Timer-to-Close feature if you are installing the garage door

opener on a one-piece door. The Timer-to-Close is to be used ONLY with sectional

doors.

NOTE: If you are installing the garage door opener on a one-piece door, visit

www.LiftMaster.com for installation instructions.

www.LiftMaster.com

Serial Number:

Date of Purchase:

Models

• 8550 - DC Belt Drive

with Battery Backup

• 8557 - 3/4 hp

Belt Drive

FOR RESIDENTIAL USE ONLY

Write down the following information for

future reference:

Safety Symbol and Signal Word

Review

This garage door opener has been designed and

tested to offer safe service provided it isinstalled,

operated,maintained and tested in strict

accordance with the instructionsand warnings

contained in this manual.

When you see these Safety Symbols and Signal

Words on the following pages,they will alertyou to

the possibility of serious injury or death if you do

not comply with the warnings that accompany them.

The hazard maycome from something mechanical

or from electric shock. Read the warningscarefully.

Mechanical

Electrical

When you see this Signal Word on the following

pages, it will alert you to the possibility of damage to

your garage door and/or the garage door opener if

you do not comply with the cautionary statements

that accompany it. Read them carefully.

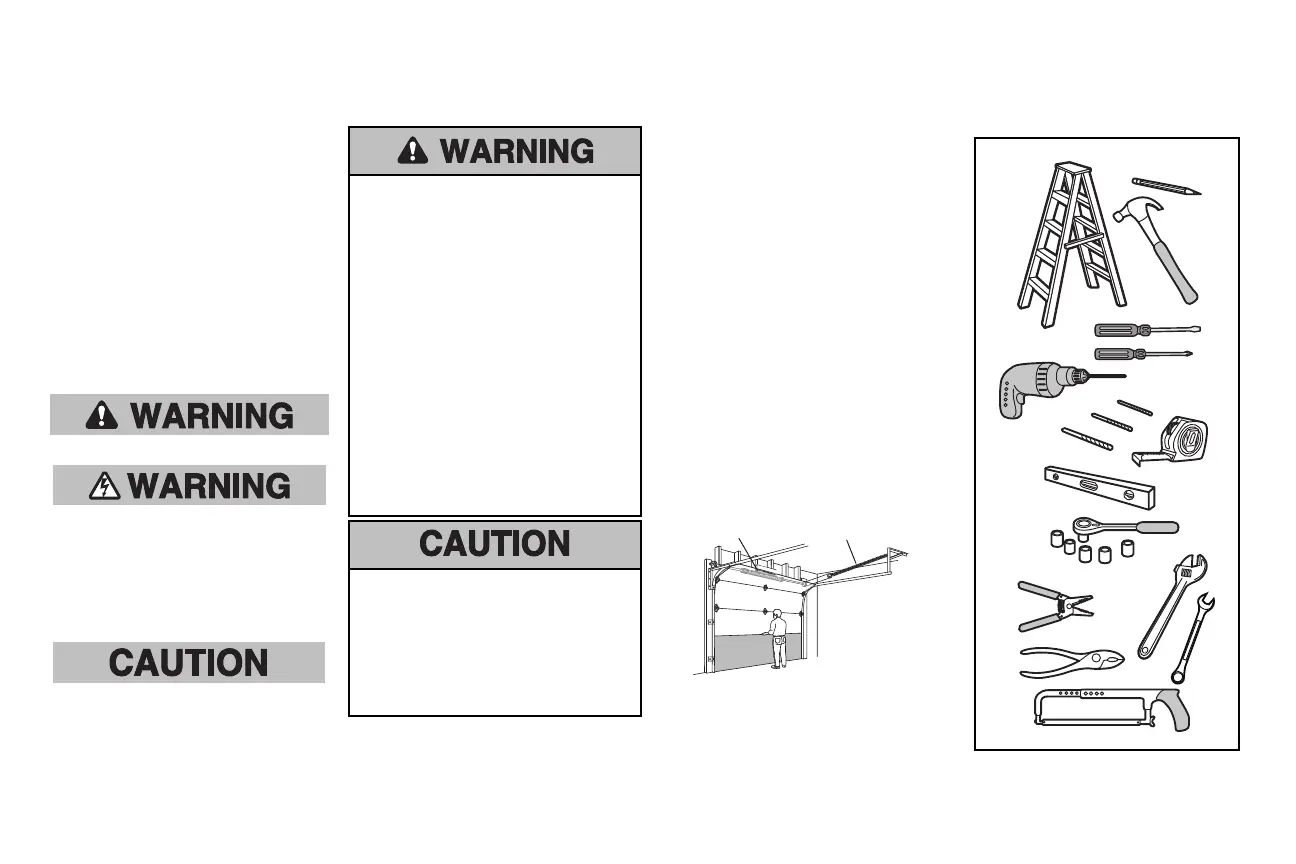

Check the Door

To prevent possible SERIOUSINJURYor

DEATH:

lALWAYS call a trained door systems

technician ifgarage door binds,sticks,

or isout ofbalance. An unbalanced

garage door mayNOT reverse when

required.

lNEVER try to loosen, move or adjust

garage door,door springs,cables,

pulleys,brackets or their hardware,

ALLof which are under EXTREME

tension.

lDisable ALLlocks and remove

ALLropesconnected to garage door

BEFORE installation and operating

garage door opener to avoid

entanglement.

To prevent damage to garage door and

opener:

lALWAYS disable locks BEFORE

installing and operating the opener.

lONLY operate garage door opener at

120V, 60Hzto avoid malfunction and

damage.

1. Disable locks and remove any ropes

connected to the garage door.

2. Lift the door halfway up. Release the

door. If balanced, it should stay in place,

supported entirely by its springs.

3. Raise and lower the door to check for

binding or sticking.If your door binds,

sticks, or is out of balance, call a trained

door systems technician.

4. Check the seal on the bottom of the door.

Any gap between the floor and the

bottom of the door must not exceed

1/4inch (6 mm). Otherwise, the safety

reversal system may not work properly.

5. The opener should be installed above

the center of the door.If there isa torsion

spring or center bearing plate in the way

of the header bracket, it may be installed

within 4feet(1.2 m) to the left or right of

the door center. See page 7.

Torsion

Spring

Extension

Spring

Tools Needed

3/16

7/16

1/2

5/32

5/16

5/8

9/16

1/4

7/16

Preparation

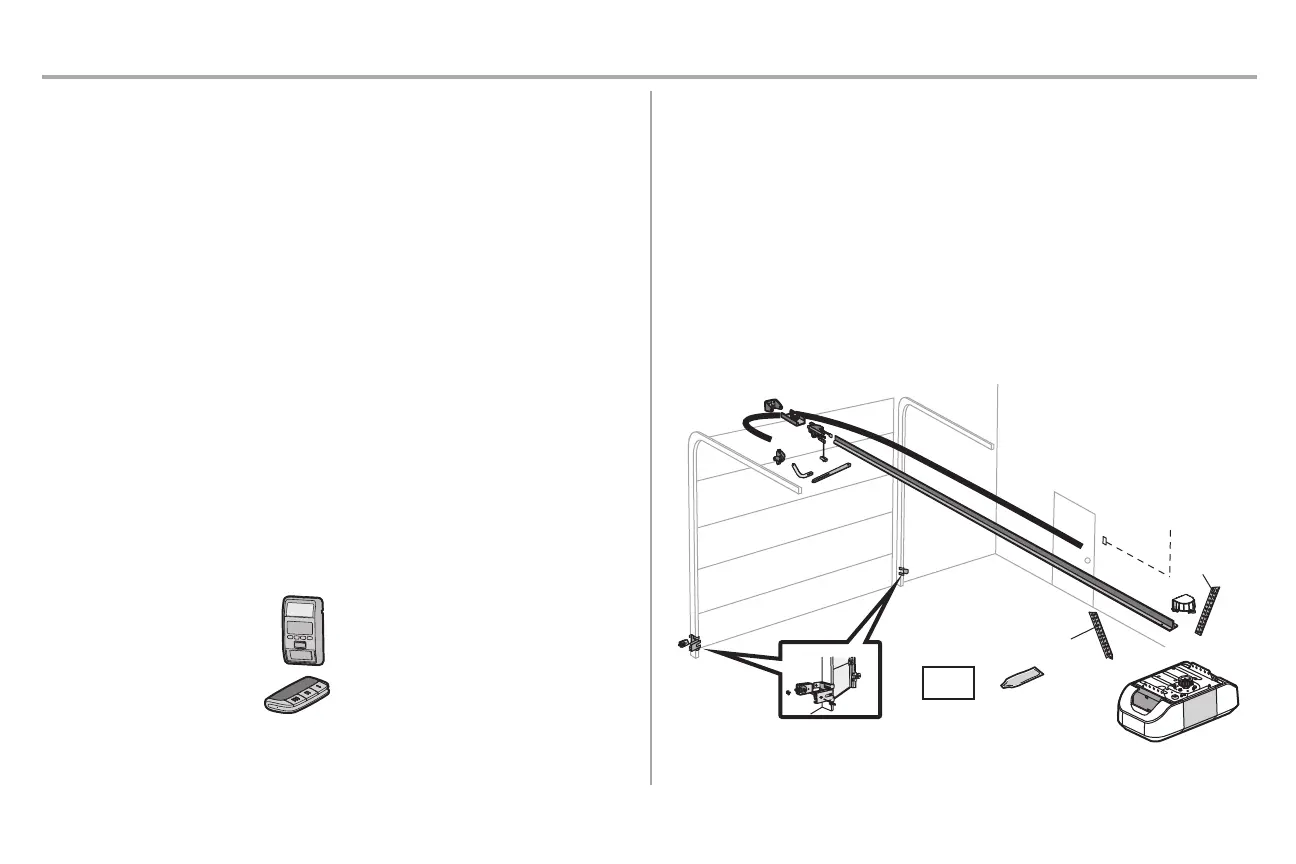

Carton Inventory

Accessorieswill vary depending on the garage door opener model purchased.Depending on your

specific model, other accessoriesmay be included with your garage door opener.The instructions for

these accessories will be attached to the accessory and are not included in thismanual. The images

throughout this manual are for reference and your product may look different.

A. Header bracket

B. Pulley and bracket

C. Door bracket

D. Curved door arm

E. Straight door arm

F. Trolley

G. Emergency release rope and handle

H. Rail

I. Garage door opener

J. Sprocket cover with hex screws

K. Belt

L. Door control

M. White and red/white wire

N. The Protector System®

Safety reversing sensors with white and white/blackwire attached: Sending Sensor (1)

Receiving Sensor (1) and SafetySensor Brackets(2)

O. Safety labels and literature

P. Rail grease

Security+ 2.0™ Accessories

880LM

Smart Control Panel®

895MAX

Remote Control

Installation Hardware

Hex bolt 5/16"-18 x 7/8" (4) Lock washer 5/16" (4)

Lag screw5/16"-9 x 1-5/8" (2) Self-threading screw 1/4"-14 x5/8" (2)

Clevis pin 5/16" x 2-3/4" (1) Ring fastener (3)

Clevis pin 5/16" x 1-1/4" (1) Carriage bolt 1/4"-20 x 1/2" (2)

Clevis pin 5/16" x1" (1) Wing nut 1/4"-20 (2)

Nut 5/16"-18 (4)

Door Control Hardware

Screw 6AB x 1" (2)

Screw 6-32 x 1" (2)

Drywall anchors (2)

Insulated staples

Not Provided

Not

Provided

Preparation
