User Guide
Quality, Design and Innovation
home.liebherr.com/fridge-manuals
Contents
1 The appliance at a glance..................................... 3
1.1 Delivered contents....................................................... 3
1.2 Overview of the appliance and equipment.............. 3
1.3 SmartDevice.................................................................. 3
1.4 Range of appliance use............................................... 3
1.5 Conformity..................................................................... 4
1.6 SVHC substances according to REACH regulation. 4
1.7 EPREL Database........................................................... 4
2 General safety instructions.................................. 4
3 Start-up................................................................. 5
3.1 Setup conditions.......................................................... 5
3.2 Appliance dimensions................................................. 6
3.3 Transporting the appliance........................................ 6
3.4 Unpacking the appliance............................................ 6
3.5 Removing the transport lock...................................... 6
3.6 Installing the door handle.......................................... 7
3.7 Mounting the anti-tipping device.............................. 7
3.8 Setting up the appliance............................................ 7
3.9 Leveling out the appliance......................................... 8
3.10 Setting up multiple appliances.................................. 8
3.11 After setup.................................................................... 8
3.12 Disposal of packaging................................................. 8
3.13 Reversing the door opening direction...................... 8
3.14 Aligning the door.......................................................... 15
3.15 Connecting the appliance........................................... 16
3.16 Switching on the appliance (first use)..................... 16
3.17 Insert the equipment................................................... 16
4 Storage.................................................................. 16
4.1 Information regarding storing items......................... 16
4.2 Wine storage................................................................. 16
4.3 Storage diagram........................................................... 17
5 Energy saving........................................................ 19
6 Use......................................................................... 19
6.1 Control and display elements.................................... 19
6.1.1 Status display........................................................... 20
6.1.2 Display symbols........................................................20
6.1.3 Acoustic signals....................................................... 20
6.2 Navigation..................................................................... 20
6.2.1 Navigation with the touch display.........................20
6.2.2 Settings menu........................................................... 21
6.2.3 Customer menu......................................................... 21
6.2.4 General rules..............................................................21
6.3 Functions....................................................................... 21
6.3.1 Overview of functions.............................................. 21
6.3.2 Switching appliance on and off ............................ 22
6.3.3 Temperature ............................................................. 22
6.3.4 Presentation light ....................................................22
6.3.5 HumiditySelect .........................................................23
6.3.6 SabbathMode............................................................ 23
6.3.7 Door lock ................................................................... 24
6.3.8 Display lock .............................................................. 24
6.3.9 Access codes.............................................................25
6.3.10 Reminder ...................................................................26
6.3.11 Language .................................................................. 26
6.3.12 Temperature unit ..................................................... 26
6.3.13 Display brightness ...................................................26
6.3.14 Alarm Sound...............................................................27
6.3.15 Key Sound...................................................................27
6.3.16 WiFi .............................................................................27
6.3.17 Info..............................................................................28
6.3.18 Software.....................................................................28
6.3.19 Door alarm ................................................................ 28
6.3.20 Factory reset .............................................................29
6.4 Messages...................................................................... 29
6.4.1 Warnings....................................................................29
6.4.2 Reminders..................................................................30
7 Equipment............................................................. 31
7.1 Safety lock.................................................................... 31
7.2 Accessories................................................................... 31
8 Maintenance.......................................................... 31
8.1 Air exchange through the FreshAir activated
charcoal filter............................................................... 31
8.2 Cleaning the appliance............................................... 32
9 Customer support................................................. 33
9.1 Technical specifications............................................. 33
9.2 Operating noises.......................................................... 33
9.3 Technical faults............................................................ 33
9.4 Customer service......................................................... 34
9.5 Rating plate................................................................... 35
10 Decommissioning.................................................. 35
11 Disposal................................................................. 35
11.1 Preparing appliance for disposal.............................. 35
11.2 Disposing of the appliance in an environmentally
friendly manner............................................................ 35
The manufacturer is constantly working to improve all types
and models. Therefore, please be aware that we reserve the
right to make changes to the shape, equipment and tech‐
nology.
Symbol Explanation
Read instructions
Please read the information in these instruc‐
tions carefully to understand all of the benefits
of your new appliance.
Full instructions on the internet
You can find detailed instructions on the
internet using the QR code on the front of
these instruction or by entering the service
number at home.liebherr.com/fridge-
manuals.
The service number can be found on the serial
tag:
Fig. Example illustration
Check appliance
Check all parts for transport damage. If you
have any complaints, please contact your
agent or customer service.
Differences
These instructions apply to a range of models,
so there may be differences. Sections that
apply to certain models only are indicated by
an asterisk (*).
Instructions and results
Instructions are marked with a .
Results are marked with a .
Videos
Videos about the appliances are available on
the YouTube channel of Liebherr-Hausgeräte.
These operating instructions apply to:
WFbli 5041 WFbli 5241 WFbli 7741
2 * Depending on model and options
1 The appliance at a glance
1.1 Delivered contents
Check all parts for damage during transport. If you have any
complaints, please contact the dealer or Customer Service
(see 9.4 Customer service) .
Delivery contains the following parts:
-Standalone appliance
-Equipment (depending on your model)
-Installation parts (depending on your model)
-“Quick Start Guide
-“Installation Guide*
-Service brochure
1.2 Overview of the appliance and
equipment

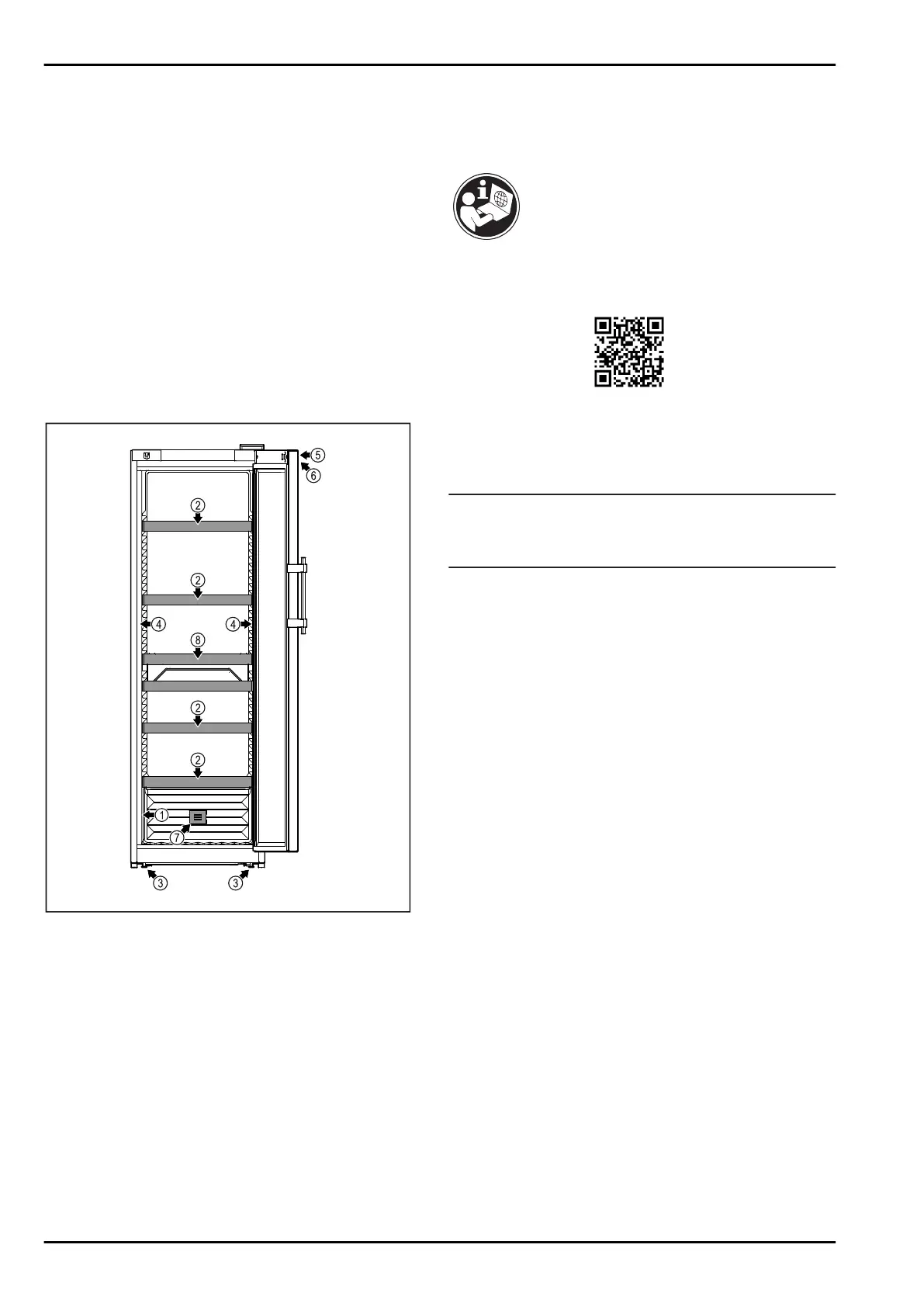

Fig. 1 Example illustration
(1) Type plate Lock(5)
(2) (6)Grid shelves Control elements and
temperature display
(3) (7)Adjustable feet FreshAir activated char
coal filter
(4) Interior lighting Bottle basket(8)
1.3 SmartDevice
SmartDevice is the networking solution for your wine
storage cabinet.
If your appliance is SmartDevice-enabled or compatible, you
can quickly and easily connect your appliance to your WiFi.
With the SmartDevice app, you can operate your appliance
from a mobile device. Additional functions and setting
options are available in the SmartDevice app.
SmartDevice-
enabled appliance:
Your appliance is equipped with the
SmartDeviceBox. In order to connect
your appliance to the WiFi, you need
to download the SmartDevice app.
More information
about SmartDe‐
vice:
smartdevice.liebherr.com
Downloading the
SmartDevice app:
After installing and configuring the
SmartDevice app, you can connect
your appliance to the WiFi using the
SmartDevice app and the WiFi appli‐
ance function (see 6.3.16 WiFi ) .
Note
You cannot use the SmartDeviceBox in the following coun‐
tries: Russia, Belarus, Kazakhstan. The SmartDevice func‐
tion is not available.
1.4 Range of appliance use
Normal use
The appliance is only suitable for storing wine
for residential or other similar environments.
This includes the following types of uses
-in staff kitchens, bed and breakfasts,
-by guests in country homes, hotels, motels
and other types of accommodations,
-for catering and similar wholesale services.
The appliance is not suitable for freezing
food;
The appliance is not suitable as a built-in
unit;
All other types of uses are not permitted.
Foreseeable misuse
The following uses are specifically prohibited:
-Storage and cooling of medication, blood
plasma, laboratory preparations or similar
substances and products in accordance
with the Medical Device Directive
2007/47/EC
-Use in outdoor areas with very high
humidity
-Use in areas at risk of explosion
Incorrect appliance use can cause damage to
the stored products or cause them to spoil.
Climate ratings
The appliance at a glance
* Depending on model and options 3
The appliance is set to operate within
specific ambient temperature limits
according to its climate rating The climate
rating for your appliance is printed on the
rating plate
Note
uTo guarantee trouble-free operation,
comply with the indicated ambient temper‐
atures.
Climate rating for ambient temperatures from
SN 10 °C to 32 °C
N 16 °C to 32 °C
ST 16 °C to 38 °C
T 16 °C to 43 °C
SN-ST 10 °C to 38 °C
SN-T 10 °C to 43 °C
1.5 Conformity
The refrigerant circuit has been tested for leaks. The appli‐
ance complies with the applicable safety regulations and
with the corresponding directives.
For the EU
market:
The appliance complies with directive
2014/53/EU.
For the GB
market:
The appliance complies with the Radio
Equipment Regulations 2017 SI 2017 No.
1206.
The full text of the EU Declaration of Conformity is available
on the following website: www.Liebherr.com
Since there are no energy efficiency guidelines for wine
cooling appliances, wine compartments are considered to
be cellar compartments for assignment to an energy effi‐
ciency class.
1.6 SVHC substances according to
REACH regulation
You can check whether your appliance contains SVHC
substances according to REACH regulation at the following
link: home.liebherr.com/de/deu/de/liebherr-erleben/nach‐
haltigkeit/umwelt/scip/scip.html
1.7 EPREL Database
Details about energy labeling and ecodesign requirements
will be available on the European product database (EPREL)
from March 1, 2021. You can access the product database at
the following link: https://eprel.ec.europa.eu/ You will be
asked to enter the model ID. You can find the model ID on
the type plate.
2 General safety instructions
Please keep these operating instructions in a
safe place so you can refer back to them at
any time.
If you pass the appliance on, please hand
these operating instructions to the new
owner.
Read these operating instructions before use
in order to use the appliance safely and
correctly. Follow the instructions, safety
instructions and warning messages included
at all times. They are important for ensuring
you can operate and install the appliance
safely and without any problems.
Dangers for the user:
-This appliance can be operated by children
as well as by persons with reduced phys‐
ical, sensory or mental capabilities or lack
of experience and knowledge if they are
supervised or have been instructed in the
safe use of the appliance and understand
the associated risks. Children must not play
with the appliance. Cleaning and user
maintenance must not be performed by
children unless they are supervised. Chil
dren between the ages of 3 and 8 may load
and unload the appliance. Children under
the age of 3 must be kept away from the
appliance if they are not constantly super
vised.
-The socket must be easily accessible so
that the appliance can be disconnected
quickly from the electricity in an emer
gency. It must not be located in the area
behind the appliance.
-When disconnecting the appliance from the
outlet, always take hold of the plug. Do not
pull on the cable.
-Disconnect the power plug or switch off
the power if a fault occurs.
-Do not damage the mains power line. Do
not operate the appliance from a defective
mains power line.
-Repairs and work on the appliance may
only be carried out by after sales service or
other specifically trained qualified
personnel.
-The appliance should only be assembled,
connected and disposed of in accordance
with the instructions.
Risk of fire:
-The refrigerant contained within the appli‐
ance (specifications on the rating plate) is
environmentally friendly, but flammable.
Leaking refrigerant can ignite.
Do not damage the pipes of the refrig‐
erant circuit.
Do not handle ignition sources inside the
appliance.
General safety instructions
4 * Depending on model and options
Do not use electrical devices inside the
appliance (e.g. steam cleaners, heaters,
ice cream makers, etc.).
If refrigerant leaks: Remove naked flames
or ignition sources located near the area
of the leak. Air the room well. Contact the
customer service department.
-Do not store explosive materials or spray
cans with flammable propellants, such as
e.g. butane, propane, pentane, etc. in the
appliance. You can recognize such spray
cans by the printed contents or a flame
symbol. Any leaking gasses can be ignited
by electrical components.
-Keep lit candles, lamps and other objects
with naked flames away from the appliance
so they do not cause a fire.
-Alcoholic beverages or other containers
holding alcohol must always be tightly
sealed for storage purposes. Any leaking
alcohol can be ignited by electrical compo‐
nents
Tipover hazard:
-Do not stand or climb on the base, drawers,
doors, etc. This applies in particular to chil‐
dren.
Risk of food poisoning:
-Do not consume food that has passed its
best before date.
Danger of frostbite, feelings of numbness
and pain:
-Avoid prolonged skin contact with cold
surfaces or chilled/frozen food or take
protective measures, e.g. wear gloves.
Risk of injury and damage:
-Hot steam may lead to injuries. Do not use
any electrical heating or steam cleaning
equipment, naked flames or defrosting
sprays for defrosting
-Do not remove ice with sharp objects
Risk of crushing:
-Do not reach into the hinge when opening
and closing the door. Fingers may get
trapped.
Symbols on the device:
The symbol can be on the compressor. It
refers to the oil in the compressor and
refers to the following danger: Can be
lethal if swallowed or inhaled. This notice
only applies for recycling. There is no
danger during normal operation.
The symbol is located on the compressor
and indicates the danger of inflammable
materials. Do not remove the label.
This label or a similar one may be located
on the rear of the appliance. This label indi
cates that there are vacuum insulation
panels (VIP) or perlite panels in the door
and/or housing. This notice only applies for
recycling. Do not remove the label.
Observe the warning messages and other
detailed information in the other sections:
DANGER indicates a hazardous situation,
which if not avoided, will result in
death or serious injury.
WARNING indicates a hazardous situation,
which if not avoided, could result
in death or serious injury.
CAUTION indicates a hazardous situation,
which if not avoided, will result in
minor or moderate injury.
NOTICE indicates a hazardous situation,
which if not avoided, could result
in damage to property.
Note indicates useful advice and tips.
3 Start-up
3.1 Setup conditions
WARNING
Risk of fire due to moisture!
If live parts or the power cord get wet, this can cause a
short circuit.
uThe appliance is designed for use in enclosed spaces. Do
not operate the appliance in open space or in damp areas
or where there is spray.
3.1.1 Setup location
WARNING
Leaking refrigerant and oil!
Fire. The refrigerant contained within the appliance is envi‐
ronmentally friendly, but flammable. The oil contained
within the appliance is flammable. Escaping refrigerant and
oil can ignite if they are of high enough concentration and
are exposed to an external heat source.
uDo not damage the pipelines of the coolant circuit and
the compressor.
-Do not setup the appliance in direct sunlight, next to an
oven, radiator or similar.
-The best place to set up the appliance is a dry and well
ventilated room.
-If the appliance is set up in a very humid environment,
condensation can form on the outside of the appliance.
Always ensure sufficient airflow and ventilation in the
setup location.
Start-up
* Depending on model and options 5
-The more refrigerant there is in the appliance, the larger
the space it is installed in must be. If the space is too
small, any leak may create a flammable mixture of gas
and air. For every 8 g of refrigerant, the installation space
must be at least 1 m3. Specifications on the refrigerant in
the appliance can be found on the serial tag plate inside
the appliance.
-The floor of the setup location must be horizontal and
even.
-The setup location must be able to withstand the weight
of the appliance plus the weight when stocked to
maximum capacity. (see 9.1 Technical specifications)
3.1.2 Electrical connection
WARNING
Danger of fire due to incorrect positioning!
uMake sure the power supply cable is not trapped under
the appliance when you position the appliance.
uPosition the appliance so that it does not touch the plug
or power supply cable.
uDo not connect any appliances to sockets in the area to
the back of the appliance.
uDo place and operate power strips/power distribu‐not
tors and other electronic devices (such as halogen trans‐
formers) at the back of the appliances.
3.2 Appliance dimensions
A B C D E
WFbli
5041 1684 mm 600 mm 763 mm 1323 mm 23 mm
WFbli 5241 1884 mm 600 mm 763 mm 1323 mm 23 mm
WFbli 7741 2044 mm 750 mm 763 mm 1473 mm 23 mm
A = appliance height including feet/casters/hinges
B = appliance width without handle
C = appliance depth without handle
D = appliance depth with door open
E = hinge height
3.3 Transporting the appliance
WARNING
There is a risk of injury from pieces of broken glass.
When transporting at an altitude of more than 1500 m, the
glass panes of the door may break. This can result in sharp-
edged fragments, which can cause serious injuries.
uAdopt suitable protective measures.
uOn initial setup: Transport the appliance in its packaging.
uWhen transporting after initial setup (e.g. relocation):
Transport the appliance unloaded.
uTransport the appliance upright.
uUse two people when transporting the appliance.
3.4 Unpacking the appliance
If the appliance is damaged check with the supplier immedi‐
ately before connecting it.
uCheck the appliance and packaging for damage during
transport. If you suspect any damage, please contact
your supplier immediately.
uRemove all materials that could prevent it from being
installed properly or prevent proper ventilation from the
back or the side panels of the appliance.
uRemove all protective films from the appliance. Do not
use sharp or pointed objects for this.
3.5 Removing the transport lock
Fig. 2
uRemove transport lock in upwards direction.
wBase holder remains on the appliance.
Start-up
6 * Depending on model and options
3.6 Installing the door handle
Fig. 3
uAttach handle from accessory kit to the door using
supplied screws .Fig. 3 (1)
uPut on cover .Fig. 3 (2)
3.7 Mounting the anti-tipping device
WARNING
Danger of injury and damage due to appliance tipping over!
Danger to life and material damage to appliance. If you
remove fully loaded shelves from the appliance, the appli‐
ance can tip over.
uBefore you put the appliance into operation: install the
anti-tipping device in accordance with the instructions.
Fig. 4
The anti-tipping device is included with the appliance. It
comprises a retaining part, a bracket and four screws.
Note
The anti-tipping device must be installed on the left or
right-hand side, as viewed from the rear. The following
images are labeled left (L) or right (R) depending on where
the anti-tipping device is installed.
Fig. 5
uMount the retaining part on the appliance using screws
supplied.
Fig. 6
Use fixing material (e.g. wall anchors) which is appro
priate for the nature of the wall or floor (wood,
concrete) and sufficient attachment points.
uAttach bracket to wall or floor .Fig. 6 (1) Fig. 6 (2)
uSlide in appliance and align with bracket.
(see 3.9 Leveling out the appliance)
Fig. 7
uScrew bracket and retaining part together.
3.8 Setting up the appliance
CAUTION
Risk of injury and damage.
uUse 2 people to set up the appliance.
CAUTION
Risk of injury and damage.
The door can strike against the wall and become damaged
as a result. In the case of glass doors, the damaged glass
can cause injuries.
uProtect the door from striking against the wall. Attach a
door stopper, e.g. felt stopper, to the wall.
uConnect all necessary components (e.g. power cable) to
the back of the appliance and route to the side.
Note
Cables can be damaged.
uDo not crush the cable when pushing the appliance back.
Start-up
* Depending on model and options 7
Fig. 8
uSet up the appliance either free-standing or directly
against a wall at a minimum distance of 5 mm Fig. 8 (1).
3.9 Leveling out the appliance
NOTICE
Appliance body can become deformed and door will not
close.
uAlign appliance horizontally and vertically.
uCompensate for uneven floors using adjustable feet.
WARNING
Incorrect height adjustment of the adjustable foot!
Severe or fatal injuries. Incorrect height adjustment can
cause the bottom part of the adjustable foot to come loose
and the appliance to tip over.
uDo not unscrew the adjustable foot too far.
Fig. 9
Raising appliance:
uTurn adjustable foot clockwise.
Lowering appliance:
uTurn adjustable foot counterclockwise.
3.10 Setting up multiple appliances
NOTICE
Risk of damage due to condensation between the side
walls.
uDo not set up the appliance directly next to another
refrigeration appliance.
uSet up appliances with a space of 3 cm between appli‐
ances.
uOnly set up multiple appliances up to temperatures of
35 °C and 65 % humidity next to one another.
uAt higher levels of humidity, increase the space between
appliances.
Fig. 10 Side-by-side set up
Note
A side-by-side kit is available as an accessory via Liebherr
Customer Service. (see 9.4 Customer service)
3.11 After setup
uPull off the protective film from the outside of the
housing.
uClean the appliance. (see 8.2 Cleaning the appliance)
uIf necessary: Disinfect the appliance.
uKeep the invoice so you have the appliance and dealer
information available if needed.
3.12 Disposal of packaging
WARNING
Danger of suffocation from packaging materials and films!
uDo not allow children to play with packaging materials.
The packaging is made from recyclable materials:
-Corrugated card/cardboard
-Parts made of foamed polystyrene
-Films and bags from polyethylene
-Packing bands from polypropylene
-Wood frame nailed together with a polyethylene
window*
uTake the packaging material to an official collection
point.
3.13 Reversing the door opening direc‐
tion
Tools
WARNING
Risk of injury if the door is not reversed correctly!
uThe door may only be reversed by qualified personnel.
Start-up
8 * Depending on model and options
WARNING
Risk of injury and material damage due to heavy door!
uOnly perform the conversion if you can carry a weight of
25 kg.
uAlways have someone help you carry out the conversion.
NOTICE
Live parts!
Damage to electrical components.
uDisconnect the power plug before reversing the door.
uOpen the door.
Fig. 11
uUnlatch the front covers on the inside andFig. 11 (1)
remove them sideways.
uLift off the upper cover .Fig. 11 (2)
Fig. 12
uUnlatch the middle cover and remove it.
Fig. 13
uDisconnect the plug from the circuit board.Fig. 13 (1)
Fig. 14
uConnect the plug to the circuit board.Fig. 14 (1)
Start-up
* Depending on model and options 9
Fig. 15
uUnlatch the cover with a small screwdriver and take it
off.
Fig. 16
uRemove the plug from the plug holder.
Fig. 17 The installation position of the plug holder can be
rotated by 180°.
uDisengage the plug holder.
Fig. 18
uRemove the screws .Fig. 18 (1)
uPress the latching lugs Fig. 18 (2) to the side and take off
the remote lock .Fig. 18 (3)
Fig. 19
uTurn the remote lock by 180° and fasten it onFig. 19 (1)
the opposite side.
uSnap in the plug holder on the opposite side.Fig. 19 (2)
NOTICE
Risk of injury if the door tips out!
uHold the door.
Fig. 20
uUnscrew the hinge .Fig. 20 (1)
uLift the door with the hinge straight up by Fig. 20 (2)
roughly 200 mm and take it off.
uCarefully place the door on a soft surface.
Start-up
10 * Depending on model and options
Fig. 21
uCarefully pull out the cable.
Fig. 22
uPull out the hinge.
Fig. 23
uPull out the hinge bushing with your fingers.Fig. 23 (1)
uCarefully lift the cover plug with a slottedFig. 23 (2)
screwdriver and pull it out.
Fig. 24
uInsert hinge bushing and cover plug on the opposite side
(the flattened sides face outwards).
Fig. 25 Glass door
uRemove the panels.
uUnscrew the handle.
Start-up
* Depending on model and options 11
Fig. 26
uPut the stopper on the opposite side.
Fig. 27 Glass door
uScrew the handle onto the opposite side.
uAttach the panels.
Fig. 28
uMove the door latch to the opposite side.
Note
The holes are pre-marked and must be pierced with the self-
tapping screws.
Fig. 29
uMove the hinge to the opposite side.
WARNING
Risk of injury and material damage if the door tips out!
uTighten the bearing pins to the specified torque.
Start-up
12 * Depending on model and options
Fig. 30
uPut the pin back into the hinge .Fig. 30 (1)
uTighten the pin to a Fig. 30 (2) torque of 12 Nm.
uUnscrew the hinge again.
NOTICE
Risk of injury due to tensioned spring!
uDo not disassemble the door closing system .Fig. 31 (1)
Fig. 31
uTurn the closing system Fig. 31 (2) until it clicks.
wThe tension of the closing system is released.
uUnscrew the hinge .Fig. 31 (3)
Fig. 32
uPut the door closing system in the hinge.
uMake sure the pin chamfer Fig. 32 (1) faces the round hole
when you put it in.
-or-
Note
Incorrect alignment of the height adjustment washers.
Nuts no longer have sufficient hold.
uThe washer must luck into the underside of the closing
system.
Fig. 33
uLoosen the nut and remove the door closing system
Fig. 33 (1).
uObserve the correct alignment of the height adjustment
washers .Fig. 33 (2)
uPut the door closing system in the hinge fix in place with
the nut .Fig. 33 (3)
uObserve the correct alignment of the door closing system
when doing so .Fig. 33 (4)
Fig. 34
uPut the cover plate on the opposite side.
Start-up
* Depending on model and options 13
Fig. 35
uScrew the hinge onto the opposite side.
Note
Correct alignment and tension are important for the closing
system to work properly.
Fig. 36 Left-hinged (A) / Right-hinged (B)
uTurn the closing system against the resistance until the
bar of the closing system points outwards.Fig. 36 (1)
wThe closing system automatically stays in this position.
wThe closing system is now aligned and pretensioned.
Fig. 37
uPut the hinge into the door.
Fig. 38
uCarefully push the cable through.
NOTICE
Risk of injury if the door tips out!
uHold the door.
Fig. 39
uTogether with a second person, lift the door from the
ground.
uCarefully put the door on the closing system with the
door opened at a 90° angle.
NOTICE
Material damage due to incorrect mounting!
uDo not pinch the cable when mounting the hinge.
Start-up
14 * Depending on model and options
Fig. 40
uFeed the cable through the recess in the hinge and lay it
carefully .Fig. 40 (1)
uScrew on the hinge .Fig. 40 (2)
Fig. 41
uPut the plug in the plug holder.Fig. 41 (1)
Fig. 42
uConnect the plug to the circuit board.Fig. 42 (1)
Fig. 43
uPut on the cover.
Fig. 44
uSnap in the middle cover.
Fig. 45
uHook in the front covers Fig. 45 (1) on the side and snap
them into place.
uSnap on the top cover from above.Fig. 45 (2)
uClose the door.
wThe door has now been reversed.
3.14 Aligning the door
If the door is not straight, you can adjust it on the lower
hinge.
Fig. 46
uRemove the middle screw on the lower hinge.
Start-up
* Depending on model and options 15


Specyfikacje produktu

Marka: Liebherr
Kategoria: Szafka klimatyczna na wino
Model: WFbli 7741-20 Perfection

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Liebherr WFbli 7741-20 Perfection, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą




Instrukcje Szafka klimatyczna na wino Liebherr

Instrukcje Szafka klimatyczna na wino

Najnowsze instrukcje dla Szafka klimatyczna na wino
