USER MANUAL
MODELS:
KDS EN7 KDS DEC7- / -
4K AVoIP Encoder / Decoder
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Contents / –
2
Contents
Contents 2
Introduction 4
Getting Started 4
Overview 5
Typical Applications 6
Controlling your KDS-EN7 / KDS-DEC7 6
Dening KDS-EN7 4K AVoIP Encoder 7
Dening KDS-DEC7 4K AVoIP Decoder 8
Mounting KDS-EN7 9
Connecting KDS-EN7 10
Connecting the Audio/Input Output 11
Understanding LED Functionality 12
Connecting to KDS-EN7 via RS-232 12
Operating and Controlling KDS-EN7 13
Conguring the Network Switch 13
Using Menu Navigation Buttons 13
Operating via Ethernet 17
Using KDS-EN7 Embedded Web Pages 22
Dening KDS-EN7 AV Routing Parameters 25
Dening HDMI Input Settings 26
Dening Audio Settings 27
Managing EDID 29
General Device Settings 31
KDS-EN7 Network Settings 34
Dening KDS-EN7 Time and Date 36
Setting KDS-EN7 Security 37
Dening KDS-EN7 User Access 41
Dening KDS-EN7 Gateway Settings 44
Viewing KDS-EN7 Status 47
Viewing KDS-EN7 Connections Status 48
Viewing KDS-EN7 Advanced Status 49
Viewing the About Page 50
Using KDS-DEC7 Embedded Web Pages 51
Dening KDS-DEC7 AV Routing Parameters 53
Conguring OSD settings 55
Conguring KVM Settings 57
Setting the Video Wall 59
Conguring the Overlay 62
Dening Video Settings 65
Dening KDS-DEC7 Switching Mode 66
Dening KDS-DEC7 Settings 69
KDS-DEC7 Network Settings 70
Dening KDS-DEC7 Time and Date 71
Setting KDS-DEC7 Security 72
Dening KDS-DEC7 User Access 73
Dening Gateway Settings 73
Viewing KDS-DEC7 Status 74
Viewing KDS-DEC7 Connections Status 75
Viewing KDS-DEC7 Advanced Status 76
Viewing the KDS-DEC7 About Page 77
KVM Roaming, OSD menu and Fast Switching 78
Conguring KVM Roaming 79
KVM and OSD Menu Switching 82
Fast switching conguration 83
Upgrading Firmware 84
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Contents / –
3
Technical Specications 85
KDS-EN7 Specifications 85
KDS-DEC7 Specifications 86
Default Communication Parameters 87
Default EDID 87
Default Parameters 90
KDS-DEC7 Default Parameters 91
Protocol 3000 93
Understanding Protocol 3000 93
Protocol 3000 Commands 94
Result and Error Codes 113
KDS JSON Conguration API 114
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Introduction / –
4
Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world
of unique, creative, and aordable solutions to the vast range of problems that confront the
video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we
have redesigned and upgraded most of our line, making the best even better!
Getting Started
We recommend that you:
• Unpack the equipment carefully and save the original box and packaging materials for
possible future shipment.
• Review the contents of this user manual.
Achieving Best Performance
• Use only good quality connection cables (we recommend Kramer high-performance,
high-resolution cables) to avoid interference, deterioration in signal quality due to poor
matching, and elevated noise levels (often associated with low quality cables).
• Do not secure the cables in tight bundles or roll the slack into tight coils.
• Avoid interference from neighboring electrical appliances that may adversely inuence
signal quality.
• Position your Kramer away from moisture, excessive sunlight
KDS-EN7 / KDS DEC7-
and dust.
Safety Instructions
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Introduction / –
5
Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims to reduce
the amount of WEEE sent for disposal to landll or incineration by requiring it to be collected
and recycled. To comply with the WEEE Directive, Kramer Electronics has made
arrangements with the European Advanced Recycling Network (EARN) and will cover any
costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on
arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular
country go to our recycling pages at www.kramerav.com/quality/environment.
Overview
Congratulations on purchasing your Kramer KDS-EN7 4K AVoIP Encoder / KDS DEC7- 4K
AVoIP Decoder -EN7 -
. KDS / KDS DEC7 is an advanced encoder/decoder for streaming 4K
video signals, USB, IR, RS-232, or CEC signals via Ethernet over copper cable in unicast
(one- -one) or multicast (one- -many) congurations. to to
KDS-EN7 encodes and streams the video signal, and transmits USB, IR, RS-232, or CEC
signals over an IP network. decodes the video signal and receives USB, IR, KDS DEC7-
RS-232, or CEC signals.
KDS KDS DEC7-EN7 and - provide exceptional quality, advanced and user-friendly operation,
and exible control.
Exceptional Quality
• Video Streaming Transmitter/Receiver - Streams up to 4K@30Hz (4:4:4) resolution
signals over a 1G network interface.
• Streaming Support Provides unicast and multicast streaming. –
• Flexible Analog Audio Embedding and De-embedding - Select the balanced analog
audio as input to embed into the streaming and HDMI output signal, or as output to
extract the HDMI audio signal and output it as balanced analog audio.
• Analog Audio De-embedding extracts the HDMI audio signal or LAN –KDS DEC7-
streaming audio and outputs it as balanced analog audio.
• Video Wall Support can create a grid and/or mosaic video wall of up to –KDS-DEC7
16x16 displays.
• KVM and OSD Menu Switching - On Screen Display Menu triggered by USB
KDS DEC7-
hotkey for quick switching between dierent encoders.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Introduction / –
6
Advanced and User-friendly Operation
• Convenient and Comprehensive Control Control the unit using intuitive embedded web –
pages, Protocol 3000 API commands via Ethernet, or front panel LCD and navigation
buttons.
• Supports Grid or Mosaic Video Wall.
• Built in Resilient Security Features - Preserves the integrity, availability and –
condentiality of the IT network via a highly secured and resilient AVoIP solution.
KDS KDS DEC7-EN7 and - comply with IT security requirements, including 802.1x and
HTTPS/TLS.
• PoE Support Powered with PoE connection from PoE switch. –
• Keyboard and Mouse Roaming.
• Control Gateway - Through P3K or special TCP connection, users can
control/communicate with IR, RS-232, or CEC to the connected devices.
• Separate Service LAN Port can be used for physical separation between AV and –
command streams to separate LAN for security and reliability purposes.
Flexible Connectivity
• Analog/embedded audio inputs and outputs.
Typical Applications
KDS-EN7 is ideal for the following typical applications:
• Real-time essential installations such as command and control rooms.
• Large scale AV content sharing installations using existing wires and infrastructure in
corporate oces and government applications.
• AV distribution systems with one or more sources and multiple displays in schools,
universities, and public venues.
• AV installations where low latency KM/KVM capabilities are required.
Controlling your KDS-EN7 KDS-DEC7 /
Control your directly via Navigation buttons, or via: KDS KDS DEC7-EN7 / -
• The Ethernet using built-in user-friendly web pages.
• Protocol commands.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Dening KDS-EN7 4K AVoIP Encoder / –
7
Defining -EN7 4K AVoIP KDS
Encoder
Figure 1 KDS-EN7 4K AVoIP Encoder :
#
Feature
Function
HOST USB Type B Port
Connect to a USB host, for example, a PC for KVM/USB support.
LCD Display
Use for device conguration such as unique channel/AV stream setting
on encoder and channel tuning on decoder.
Menu
Navigation
Button
Press to return to the previous menu.
Press to move up to the next conguration parameter.
Press to go to the next menu.
Press to move down to the next conguration parameter.
Enter
Press to accept changes.
LINK LED
See Functionality page .Understanding LED on 12
NET LED
ON LED
24V/5A DC Connector
Connect to the power adapter (purchased separately).
RESET Recessed Button
Press and hold for 10 seconds to reset the device to its factory default
values. All LEDs ash.
LAN MEDIA 1G(PoE)
RJ-45 Port
Unicast: connect for streaming either directly to a decoder or via LAN.
Multicast: connect to multiple decoders or connect to one decoder to
which multiple decoders are daisy-chained via SERVICE (1G) port.
LAN SERVICE 1G RJ-45
Port
Used optionally for physical separation between AV and command
streams to separate LAN for security and reliability purposes.
RS-232 3-pin Terminal
Block Connector
Connect to an RS-232 device to use as a Gateway and bi-directional
signal extension (even when no AV signal is extended).
AUDIO IN/OUT 5-pin
Terminal Block Connector
Connect to a balanced analog stereo audio source/acceptor.
IR 3.5 Mini Jack
Connect to an IR sensor or emitter for bi-directional signal extension
(even when no AV signal is extended). Expected voltage for IR receiver
- (3.3V).
HDMI IN Connector
Connect to an HDMI source.
HDMI OUT Connector
Connect to an additional device to loop the signal, or to a KDS-EN7
local acceptor.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Dening KDS-DEC7 4K AVoIP Decoder / –
8
Defining -DEC7 4K AVoIP KDS
Decoder
Figure 2 KDS-DEC7 4K AVoIP Decoder :
#
Feature
Function
USB Type A Port
Connect to a keyboard and mouse.
LCD Display
Upon power up, displays the last video source. Use for device
information and configuration.
Menu Navigation
Button
Press to return to the previous menu.
Press to move up to the next conguration parameter.
Press to go to the next menu.
Press to move down to the next configuration parameter.
Enter
Press to accept changes.
LINK LED
See Functionality page .Understanding LED on 12
NET LED
ON LED
24V/5A DC Connector
Connect to the power adapter (purchased separately).
RESET Recessed Button
Press and hold for 10 seconds to reset the device to its factory
default values. All LEDs flash.
LAN MEDIA 1G(PoE)
RJ-45 Port
Connect for streaming.
LAN SERVICE 1G
RJ-45 Port
Use, optionally, to create a physical separation between AV streams
(MEDIA) and command streams (SERVICE), for enhancing security
and reliability.
RS-232 3-pin Terminal
Block Connector
Connect to an RS-232 device to use as a Gateway and bi-directional
signal extension (even when no AV signal is extended).
AUDIO OUT 5-pin Terminal
Block Connector
Connect to a balanced analog stereo audio acceptor.
IR 3.5 Mini Jack
Connect to an IR sensor or emitter for bi-directional signal extension
(even when no AV signal is extended). Expected voltage for IR
receiver (3.3V).–
HDMI IN Connector
Connect to an HDMI source.
HDMI OUT Connector
Connect to an HDMI acceptor.
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Mounting KDS-EN7 / –
9
Mounting KDS-EN7
This section provides instructions for mounting . Before installing, verify that the KDS-EN7
environment is within the recommended range:
Mount - in a rack: KDS EN7
• Use the recommended rack adapter
(see www.kramerav.com/product/KDS-EN7).
Mount - on a surface using one of the following methods: KDS EN7
• Attach the rubber feet and place the unit on a at surface.
• Fasten a bracket (included) on each side of the unit and attach it to
a at surface. For more information go to
www.kramerav.com/downloads/KDS-EN7.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Connecting KDS-EN7 / –
10
Connecting KDS-EN7
By-default, the device uses PoE for powering the device. Optionally, you can separately
purchase a power adapter to connect to the product and plug into the mains electricity.
Always switch o the power to each device before connecting it to your KDS- EN7 and
KDS DEC7- . After connecting your devices, connect their power and then switch on the powe
to each device.
Figure 3: Connecting the KDS-EN7 to a KDS-DEC7
To connect as illustrated in the example in
KDS-EN7 : Figure 3
1. Connect an HDMI source (for example, a server or a media player) to the HDMI IN
connector on the .
KDS-EN7
2. Connect a balanced stereo audio source (for example, the server audio connector) to
the AUDIO IN/OUT 5-pin terminal block connector on the . KDS-EN7
14
12
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Connecting KDS-EN7 / –
11
3. Connect the LAN MEDIA 1G(PoE) RJ-45 port on the to the LAN MEDIA
KDS-EN7
1G(PoE) RJ-45 port on the via a LAN switch. KDS DEC7-
4. Connect the HDMI OUT connector on the to an HDMI acceptor (for KDS DEC7-
example, a display).
5. Connect the AUDIO OUT 5-pin terminal block connector on the to a
KDS-DEC7
balanced stereo audio acceptor (for example, an audio amplier).
6. Connect the USB ports:
▪ On KDS-EN7, connect the HDMI input (for example, the server) to the USB HOST
port .
▪ On KDS DEC7- , connect a mouse and a keyboard to the two USB type A ports .
7. Control the display connected to from the encoder side via IR: KDS DEC7-
▪ On KDS-EN7, connect an IR sensor cable to the IR 3.5mm mini jack
.
▪ On KDS DEC7- , connect the IR 3.5mm mini jack to an emitter cable and attach
the emitter side to the IR sensor of the display.
8. Connect RS-232 3-pin terminal block connectors:
▪ On the KDS-EN7, connect the RS-232 port to a laptop/controller.
▪ On the KDS DEC7- , connect RS-232 to the display.
RS-232 bidirectional signals can be sent between the display and the laptop
connected to the HDMI OUT connector on the . KDS DEC7-
Connecting the Audio/Input Output
The following are the pinouts for connecting the input/output to a balanced or unbalanced
stereo audio acceptor:
Figure 4: Connecting to a Balanced Stereo Audio
Source/Acceptor
Figure 5: Connecting to an Unbalanced Stereo
Audio Acceptor
Figure 6: Connecting an Unbalanced Stereo Audio
Source to the Balanced Input
9
24
30
27
1
16
13
28
11
26
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Connecting KDS-EN7 / –
12
Understanding LED Functionality
KDS KDS DEC7-EN7 and - LEDs function as follows:
LED
Color
Denition
LINK LED
Lights Green
A link is established between and KDS-EN7 KDS-DEC7
and is transmitting A/V signals.
Flashes Green
A signal is established, and a problem is detected.
NET LED
O
No IP address is acquired.
Lights green
A valid IP address has been acquired.
Flashes Green very fast
(for 60sec)
A device identication command is sent (Flag me).
Lights Yellow
Device falls back to default IP address.
Lights Red
Security is blocking IP access.
ON LED
Flashes Red
On fallback address acquiring, device ‘ON’ LED ashes
continuously in slow 0.5/10sec cadence.
Lights Green
When power is on.
Flashes Green Slowly
Device is in standby mode.
Flashes green fast
FW is downloaded in the background.
Flashes Green very fast (for
60sec)
A device identication command is sent (Flag me).
Lights Yellow
Device falls back to default IP address.
Lights Red
Security is blocking IP access.
Post reboot, all LEDs light for 3 seconds then return to their normal LED display mode.
Connecting to KDS-EN7 via RS- 232
You can connect to via an RS-232 connection using, for example, a PC. KDS-EN7
This section applies to too. KDS DEC7-
KDS-EN7 features an RS-232 3-pin terminal block connector allowing the RS-232 to control
KDS-EN7.
Connect the RS-232 terminal block on the rear panel of a PC/controller, as KDS-EN7 to
follows:
From the RS-232 9-pin D-sub serial port connect:
• Pin 2 to the TX pin on the -232 terminal block KDS-EN7 RS
• Pin 3 to the RX pin on the -232 terminal block KDS-EN7 RS
• Pin 5 to the G pin on the -232 terminal blockKDS-EN7 RS
RS KDS-232 Device -EN7
13
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
13
Operating and Controlling
KDS-EN7
This section describes the following actions:
• Conguring the Network Switch on page 13.
• Using Menu Navigation Buttons on page 13.
• Operating via Ethernet on page 17.
Configuring the Network Switch
Before setting the system, make sure that your AV over IP network switch meets the following
minimum requirements:
• Jumbo Frames On. (at least 8000 bytes). –
• IGMP Snooping On. –
• IGMP Querier On. –
• IGMP Immediate/Fast Leave On. –
• Unregistered Multicast Filtering On. –
Using Menu Navigation Buttons
Connect the device to the 24V DC power adapter and connect the adapter to the mains
electricity. The ON LED lights green, and the LINK LED ashes (indicating that no streaming
activity is detected).
Use the navigation button to easily view and set basic device parameters via the Device
menu, appearing on the device LCD display , see:
•
Using - Navigation ButtonsKDS EN7 on . page 14
• Using - Navigation ButtonsKDS DEC7 on . page 15
KDS KDS DEC7-EN7 and - have slightly dierent menus.
Use the Navigation buttons / Use the:
• Up arrow to move to the next conguration parameter. –
• Left arrow to return to the previous menu. –
• Right arrow to go to the next menu. –
• Enter button accept and save the change. –
• Dening device settings.
2
3
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
14
Using KDS-EN7 Navigation Buttons
• Dening Device Status on page 14.
• Viewing Device Information on page 14.
• Selecting the EDID page on 14.
• Dening HDCP Settings on page 15.
• Dening Encoder Device Channel Number page . on 15
Dening Device Status
View the device parameters.
To view device parameters:
1. Press the left or right arrows to access the device status (DEV STATUS) menu.
2. Press the up or down arrows to view the following information:
▪ LAN1 STATUS, including IP address, Subnet mask and Gateway address
▪ LAN2 STATUS, including IP address, Subnet mask and Gateway address.
▪ HDMI STATUS, including video input resolution and HDCP settings status.
▪ View Device channel ID (CH DEFINE).
▪ Device internal TEMPERATURE (°C).
Device status is viewed.
Viewing Device Information
To view device parameters:
1. Press the left or right arrows to access the device status menu.
2. Press the up or down arrows to view the device rmware and hardware information:
▪ Firmware version (FW).
▪ Bootloader information (BL).
▪ Hardware version (HW).
Device information is viewed.
Selecting the EDID
To select the EDID:
1. Press the left or right arrows to access the device setting menu.
2. Press the up or down arrows to select the EDID settings menu.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
15
3. Select the EDID from the following options:
Select
EDID Setting
0
Default
1
4K30_2.0CH
2
4K30_Dolby
3
1080P50_Dolby
4
720P50_2.0
5
720P50_Dolby
4. Press to accept change. Enter
EDID on the input is set.
Dening HDCP Settings
Enable or disable HDCP on the input via the navigation buttons.
To dene HDCP settings:
1. Press the left or right arrows to access the HDCP Settings menu.
2. Press the up or down arrows to select HDCP support mode:
▪ Select ON to enable HDCP support.
▪ Select OFF to disable HDCP support.
3. Press to accept HDCP mode. Enter
Dening Encoder Device Channel Number
Set a device channel number from 1 to 999.
To dene the encoder channel number:
1. Press the left or right arrows to access the CH DEFINE menu.
2. Press the up or down arrows to set a rst digit (0 to 9).
3. Press left and right arrows to add another digit (0 to 9).
4. Press to accept channel number. Enter
Channel number for this device is dened.
Using KDS-DEC7 Navigation Buttons
Dening Device Status
You can view the device parameters.
To view device parameters:
1. Press the left or right arrows to access the device status menu.
2. Press the up or down arrows to view the following information:
▪ LAN 1 status, including IP address, Subnet mask and Gateway address
▪ LAN2 status, including IP address, Subnet mask and Gateway address.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
16
▪ HDMI status, including video input resolution and HDCP settings status.
▪ View the encoder channel that was selected.
▪ Device internal temperature (°C).
Device status is viewed.
Viewing Device Information
To view device parameters:
1. Press the left or right arrows to access the device status menu.
2. Press the up or down arrows to view the device rmware and hardware information:
▪ Firmware version.
▪ Bootloader information.
▪ Hardware version.
Device information is viewed.
Selecting the video input signal
You can either select the streaming input or the local HDMI input signal to route to the HDMI
output.
To select the streaming input:
1. Press the left or right arrows to access the device setting menu.
2. Press the up or down arrows to select Input Setting.
3. Select one of the HDMI inputs:
▪ STREAM IN
▪ HDMI IN
4. Press to accept change. Enter
The input is selected.
Dening Output Resolution
Select the display resolution.
To select the output resolution:
1. Press the left or right arrows to access the Device Settings menu.
2. Press the up or down arrows to select RESOLUTION Setting:
▪ Pass-through
▪ 720P60
▪ 1080P60
▪ 1080P50
▪ 2160P25
▪ 2160P30
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
17
3. Press to accept output resolution. Enter
Resolution is selected.
Selecting an Encoder Device Channel Number on the decoder
Select the channel number of a specic encoder.
To select an encoder channel number:
1. Press the left or right arrows to access the encoder CH Select menu.
2. Press the up or down arrows to select the rst digit (0 to 9).
3. Press left and right arrows to add another digit (0 to 9).
Channel number for the specic encoder is selected.
Operating via Ethernet
This section describes the following actions:
• Allocating the IP Address via LCD screen menu on page 17.
• Accessing the Web UI on page 18.
• Connecting Ethernet Port Directly to a PC page on 19.
• Connecting Ethernet Port via a Network Hub or Switch on page 21.
• Conguring Ethernet Port on page 21.
Allocating the IP Address via LCD screen menu
KDS KDS DEC7-EN7 / - IP default static addresses are: 192.168.1.39 for the Encoder and
192.168.1.40 for the Decoder. By default, DHCP is enabled, and assigns an IP address to the
device. If DHCP Server is not available, for example, in case a device is connected directly to
the laptop, that device gets the default IP address. If these IP addresses are already in use,
the system searches for a random unique IP in the range of 192.168.X.Y. the allocated IP
address can be identied using the LCD screen menu.
Setting Channel Number
Each encoder requires a unique channel number, and the connected decoders should be
tuned to that encoder channel. You can set the channel number via the LCD screen menu or
the embedded web pages.
To set the channel number for - / - , via LCD screen menu: KDS EN7 KDS DEC7
1. Connect the device to the 24V DC power adapter and connect the adapter to the mains
electricity. The ON LED lights green, and the LINK LED ashes (indicating that no
streaming activity is detected).
2. In the LCD screen menu, go to DEV SETTINGS > CH DEFINE.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
18
3. Change channel number using arrow buttons:
▪ For the KDS-EN7 set a unique channel number.
▪ For each of the devices, set to the defined channel number. KDS DEC7- KDS-EN7
4. Press to save your selection. Enter
To set the channel number via web pages:
1. Connect the Ethernet port to the network and power the device. KDS-EN7 / KDS DEC7-
2. Access the embedded web pages.
3. In the Main page:
▪ For KDS-EN7:
฀ Go to AV Routing page.
฀ Select Channel ID and define the channel ID number.
▪ For KDS DEC7- :
฀ Go to AV Routing page.
฀ Select Channel ID (corresponding to the desired encoder channel ID).
By default, and are DHCP-enabled. This section describes how to
KDS-EN7 KDS DEC7-
operate via the Ethernet and access the IP address when DHCP is enabled and when a static
IP address is used.
You can connect to via Ethernet using either of the following methods:
KDS-EN7
• When DHCP is enabled (see, for example, KDS EN7- Network Settings on page 34).
When using a static IP Address (DHCP is disabled):
• Directly to the PC using a crossover cable (see Connecting Ethernet Port Directly to a
PC on page 19).
• Via a network hub, switch, or router, (using a static IP address) using a straight-through
cable (see Connecting Ethernet Port via a Network Hub on page 21).
Note: If you want to connect via a router and your IT system is based on IPv6, speak to your
IT department for specific installation instructions.
Accessing the Web UI
By default, IP setting for KDS-7 Decoders is DHCP.
To access the Web UI, perform the following:
1. Connect the LAN port of the device to a local area network.
Make sure that there is a DHCP server in the Network so that the device can obtain a
valid IP address.
2. Connect your PC to the same network as the device.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
19
3. Input the device’s IP address in the browser and press Enter, the following window pops
up.
Allocated IP address can be checked using LCD screen menu.
Figure 7: Login Window
4. Input username and password (default username / password: admin / admin) and click
Sign In to enter the main page of web UI.
Connecting Ethernet Port Directly to a PC
You can connect the Ethernet port of directly to the Ethernet port on your PC using KDS-EN7
a crossover cable with RJ-45 connectors.
This type of connection is recommended for identifying KDS-EN7
with the factory configured default IP address.
After connecting KDS-EN7 to the Ethernet port, configure your PC as follows:
1. Click Start > Control Panel Network and Sharing Center > .
2. Click Change Adapter Settings.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
20
3. Highlight the network adapter you want to use to connect to the device and click Change
settings of this connection.
The Local Area Connection Properties window for the selected network adapter appears
as shown in Figure 8.
Figure 8: Local Area Connection Properties Window
4. Highlight either Internet Protocol Version 6 (TCP/IPv6) Internet Protocol Version 4 or
(TCP/IPv4) depending on the requirements of your IT system.
5. Click . Properties
The Internet Protocol Properties window relevant to your IT system appears as shown in
Figure 9 Figure or 10.
Figure 9: Internet Protocol Version 4 Properties Window
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Operating and Controlling KDS-EN7 / –
21
Figure : Internet Protocol Version 6 Properties Window 10
6. Select Use the following IP Address for static IP addressing and fill in the details as
shown in Figure 11.
For TCP/IPv4 you can use any IP address in the range 192.168.1.1 to 192.168.1.255
(excluding 192.168.1.39) that is provided by your IT department.
Figure : Internet Protocol Properties Window 11
7. Click . OK
8. Click . Close
Connecting Ethernet Port via a Network Hub or Switch
You can connect the Ethernet port of the Ethernet port on a network hub or using KDS-EN7 to
a straight-through cable with RJ-45 connectors.
Configuring Ethernet Port
You can set the Ethernet parameters via the embedded web pages.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
22
Using KDS-EN7 Embedded Web
Pages
KDS- EN7 enables you to configure settings via Ethernet using built-in, user-friendly web
pages. The Web pages are accessed using a Web browser and an Ethernet connection.
You can also configure via Protocol 3000 commands (see KDS-EN7 Protocol 3000
Commands on page 94).
Before attempting to connect, perform the procedure in Operating via Ethernet on page 17.
If a web page does not update correctly, clear your Web browser’s cache.
Some features might not be supported by some mobile device operating systems.
KDS-EN7 enables performing the following:
• Parameters page . Defining - AV RoutingKDS EN7 on 25
• Defining HDMI Input Settings on page 26.
• Defining Audio Settings on page 27.
• Managing EDID on page . 29
• General Device Settings on page 31.
• . KDS EN7- Network Settings on page 34
• Defining - Time and DateKDS EN7 on page . 36
• . Setting - SecurityKDS EN7 on page 37
• . Defining - User AccessKDS EN7 on page 41
• Defining - Gateway SettingsKDS EN7 on page 44.
• Viewing - StatusKDS EN7 on page 47.
• Viewing - Connections StatusKDS EN7 on page 48.
• Viewing - Advanced StatusKDS EN7 on page 49.
• Viewing the About Page on page 50.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
23
To Browse the - Web Pages: KDS EN7
1. Open your Internet browser.
2. Type the IP number of the device in the Address bar of your browser. For example, the
default IP number:
. The Login window appears.
Figure : Login Window 12
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
24
3. Enter the Username and Password (Admin/Admin, by default).
The KDS-EN7 page appears.
Figure : Controller Application Page with Navigation List on Left 13
4. Click the tabs on the left side of the screen to access the relevant web page.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
25
Defining KDS-EN7 AV Routing Parameters
Set the AV routing parameters. KDS-EN7
To set AV routing parameters:
1. In the Navigation pane, Select . The AV Routing page appears (see Main>AV Routing
Figure 13).
2. Define the following settings:
▪ Channel ID: Set Channel ID and click . APPLY
Channel ID defines the device input ID (1 to 999).
▪ Channel Name: Enter the Stream Name and click . APPLY
Stream name is identical to Host name (see General Device Settings page on 31)
can include up to 24 characters; “ “ and “_” are allowed within the name. -
by default, the name is the model name and MAC address connected by “-“.
▪ Volume: Use the slider to adjust the analog audio output volume (0 to 100%).
Default is 80 (0dB), 100% (12dB) and 0 is mute.
▪ Mute: Mute/unmute all audio outputs (HDMI OUT, AUDIO OUT, and MEDIA ports).
▪ Play/Stop: Start or stop streaming of video, audio, IR, RS-232 and USB signals.
3. View the following streaming parameters: HDCP Encryption, Resolution, Aspect Ratio,
Audio Channels, Audio Rate and Audio Format.
Routing parameters are defined.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
26
Defining HDMI Input Settings
Define video settings. KDS-EN7
To define HDMI input settings:
1. In the Navigation pane, Select . The Video tab in the AV Routing page appears. AV
Figure : AV Settings Video Settings Tab 14 –
2. Define the following settings:
▪ HDMI: enable/disable HDCP support for the HDMI input.
▪ Image Preview: view the output video streaming preview.
▪ Maximum Bit Rate: select the maximum transmission bandwidth.
Select bandwidth (10Mbps, 50Mbps, 100Mbps, 150Mbps and 200Mbps) or Best
Effort to set bandwidth for best video quality output.
After setting the maximum bit rate you need to restart the device.
▪ Maximum Video Frame Rate (%): use the slider to configure the maximum frame
rate in proportion. 100% (default) means zero compression on the frame rate.
3. Click . SAVE
HDMI input settings are defined.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
27
Defining Audio Settings
Define audio settings. KDS-EN7
To define Audio settings:
1. In the Navigation pane, Select . The Video tab in the AV Settings page appears (see AV
Figure 14).
2. Select the Audio tab. The Audio tab appears.
Figure : AV Settings Audio Tab 15 –
3. Select IN or OUT to select the audio direction.
If IN is selected, the analog audio port is set as an input and includes 2 KDS-EN7
optional audio sources.
If OUT is selected, the analog audio port is set as an output and includes
KDS-EN7
only the HDMI audio source.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
28
4. Define the audio source (HDMI or analog audio when the analog port is set as IN)
selection mode:
Last Connected: the device
switches the last connected audio
source to the output.
Priority: Set the connection
priority by clicking and dragging
an input to set its priority order.
The device switches the highest
priority audio input to the output.
Manual: manually select the
audio source. The device
switches an audio source only
when selected manually.
5. Set the Audio Connection Guard Time (10 seconds, by default), which is the audio signal
loss time interval.
For example, when in the Last Connected or Priority modes, the currently selected
analog audio signal is lost (either becomes silent or is unplugged), the HDMI audio
source is automatically selected.
6. Click . SAVE
Audio settings are defined.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
29
Managing EDID
You can select the EDID and lock it if required.
To manage EDID:
1. In the Navigation pane, Select . The Video tab in the AV Routing page appears (see AV
Figure 14).
2. Select the tab. The EDID Management tab appears. EDID
Figure : AV Settings EDID Management Tab 16 –
3. Set EDID Lock:
▪ Click , to lock to the last acquired EDID. ON
▪ Click , to unlock and acquire a new EDID. OFF
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
30
4. Select EDID mode from the drop-down box:
Before selecting the EDID mode, set EDID Lock to . OFF
Default Mode: set to the default,
built-in, EDID.
Passthrough: acquire EDID from
a specific decoder:
• Enter the decoder IP address.
• Click . READ
The EDID is copied from the
decoder to the encoder.
Custom: download the EDID file
from an external source.
To remove an EDID from the list:
• Select an EDID file from the
list.
• Click . REMOVE
To upload an EDID file:
• Click . UPLOAD
• Select an EDID file from the
Open window.
• Click . UPLOAD
the EDID file is added to the
list.
• Select the file and click
UPLOAD.
You can load up to 8 EDID files. If 8 files are loaded,
you need to remove a file from the list.
default.bin cannot be deleted.
The list returns to its default list upon factory reset.
EDID is managed.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
31
General Device Settings
Change the Host Name, which is identical to the Channel ID name (see Defining - KDS EN7
AV Routing Parameters ), view the device model, H/W release version, serial on page 25
number and MAC address.
Though the device has only one MAC address, you can configure up to two separate IP
addresses for the two Ethernet ports in two subnets using one MAC address
(see
KDS EN7- Network Settings on page 34).
KDS-EN7 enables performing the following actions via the General Settings tab:
• Locking/Unlocking the Front Panel on page 32.
• Importing/Exporting Device Settings on page 33.
• Locating the Device on page . 33
• Managing the Firmware Version on page 33.
• Restarting or Resetting the Device on page 33.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
32
Locking/Unlocking the Front Panel
To lock/unlock the front panel:
1. In the Navigation pane, Select . The General tab in the Device Settings Device Settings
page appears.
Figure : Device Settings General Tab 17 –
2. Lock/Unlock the device front panel:
▪ Click , to enable device control from the front panel via the LCD screen and the Off
navigation buttons(see Using Menu Navigation Buttons on page 13).
▪ Click , to disable device control via the navigation buttons. On
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
33
Importing/Exporting Device Settings
You can select the type of device settings to export/import from/to the device.
To import or export the device settings:
1. In the Navigation pane, Select Device Settings. The General tab in the Device Settings
page appears (see
Figure 17).
2. In the General Device Settings page, select the setting types to import or export.
▪ All without IP Select all the settings, excluding the IP address. –
▪ Streams Select video, audio, IR, CEC and RS-232 settings. –
▪ AV Settings Only Select only video and audio settings. –
▪ All including IP Select all the settings including the IP address. –
3. When importing, do the following (when exporting, go to the next step):
▪ Click . An Open file appears. IMPORT
▪ Select the file to import (settings.tar.gz).
▪ Click to import the file. Open
4. To export settings, click EXPORT.
The settings file is created (settings.tar.gz).
The settings file is imported/exported.
Locating the Device
Locate the specific device in the system.
To locate the device:
1. In the Navigation pane, Select Device Settings. The General tab in the Device Settings
page appears (see
Figure 17).
2. In the General Device Settings page, click APPLY next to Locate Device.
The located device NET and ON LEDs on the front panel flashes for 60 seconds.
The device is located in the system.
Managing the Firmware Version
To upgrade the firmware, view the date of the last upgrade, or rollback to the previous
firmware revision in case of a problem, see Upgrading Firmware on page 84.
Click to update to the previous FW version. ROLLBACK
Restarting or Resetting the Device
Click RESTART to reboot the device and click to restore device factory default RESET
settings.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
34
KDS-EN7 Network Settings
The device enables performing the following actions:
• Defining Interface Settings on page 34.
• Defining IP Casting Mode Setting on page 35.
• Managing TCP/UDP Ports on page 36.
Defining Interface Settings
Define interface settings for each of the Ethernet ports.
To define interface settings:
1. In the Navigation pane, Select Device Settings. The General tab in the Device Settings
page appears (see
Figure 17).
2. Select the Network tab. The Network tab appears.
Figure : Device Settings Network Tab 18 –
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
35
3. Set the Media port Stream service parameters:
▪ DHCP mode Set DHCP to – On (default) or . Off
▪ IP Address When DHCP mode is set to Off, the device uses a static IP address. –
This requires entering mask and gateway addresses.
▪ Mask Address Enter subnet mask. –
▪ Gateway address – Enter the gateway address.
Note that Stream Service is assigned only to the Media port.
4. Set the P3K & Gateway service parameters:
▪ Port Set the P3K & Gateway port to (default) or . – Media Service
P3K & Gateway can be assigned to either Media or Service port, but if it is assigned to
Media port with DHCP enabled and 802.1Q disabled, it will share the same IP address
with the Stream Service.
Otherwise, it should be assigned with another IP address, which must have a subnet
that is different than the Stream Service.
▪ 802.1Q Click – On to enable 802.1Q standard for P3K & Gateway service, or click
Off (default) to disable.
If Media port is selected and 802.1Q is disabled for P3K & Gateway, both VLAN Tag
and IP setting for P3K & Gateway are not available.
▪ VLAN Tag – Enter an integer number to specify a VLAN ID (1 - 4093) to P3K &
Gateway services. This way, the P3K&Gateway service will have the VLAN packets
tagged to Network.
▪ DHCP mode Set DHCP to – On (default) or . Off
▪ IP Address When DHCP mode is set to Off, the device uses a static IP address. –
This requires entering mask and gateway addresses.
▪ Mask Address Enter subnet mask. –
▪ Gateway address – Enter the gateway address.
IP interface parameters are defined.
Defining IP Casting Mode Setting
Define the following:
• Check or Unicast Multicast (default) mode.
• When in Multicast mode, set the multicast address prefix (default, 255) and TTL, to
define the lifetime of data in the computer/Network to prevent an IP packet from
propagating endlessly through the Network (default, 64).
IP Casting defined. is
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
36
Managing TCP/UDP Ports
To manage TCP/UDP ports:
1. In the Navigation pane, Select . The General tab in the Device Settings Device Settings
page appears (see
Figure 17).
2. Select the Network tab. The Network tab opens (see Figure 18).
3. Define TCP (default, 5000) and UDP (default, 50000) ports.
TCP/UDP ports are defined.
Defining KDS-EN7 Time and Date
You can sync the device time and date to any server around the world.
To sync device time and date to a server:
1. In the Navigation pane, click . The General tab in the Device Settings Device Settings
page appears (see
Figure 17).
2. Select the Time and Date tab. The Time and Date tab appears.
Figure : Device Settings Time and Date Tab 19 –
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
37
3. Next to Use Time Server (NTP), click YES to use time server (NTP).
Network fields are enabled.
4. Type in server information:
▪ Enter the server address.
▪ Set daily sync hour.
5. Enable/disable daylight savings time.
6. If enabled, enter daylight savings time (start and end).
7. Click . SAVE
The devices date and time are synchronized to the server address entered.
Setting KDS-EN7 Security
The Security tab configures device 802.1x authentication to limit unauthorized access, and
HTTPS/TLS for establishing an encrypted connection to an authenticated peer over the
network.
This section describes the following actions:
• page .
Configuring HTTPS on 38
• Defining 802.1x Authentication page on 39.
Contact your IT administrator for the network access authentication.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
38
Configuring HTTPS
To configure HTTPS:
1. In the Navigation pane, click . The General tab in the Device Settings Device Settings
page appears (see
Figure 17).
2. Select tab. The Security tab appears. Security

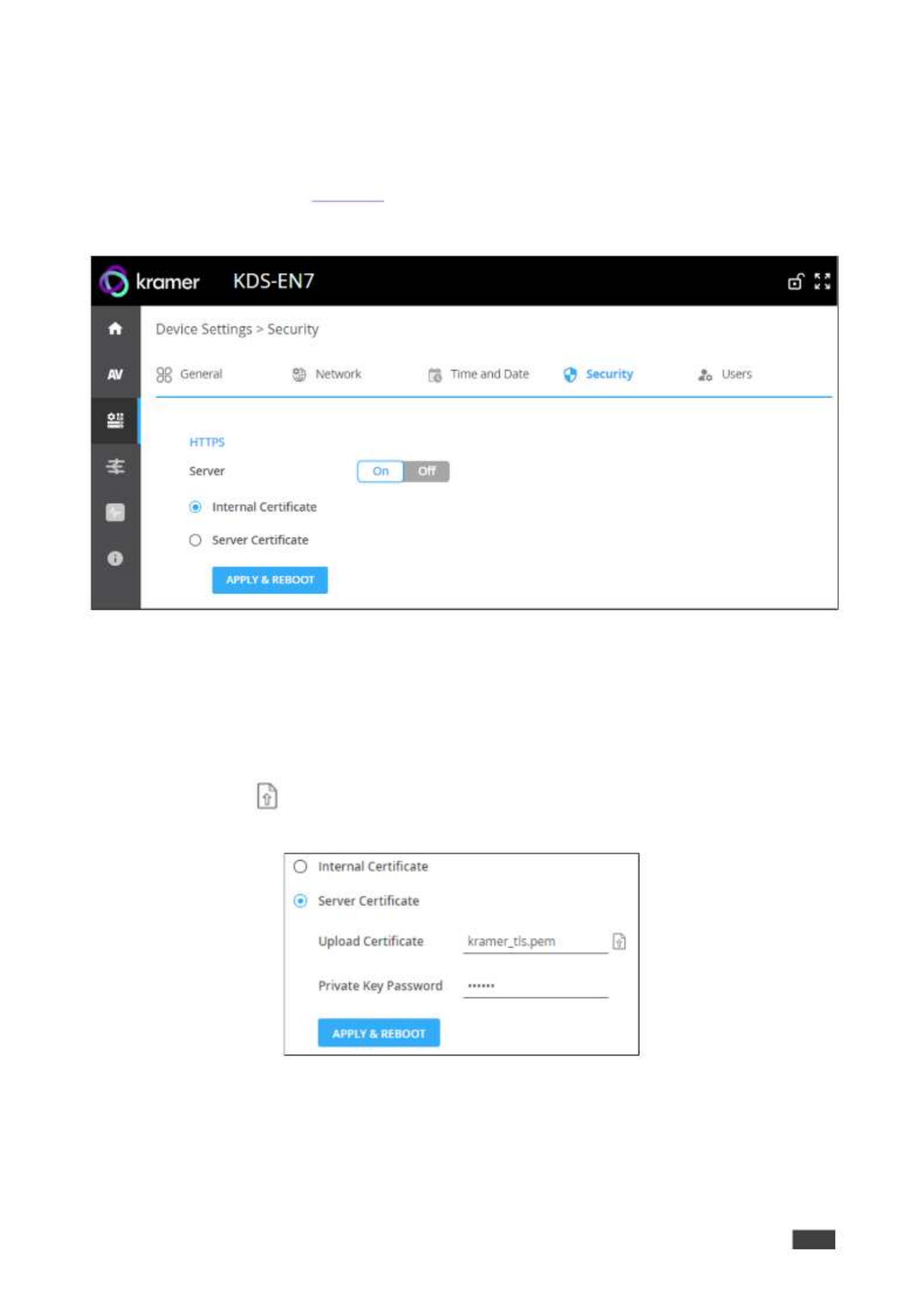

Figure : Device Settings Security Tab 20 –
3. For HTTPS server, click ON to enable HTTPS authentication service (default) or to Off
disable HTTPS authentication.
4. When set to ON check one of the following settings:
▪ Internal Certificate To use the factory default certificate for authentication. –
▪ Server Certificate To submit certificate from the server for authentication. To do –
so, click to upload the certificate. enter the private key password (assigned by
the IT administrator) and click APPLY & REBOOT.
Figure : Security Tab Server Certificate 21 –
5. Click . APPLY
HTTPS is configured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
39
Defining 802.1x Authentication
To configure security:
1. In the Navigation pane, click Device Settings. The General tab in the Device Settings
page appears (see
Figure 17).
2. Select tab. The Security tab appears (see Security Figure 20).
3. For 802.1x authentication, click to enable 802.1x authentication service. 802.1x ON
supports authentication based on port and MAC address.
4. When set to ON check one of the following settings:
▪ PEAP-MSCHAP V2 To use this authentication method, enter a Username (up to –
24 alphanumeric characters, including “_” and “ “ characters within the username) -
and Password (up to 24 ASCII characters):
Figure : Security Tab -MSCHAP V2 Authentication 22 – EAP
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
41
Defining KDS-EN7 User Access
The Users tab enables activating device security and defining logon authentication details.
When device security is on, web page access requires authentication upon initial landing on
operation page. The default password is admin. By default, security is disabled.
Enabling User Access
To enable security:
1. In the Navigation pane, click . The General tab in the Device Settings Device Settings
page appears (see
Figure 17).
2. Select Users tab.

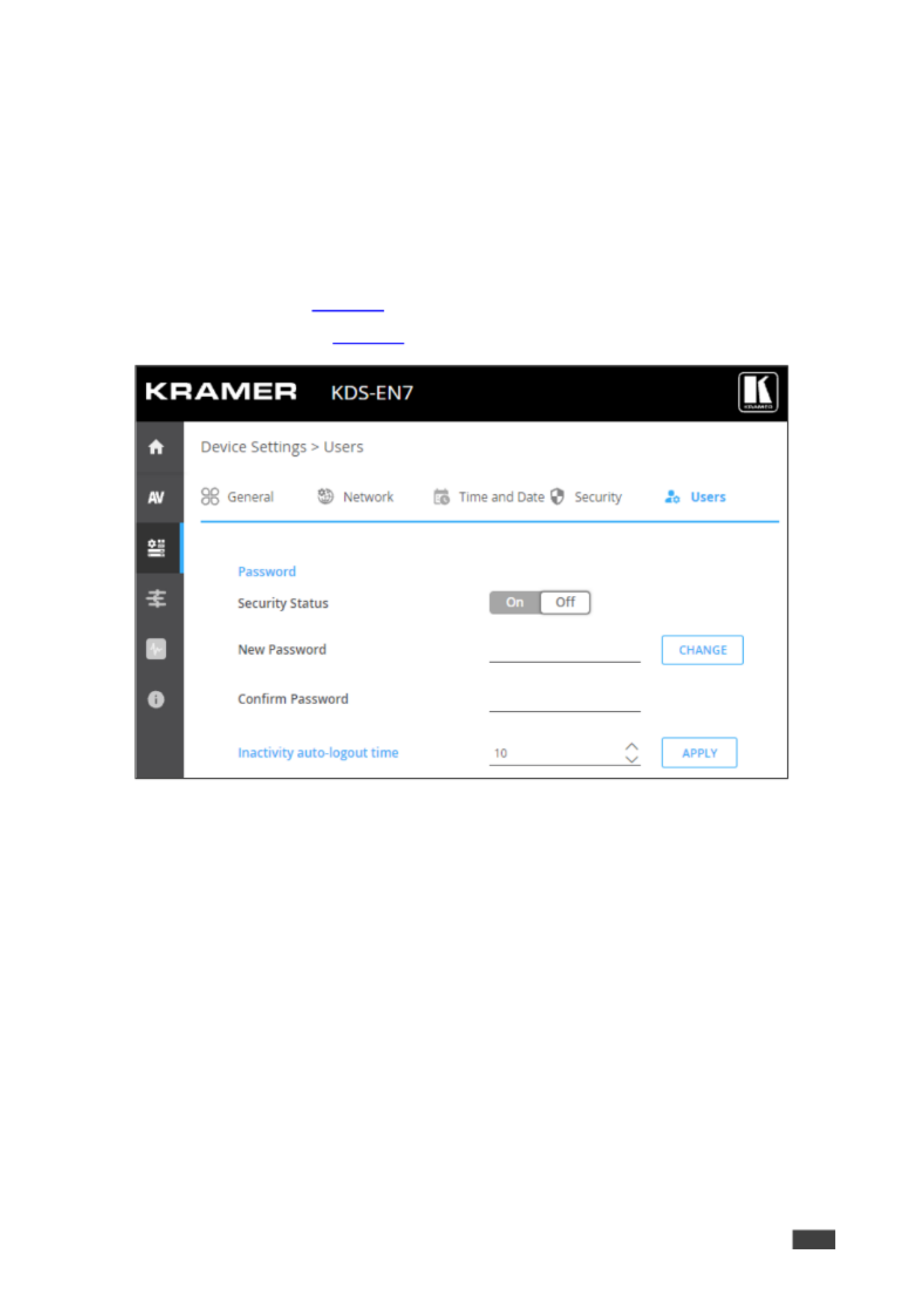

Figure : Device Settings Users Tab 24 –
3. Click next to Security Status to enable web page authentication (Off by default). The On
following message appears.
Figure : Security Tab Security Status 25 –
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
42
4. Click PROCEED. The web page refreshes, and the password fields are visible.
Security is enabled and access requires authentication.
Disabling User Access
To enable security:
1. In the Navigation pane, click . The General tab in the Device Settings Device Settings
page appears (see
Figure 17).
2. Select Users tab (see Figure 24).
Figure : Device Settings Users Tab 26 –
3. Click next to Security Status to enable web page authentication. The following Off
message appears.
Figure : Security Tab Security Status 27 –
4. Enter the current password.
5. Click PROCEED.
Security is disabled.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
43
Logging Out
You can define the time of inactivity before the page logs out automatically by setting the
Inactivity auto-logout time (in minutes).
Changing the Password
To change the password:
1. In the Navigation pane, click . The General tab in the Device Settings Device Settings
page appears (see
Figure 17).
2. Select Users tab (see Figure 24).
Figure : Device Settings Users Tab 28 –
3. Next to New Password, enter the new password.
4. Next to Confirm Password, enter the new password again.
5. Click . CHANGE
Password has changed.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
44
Defining KDS-EN7 Gateway Settings
KDS-EN7 enables configuring CEC, RS-232 and/or IR gateway Control. You can perform the
following actions:
• Configuring CEC Settings on page 44.
• Configuring RS-232 Settings on page 45.
• Configuring IR Settings on page 46.
Configuring CEC Settings
KDS-EN7 sends CEC commands from a control system, connected by LAN, via the
KDS-EN7 built-in control gateway, to control CEC enabled devices that are connected to the
KDS-EN7 HDMI output and input.
To set CEC Gateway:
1. In the Navigation pane, click . The Control>Settings page appears. Control
Figure : Control > Settings Page CEC Settings 29 –
2. Click to enable CEC gateway or click . Enable Disable
3. Select the HDMI port from the drop-down list to which CEC commands are sent:
▪ HDMI Input (HDMI IN).
▪ HDMI Loop Through (HDMI OUT).
4. Enter the CEC command.
Use hex format for the CEC command, up to 32 hex digits.
5. Click . SEND
6. View the CEC-enabled device response.
CEC Gateway is configured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
45
Configuring RS-232 Settings
KDS-EN7 sends RS-232 commands from a control system, connected by LAN, via the
KDS-EN7 built-in control gateway, to devices that are connected to the -KDS-EN7 RS 232
port.
To set RS-232 Gateway:
1. In the Navigation pane, click . The Control>Settings page appears (see Control
Figure 29).
Figure : Control > Settings Page -232 Settings 30 – RS
2. Click to enable RS-232 gateway or click . Enable Disable
3. Define the RS-232 gateway port (5001, by default).
4. Enter the Baud Rate: 9600, 19200, 38400, 57600 or 115200 (default).
5. Enter the Data Bits: 5, 6, 7 or 8 (default).
6. Enter Parity: None (default), Odd or Even.
7. Enter Stop Bits: 1 (default) or 2.
8. Click . SAVE
RS-232 Gateway is configured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
47
Viewing KDS-EN7 Status
View the device status.
To view device status:
1. In the Navigation pane, click Diagnostics. The Status tab appears.
Figure : Diagnostics Status Tab 32 –
2. View the Device Status:
▪ Active, for normal operation (green indication).
▪ Standby, when device is powered Off, booting or in standby mode (yellow
indication).
3. View device internal heat status:
▪ Normal, for temperatures under 45°C (green indication).
▪ High, for temperatures between 45°C and 60°C (orange indication).
▪ Overheat, for temperatures higher than 60°C (red indication).
4. View the input status:
▪ On, when the input has a valid signal and is transmitting a signal (green indication).
▪ Off, when an input is not connected or there is no valid signal (gray indication).
5. View HDMI OUT and LAN output status:
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
48
▪ On, when an output is transmitting a signal (green indication).
▪ O, when an output has no signal output (gray indication).
Device status is viewed.
Viewing KDS-EN7 Connections Status
View the connection information status.
To view Connections status:
1. In the Navigation pane, click . The Status tab appears (see Diagnostics Figure 32).
2. Select the Connections tab.
Figure : Diagnostics Status Tab 33 –
3. View the Connections status, including protocol type, client IP address and port, and the
device port.
Connections’ status is viewed.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
49
Viewing KDS-EN7 Advanced Status
View the system log and gateway messages counter.
To view log and message counter:
1. In the Navigation pane, click . The Status tab appears (see Diagnostics Figure 32).
2. Select the Advanced tab.
Figure : Diagnostics Advanced Tab34 –
3. Dene Syslog activity:
▪ On, to enable device system log locally.
▪ O (default), to disable device system log locally.
4. Click to view the system log, if required. VIEW
5. Click EXPORT to export the system log (.txt) to the local PC.
6. View the sent and received gateway messages.
System log and counters are viewed.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-EN7 Embedded Web Pages / –
50
Viewing the About Page
View the web page hardware release, rmware version and Kramer Electronics Ltd details in
the About page.
Figure : About Page 35
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
52
To Browse the - Web Pages: KDS DEC7
1. Connect the LAN port of the device
Open your Internet browser.
2. Type the IP number of the device in the Address bar of your browser. For example, the
default IP number:
. The Login window appears.
Figure : Login Window 36
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
53
3. Enter the Username and Password (admin/admin, by default).
The KDS DEC7- page appears.
Figure KDS-DEC7 Main Page with Navigation List on Left 37:
4. Click the tabs on the left side of the screen to access the relevant web page.
Defining KDS-DEC7 AV Routing Parameters
Set the AV routing parameters. KDS DEC7-
To set AV routing parameters:
1. In the Navigation pane, Select . The AV Routing page appears (see Main>AV Routing
Figure 37).
2. From the drop-down list next to Input Selection, set the input source to STREAM or
HDMI.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
54
3. If STREAM is selected next to Input Selection, set the Channel ID and Channel Name as
dened in Main > OSD Conguration > Channel List (see Conguring OSD settings
on page 55).
A depiction of the streaming appears under Preview.
If HDMI is selected next to Input Selection, the preview window and Channel ID and name
are hidden.
4. Use the slider next to Volume to adjust the analog audio output volume (0 to 100%).
Default is 80 (0dB), 100% (12dB) and 0 is mute.
5. Mute/unmute all audio outputs (HDMI OUT, AUDIO OUT, and LAN output).
▪ Play (default) or stop streaming of video, audio, IR, RS-232 and USB signals.
6. View the following streaming parameters: HDCP Encryption, Resolution, Aspect Ratio,
Audio Channels, Audio Rate and Audio Format.
Routing Parameters are dened.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
55
Configuring OSD settings
Congure the OSD settings. KDS DEC7-
To congure the OSD:
1. In the Navigation pane, Select . The AV Routing page appears (see Main>AV Routing
Figure 37).
2. Select the OSD Conguration tab.
Figure : Main Page OSD Conguration Tab 38 –
3. Set the menu timeout in seconds.
4. Dene the number of channels that are displayed per page in the channel list.
you can select 5 (default) to 10 per page (for 3840x2160 resolution, you can select up to
7 items per page).
5. Dene the maximum number of channels that can be displayed (up to 999).
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
56
6. Set the text color.
7. Set the background color.
8. Use the slider to dene the text transparency from 0 to 100% (invisible).
9. View the channel list and perform the following actions:
▪ Click to add the channel ID and name one by one to the Channel List. ADD
▪ Click to import a preset channel list (.json) to this channel list. IMPORT
▪ Click to export the channel list to your PC. EXPORT
10. Set the menu font size and position.
11. Next to Display Device Information, click to display Device Information on the screen On
(including device version, IP address and MAC address, etc.) or click . O
12. Click DISPLAY NOW (when device information is set to On).
13. Set the device information timeout.
If video is lost, and the sleep image is displayed, Device Information appears, and
at this state cannot be turned o.
14. Click . SAVE
OSD is congured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
57
Configuring KVM Settings
Congure the KVM settings. KDS DEC7-
To congure KVM settings:
1. In the Navigation pane, Select Main>AV Routing. The AV Routing page appears (see
Figure 37).
2. Select the KVM Combiner tab.
Figure : Main Page KVM Combiner Tab 39 –
3. Set USB over IP status. Check:
▪ Optimized for KVM (default), to enable KVM settings.
▪ USB Emulation, to enable USB pairing function.
4. Next to Request Time Out (sec), set the time for which the decoder that gets the USB
token from the encoder remains inactive, so then another routed decoder can get the
USB token from the encoder.
For example, If the request timeout is set to 10 seconds (default), when a decoder that
has the USB token remains inactive for 10 seconds, another decoder can get the USB
token from the encoder.
Enabled when Optimized for KVM is selected.
5. Set Roaming Master/Slave status. Check:
▪ Master, to congure the device as the Master (see Conguring Slave Devices When
Master is Selected page on 58).
▪ Slave (default), to congure the device as a Slave.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
58
Enabled when Optimized for KVM is selected.
6. Click . SAVE
KVM settings are congured.
Configuring Slave Devices When Master is Selected
When this device is set as the Master, the following window appears showing this KDS DEC7-
device and its MAC address.
Figure : Roaming Master Window 40
To congure slave device status:
1. Dene the number of rows and columns for roaming slaves (for example, 2 rows and 2
columns).
Figure : Roaming Slave Status Window 41
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
59
2. Check a Master device to which the keyboard and mouse are connected.
3. Enter the MAC address of the roaming slave device(s).
4. Click . SAVE
Roaming Master/Slave conguration is dened.
Setting the Video Wall
The KDS-7 video wall can be congured as a:
• Grid Video Wall with a dened number of horizontal and vertical screens that create a –
complete video wall.
• Mosaic Video Wall displays dierent orientations of same-size screens which do not –
typically cover 100% of the content area are in either landscape or portrait and
orientation (via KDS-7-MNGR).
Set the video wall source by setting the (Channel ID), see Dening -DEC7 KDS AV
Routing Parameters page on 53.
Set the Video wall source is set via
Figure : Grid and Mosaic Video Walls 42
Note that The Mosaic Video Wall can be congured only from the Kramer KDS-7-MNGR.
If Mosaic Video Wall is selected (via ) shows the status in the KDS-7-MNGR , KDS DEC7-
Video Wall tab.
You can change to Grid Video Wall from Mosaic Video Wall on or on
KDS-7-MNGR
KDS DEC7- .
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
60
To congure the - video wall: KDS DEC7
1. In the Navigation pane, Select Main>AV Routing. The AV Routing page appears (see
Figure 37).
2. Select the Video Wall tab.
Figure : Main Page Video Wall Tab 43 –
3. Select Grid Video Wall mode from the drop-down box.
If Mosaic video wall is congured (only via ), Grid video wall can be KDS-7-MNGR
selected to override KDS-7-MNGR settings.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
61
4. Set the video wall horizontal and vertical size (up to 16x16). For example, select a 2x3
video wall and view the layout.
Figure : 2x3 Video Wall Conguration 44
5. Dene the Image stretch type over the video wall. Check:
▪ Fit In, to stretch the video to t the screen.
▪ Fit Out, to maintain the source video aspect ratio and ll the video to the screen.
Note that part of the video may be cut out.
6. If required, rotate the video image by 90, 180 or 270 degrees (default is 0).
7. Set Bezel Compensation: the Viewable Width (VW), Outside Width (OW), Viewable
Height (VH) and Outside Height (OH).
Bezel Compensation is used to avoid video display distortion by setting up the dimensions –
of connected displays for bezel compensation. Enter the outside screen width and length
(which includes the bezel) and inside visual width and length (excluding bezel) for auto
compensation.
Figure : Bezel and Gap Compensation 45
8. Click / to test the video wall. Start Stop
9. Click . SAVE
Video wall is congured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
62
Configuring the Overlay
Use the Overlay tab to perform the following actions:
• Conguring the Image Overlay on page 62.
• Conguring the Text Overlay on page 63.
Configuring the Image Overlay
To congure the image overlay:
1. In the Navigation pane, Select Main>AV Routing. The AV Routing page appears (see
Figure 37).
2. Select the Overlay tab.
Figure : Main Overlay Tab (Image Settings) 46 –
3. Click (image icon) to upload an image.
The image format must be PNG, the resolution up to 640x360, and file size up to
256KB.
4. Set the image location from the drop-down box (default is Top center).
5. Use the slider to dene the image transparency from 0 to 100% (invisible).
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
63
6. Check to display the image. Show
7. Click . SAVE
Image overlay is congured.
Configuring the Text Overlay
To congure the image overlay:
1. In the Navigation pane, Select Main>AV Routing. The AV Routing page appears (see
Figure 37).
2. Select the Overlay tab (see Figure 46).
Figure : Main Page Text Overlay Tab 47 –
3. Enter the overlay text (for example, Hello KRAMER).
4. Set the text size.
5. Set the text location from the drop-down box (default is Top center).
6. Set the text color.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
64
7. Use the slider to dene the text transparency from 0 to 100% (invisible).
8. Check to display the text. Show
9. Set the Overlay timeout (min).
10. Click . SAVE
Text overlay is congured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
65
Defining Video Settings
Dene video settings. KDS DEC7-
To dene Video settings:
1. In the Navigation pane, Select . The Video page appears. AV
Figure : Video Settings 48
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
66
2. From the drop-down list, set the maximum output resolution: Pass Through (default, the
output video resolution follows the input stream resolution), HD (720p60), Full HD
(1080p60), Full HD (1080p50), Ultra HD 2160p25 or Ultra HD (3840x2160@30Hz ).
You cannot upscale a source with horizontal pixels > 1920.
For example, 2048x1080, 3840x2160 are not supported.
The output resolution can be downscaled by downscaling the horizontal + vertical
resolutions by half.
For example: 4096x2160 can be downscaled to 1920x1080.
Meaning 128 horizontal pixels are missing (4096/2 - 1920 = 128).
For example, 3840x2160 can be downscaled to 1280x720.
Meaning 640 horizontal pixels are missing (3840/2 - 1280 = 640) 360 vertical pixels
will be missing (2160/2 - 720 = 360).
3. Dene display behavior:
▪ Sleep (5V-o) Delay On Video Signal Loss (sec): when video signal is lost, dene
the delay time before setting 5V power o.
▪ Shutdown (CEC) Delay On Video Signal Loss (sec): when video signal is lost,
dene the delay time before a CEC shutdown command is sent to the unit.
▪ Wake-up (CEC) Delay on Video Signal Detection (sec): when the device detects a
video signal, dene the delay time before a CEC wake up command is sent to the
unit.
4. Enable/disable sleep image usage ( /ON OFF).
5. Click next to Sleep Image to upload the image to be displayed when there is no
signal on the input.
6. Image preview
7. View live stream preview.
8. Set Force RGB mode:
▪ Check (default) to force RGB as the output video format.
▪ Uncheck.
9. Click . SAVE
HDMI input settings are dened.
Defining KDS-DEC7 Switching Mode
Set the switching mode to:
• Manual Select an input manually and switching occurs whether a live signal is present –
on the input or not.
• Last Connected if the signal on the current input is lost, the automatically –KDS DEC7-
selects the last connected input (the delay depends on the congurable signal-lost
timeout).
• Priority when the input sync signal is lost for any reason, the input with a live signal –
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
68
▪ Signal Detection Delay Leave 5V ON & delay switching. –
When a new AV source is connected to the inactive input, delay switching to this new
detected signal (from 0 to 90 sec, default = 0 ).
▪ Cable Plug Delay Delay switching after connecting a cable. –
When input is plugged, delay switching to this input (from 0 to 90 sec, default = 0). an
▪ Cable unplugged – Delay switching
When the active input is unplugged, delay switching to the other input (from 0 to 90
sec, default = 0).
▪ Signal Loss Switching Manual Override Delay – Delay manual-override exit
In a case where the active input was switched manually, and there is no active signal
on that input, the switching back to the other input time is 10 seconds.
If there is an active signal on the manual selected input, and then this signal is lost,
this setting delays switching back to the other input (from 5 to 90 sec, default = 10).
4. Click SAVE.
Switching timeouts are dened.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
69
Defining KDS-DEC7 Settings
Change the Host Name and click iew the device model, H/W release version, serial APPLY, v
number, and MAC address.
Though the device has only one MAC address, you can congure up to two separate IP
addresses for the two Ethernet ports in two subnets using one MAC address
(see
KDS- Network SettingsDEC7 on page 70).
To dene - general settings: KDS DEC7
1. In the Navigation pane, Select . The General tab in the Device Settings Device Settings
page appears.
Figure KDS-DEC7 Device Settings General Page 50: –
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
70
2. Perform the following actions for (as described for
KDS DEC7- KDS-EN7):
▪ Locking/Unlocking the Front Panel on . page 32
▪ Importing/Exporting Device Settings on page 33.
▪ Locating the Device on page . 33
▪ Managing the Firmware Version on page 33.
▪ Upgrading Firmware on page 84.
▪ Restarting or Resetting the Device on page 33.
General settings are dened.
KDS-DEC7 Network Settings
To dene - Network settings: KDS DEC7
1. In the Navigation pane, Select Device Settings. The General tab in the Device Settings
page appears (see
Figure 50).
2. Select the Network tab.
Figure : Device Settings General Page 51 –
3. Perform the following actions for (as described for
KDS DEC7- KDS-EN7):
▪ Dening Interface Settings on page 34.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
71
▪ Defining IP Casting Mode Setting on page 35.
▪ Managing TCP/UDP Ports on page 36.
Network Settings are defined.
Defining KDS-DEC7 Time and Date
You can set the device time and date manually or Sync the device time and date to any
server around the world.
To define - Time and Date: KDS DEC7
1. In the Navigation pane, Select . The General tab in the Device Settings Device Settings
page appears (see
Figure 50).
2. Select the Time and Date tab.
Figure : Device Settings Page Time and Date Tab 52 –
3. Perform the following actions for (as described for
KDS DEC7- KDS-EN7):
▪ See Defining - Time and DateKDS EN7 on page 36.
Time and date settings are defined.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
72
Setting KDS-DEC7 Security
The Security tab configures device authentication to limit unauthorized access to LAN/WLAN
Network.
Contact your IT administrator for the network access authentication.
To Configure security:
1. In the Navigation pane, Select Device Settings. The General tab in the Device Settings
page appears (see
Figure 50).
2. Select the Security tab.
Figure : Device Settings Security Enabled 53 –
3. Define security for (as described for ), see
KDS DEC7- KDS-EN7 Setting - KDS EN7
Security on page 37:
Security is configured.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
73
Defining KDS-DEC7 User Access
The Users tab enables activating device security and defining logon authentication details.
When device security is on, web page access requires authentication upon initial landing on
operation page. User and password default is admin. User access to web pages is identical to
KDS-EN7, see . Defining - User AccessKDS EN7 on page 41
Defining Gateway Settings
KDS DEC7- enables configuring CEC, RS-232 and/or IR gateway Control.
Configuring CEC Settings
KDS DEC7- sends CEC commands from a control system, connected by LAN, via the
KDS DEC7- built-in control gateway, to control CEC enabled devices that are connected to the
KDS DEC7- HDMI output and input.
To set CEC Gateway:
1. In the Navigation pane, click . The Control>Settings page appears. Control
Figure : Control > Settings Page CEC Settings 54 –
2. Perform the following actions for (as described for
KDS DEC7- KDS-EN7):
• Configuring CEC Settings on page 44.
• Configuring RS-232 Settings on page 45.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
74
• Configuring IR Settings on page 46.
Gateway settings are configured.
Viewing KDS-DEC7 Status
View the device status.
To view device status:
1. In the Navigation pane, click . The Status tab appears. Diagnostics
Figure : Diagnostics Page Status Tab 55 –
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
75
Viewing KDS-DEC7 Connections Status
View the connection information status.
To view Connections status:
1. In the Navigation pane, click . The Status tab appears (see Diagnostics Figure 55).
2. Select the Connections tab.
Figure : Diagnostics Page Connections Tab 56 –
3. View the Connections status, including protocol type, client IP address and port, and the
device port.
Connections’ status is viewed.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
76
Viewing KDS-DEC7 Advanced Status
View the system log and gateway messages counter.
To view log and message counter:
1. In the Navigation pane, click . The Status tab appears (see Diagnostics Figure 55).
2. Select the Advanced tab.
Figure : Diagnostics Page Advanced Tab57 –
3. Define Syslog activity:
▪ On, to enable device system log locally.
▪ Off (default), to disable device system log locally.
4. Click to view the system log, if required. VIEW
5. Click EXPORT to export the system log (.txt) to the local PC.
6. View the sent and received gateway messages.
System log and counters are viewed.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 Using KDS-DEC7 Embedded Web Pages / –
77
Viewing the KDS-DEC7 About Page
View the web page hardware release, firmware version and Kramer Electronics Ltd details in
the About page.
Figure : About Page 58
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 KVM Roaming, OSD menu and Fast Switching / –
78
KVM Roaming, OSD menu and
Fast Switching
This section describes KVM roaming, using the OSD Menu and Fast switching configurations.
To set the devices properly:
1. Make sure the system devices ( and KDS-EN7 KDS-DEC7) and PC are all connected to
the same Network.
2. Power all the devices in the system.
3. Configure the Network switch as follows:
▪ Jumbo Frames On. (at least 8000 bytes). –
▪ IGMP Snooping On. –
▪ IGMP Querier On. –
▪ IGMP Immediate/Fast Leave On. –
▪ Unregistered Multicast Filtering On. –
4. Make sure that the PC sub Network is the same as the system devices.
Devices are set.
Perform the following actions:
• Configuring KVM Roaming on page 79.
• KVM and OSD Menu Switching on page 82.
• Fast switching configuration on page 83.
Kramer Electronics Ltd.
KDS-EN7 KDS-DEC7 KVM Roaming, OSD menu and Fast Switching / –
79
Configuring KVM Roaming
The KVM Roaming mode enables interacting with multiple hosts via USB from one master
KDS DEC7- decoder connected to a keyboard and mouse, see, for example, the following
layout.
Figure : KVM Roaming Layout 59
To configure KVM roaming:
1. Access the encoder and decoder web pages.
2. For each encoder, in the AV Routing page, set a unique Channel ID and name.
Figure KDS-EN7 Setting Channel ID and Name 60:

Specyfikacje produktu

Marka: Kramer
Kategoria: Niesklasyfikowane
Model: KDS-DEC7

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z Kramer KDS-DEC7, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą


Instrukcje Niesklasyfikowane Kramer

Kramer

Kramer AD-RING Instrukcja

3 Stycznia 2025
Kramer

Kramer KC-ON PREM Instrukcja

20 Grudnia 2024
Kramer

Kramer 810 Instrukcja

19 Grudnia 2024
Kramer

Kramer KAC-CAM-70 Instrukcja

19 Grudnia 2024
Kramer

Kramer K-180Mini Instrukcja

19 Grudnia 2024
Kramer

Kramer KC-BRAINware-50 Instrukcja

19 Grudnia 2024
Kramer

Kramer KC-BRAINware-25 Instrukcja

19 Grudnia 2024
Kramer

Kramer VSM-4x4A Instrukcja

19 Grudnia 2024
Kramer

Kramer VS-6464DN-EM Instrukcja

19 Grudnia 2024
Kramer

Kramer VIA GO3 Instrukcja

19 Grudnia 2024

Instrukcje Niesklasyfikowane

Najnowsze instrukcje dla Niesklasyfikowane

SmallRig

SmallRig VB99 SE Instrukcja

29 Stycznia 2025
Rock N Roller

Rock N Roller R14G Instrukcja

29 Stycznia 2025
Rock N Roller

Rock N Roller R6RT Instrukcja

29 Stycznia 2025
QSC

QSC TSC-8 Instrukcja

29 Stycznia 2025
XTRARM

XTRARM XTR-FS5130 Instrukcja

29 Stycznia 2025
Sunding

Sunding SD-581G Instrukcja

29 Stycznia 2025
XTRARM

XTRARM XTR-FS5070 Instrukcja

29 Stycznia 2025
XTRARM

XTRARM XTR-FS2010 Instrukcja

29 Stycznia 2025
Shimbol

Shimbol Memory I PRO Instrukcja

29 Stycznia 2025
OSEE

OSEE TX402 Instrukcja

29 Stycznia 2025
