Instrukcja obsługi IHome IB72

IHome słuchawka IB72

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla IHome IB72 (8 stron) w kategorii słuchawka. Ta instrukcja była pomocna dla 7 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Pobierz PDF

Strona 1/8

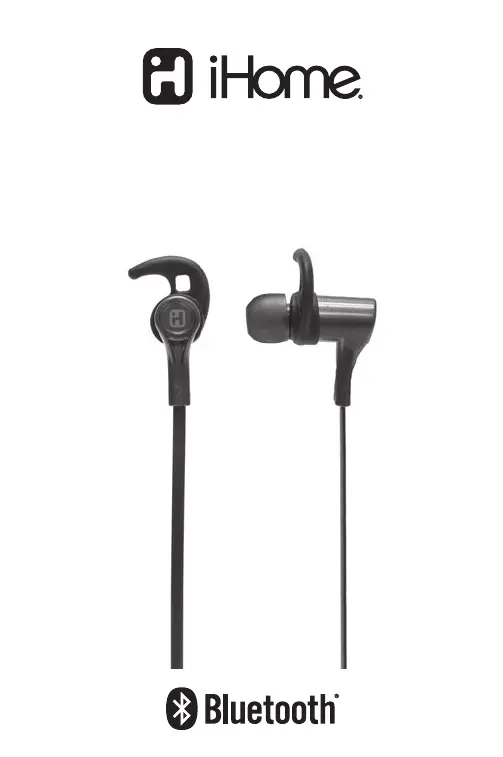

wireless earbuds with mic

remote

User Manual

iB72

iB72 Stereo ear buds

with control dongle

USB Charging Cable x 1

Silicon Ear Cushions

Lx 2

SIZE

Mx 2

SIZE

Sx 2

SIZE

What’s Included

Stabilizer Fins

1set

SIZE

1set

SIZE

1set

SIZE

Introduction

Your new iHome Bluetooth stereo ear buds are designed to link with your Bluetooth

enabled smartphone or music player to allow you to wirelessly listen to music and answer

phone calls within the normal 10 meter (33 feet) Bluetooth operating range.

Your ear buds are supplied with 3 sizes of ear cushions and 3 sets of ‘fin’ type stabilizers,

to allow you to customize your ear buds for maximum wearing comfort and stability

during all kinds of exercise and physical activities.

Please review this manual carefully to make sure you are getting the maximum benefit

from all of the features of your new ear buds, and keep this manual for future reference.

– Button (Volume Down and Skip Back)

Multi-Function Control Button (MFB)

+ Button (Volume Up and Skip Forward)

LED Indicator (Power On, Pairing, Charging Indication)

Micro USB Charging Port (Under Water-Resistant Cover)

Microphone

BT specification

BT profiles supported

BT IC

Frequency Range

Rechargeable Battery

Operating distance

Impedance (speaker)

Speaker dimension

Working electric current

Working Voltage

Talk time

Music time

Standby time

Charging time

V4.1

A2DP, AVRCP, GAVDP, GAP, HSP

CSR8645

20Hz - 20kHz

45mAh Li-Polymer x 2

10 Meter without any obstacle

16ohm

6mm

15mA

3~4.2V

5 hours (with fully charged battery)

48 hours (under paired)

about 2 hours

PREPARATION FOR USE

1. Controls and Indicators

Specifications

2. Charging Your Ear Buds

IMPORTANT: Your iHome ear buds operate on a built-in rechargeable lithium-ion

battery. Although the battery was fully charged when it left our factory, like all batteries

it can experience some power drain during periods of non-use. For best results we

recommend that you charge the battery for approximately 3 hours before using your

ear buds for the first time.

1. Lift up the water resistant cover to expose the micro USB

charging port.

2. Connect the micro USB plug on the charging cable to the

micro USB port on the headphone. NOTE: The micro

USB plug can only be inserted into the micro USB

charging port one way. To avoid damaging the

connection make sure the plug is properly aligned with

the charging port.

: BTH042

Specyfikacje produktu

Marka:	IHome
Kategoria:	słuchawka
Model:	IB72
Kolor produktu:	Czarny
Typ produktu:	Zestaw słuchawkowy
Wysokość produktu:	43 mm
Szerokość produktu:	32 mm
Głębokość produktu:	23 mm
Waga produktu:	14 g
Styl noszenia:	Douszny
Typ zestawu słuchawkowego:	Stereofoniczny
Czas odtwarzania muzyki:	10 h
Technologia łączności:	Bezprzewodowy
Bluetooth:	Tak
Zasięg bezprzewdowego router'a:	9.1 m
Budowa słuchawek:	Intrafonetyczny
Czułość słuchawek:	80 dB
Technologia baterii:	Litowo-jonowa (Li-Ion)
