PRODUCT DATA
The Honeywell Trademark is used under license from Honeywell International
Inc. by Air-Pure Systems.
Honeywell International Inc. makes no representations or warranties with
respect to this product. 68-0200-4

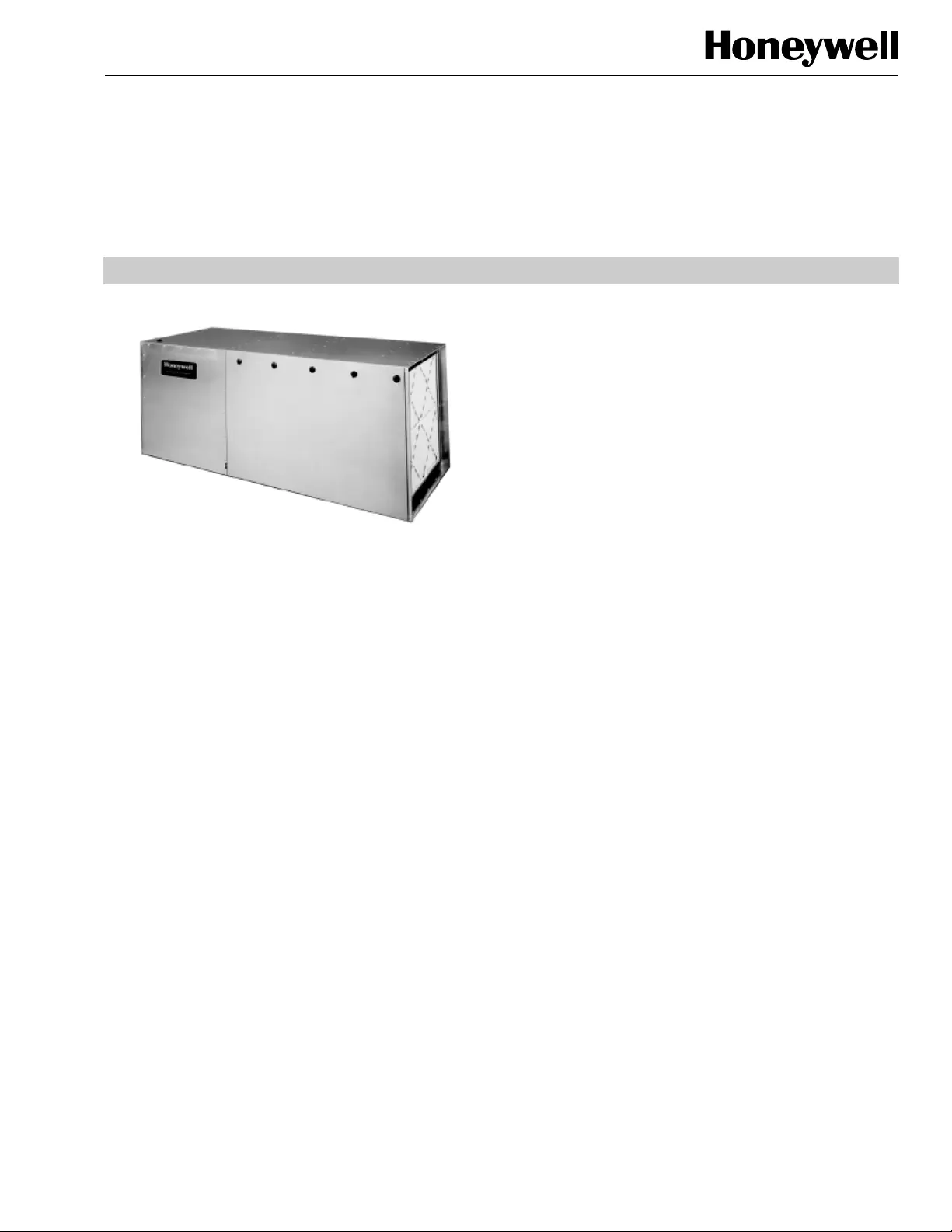

F116 Series 2 Self-Contained
Ductable Commercial Air Cleaner
APPLICATION
The F116 Series 2 Self-Contained Ductable Commercial Air
Cleaner is a media air cleaner that uses a three-speed direct
drive forward curve blower/motor with a variety of filter
combinations to remove airborne contaminants. The air
cleaner is designed to provide its own air circulation. In
addition it can accomodate ducting which can be attached to
the intake and/or the outlet of the cabinet as the application
requires.
The air cleaner is suitable for the collection of smoke, bacteria
and viruses, gases, odors and volatile organic compounts
(VOCs), fine saw dust, paper dust, brazing, normal
atmospheric dusts such as pollens, allergens, dust mites and
soot, and virutally any other respirable airborne contaminant.
When equipped with CPZ™ modules, gases and odors are
adsorbed from the air passing through the unit.
FEATURES
• Variety of filter combinations available; High Efficiency
Particulate Air (HEPA) filter is 99.97% efficient and the
hospital grade particle filter is 95% D.O.P. efficient at
0.3 micron particles. There is also a 95% ASHRAE
filter.
• Circulates up to 2600 cfm.
• Designed to overcome the increase in air flow
resistance normally caused by filter loading.
• Negative and positive pressure rooms can be created
with air cleaner.
• CPZ™ module removes up to 95% of the space odors
for up to 24 months.
• 3-Speed remote wall switch.
• 120 Vac, 60 Hz and 230 Vac, 50Hz models available.
• READ AND SAVE THESE
INSTRUCTIONS
Contents
Application.........................................................................1
Features ............................................................................1
Specifications ....................................................................2
Ordering Information .........................................................2
Planning the Installation ....................................................6
Installation .........................................................................10
Operation...........................................................................12
Service ..............................................................................13
Troubleshooting.................................................................14
Parts List............................................................................14
Limited Two-Year Warranty ...............................................16
F116 SERIES 2 SELF-CONTAINED DUCTABLE COMMERCIAL AIR CLEANER
68-0200-4 Release 01/2010 2
ORDERING INFORMATION
If you have additional questions, need further information, or would like to comment on our products or services, please write or
phone:
1. Your local Honeywell Commercial Air Products Distributor.
2. Air-Pure Systems
16873 Fish Point Rd. SE
Prior Lake, MN 55372
www.cleanairfacility.com
Phone: (800) 998-1919
Fax: (800) 221-3248
SPECIFICATIONS
IMPORTANT
The specifications given in this publication do not
include normal manufacturing tolerances. Therefore,
this unit may not exactly match the listed specifica-
tions. Also, this product is tested and calibrated
under closely controlled conditions, and some minor
differences in performance can be expected if those
conditions are changed.
Blower/Motor: Three speed direct drive forward curve.
Models / Electrical Ratings / Air Volume: Refer to Table 1.
The F116 Series 2 air cleaner is available in two cabinet sizes.
The shorter cabinet uses a prefilter with one primary filter
while the longer cabinet (3 bay) uses a prefilter with two
primary filters. Refer to Table 1 for models.
Accessories:
Remote 3-Speed Wall Switch
Approvals:
Underwriters Laboratories Inc.: cULus pending.
Starting Internal Static Pressure: See Table 2 .
Initial Internal Static Pressure / Installation Weight:
Approximately 108 lb to 229 lb (kg) depending on the filter
configuration. Refer to Table 2.
Table 1. F116 Series 2 Filter Configuration and Air Volume.
*All Models come with 30% ASHRAE Prefilter in Bay 1.
**Filters purchased separately
Model* Electrical Ratings
Filters ( 2 stage and 3 stage) High
cfm(m3/hr)
Medium
cfm (m3/hr)
Low
cfm (m3/hr)Bay 2 Bay 3
F116A1021-3S 120 Vac, 60 Hz, 8.7A 99.97% HEPA N/A 1975 (3355) 1825 (3100) 1500 (2550)
F116A1047-3S** 120 Vac, 60 Hz, 11.2A 95% at 0.3 micron N/A 2450 (4160) 2150 (3650) 1575 (2675)
F116A1047-3S** 120 Vac, 60 Hz, 12.0A 95% ASHRAE N/A 2600 (4425) 2125 (3600) 1575 (2675)
F116A1047-3S** 120 Vac, 60 Hz, 12.5A CPZ™ modules N/A 2575 (4375) 2075 (3525) 1475 (2500)
F116A1120-3S** 120 Vac, 60 Hz, 7.0A 99.97% HEPA CPZ™ modules 1475 (2500) 1425 (2425) 1275 (2150)
F116A1120-3S** 120 Vac, 60 Hz, 7.5A 95% at 0.3 micron CPZ™ modules 1775 (3000) 1700 (2875) 1500 (2550)
F116A1120-3S** 120 Vac, 60 Hz, 7.8A 95% ASHRAE CPZ™ modules 1825 (3100) 1700 (2875) 1475 (2500)
F116A1120-3S** 120 Vac, 60 Hz, 7.5A CPZ™ modules CPZ™ modules 1675 (2850) 1600 (2700) 1400 (2375)
F116A2021-3S 230 Vac, 50 Hz, 3.2A 99.97% HEPA N/A 1475 (2500) 1375 (2325) 1175 (2000)
F116A2048-3S** 230 Vac, 50 Hz, 3.7A 95% at 0.3 micron N/A 2050 (3475) 1825 (3100) 1375 (2325)
F116A2048-3S** 230 Vac, 50 Hz, 4.0A 95% ASHRAE N/A 2225 (2775) 1925 (3275) 1375 (2325)
F116A2048-3S** 230 Vac, 50 Hz, 3.5A CPZ™ modules N/A 1775 (3000) 1650 (2800) 1325 (2250)
F116A2121-3S** 230 Vac, 50 Hz, 3.0A 99.97% HEPA CPZ™ modules 1175 (2000) 1100 (1875) 1000 (1700)
F116A2121-3S** 230 Vac, 50 Hz, 3.2A 95% at 0.3 micron CPZ™ modules 1450 (2475) 1375 (2325) 1200 (2025)
F116A2121-3S** 230 Vac, 50 Hz, 3.2A 95% ASHRAE CPZ™ modules 1525 (2600) 1425 (2425) 1225 (2075)
F116A2121-3S** 230 Vac, 50 Hz, 3.0A CPZ™ modules CPZ™ modules 1375 (2325) 1300 (2200) 1150 (1950)
F116 SERIES 2 SELF-CONTAINED DUCTABLE COMMERCIAL AIR CLEANER
3 68-0200-4
Table 2. F116 Series 2 Filter Configuration, Internal Static Pressure, and Hanging Weight with Filters.
Filtration Efficiency:
See Table 3.
Dimensions:
Refer to Figures 1 and 2 for dimensions
Replacement Parts See Parts List, Table 5.
Model**
Filters ( 2 stage and 3 stage)
Starting Internal Static Pressure
( inches of Water Gauge)
Hanging
Weight with
Filters in
lbs (kg)Bay 2 Bay 3 High Medium Low
F116A1021-3S 99.97% HEPA N/A 1.5” 1.4” 1.1” 149 (68)
F116A1047-3S* 95% at 0.3 micron N/A 1.2” 1.0” 0.6” 130 (59)
F116A1047-3S* 95% ASHRAE N/A 1.1” 0.8” 0.5” 108 (49)
F116A1047-3S* CPZ™ modules N/A 1.6” 1.3” 0.9” 143 (65)
F116A1120-3S* 99.97% HEPA CPZ™ modules 1.7” 1.6” 1.4” 205 (93)
F116A1120-3S* 95% at 0.3 micron CPZ™ modules 1.6” 1.5” 1.3” 193 (88)
F116A1120-3S* 95% ASHRAE CPZ™ modules 1.6” 1.5” 1.2” 189 (86)
F116A1120-3S* CPZ™ modules CPZ™ modules 1.7” 1.6” 1.3” 229 (104)
F116A2021-3S 99.97% HEPA N/A 1.1” 1.0” 0.8” 149 (68)
F116A2048-3S* 95% at 0.3 micron N/A 1.0” 0.8” 0.5” 130 (59)
F116A2048-3S* 95% ASHRAE N/A 0.9” 0.7” 0.4” 108 (49)
F116A2048-3S* CPZ™ modules N/A 1.1” 1.0” 0.6” 143 (65)
F116A2121-3S* 99.97% HEPA CPZ™ modules 1.2” 1.1” 0.9” 205 (93)
F116A2121-3S* 95% at 0.3 micron CPZ™ modules 1.1” 1.0” 0.8” 193 (88)
F116A2121-3S* 95% ASHRAE CPZ™ modules 1.1” 1.0” 0.8” 189 (86)
F116A2121-3S* CPZ™ modules CPZ™ modules 1.2” 1.1” 0.9” 229 (104)
Table 3. F116 Series 2 Filter Description.
Filter
Dimensions in
inches (mm) Efficiency Description
Prefilter 24 x 24 x 4
(610 x 610 x 102)
30% to 40% Disposable pleated synthetic
fiber in beverage board frame.
HEPA 24 x 24 x 12
(610 x 610 x 305)
99.97% at 0.3 micron at
2000 cfm (57 m3/min)
In metal frame with aluminum
pleat separators in the media.
D.O.P. 24 x 24 x 12
(610 x 610 x 305)
95% at 0.3 micron at
2000 cfm (57 m3/min)
In metal frame.
ASHRAE 24 x 24 x 12
(610 x 610 x 305)
95% ASHRAE dust spot at
2000 cfm (57 m3/min)
In metal frame.
Sorbent Module Options:
•Charcoal only
•Permanganate only
•Zeolite only or
•CPZ material
(combination of the
above ingredients)
12 x 12 x 22
(305 x 305 x 559)
85% first pass at 1600 cfm
for most gases / odors.
Diposable filter with at least
twenty pounds of CPZ. Must
use two modules per bay.
