INSTALL INSTRUCTIONS

C-DMM- 4200 Dash Monitor Mount

2011-2017 Dodge Charger Police Package Vehicle with Standard Interior

a with Interior Upgrade Package nd

NOTE: WILL NOT WORK WITH 12.1 INTEGRATED TOUCH SCREEN

Notes:

1. The C-DMM-2000 series Dash Monitor Mount brackets are speciﬁcally designed to work with

Havis, Inc, model # TSD-101 Touch Screen Display.

2. The display mount bracket includes a VESA 75 hole pattern that can also be used for some light

weight tablet docking station applications. Acceptable positioning must be determined by end user.

3. The C-DMM-2004 will work with all Havis, Inc. consoles made for the Dodge Charger.

TOOLS REQUIRED: (some tools not needed for all vehicle installations)

• • • Socket set - metric & standard Drill & drill bits Tape measure

• • •

Phillips screwdriver Trim removal tools Pencil / Marker

MOUNT BRACKET PARTS and HARDWARE:

Installation parts with * come loose in hardware kit bag. Other parts are preassembled

QTY: DESCRIPTION: PART #:

1 Charger display mount bracket -0279- MT SM

1 Charger side support bracket -0281- MT SM

1 Charger upper support bracket -0278- MT SM

1 Pivot / display mount bracket -0269- * MT SA

1 Tilt swivel hinge GSM22005

1 hex nut GSM30113 M8 SS

1 M8 lock washer SS GSM31217

6 #10 x 3/4" Self tapping screw GSM * 34432

6 8-32 x GSM34077 * .312” Phillips truss head machine screw

1 - .375 id) GSM41127 Vinyl cap ( .50” high x .312

2 Pull through bumper (3mm head) GSM21109

2 Push in bumper (10mm head) GSM21108

2 M5 x 10mm Thread forming screw GSM33774

C-DMM- 4_INST_1-200 16

ALWAYS!

• Read all instructions before installing any Havis, Inc products.

• Use hardware provided with install kit

C-DMM- assembly 2004

GSM30113

GSM41127

GSM22005

MT-0269-SA *

GSM34432*

GSM31217

GSM34432*

GSM34077 *

MT-0281-SM

MT-0279- with SM

GSM21108, GSM21109

MT-0278- SM

C-DMM- 4_INST_1-200 16

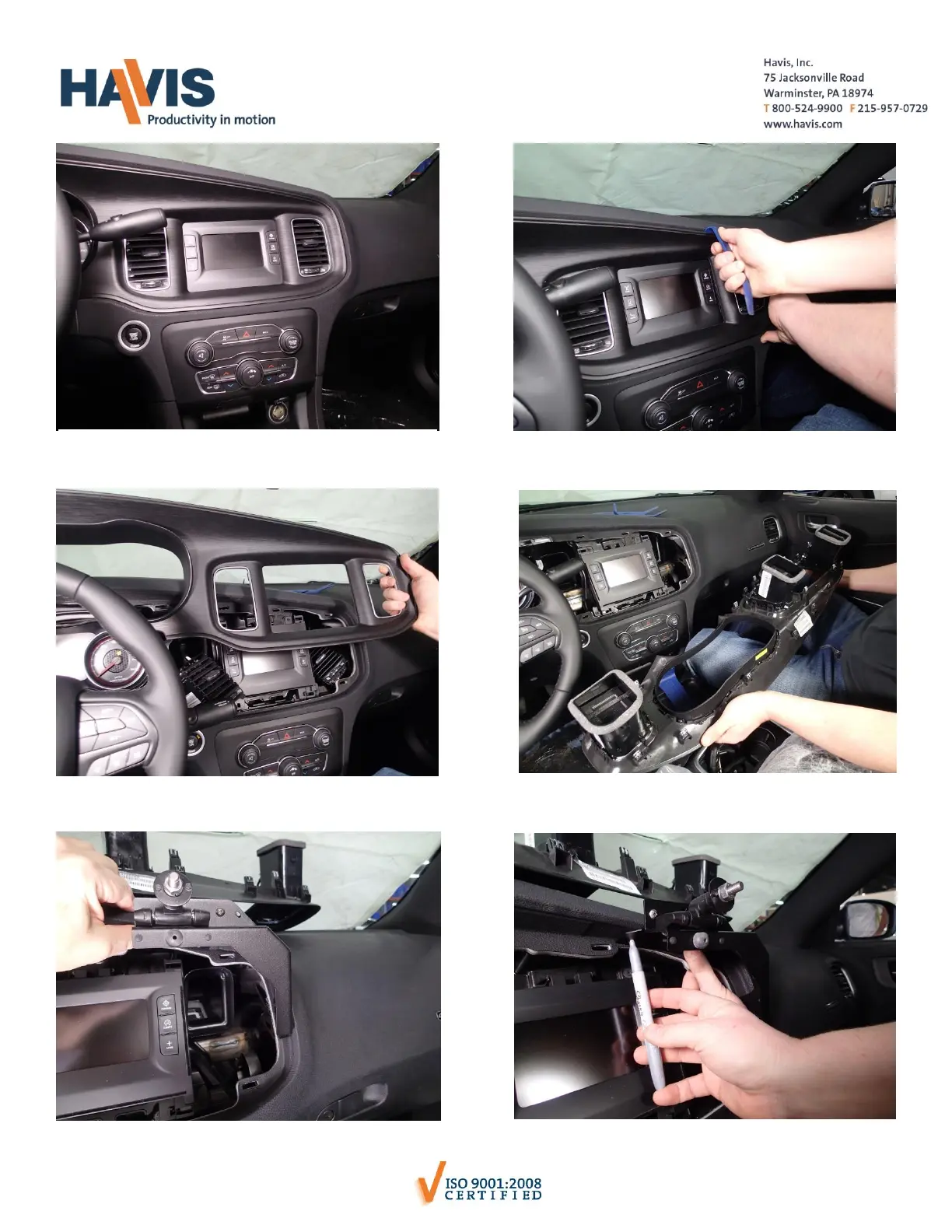

Hold C-DMM-2004 bracket assembly up to

inside lip on dash the determine

approximate mounting location.

Mark holes to be drilled with a paint

marker.

View of Charger dash before removal

Gently pry along the edges of the dash to

release the clips.

Remove dash bezel. The vents may stay in

the dash upon removal.

Reseat the vents in their appropriate

locations.
