C- -125_INST_4-13 rev 9-DMM 13
INSTALLATION INSTRUCTIONS
C-DMM-125
2013-2016 Ford Fusion
SWING-OUT DASH MONITOR MOUNT
Always!
Read all instrucons before installing any Havis, Inc. products.
Check for obstrucons (Wires, brake lines, fuel tank, etc.) before drilling any holes!
Use hardware provided with install kit
The Dash Monitor Mount bracket system requires two or three main parts that are sold
separately. See web site Monitor Congurator for more detailed bracket informaon.
hp://www.havis.com/monitor_mounts.htm
1 125)- Vehicle Specic dash mount bracket. (C-DMM-
1 - Computer Specic Monitor adaptor bracket. (C- -200 series) MM
1 - Oset adaptor bracket. (C- -301) MM
The C- -301 oset adaptor goes between the C-DMM-125 and C- -2XX. MM MM
It may not be required in some applicaons.
Docking staons for tablet applicaons can be bolted directly to C-DMM without adaptor. Offset adaptor
C- -303 is available if addional posioning opons are desired for docking staon.MM
TOOLS REQUIRED:
Ratchet Wrench Phillips Screwdriver
Socket Set Dash panel removal tool
Open End Wrench - 7/16”
HARDWARE and PARTS:
QTY: DESCRIPTION: PART #:
1 Upper Support Bracket Passenger side CM005400
1 Upper Support Bracket Driver side CM005401
1 Lower Support Bracket Passenger side CM005402
1 Lower Support Bracket Driver side CM005437
4 1/4" Serrated Flange Hex Nut GSM30023
4 -32x 1/2" Pan Head Phillips Machine Screw GSM33118 10
4 # 10 Flat Washer GSM31003
1 Monitor Adapter Hardware Included with C- -2XX kit MM
Note: The swing door ulizes a gas spring to assist in opening the door and to eliminate the possibility of it slamming
shut. If addional damping is desired because of heavier equipment, an oponal stronger gas spring is available under
Part Number CM86662-30 (sold separately)
Installer must change out gas spring as needed.
C- -125_INST_4-13 rev 9-DMM 13
CM005400 Passenger side Upper Support
CM005401 Driver side Upper Support
Main Frame Assembly
For 2013 Fusion
CM005437 Lower Support Bracket DS
CM005402 Driver Support Bracket PS
C- - MM 301
Oset Adaptor
C- - MM 201
Monitor Mount Adaptor
(VESA bracket shown)
C- -125_INST_4-13 rev 9-DMM 13

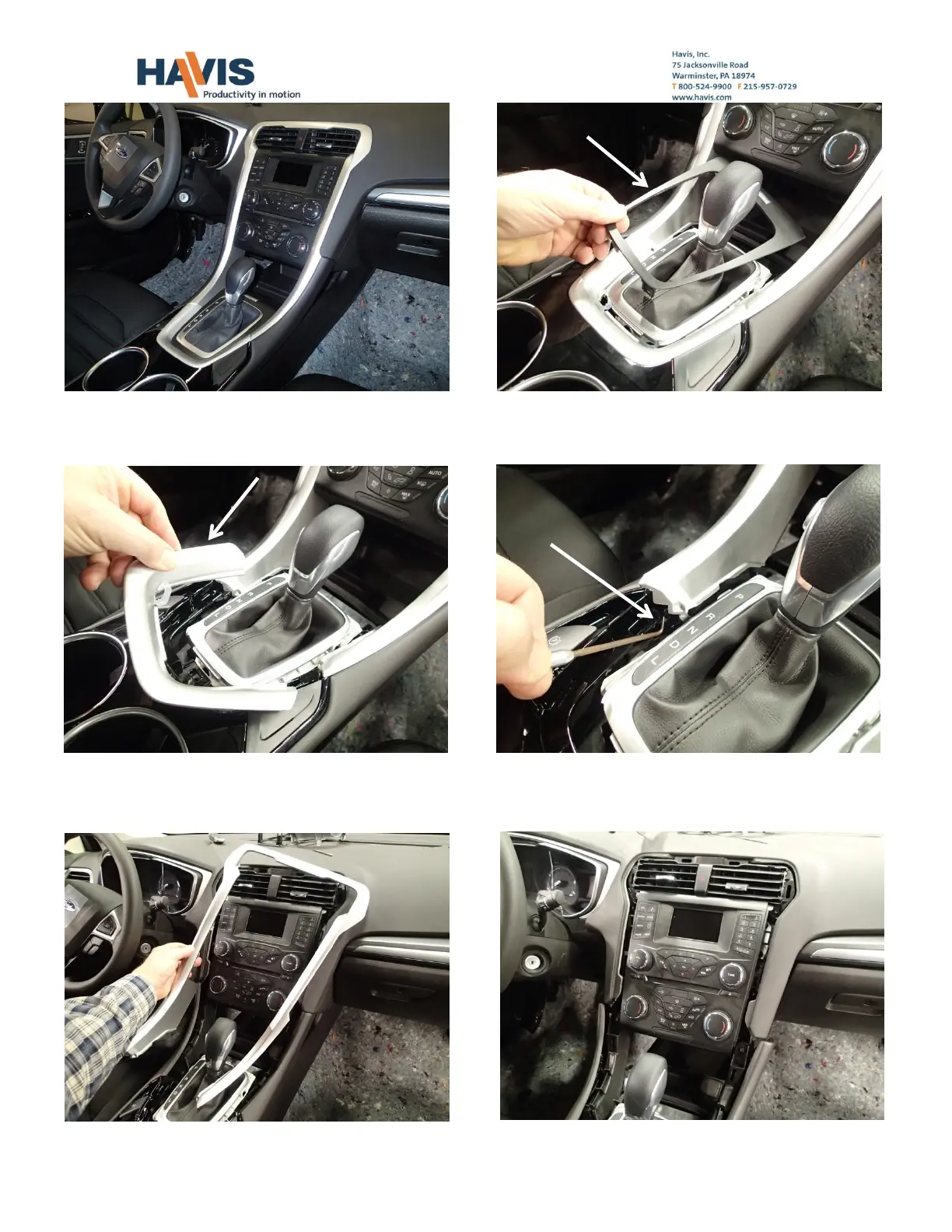

View of dash instrument panel.
Dash Trim removed
Carefully remove (unsnap) Upper / center dash
panel.
Carefully remove (unsnap) shier trim bezel
Trim removal tool with hook works well.
Carefully remove (unsnap) lower / center dash
panel
