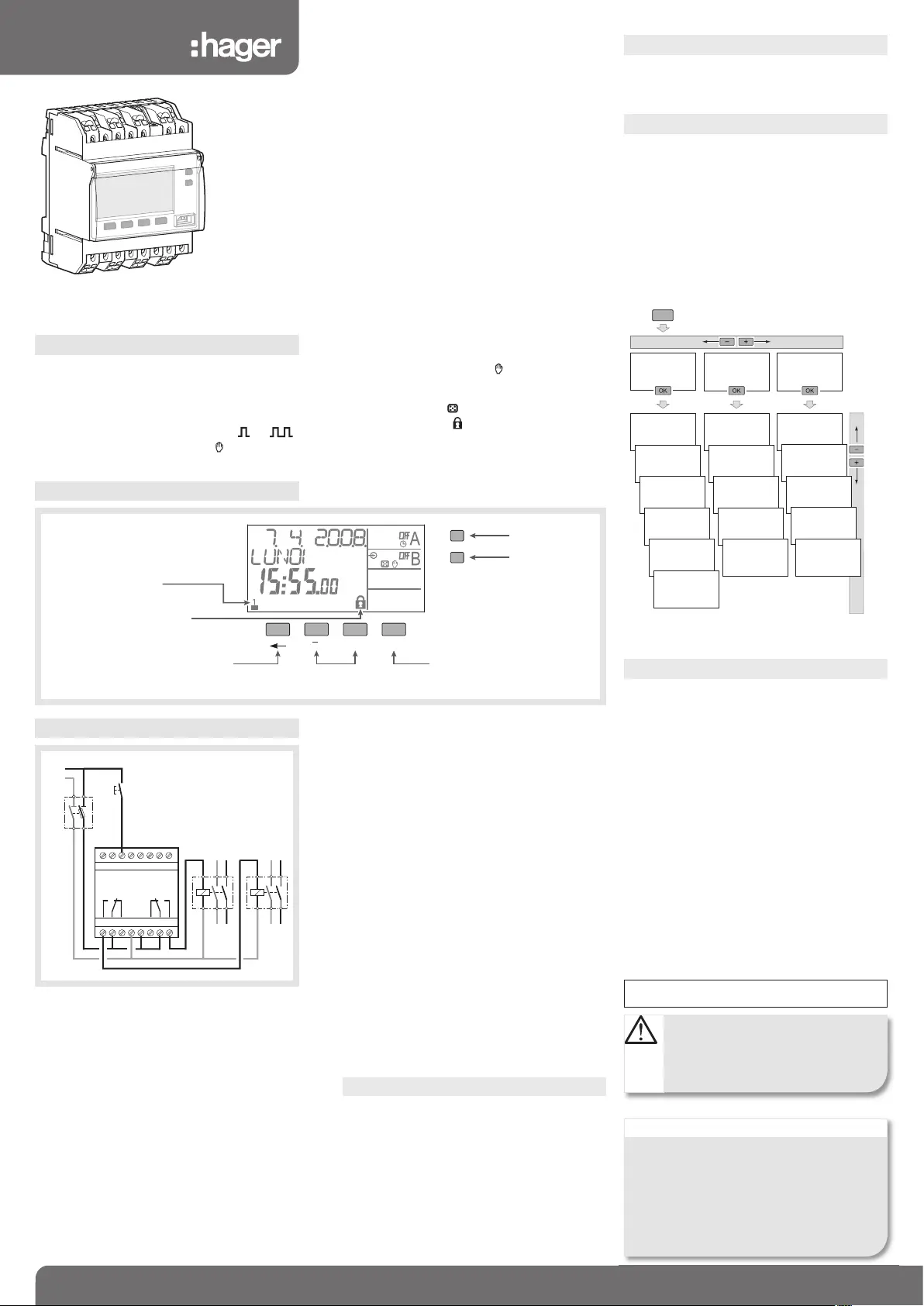

1 6E 6360E

6E 6360E

§2 channel programmer

annual and weekly cycle

User instructions

Navigation &

value setting

Validation

Enter in PROGRAMME mode &

return to previous step

Selection of days of the week

1 = Monday, 2 = Tuesday

... 7 = Sunday

Canal B command

Canal A command

Keyboard locked by PIN code

menu +ok

At any time, pressing the button menu allows you

to return to the previous choice level.

Programming

To do the yearly programming of the clock, you

have the following 4 types of programme :

-Basic weekly programme

This is a non-priority weekly programme.

-Sub-programmes 1 to 10

These are weekly sub-programmes which are

activated for a defined date-to-date period. As

the sub-programme number increases, so does

the priority.

-DATE/TIME

This is a programme step composed of a time

and a date which will run in addition to the usual

programme. If there is conflict between this

programme step and another programme step

(SP or weekly), this step has priority.

-Holidays

This programme allows you to define a

permanent ON or OFF from date-to-date.

This programme has the highest priority.

Product Presentation

Connection diagram

A B

1 3 5

2 4 6 8 10 12 14 16

11 13 157 9

EG293B

Press the button to access the programming/menu

setting mode.

All of the programming and adjustments are

based on the following principle :

- the 1st line and/or 2nd line of the display

indicate the requested setting,

- the buttons / allow navigation through the+-

menus and settings,

- the button allows validation.ok

Pressing the button menu allows you to access

the following settings :

PROGRAM SETTINGS FUNCT IONS

DATE-TIME

S/W TIME

LANGUAGE

FACTORY

SETTINGS

BACK AUTO

PROGRAM

CREATE

PROGRAM

READ

PROGRAM

MODIFY

PROGRAM

DELETE

PROGRAM

COPY

BACK AUTO

COUNTER

CYCLE

PIN CODE

INPUT

BACK AUTO

Electrical characteristics

⦁Supply voltage : 230 V 10/-15%+

⦁Frequency : 50/60 Hz

⦁Power consumption : < 2 VA

⦁Output : 2 changeover contacts

⦁Maximum load : AC1 µ 10A 250 V~

Incandescent lighting : 1500 W

Halogen lighting : 230 V 1500 W

Compensated fluorescent tubes // :

(max. 45 µF) 400 W

Non compensated fluorescent tubes,

compensated in series : 1000 W

Compact fluorescent lamps : 400 W

⦁Minimum load :

AC1 100 mA 250 V~

⦁Galvanic insulation between power supply and

output : < 4 kV

⦁Rated impulse voltage : 4 kV

Technical specifications

Functional characteristics

⦁Programming capacity : 300 steps

⦁Minimum time between 2 steps : 1 minute

⦁Running accuracy : ± 0,2 sec/ 24h

⦁Operating reserve : lithium battery, total of 5

years autonomy (unlimited programme backup)

⦁The product is set into standby state (display

switched-off) after 1 minute with power off.

It switches back into automatic mode as soon

as power is back on or when pressing any key.

⦁Protection degree : IP 20 / IK 04

⦁Action type 1B:

⦁Degree of pollution : 2

⦁Software class : A

Environment

⦁Operating temperature : -10 °C to 50 °C+

⦁Storage temperature : -20 °C to 70 °C+

⦁Temperature for the ball pressure Test :

75° to 125°C

Connection by quick-connect terminals

⦁Flexible : 0,75 to 2,5 mm2

⦁Rigid : 0,75 to 2,5 mm2

Standards

60730-1

60730-2-7

Presentation

⦁Product delivered with current time and date set.

⦁Automatic change of summer/winter time.

⦁Programming key

-For permanent overrides

-For program copy or save

⦁300 programme steps ; ON, OFF, pulses or .

⦁Permanent overrides On or Off ( permanent

light on).

⦁Temporary overrides On or Off ( flashing).

⦁Overrides (temporary, permanent or time delayed)

remote activation possible.

⦁Simulation of presence .

⦁Keyboard lock function by PIN number.

⦁Counter of operating time on every output.

⦁Programmable with power off.

⦁Display with backlight.

*Input for external override

Pressing simultaneously the , , , keysmenu – + ok

allows you to réinitialize the product.

The program is kept in memory.

Reinitializing

EG293B

When using for the first time, the following

settings must be done :

- select the language

- select the year, month, day

- select the hour and the minutes

- select the automatic change summer/winter.

Press the buttons / to set the display.+ –

Press to validate.OK

When the settings are finished, the clock goes to

automatic mode.

First commissioning

§Warranty

NOT APPLICABLE FOR AUSTRALIA

A warranty period of 24 months is offered on hager

products, from date of manufacture, relating to any material

of manufacturing defect. If any product is found to be

defective it must be returned via the installer and supplier

(wholesaler). The warranty is withdrawn if:

- after inspection by hager quality control dept the device is

found to have been installed in a manner which is contrary

to IEE wiring regulations and accepted practice within the

industry at the time of installation.

- The procedure for the return of goods has not been

followed. Explanation of defect must be included when

returning goods.

This device must be installed only by

a qualified electrician according to the

installation standards in force in the

country.

Usable in all Europe

and in Switzerland

6E 6360E2

Creating a holiday programme

The Holiday programme allows you to define one

or several periods during which the output

contact is on ON or OFF.

This programme has the highest priority.

To define your Holiday programme :

To visualise a programme

To check the steps of the recorded programme

without risk of modifying or deleting.

Creating a specific programme step (day-time):

A specific programme step is a programme step

composed of a switching time and a date.

This happens in addition to the weekly programme

type or the sub-programme. If there is conflict, this

has priority.

PROGRAMME READ

HOLIDAYS

DAY/TIME

SP1 - SP10

WEEKLY

HOLIDAYS

DATE/TIME

SP1 - SP10

WEEKLY

BACK

AUTO

DELETE

MODIFY

HOLIDAYS

OFF

NOT

REPEATED

VARIABLE

DATE

HOLIDAYS

FIX

DATE

14.07 - 03.08

HOLIDAYS

CONTINUE

PROGRAM

START

MONTH

01.07

START

DAY

14.07

END

MONTH

01.08

END

DAY

03.08

DATE/TIME

CYCLE

DATE/TIME

IMPULSE

DATE/TIME

OFF

NOT

REPEATED

KEEP

DAYWEEK

BACK

AUTO

DELETE

MODIFY

DATE/TIME

FIX DATE
