Strona 1/44

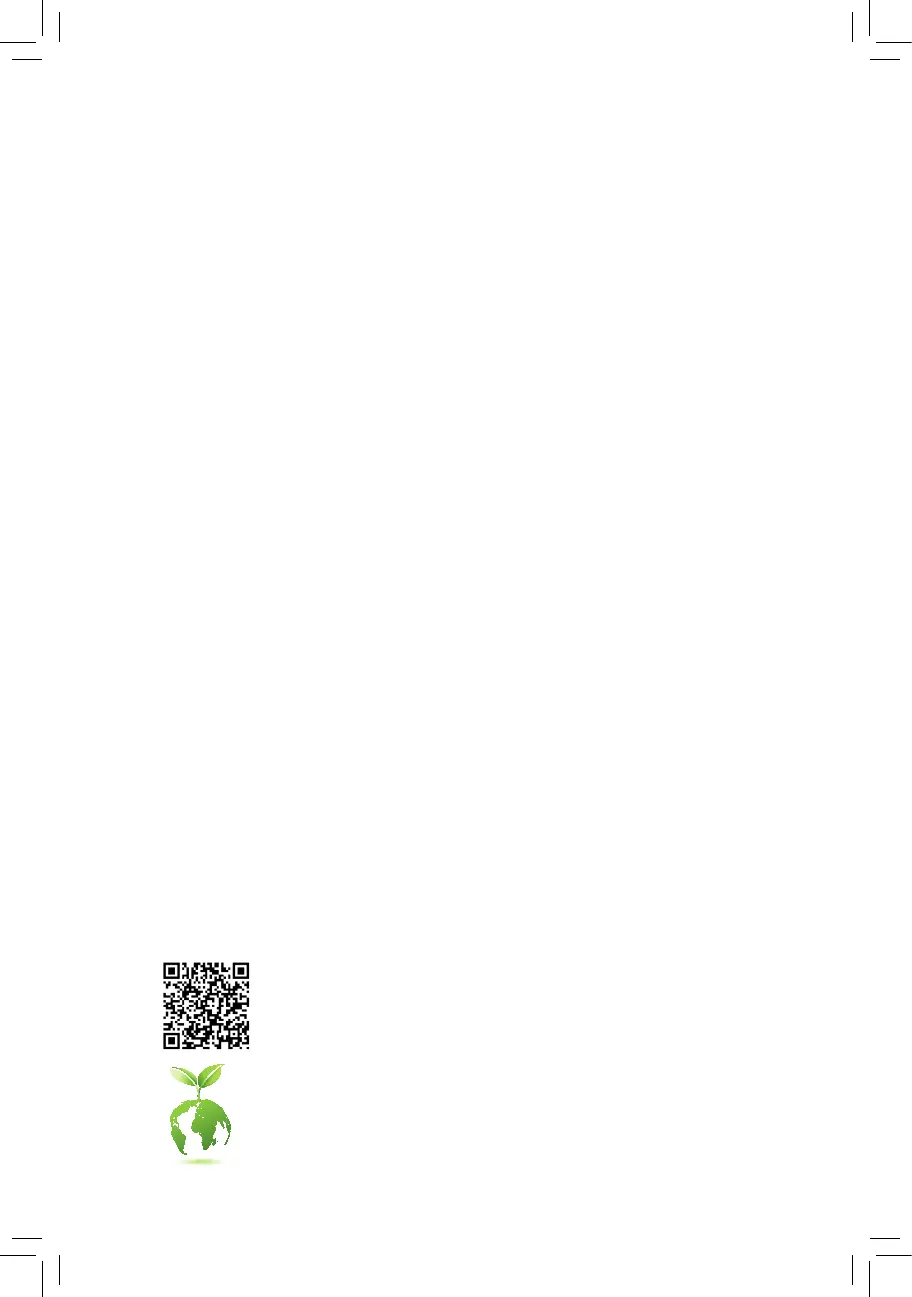

To reduce the impacts on global warming, the packaging materials of this product

are recyclable and reusable. GIGABYTE works with you to protect the environment.

For more product details, please visit GIGABYTE's website.

B360M GAMING HD

User's Manual

Rev. 1001

Feb. 23, 2018

Motherboard

B360M GA MING HD

The trademarks mentioned in this manual are legally registered to their respective owners.

Disclaimer

Information in this manual is protected by copyright laws and is the property of GIGABYTE.

Changes to the specications and features in this manual may be made by GIGABYTE without prior notice.

No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or

by any means without GIGABYTE's prior written permission.

In order to assist in the use of this product, carefully read the User's Manual.

For product-related information, check on our website at: http://www.gigabyte.com

Identifying Your Motherboard Revision

The revision number on your motherboard looks like this: "REV: X.X." For example, "REV: 1.0" means

the revision of the motherboard is 1.0. Check your motherboard revision before updating motherboard

BIOS, drivers, or when looking for technical information.

Example:

Feb. 23, 2018

Motherboard

B360M GAMING HD

- 3 -

Table of Contents

B360M GAMING HD Motherboard Layout 4 ......................................................................

Chapter 1 Hardware Installation 5 .....................................................................................

1-1 Installation Precautions 5 ....................................................................................

1-2 ProductSpecications ...................................................................................... 6

1-3 Installing the CPU 9 ............................................................................................

1-4 Installing the Memory 9 .......................................................................................

1-5 Installing an Expansion Card 10 .........................................................................

1-6 Back Panel Connectors 10 ..................................................................................

1-7 Internal Connectors 12 ........................................................................................

Chapter 2 BIOS Setup 18 ..................................................................................................

2-1 Startup Screen 18 ...............................................................................................

2-2 The Main Menu 19 ..............................................................................................

2-3 M.I.T. .............................................................................................................. 20

2-4 System ........................................................................................................... 26

2-5 BIOS ............................................................................................................... 27

2-6 Peripherals ..................................................................................................... 30

2-7 Chipset ........................................................................................................... 33

2-8 Power ............................................................................................................. 34

2-9 Save & Exit 36 .....................................................................................................

Chapter 3 Appendix 37 ......................................................................................................

3-1 Installing an Intel® Optane™ Memory 37 ..............................................................

3-2 Drivers Installation 38 ..........................................................................................

Regulatory Statements 39 ..............................................................................................

Contact Us 44 ................................................................................................................

- 4 -

B360M GAMING HD Motherboard Layout

* The box contents above are for reference only and the actual items shall depend on the product package you obtain.

The box contents are subject to change without notice.

Box Contents

5B360M GAMING HD Motherboard 5Two SATA cables

5Motherboard driver disk 5I/O Shield

5User's Manual

KB_MS CPU_FAN

SYS_FAN

LGA1151

ATX

B360M GAMING HD

F_AUDIO

AUDIO

BAT

ATX_12V_2X4

Intel® B360

R_USB30_1

CODEC

CLR_CMOS

BIOS

VGA

USB_LAN

PCIEX16

PCIEX1

iTE®

Super I/O

Realtek®

GbE LAN

F_USB1

F_USB2

F_PANEL

SATA3 3 2

1 0

COM

F_USB30

R_USB30_2

TPM

DDR4_1

DDR4_2

M2M_32G

6080 42

HDMI

Chapter 1 Hardware Installation

1-1 Installation Precautions

The motherboard contains numerous delicate electronic circuits and components which can become

damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's

manual and follow these procedures:

•Prior to installation, make sure the chassis is suitable for the motherboard.

•Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or

warranty sticker provided by your dealer. These stickers are required for warranty validation.

•Always remove the AC power by unplugging the power cord from the power outlet before

installing or removing the motherboard or other hardware components.

•When connecting hardware components to the internal connectors on the motherboard, make

sure they are connected tightly and securely.

•When handling the motherboard, avoid touching any metal leads or connectors.

•It is best to wear an electrostatic discharge (ESD) wrist strap when handling electronic

components such as a motherboard, CPU or memory. If you do not have an ESD wrist strap,

keepyourhandsdryandrsttouchametalobjecttoeliminatestaticelectricity.

•Prior to installing the motherboard, please have it on top of an antistatic pad or within an

electrostatic shielding container.

•Before connecting or unplugging the power supply cable from the motherboard, make sure

the power supply has been turned off.

•Before turning on the power, make sure the power supply voltage has been set according to

the local voltage standard.

•Before using the product, please verify that all cables and power connectors of your hardware

components are connected.

•To prevent damage to the motherboard, do not allow screws to come in contact with the

motherboard circuit or its components.

•Make sure there are no leftover screws or metal components placed on the motherboard or

within the computer casing.

•Do not place the computer system on an uneven surface.

•Do not place the computer system in a high-temperature or wet environment.

•Turning on the computer power during the installation process can lead to damage to system

components as well as physical harm to the user.

•If you are uncertain about any installation steps or have a problem related to the use of the

product,pleaseconsultacertiedcomputertechnician.

•If you use an adapter, extension power cable, or power strip, ensure to consult with its installation

and/or grounding instructions.

- 5 -

1-2 ProductSpecications

CPU Support for 8th Generation Intel®

Core™ i7 processors/Intel® Core™ i5 processors/

Intel® Core™ i3 processors/Intel®

Pentium ® processors/

Intel® Celeron® processors in the LGA1151 package

(Go to GIGABYTE's website for the latest CPU support list.)

L3 cache varies with CPU

Chipset Intel® B360 Express Chipset

Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory

Dual channel memory architecture

Support for DDR4 2666/2400/2133 MHz memory modules

 Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in

non-ECC mode)

Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

SupportforExtremeMemoryProle(XMP)memorymodules

* To support 2666 MHz or XMP memory, you must install an 8th Generation Intel

Core™

i7/i5 processor.

(Go to GIGABYTE's website for the latest supported memory speeds and memory

modules.)

Onboard

Graphics

Integrated Graphics Processor-Intel® HD Graphics support:

- 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

* Support for HDMI 1.4 version and HDCP 2.2.

Maximum shared memory of 1 GB

Audio

Realtek® ALC887 codec

HighDenitionAudio

2/4/5.1/7.1-channel

* Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomodule

and enable the multi-channel audio feature through the audio driver.

LAN Realtek® GbE LAN chip (10/100/1000 Mbit)

Expansion Slots 1 x PCI Express p6-x16 slot, running at x16

1 x PCI Express p6-x1 slot

(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Interface Chipset:

- 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe

x4/x2 SSD support)

- 4 x SATA 6Gb/s connectors

* Refer to "1-7 Internal Connectors," for the installation notices for the M.2 and SATA

connectors.

Intel® Optane™ Memory Ready

USB Chipset:

- 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through

the internal USB header)

- 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through

the internal USB headers)

- 6 -

Internal

Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x CPU fan header

1 x system fan header

4 x SATA 6Gb/s connectors

1 x M.2 Socket 3 connectors

1 x front panel header

1 x front panel audio header

1 x USB 3.1 Gen 1 header

2 x USB 2.0/1.1 headers

 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S

module only)

1 x serial port header

1 x Clear CMOS jumper

Back Panel

Connectors

1 x PS/2 mouse port

1 x PS/2 Keyboard port

1 x D-Sub port

1 x HDMI port

4 x USB 3.1 Gen 1 ports

2 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

I/O Controller iTE® I/O Controller Chip

Hardware

Monitor

Voltage detection

Temperature detection

Fan speed detection

Overheating warning

Fan fail warning

Fan speed control

* Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1x128Mbitash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features Support for APP Center

* Available applications in APP Center may vary by motherboard model. Supported

functionsofeachapplicationmayalsovarydependingonmotherboardspecications.

- 3D OSD

- @BIOS

- AutoGreen

- Cloud Station

- EasyTune

- Fast Boot

- Game Boost

- ON/OFF Charge

- Platform Power Management

- 7 -

Unique Features - RGB Fusion

- Smart Backup

- Smart Keyboard

- Smart TimeLock

- Smart HUD

- System Information Viewer

- USB Blocker

- V-Tuner

Support for Q-Flash

Support for Xpress Install

Bundled

Software Norton® Internet Security (OEM version)

Operating

System Support for Windows 10 64-bit

Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm

* GIGABYTEreservestherighttomakeanychangestotheproductspecicationsandproduct-relatedinformationwithout

prior notice.

Please visit GIGABYTE's website for support lists of CPU, memory modules, SSDs, and M.2

devices.

Please visit the page on GIGABYTE's website to download the latest Support\Utility List

version of apps.

- 8 -

1-3 Installing the CPU

Read the following guidelines before you begin to install the CPU:

•Make sure that the motherboard supports the CPU.

(Go to GIGABYTE's website for the latest CPU support list.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

CPU to prevent hardware damage.

•Locate the pin one of the CPU. The CPU cannot be inserted if oriented incorrectly. (Or you may

locate the notches on both sides of the CPU and alignment keys on the CPU socket.)

•Apply an even and thin layer of thermal grease on the surface of the CPU.

•Do not turn on the computer if the CPU cooler is not installed, otherwise overheating and damage

of the CPU may occur.

•SettheCPUhostfrequencyinaccordancewiththeCPUspecications.Itisnotrecommended

thatthesystembusfrequencybesetbeyondhardwarespecicationssinceitdoesnotmeetthe

standard requirements for the peripherals. If you wish to set the frequency beyond the standard

specications,pleasedosoaccordingtoyourhardwarespecicationsincludingtheCPU,graphics

card, memory, hard drive, etc.

Installing the CPU

Locate the alignment keys on the motherboard CPU socket and the notches on the CPU.

Do not remove the CPU socket cover before inserting the CPU. It may pop off from the load

plate automatically during the process of re-engaging the lever after you insert the CPU.

Alignment

Key

Alignment

Key

LGA1151 CPU Socket

Pin One Corner of the CPU Socket

LGA1151 CPU

Triangle Pin One Marking on the CPU

NotchNotch

Please visit GIGABYTE's website for details on hardware installation.

1-4 Installing the Memory

Read the following guidelines before you begin to install the memory:

•Make sure that the motherboard supports the memory. It is recommended that memory of the same

capacity, brand, speed, and chips be used.

(Go to GIGABYTE's website for the latest supported memory speeds and memory modules.)

•Always turn off the computer and unplug the power cord from the power outlet before installing the

memory to prevent hardware damage.

•Memory modules have a foolproof design. A memory module can be installed in only one direction.

If you are unable to insert the memory, switch the direction.

DualChannelMemoryConguration

This motherboard provides two memory sockets and supports Dual Channel Technology. After the memory

isinstalled,theBIOSwillautomaticallydetectthespecicationsandcapacityofthememory.EnablingDual

Channel memory mode will double the original memory bandwidth.

- 9 -

1-5 Installing an Expansion Card

Read the following guidelines before you begin to install an expansion card:

•Make sure the motherboard supports the expansion card. Carefully read the manual that came

with your expansion card.

•Always turn off the computer and unplug the power cord from the power outlet before installing an

expansion card to prevent hardware damage.

1-6 Back Panel Connectors

PS/2 Keyboard and PS/2 Mouse Port

Use the upper port (green) to connect a PS/2 mouse and the lower port (purple) to connect a PS/2

keyboard.

D-Sub Port

The D-Sub port supports a 15-pin D-Sub connector and supports a maximum resolution of

1920x1200@60 Hz (the actual resolutions supported depend on the monitor being used). Connect a

monitor that supports D-Sub connection to this port.

HDMI Port

The HDMI port supports HDCP 2.2 and Dolby TrueHD and DTS HD Master

Audio formats. It also supports up to 192KHz/16bit 8-channel LPCM audio

output. You can use this port to connect your HDMI-supported monitor. The maximum supported

resolution is 4096x2160@30 Hz, but the actual resolutions supported are dependent on the monitor

being used.

Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode.

1. Dual Channel mode cannot be enabled if only one memory module is installed.

2. When enabling Dual Channel mode with two memory modules, it is recommended that memory of

the same capacity, brand, speed, and chips be used.

The two DDR4 memory sockets are divided into two channels and each channel has one memory socket as

following:

Channel A: DDR4_1

Channel B: DDR4_2

USB 3.1 Gen 1 Port

TheUSB3.1Gen1portsupportstheUSB3.1Gen1specicationandiscompatibletotheUSB2.0

specication.UsethisportforUSBdevices.

After installing the HDMI device, make sure to set the default sound playback device to HDMI. (The

item name may differ depending on your operating system.)

- 10 -

USB 2.0/1.1 Port

TheUSBportsupportstheUSB2.0/1.1specication.UsethisportforUSBdevices.

Line In/Rear Speaker Out (Blue)

The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc.

Line Out/Front Speaker Out (Green)

The line out jack. For better sound quality, it is recommended that you connect your headphone/speaker

to this jack (actual effects may vary by the device being used).

Mic In/Center/Subwoofer Speaker Out (Pink)

The Mic in jack.

•Whenremovingthecableconnectedtoabackpanelconnector,rstremovethecablefromyour

device and then remove it from the motherboard.

•When removing the cable, pull it straight out from the connector. Do not rock it side to side to

prevent an electrical short inside the cable connector.

Tocongure7.1-channelaudio,youhavetouseanHDfrontpanelaudiomoduleandenablethe

multi-channel audio feature through the audio driver.

RJ-45 LAN Port

The Gigabit Ethernet LAN port provides Internet connection at up to 1 Gbps data rate. The following

describes the states of the LAN port LEDs.

Activity LEDConnection/Speed LED Activity LED:Connection/Speed LED:

State Description

Orange 1 Gbps data rate

Green 100 Mbps data rate

Off 10 Mbps data rate

State Description

Blinking Data transmission or receiving is occurring

Off

No data transmission or receiving is occurring

PleasevisitGIGABYTE'swebsitefordetailsonconguringtheaudiosoftware.

AudioJackCongurations:

Jack Headphone/

2-channel 4-channel 6-channel 8-channel

Line In/Rear Speaker Out a a a

Line Out/Front Speaker Out a a a a

Mic In/Center/Subwoofer Speaker Out a a

Front Panel Line Out/Side Speaker Out a

- 11 -

1-7 Internal Connectors

Read the following guidelines before connecting external devices:

•First make sure your devices are compliant with the connectors you wish to connect.

•Before installing the devices, be sure to turn off the devices and your computer. Unplug the power

cord from the power outlet to prevent damage to the devices.

•After installing the device and before turning on the computer, make sure the device cable has

been securely attached to the connector on the motherboard.

1) ATX_12V_2X4

2) ATX

3) CPU_FAN

4) SYS_FAN

5) SATA3 0/1/2/3

6) M2M_32G

7) F_PANEL

8) F_AUDIO

9) F_USB30

10) F_USB1/F_USB2

11) TPM

12) COM

13) BAT

14) CLR_CMOS

8 11 7

- 12 -

5) SATA3 0/1/2/3 (SATA 6Gb/s Connectors)

The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA

1.5Gb/s standard. Each SATA connector supports a single SATA device.

Pin No. Denition

1 GND

2 TXP

3 TXN

4 GND

5 RXN

6 RXP

7 GND

To enable hot-plugging for the SATA ports, refer to Chapter 2, "BIOS Setup," "Peripherals\SATA

AndRSTConguration,"formoreinformation.

1 1

7 7

SATA3 3 2

1 0

6) M2M_32G (M.2 Socket 3 Connector)

The M.2 connectors support M.2 SATA SSDs or M.2 PCIe SSDs.

80 60 42

Follow the steps below to correctly install an M.2 SSD in the M.2 connector.

Step 1:

LocatethepropermountingholefortheM.2SSDtobeinstalledandtheninstallthemountingcliprst.

Step 2:

Slide the M.2 SSD into the connector at an angle.

Step 3:

Press the M.2 SSD down and then secure it by pressing the clip pin into the mounting hole.

Select the proper hole for the mounting clip according to the length of the M.2 SSD to be installed.

- 14 -

The front panel design may differ by chassis. A front panel module mainly consists of power switch,

reset switch, power LED, hard drive activity LED, speaker and etc. When connecting your chassis

front panel module to this header, make sure the wire assignments and the pin assignments are

matched correctly.

Pin No. Pin No.Denition Denition

1 MIC2_L 6 Sense

2 GND 7 FAUDIO_JD

3 MIC2_R 8 No Pin

4 NC 9 LINE2_L

5 LINE2_R 10 Sense

8) F_AUDIO (Front Panel Audio Header)

 ThefrontpanelaudioheadersupportsHighDenitionaudio(HD).Youmayconnectyourchassisfront

panel audio module to this header. Make sure the wire assignments of the module connector match the

pin assignments of the motherboard header. Incorrect connection between the module connector and the

motherboard header will make the device unable to work or even damage it.

Some chassis provide a front panel audio module that has separated connectors on each wire instead

of a single plug. For information about connecting the front panel audio module that has different wire

assignments, please contact the chassis manufacturer.

7) F_PANEL (Front Panel Header)

Connect the power switch, reset switch, speaker, chassis intrusion switch/sensor and system status indicator

on the chassis to this header according to the pin assignments below. Note the positive and negative pins

before connecting the cables.

System Status LED

S0 On

S3/S4/S5 Off

•PW (Power Switch):

Connects to the power switch on the chassis front panel. You may

congurethewaytoturnoffyoursystemusingthepowerswitch(refer

to Chapter 2, "BIOS Setup," "Power," for more information).

•SPEAK (Speaker):

Connects to the speaker on the chassis front panel. The system reports

system startup status by issuing a beep code. One single short beep

will be heard if no problem is detected at system startup.

•PLED/PWR_LED (Power LED):

Connects to the power status indicator

on the chassis front panel. The LED is on

when the system is operating. The LED is

off when the system is in S3/S4 sleep state

or powered off (S5).

•HD (Hard Drive Activity LED):

Connects to the hard drive activity LED on the chassis front panel. The LED is on when the hard drive

is reading or writing data.

•RES (Reset Switch):

Connects to the reset switch on the chassis front panel. Press the reset switch to restart the computer

if the computer freezes and fails to perform a normal restart.

•CI (Chassis Intrusion Header):

Connects to the chassis intrusion switch/sensor on the chassis that can detect if the chassis cover has

been removed. This function requires a chassis with a chassis intrusion switch/sensor.

•NC: No connection.

SPEAK+

SPEAK-

Speaker

Hard Drive

Activity LED

CI- CI+

PLED-

PW-

PLED+

PW+

HD-

RES+

HD+

RES-

Reset

Switch Chassis Intrusion

Header

Power SwitchPower LED

Power LED

PWR_LED-

PWR_LED+

PWR_LED-

- 15 -

Pin No. Pin No.Denition Denition

1 VBUS D2+11

2 SSRX1- 12 D2-

3 SSRX1+ 13 GND

4 GND 14 SSTX2+

5 SSTX1- 15 SSTX2-

6 SSTX1+ 16 GND

7 GND 17 SSRX2+

8 D1- 18 SSRX2-

9 D1+ 19 VBUS

10 NC 20 No Pin

9) F_USB30 (USB 3.1 Gen 1 Header)

 TheheaderconformstoUSB3.1Gen1andUSB2.0specicationandcanprovidetwoUSBports.For

purchasing the optional 3.5" front panel that provides two USB 3.1 Gen 1 ports, please contact the local

dealer.

20 1

10) F_USB1/F_USB2 (USB 2.0/1.1 Headers)

 TheheadersconformtoUSB2.0/1.1specication.EachUSBheadercanprovidetwoUSBportsviaan

optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer.

Pin No. Pin No.Denition Denition

1 Power (5V) 6 USB DY+

2 Power (5V) 7 GND

3 USB DX- 8 GND

4 USB DY- 9 No Pin

5 USB DX+ 10 NC

•Do not plug the IEEE 1394 bracket (2x5-pin) cable into the USB 2.0/1.1 header.

•Prior to installing the USB bracket, be sure to turn off your computer and unplug the power cord

from the power outlet to prevent damage to the USB bracket.

11) TPM (Trusted Platform Module Header)

You may connect a TPM (Trusted Platform Module) to this header.

Pin No. Pin No.Denition Denition

1LAD0 7LAD3

2VCC3 8GND

3LAD1 9LFRAME

4No Pin 10 NC

5LAD2 11 SERIRQ

6LCLK 12 LRESET

- 16 -

BIOS (Basic Input and Output System) records hardware parameters of the system in the CMOS on the

motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup,

saving system parameters and loading operating system, etc. BIOS includes a BIOS Setup program that allows

theusertomodifybasicsystemcongurationsettingsortoactivatecertainsystemfeatures.

When the power is turned off, the battery on the motherboard supplies the necessary power to the CMOS to

keepthecongurationvaluesintheCMOS.

To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on.

To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility.

•Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.

•@BIOS is a Windows-based utility that searches and downloads the latest version of BIOS from the Internet

and updates the BIOS.

Chapter 2 BIOS Setup

•BecauseBIOSashingispotentiallyrisky,ifyoudonotencounterproblemsusingthecurrent

versionofBIOS,itisrecommendedthatyounotashtheBIOS.ToashtheBIOS,doitwith

caution.InadequateBIOSashingmayresultinsystemmalfunction.

•It is recommended that you not alter the default settings (unless you need to) to prevent system

instability or other unexpected results. Inadequately altering the settings may result in system's

failure to boot. If this occurs, try to clear the CMOS values and reset the board to default values.

(Refer to the "Load Optimized Defaults" section in this chapter or introductions of the battery/clear

CMOS jumper in Chapter 1 for how to clear the CMOS values.)

2-1 Startup Screen

The following startup Logo screen will appear when the computer boots.

(Sample BIOS Version: F1c)

Function Keys

•When the system is not stable as usual, select the item to set your system to its defaults.Load Optimized Defaults

•The BIOS Setup menus described in this chapter are for reference only and may differ by BIOS version.

There are two different BIOS modes as follows and you can use the <F2> key to switch between the two modes.

The Classic Setup mode provides detailed BIOS settings. You can press the arrow keys on your keyboard to move

among the items and press <Enter> to accept or enter a sub-menu. Or you can use your mouse to select the

item you want. Easy Mode allows users to quickly view their current system information or to make adjustments

foroptimumperformance.InEasyMode,youcanuseyourmousetomovethroughcongurationitems.

- 18 -

2-2 The Main Menu

Classic Setup Function Keys

<f><g> Move the selection bar to select a setup menu

<h><i>Movetheselectionbartoselectancongurationitemonamenu

<Enter> Execute command or enter a menu

<+>/<Page Up> Increase the numeric value or make changes

<->/<Page Down> Decrease the numeric value or make changes

<F1> Show descriptions of the function keys

<F2> Switch to Easy Mode

<F5> Restore the previous BIOS settings for the current submenus

<F7> Load the Optimized BIOS default settings for the current submenus

<F8> Access the Q-Flash utility

<F9> Display system information

<F10> Save all the changes and exit the BIOS Setup program

<F12> Capture the current screen as an image and save it to your USB drive

<Esc> Main Menu: Exit the BIOS Setup program

Submenus: Exit current submenu

Hardware Information

CongurationItems Current Settings

Setup Menus

System Time

Quick Access Bar allows you to enter Easy Mode, select

BIOSdefaultlanguage,congurefansettings,orenter

Q-Flash.

- 19 -

Specyfikacje produktu

Marka:	Gigabyte
Kategoria:	płyta główna
Model:	B360M GAMING HD
Rodzaj zasilania:	ATX
Szerokość produktu:	226 mm
Głębokość produktu:	185 mm
Wyjścia słuchawkowe:	1
Obsługiwane systemy operacyjne Windows:	Windows 10
Przeznaczenie:	PC
Ilość portów Ethernet LAN (RJ-45):	1
Kanały wyjścia audio:	7.1 kan.
Liczba portów USB 2.0:	2
Przewodowa sieć LAN:	Tak
Obsługiwany systemy operacyjne Linux:	Tak
Obsługiwane rodzaje dysków:	HDD & SSD
Producent procesora:	Intel
Ilość portów USB 3.2 Gen 1 (3.1 Gen 1) Typu-A:	4
Obsługiwane rodzaje pamięci:	DDR4-SDRAM
Typ slotów pamięci:	DIMM
Liczba gniazd pamięci:	2
Bez kody korekcyjnego:	Tak
Obsługiwane pojemności modułów pamięci:	16GB
Obsługiwane prędkości zegara pamięci:	2133,2400,2666 MHz
Maksymalna pojemność pamięci:	32 GB
Obsługa kanałów pamięci:	Dwukanałowy
Gniazdo procesora:	LGA 1151 (Socket H4)
Procesor:	Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Pentium
Rodzina płyt z chipsetami:	Intel
Rodzaj płyty:	micro ATX
Układ płyty głównej:	Intel® B360
Typ BIOS:	UEFI AMI
Zworka clear CMOS:	Tak
PCI Express x1 slots:	1
PCI Express x16 gniazda:	1
Liczba gniazd M.2 (M):	1
Ilość złączy SATA III:	4
Ilość gniazd USB 2.0:	2
Łącza USB 3.2 Gen 1 (3.1 Gen 1):	1
Gniazdo wentylatora procesora:	Tak
Ilość gniazd w podstawie wentylatora:	1
Złącze audio na przednim panelu:	Tak
Złącze panelu przedniego:	Tak
Złącze TPM:	Tak
Liczba portów PS/2:	2
Ilość portów HDMI:	1
Mikrofon:	Tak
Gotowość pamięci Intel® Optane ™:	Tak
Rodzaj interfejsu sieci Ethernet:	Gigabit Ethernet
Liczba portów VGA (D-Sub):	1
Złącze Serial port:	1
Rozmiar pamięci BIOS:	16 Mbit
Wersja ACPI:	5.0
Port seryjny przez wewnętrzny nagłówek:	Tak
