Instrukcja obsługi Gewiss GW45048

Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla Gewiss GW45048 (8 stron) w kategorii Niesklasyfikowane. Ta instrukcja była pomocna dla 2 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek

Strona 1/8

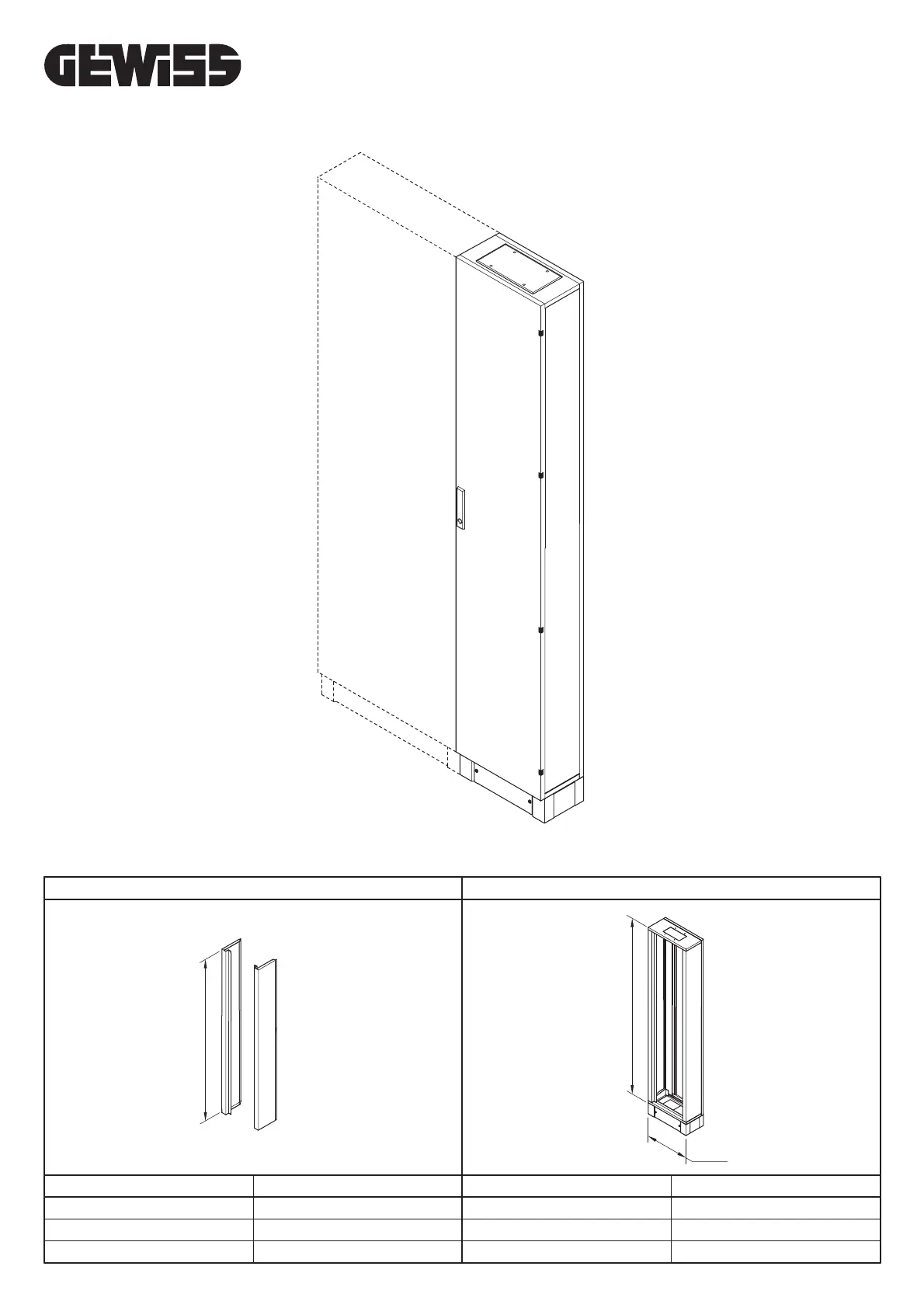

H (mm)
1600
1800
2000
Cod.
GW 45 027
GW 45 028
GW 45 029
H
H
400
H (mm)
1600
1800
2000
Cod.
GW 45 047
GW 45 048
GW 45 049
Strutture - Structures Estructuras - Structures - - StrukturenFianchi - Side panels Lados - Flancs - - Seitenteile
Serie 47 CVX 630K
2
3
M6x12
Nylon
4
M6x12 (4x)
1
400
270
= =
80 64
184
Montaggio base e testata
Assembly of base and head
Montage de la base et de la tête
Montaje base y cabezal
Montage der Basis- und Kopfteile
1
Profilo bordo PVC (2x) - PVC edge profile (2x) - Perfil borde PVC (2x) - Profil bord PVC (2x) - PVC-Kantenprofil (2x)
Ingresso cavi
Cable entry
Entrée câbles
Entrada cables
Kabeleinführung
2
1
2
M6x12 (4x)
Contact (4x)
3
2
Montaggio fianchi
Assembly of side panels
Montage des flancs
Montaje lados
Montage der Seitenteile
Clip a pressione per versione IP30 senza porta
Pressure clip for IP30 doorless version
Clip à pression pour la version IP30 sans porte
Clip a presión para versión IP30 sin puerta
Druckclip für Ausführung IP30 ohne Tür
N.B. Quando il vano cavi esterno è posizionato a destra del quadro,
montare solo il fianco destro; quando il vano cavi esterno è
posizionato a sinistra del quadro, montare solo il fianco sinistro.
N.B. When the external cable bay is located on the right of the panel, fit
only the right-hand side; when the external cable bay is located on the left of
the panel, fit only the left-hand side.
N.B. Quand le logement desbles externe est positionné à droite du tableau,
monter uniquement le côté droit ; quand le logement des câbles externe est
position à gauche du tableau, monter uniquement le côté gauche.
N.B. Cuando la cavidad cables externa está colocada a la derecha del
cuadro, montar solo el lado derecho; cuando la cavidad cables externa está
colocada a la izquierda del cuadro, montar solo el lado izquierdo.
Hinweis: Wenn sich der äußere Kabelraum rechts vom Schaltschrank
befindet, nur das rechte Seitenteil montieren; wenn sich der äußere Kabelraum
links vom Schaltschrank befindet, nur das linke Seitenteil montieren.
