Owner's Manual for
YES 12 Charging Wall
Cabinet for Mini-laptops
Part # YESMLCGMPW
Table of Contents
Getting Started 2 ................
Safety Notices 2 .................
Installing the Cabinet 3 .......
Loading Devices 6 ..............
Troubleshooting Guide 7 ....
Warranty 8 ..........................
Components at a Glance
This Cabinet is designed to automatically charge and store tablet, hand-held, and mini-
laptop devices safely and efciently. This cabinet supports 1-12 devices. Please review this
manual before installing your equipment to learn how to use the cabinet safely.
The cabinet is listed to UL Information Technology Equipment 60950-1 safety standard.
AC input: 120VAC 60 Hz. Max amps: 12A.

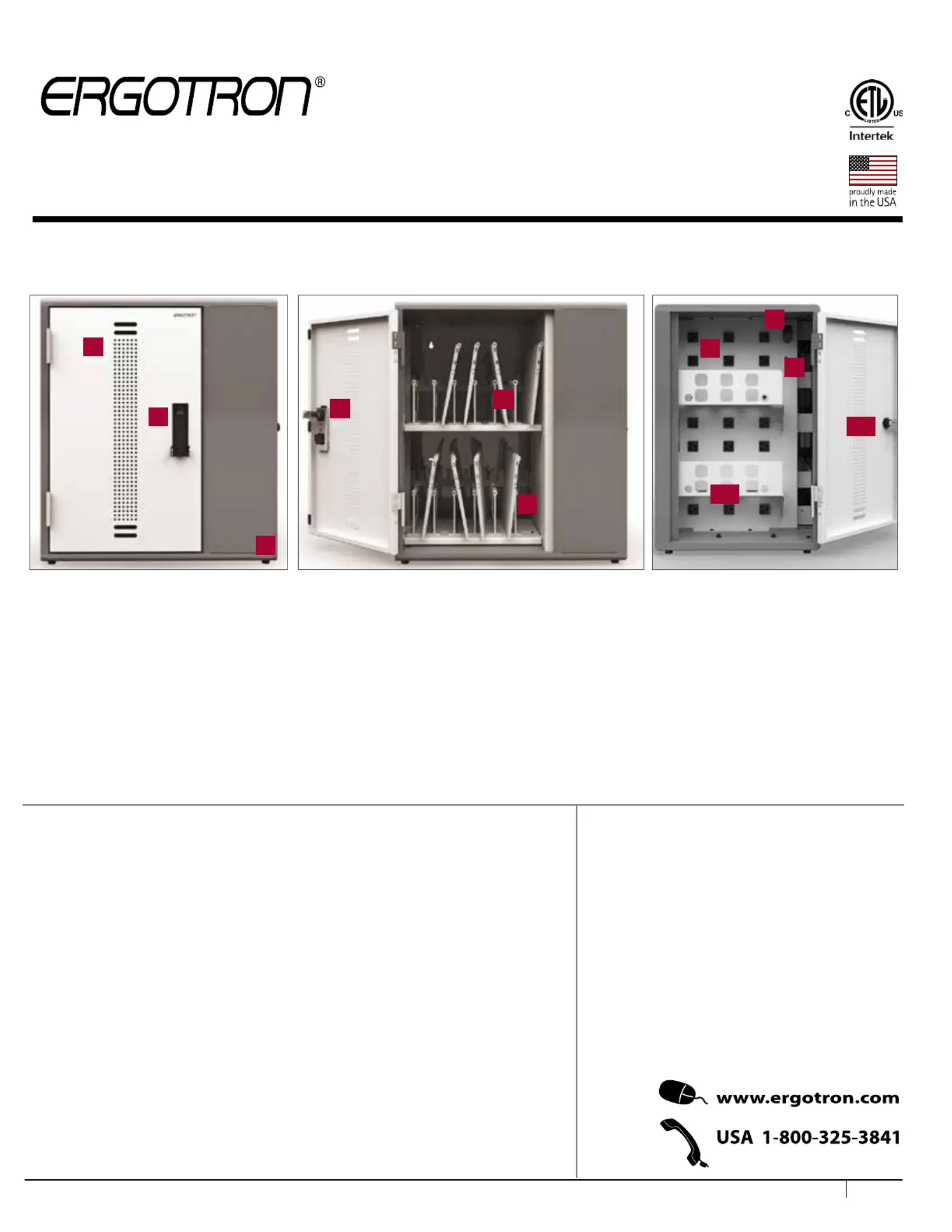

Front of Cabinet (closed)
1. Locking front door to User area.
2. Locking door latch w/padlock
bracket.
3. Feet (for countertop installation)
Front of Cabinet (open)
4. Lock mechanism
5. Bay dividers with
Cable Channels
6. Back cable carrier (at back of
enclosure)
Side of Cabinet (open)
7. On/off switch
8. Cord pass-through from front of
cabinet
9. Center divider with power outlets
10. Bins for power adapters
11. Power cord access
12. Locking side door to IT area
1
3
245
6
7
8
9
10
11
Built with Anthro-DNA
300-5627-00 rev. E 11/16 1 of 8
For the latest User Installation Guide please visit: www.ergotron.com
Getting Started
Important Safeguards - We want you to be safe!
These cabinets are electrical devices. Use care with them and follow
these important safeguards:
Electrical devices are not toys. Children are often unaware of
the hazards associated with electrical devices, so this unit must
always be used by adults or with adult supervision.
Do not use this unit outdoors.
Liquids should not be stored in, set on or placed inside this unit.
Never unplug this product from the outlet when your hands are
wet.
Set the power switch to the down OFF position before you
unplug the unit from the wall, plug the unit into the wall, or plug in
devices.
Be careful with the power cord. Do not jam the power cord
against sharp edges. Do not use the unit if the cord appears to be
damaged or if the ground prong is missing. When the unit is not
plugged in, wrap the power cord and store in the IT area.
Do not use an extension cord with this unit.
Inadequate repair can create signicant hazards to users and is
not covered by the warranty. Repairs should always be performed
by a qualied electrician.
Electrical Testing
Before using your new charging cabinet, have a qualied
electrician verify the current draw does not exceed the rating of
the unit when all the devices are installed.
Test the contact integrity of the wall outlet using a receptacle
tension tester such as a Woodhead 1760 or a Safeplug 1700.
Test the branch circuit for ground integrity and branch circuit
protection.
Do not plug in the unit if the switch, receptacles, or power cord
have been damaged or if the ground prong is missing from the
plug. If repairs are ever needed, they should be performed by a
qualied electrician.
FCC Statement: This equipment has been tested and found to
comply with the limits for a Class A digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the
equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential.area
is likely to cause harmful interference in which case the.user will
be required to correct the interference at his own.expense.
CAN ICES-3(A)/NMB-3(A).
Changes or modications not expressly approved by Ergotron
could void the user's authority to operate the equipment.
Doors and Locks
The front doors on each cabinet feature a two-point keyed locking system
to protect your devices. To open a door,
lift the bottom of the handle and rotate it
to the inside of the unit. Your unit shipped
with 2 keys. Contact Customer Care for
replacements.

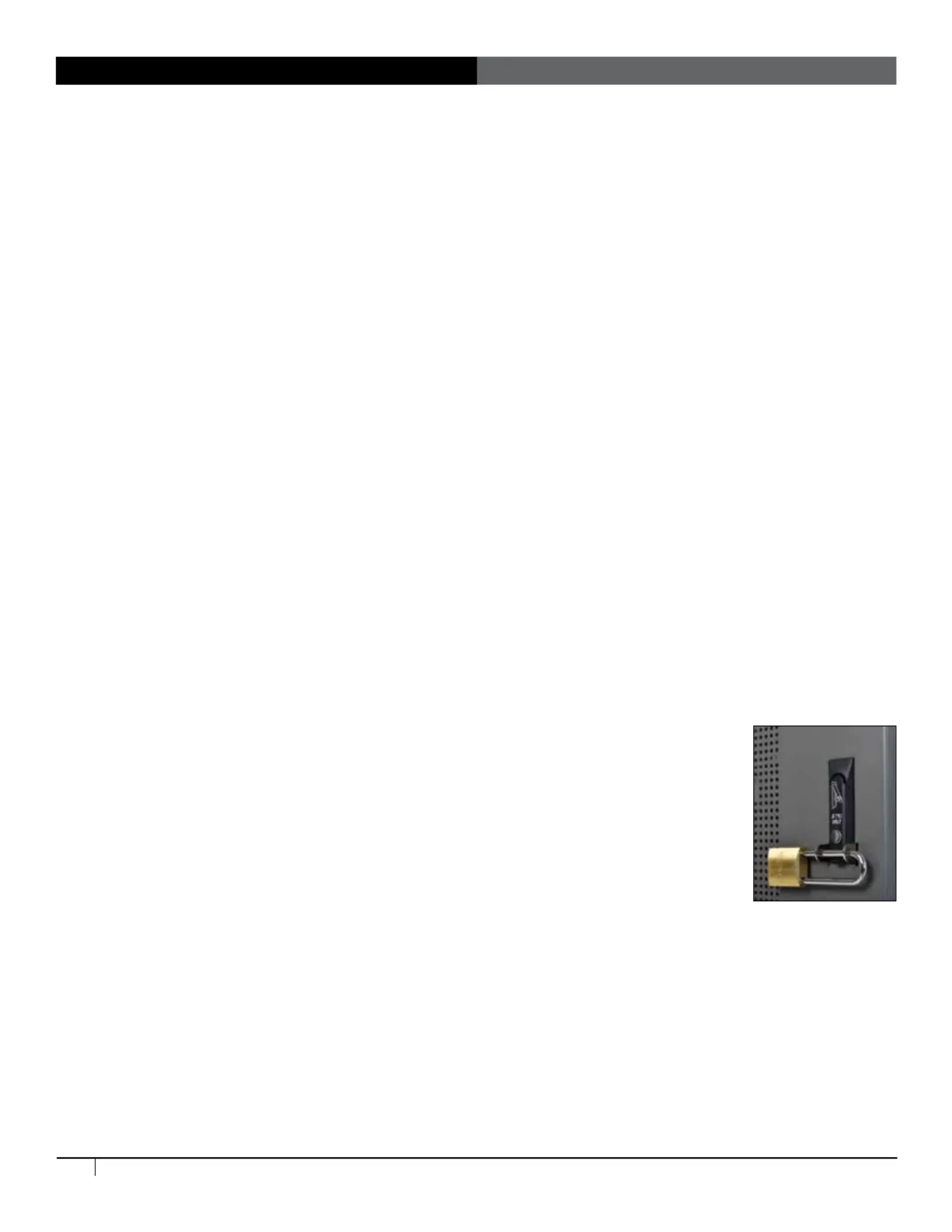

For added security, each front door features
a padlock bracket to hold your own padlock.
When installed, your padlock restricts access
to the handle so the unit can’t be opened.
300-5627-00 rev. E 11/162 of 8
STEP 1
Select the Mounting Location and Method
When choosing the right place to install your cabinet, be sure to check the location of your power source.
The power cord that comes with your cabinet is 10 ft long.
Your cabinet can be wall-mounted to wood wall studs or drywall, or bolt it to a countertop. If you’re
installing to wood wall studs, go to Step 2. If you’re installing into drywall, go to Step 3. If you're bolting to a
countertop, go to
Step 4. The cabinet also comes with cushioned feet; use them if you're placing your cabinet on a at
surface. See Step 5 for installation instructions.
NOTE: Your Yes Cabinet for Mini-laptops can be mounted to other surfaces (like concrete or brick), and
this work should be done by a qualied contractor.
STEP 2

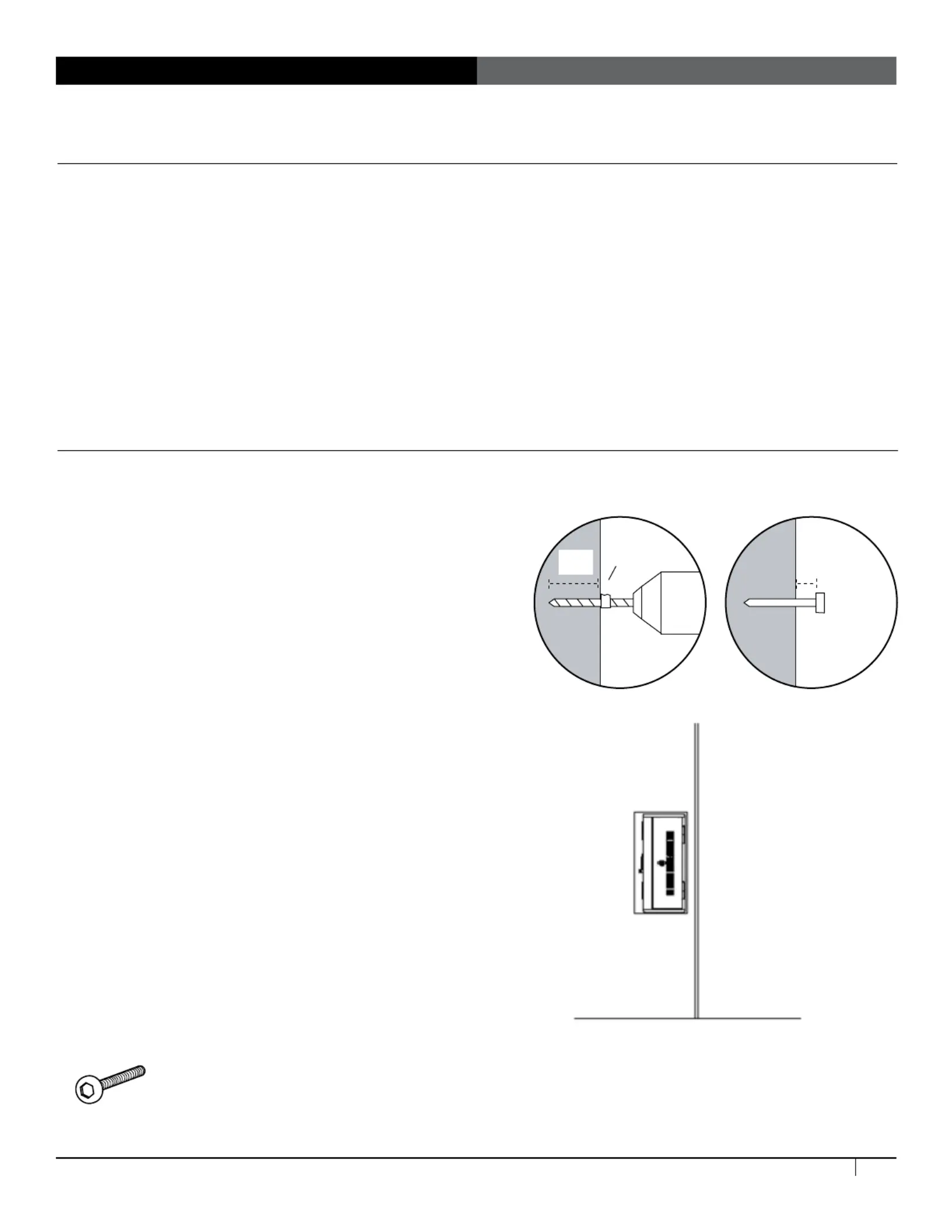

Wall-mount to Wood Wall Studs
This is a two-person step.
Determine the installation point for your cabinet.
Using a stud nder, locate the studs. While one
person holds the cabinet frame up to the wall at
the desired height, the other marks the height
of the top of the cabinet. Measure down 1-1/2"
along the studs to determine the position of the
screws and mark where the screws will go. Use
a level to make sure the marks are level.
Using a 1/8" drill bit, drill one hole in a stud
about
1-1/2" deep. How do you make sure that hole
is 1-1/2" deep? Measure that length on your
drill bit and mark it with a piece of masking tape.
Stop drilling when you reach the masking tape.
Repeat for the second screw.
Using a Phillips driver (or a power driver with a
Phillips bit), attach the rst 1-5/8" long screw at
that mounting point, but don’t tighten all the way
to the wall. Stop tightening when the screw head
is about 1/4" away from wall.
Lift the cabinet onto the wall. Mark the screw
position of the lower screws. Remove the
cabinet, drill the lower holes, and install the
lower screws. Lift the cabinet into place and
tighten all four screws.
Go to Step 6.
1-5/8" Screw
325-5086-00
Drill
Wall Stud Prole
1½" Tape ¼"
Screw
Installing the Cabinet
300-5627-00 rev. E 11/16 3 of 8
