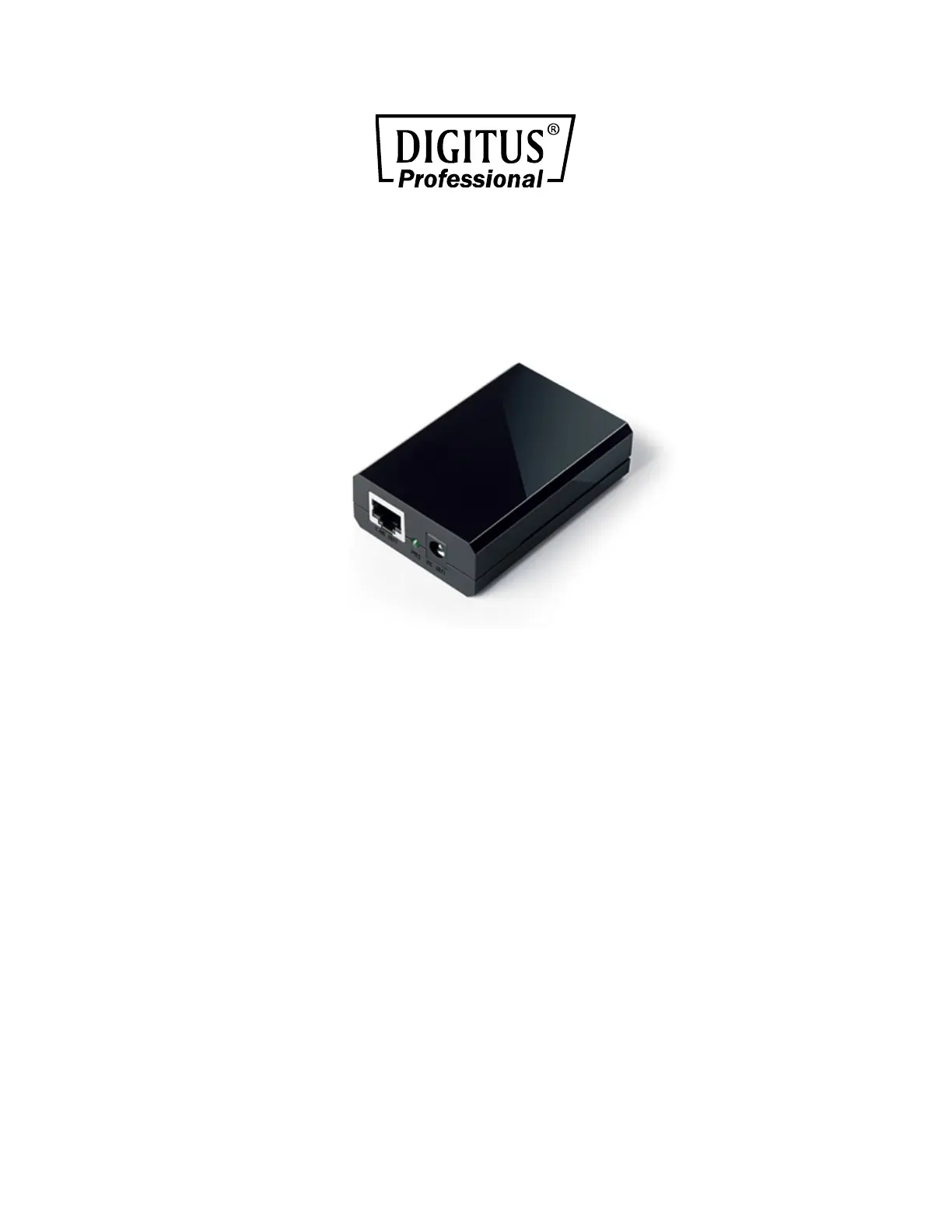

Gigabit PoE af Splitter,
10/100/1000 Mbps, 12W
Manual DN-95204
Features
Ethernet Speed:10/100/1000Mbps Gigabit Half/Full Duplex
PoE Standard: IEEE802.3af
Input: Power + Data In (RJ45)
Output: Data Out (RJ45), DC Out
Plug-and-Play Installation - No configuration necessary
Selectable output voltages: 5V/2A, 9V/1A, 12V/1A
Splits the 48VDC power over RJ45 Ethernet cable into different DC output
Status LED on the device (PoE ready/PoE in-use)
Circuit isolation protection
Maximum power output up to 12W
Support wide input voltage range 34VDC to 57VDC
Thermal cut off
Operating Temperature: 0 to 40℃
Dimensions (L x W x H): 80 x 55 x 23 mm
Weight: 80g
Color: Black
Description
The DIGITUS PoE Splitter provide data and power via a single Ethernet Cable to
devices, which are not supporting Power over Ethernet. Just connect the input of the
Splitter to a PoE Switch or a PoE Injector and the output side to a non-PoE network
device such as an access point, IP Phone or a Camera to provide Power and Data. The
Extender is self-powered by PoE, so there is no additional power supply needed. The
output voltage can be regulated via a dip switch to 5V, 9V or 12V. So this Splitter
expand your network where you wish to place network device where are no power
outlets available.
Specifications
Item Description
Ports 1 10/100/1000M RJ45 PoE Port (DATA + POWER IN)
1 10/100/1000M RJ45 LAN Port (Only DATA)
1 DC Jack (DC OUT)
Network Media 10Mbps: Cat 3,4,5 Unshielded Cable
100Mbps: Cat 5,5E Unshielded Cable
1000Mbps: Cat 5E, 6 Unshielded Cable
Pass Through Data Rates 10/100/1000 Mbps
Power Output Adjustable 5VDC/2A, or 9VDC/1A or 12VDC/1A
Input Power Requirements DC Input Voltage: 36 to 57 Vac
Indicators PoE ready / in-use
Connectors Shielded RJ-45, EIA 568A and 568B
Dimensions 80x54x24mm
Environmental Conditions Operating Ambient Temperature: 0 to 40℃
Operating Humidity:
Maximum 90%, Non-condensing
Storage Temperature: -20 to 70℃
Storage Humidity:
Maximum 95%, Non-condensing
Regulatory Compliance IEEE 802.3af (PoE)
IEEE 802.3 (Ethernet)
IEEE 802.3u (Fast Ethernet)
IEEE 802.3ab (Gigabit Ethernet)
RoHS Compliant, CE, FCC
Electromagnetic FCC Part15, Class B
Application
Package Content:
1 x Gigabit PoE Splitter
1 x Manual
1 x RJ45 Ethernet cable
1 x DC power cable
1 x 3.5mm Power Jack converter
Hereby ASSMANN Electronic GmbH, declares that this device is in compliance with the
requirements of Directive 2014/30/EU and the Directive 2011/65/EU for RoHS compliance.
The complete declaration of conformity can be requested by post under the below mentioned
manufacturer address.
Warning:
This device is a class B product. This equipment may cause some radio interference in living
environment. In this case, the user can be requested to undertake appropriate measures to
prevent interference.
www.assmann.com
Assmann Electronic GmbH
Auf dem Schüffel 3
58513 Lüdenscheid
Germany
