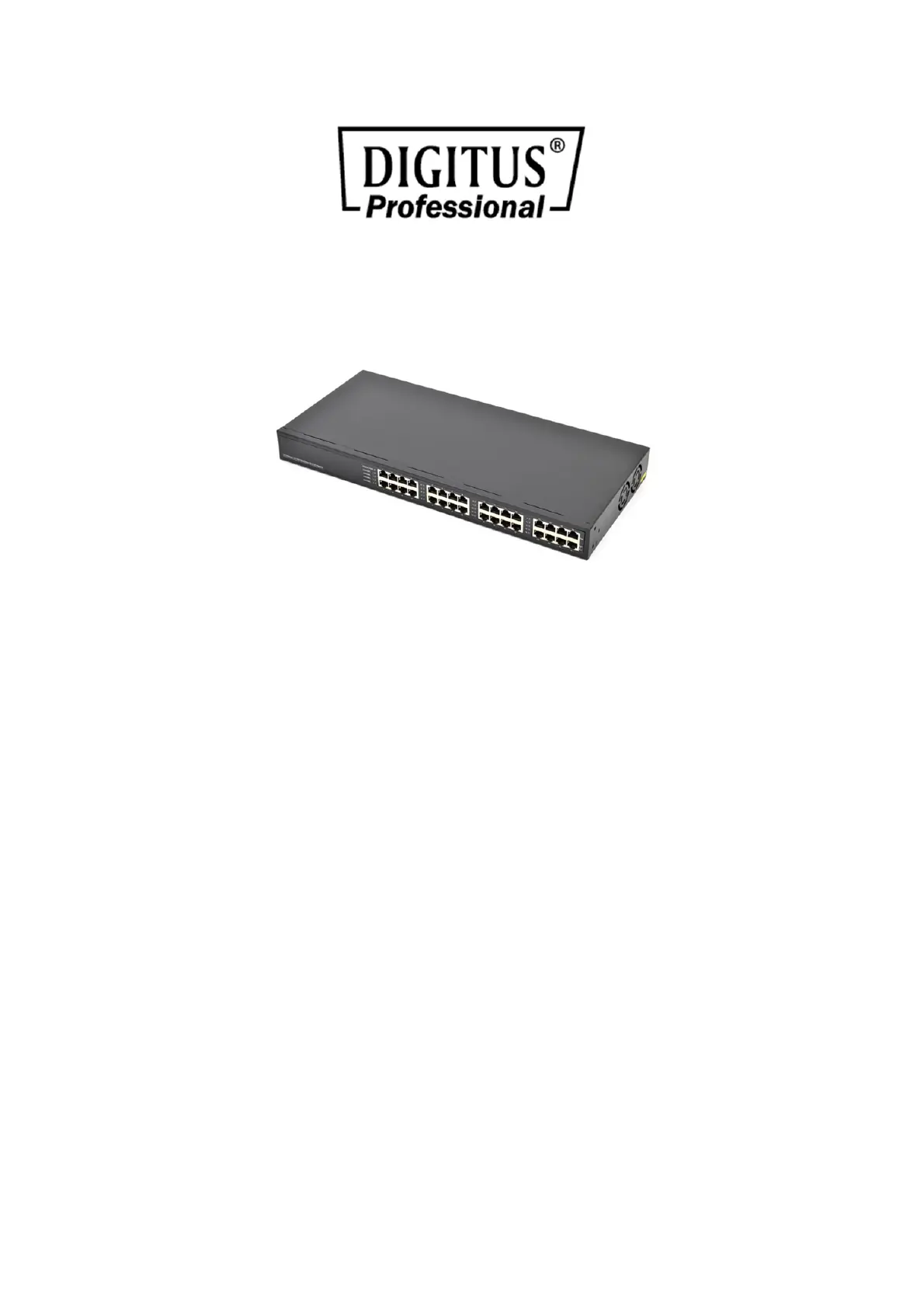

8/16/24 - Port Gigabit PoE+ Injector
Manual
DN-95115 DN-95116 DN-95117
Introduction
The family of Power over Ethernet PSE (Power Sourcing Equipment) injects power
over data-carrying Ethernet cabling. It follows the IEEE802.3af/IEEE 802.3at and is
completely compatible with existing Ethernet switches and networked devices.
Features
8/16/24 channels Power Sourcing Equipment (PoE Injector)
Support 8 ports full load, max: 150W (DN-95115)
Support 16 ports full load, max: 250W (DN-95116)
Support 24 ports full load, max: 370W (DN-95117)
IEEE802.3af/IEEE802.3at compliance
Remote power feeding of Ethernet terminals up to 100 meters
Auto-detect of POE IEEE802.3af/IEEE 802.3at equipment
Independent overload and short-circuit protection per channel
LED indicators power input indication
Internal AC/DC converter – no need for external power brick
AC input 100~240VAC, 50/60Hz
Standard 1U, 19" rack mountable
Easy plug-and-play installation
Package Contents
Gigabit PoE injector
AC power cord
User’s manual
Four (4) back rubber feet
Two (2) rack-mount pallet and screws
Hardware Description
This Section mainly describes the hardware and gives a physical and functional
overview
DN-95115 Physical Dimension:
The physical dimension is: 275mm x 180mm x 44mm (L x W x H)
Front Panel:
The Front Panel consists of 8 x RJ-45 Ethernet ports (data), 8 x RJ-45 PoE ports (data +
power), and 8 x LED port indicators.
DN-95116 Physical Dimension:
The physical dimension is: 440mm x 200mm x 44mm (L x W x H)
Front Panel:
The Front Panel consists of 16 x RJ-45 Ethernet ports (data), 16 x RJ-45 PoE ports
(data + power), and 16 x LED port indicators.
DN-95117 Physical Dimension:
The physical dimension is: 440mm x 330mm x 44mm (L x W x H)
Front Panel:
The Front Panel consists of 24 x RJ-45 Ethernet ports (data), 24 x RJ-45 PoE ports
(data + power), and 24 x LED port indicators.
LED Indicators:
Ports On Power feeding
Off Unknown device attached, no power feeding
Rear Panel:
The AC inlet is located at the rear panel. The device will work with AC in the range
100~240VAC, 50/60Hz.
Technical Specification
Item Description
Model DN-95115 DN-95116 DN-95117
No. of
P
orts 8 16 24
Pass Through Data Rates 10/100/1000 Mbps
Power over Ethernet Output Pin Assignment and Polarity: 1/2 (-), 3/6 (+)
Output Power Voltage: 48~56Vdc
User Port Power: 30W
Power AC Input
V
oltage 100 to 240
V
AC
Power AC input Current 2.7A at 110
V
AC
3A at 110 VAC 4.5A at 110
V
AC
Power AC Frequency 50 to 60 Hz
Total
A
vailable Power 150W 250W 370W
Dimensions L x W x H (mm) 275 x 180 x 44 440 x 200 x 44 440 x 330 x 44
Indicators User Indicator: Channel Power
Connectors Shielded RJ-45, EIA 568A and 568B
Environmental Conditions Operating Ambient Temperature:
-10 to 45°C
Operating Humidity:
Maximum 90%, Non-condensing
Storage Temperature:-20 to 70°C
Storage Humidity:
Maximum 95%, Non-condensing
R
eliability MTBF: 100,000 hrs. @25°C
R
egulatory Compliance IEEE 802.3a
f
(PoE), IEEE 802.3at (PoE+)
