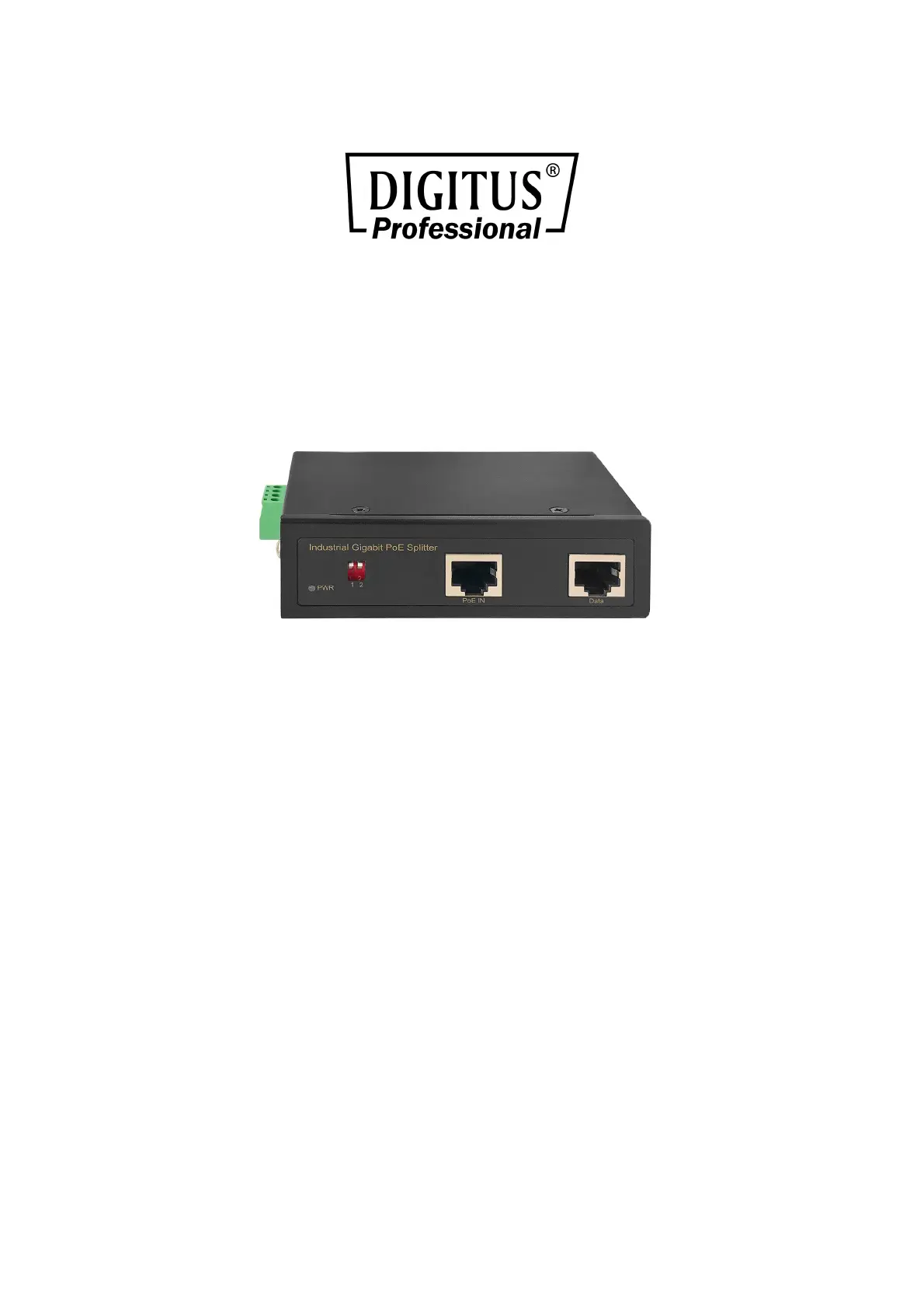

Industrial Gigabit PoE++ Splitter, 802.3bt
With 1 x 10/100/1000M TX 95W for PoE In + 1 x 10/100/1000M TX for Data Out,
Selectable 12VDC, 16VDC, 24VDC or 48VDC output voltage
User Manual
DN-651111
Introduction
The DIGITUS® Industrial Gigabit PoE Splitter is designed for harsh environments, in which it is
exposed to moisture, temperature variations and vibrations. With a temperature range of -40°C
to 75°C, the Industrial Gigabit PoE Splitter can be used under the most adverse conditions. It
ensures a constant availability in highly sensitive areas such as transport, production, traffic and
safety monitoring. The simple plug-and-play system allows a fast integration of the Industrial
Gigabit PoE Splitter into the respective environment. The DIGITUS® DN-651111 is an
unmanaged Plug & Play Industrial Gigabit PoE Splitter in a rugged IP30 protected aluminum
housing. The Gigabit connectivity, as well as the selectable voltage that can be provided for
non-PoE compatible devices, make the Industrial Gigabit PoE Splitter a flexible, cost-effective
solution for the industrial environment. The supply voltage can be selected in the range of
12VDC, 16VDC, 24VDC or 48VDC. The IEEE802.3bt standard allows PoE feed of up to 95W. Two
parallel current outputs are provided for terminal devices.
2
Specification
Ethernet Standard
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE 802.3ab 1000Base-T Gigabit Ethernet
PoE Standard
IEEE802.3af for PoE
IEEE802.3at for PoE+
4 Pair PoE for ultra-high power
Network Connector (RJ-45) 1 x Gigabit TX port for PoE IN
1 x Gigabit TX for Data OUT
Network Cable UTP/STP Cat.5e or above Cable
EIA/TIA-568 10-ohm (100m)
Protocol CSMA/CD
LED
PWR (Yellow):
ON－Power is detected
OFF－Power is not detected
DIP Switch 〈 〉DIP1/DIP2
(OFF/OFF) 48VDC (default)
(ON/OFF) 24VDC
(OFF/ON) 16VDC
(ON/ON) 12VDC
Overload current protection Present
Power Consumption 7 Watts
PoE power input 15W/30W/60W/95W PoE power input
Power Output 〈
〈
〈
〈〈V1, V2〉
〉
〉
〉〉
Power output V1, V2
(Output Voltage/Output Current)
48VDC / 1A
24VDC / 2.3A
16VDC / 2.3A
12VDC / 2.3A
Removable Terminal Block
Provide 4 pin terminal block for power output
Wire range: 0.34mm^2 to 2.5mm^2
Solid wire (AWG):12-24/14-22
Stranded wire(AWG): 12-24/14-22
Torque:5lb-In/0.5Nm/0.56Nm
Wire Strip length: 7-8mm
Operating Temperature -40°C ~75°C fully tested.
Operating Humidity 5% to 95% (Non-condensing)
Storage Temperature -40°C~85°C
MTBF (mean time between failure) >500,000 hrs ( MIL-HDBK-217F) at 25°C
Housing Rugged Aluminum, IP30 Protection
Case Dimension (L x W x D) 103.5 x 32 x 81.5 mm (L x W x D)
Installation mounting Din-Rail and Wall Mounting
3
Package Content
The following items are shipped with this device:
Din-Rail Mounted * 1
Wall-Mounted * 2
Screws * 4
4 pin Terminal Block * 1
Housing Dimension (mm)
