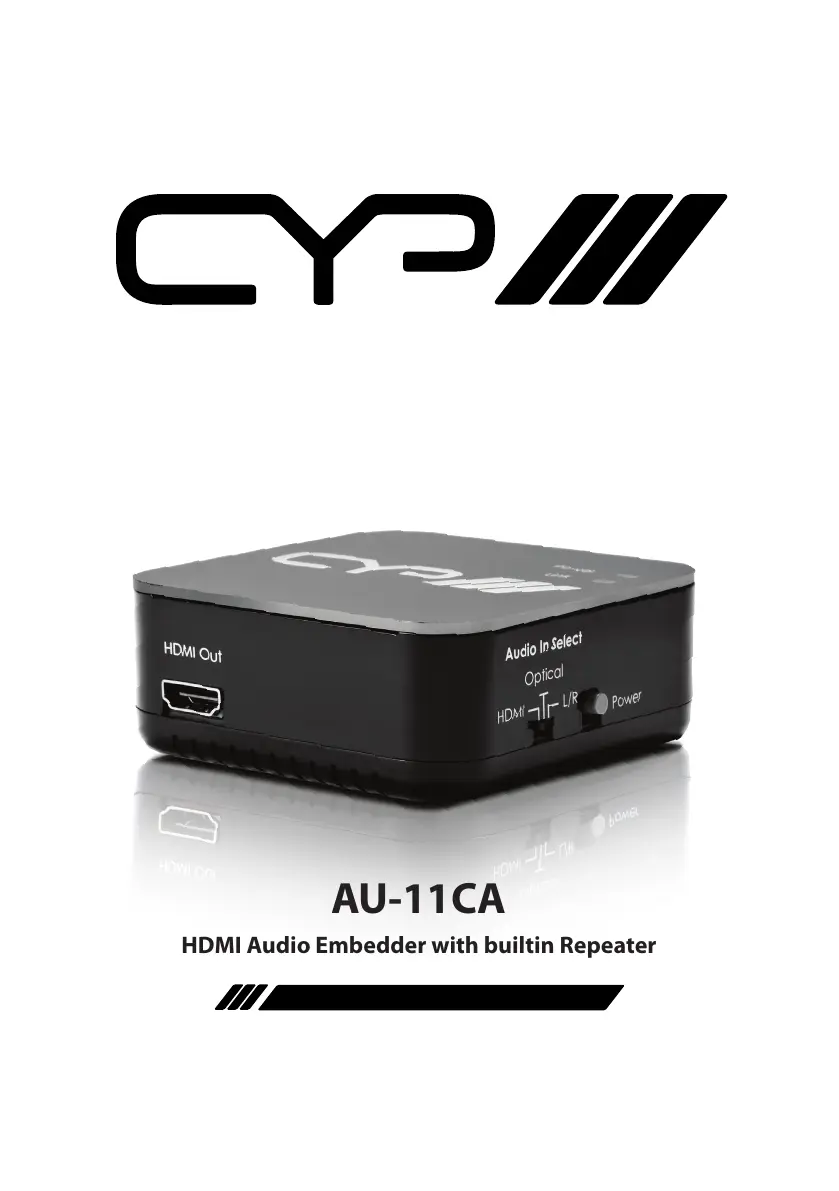

OPERATION MANUAL
AU-11CA
HDMI Audio Embedder with
built in Repeater
Table of Contents
1. Introduction 1
2. Features 1
3. Package Contents 1
4. Operation Controls and Functions 2
4.1 Top Panel Diagram 2
4.2 Right Panel Diagram 2-3
4.3 Left Panel Diagram 3
4.4 Upper Panel Diagram 3-4
4.5 Rear Panel Diagram 4
5. Connection Diagram 4
6. Specications 5
Page 1
1. Introduction
The AU-11CA Audio Embedder lets you insert an external audio signal into any
HDMI source. The device allows you to insert analogue or digital stereo and multi-
channel digital surround sound signals (via Optical) to give users the capability to
overcome audio issues within complex HDMI installation. The AU-11CA also repeats
the HDMI signal to allow an extended total HDMI cable range.
2. Features
• Compliant with HDMI v1.3 , HDCP 1.2 and DVI 1.0
• Supports Optical Sample Rate up to 48 kHz.
• Supports LPCM Stereo, DTS and Dolby Digital via Optical input.
• Supports up to 24bit resolution digital audio.
• HDMI cable distance testing showed that with 1080p 8bit/12bit resolution, the
input/output distance is up to 10 meters.
• Low power consumption.
• Supports HDMI Sample Rates up to 192 kHz
• Simple switched operation
• Supports 3D signals.
3. Package Contents
• HDMI to CAT6 Transmitter.
• 5V / 1A Power Adaptor
• Operation Manual.
