I N S T A L L A T I O N I N S T R U C T I O N S
LVS1U LVSXU

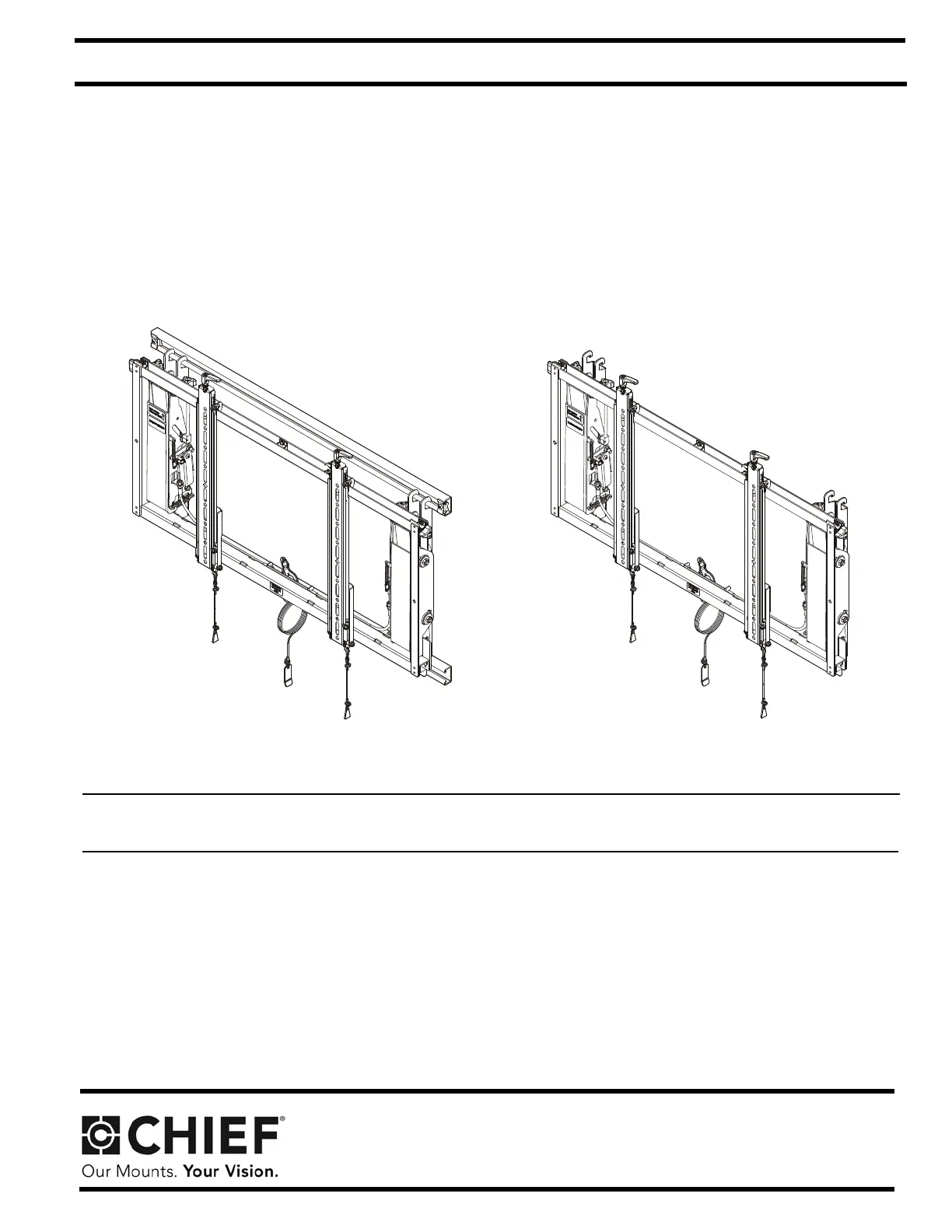

ConnexSys™ Video Wall Mounting System
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
LVS1U / LVSXU
LVS1U / LVSXU Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief®, ConnexSys™, RapidDraw™, and PowerZone™ are
trademarks of Milestone AV Technologies. All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components attached to the LVS1U/LVSXU does not
exceed maximum weights listed in table below.
IMPORTANT ! : The video wall system ships either with rails
(LVS1U) or without rails (LVSXU). If you’re installing a video
wall of LVSXU mounts you will need to provide the strut channel
for mounting to the wall. (See LET’S GET STARTED!
Measurements You’ll Need section for further information.)
IMPORTANT ! : The LVS1U/LVSXU is designed to be
mounted to:
• a bare 8" thick solid concrete wall. Fasteners must be
placed a minimum of 16" (406mm) and a maximum of
24" (610mm) apart AND within 9" (230mm) of each end
of the rail/strut channel.
• a 5/8" minimum thickness plywood-backed, steel stud
wall covered with drywall having a maximum thickness
of 5/8". Fasteners must be placed a maximum of 8"
(203mm) apart AND in last slots on each end of rail/
strut channel.
• a 2" x 4" wood stud wall covered with drywall having a
maximum thickness of 5/8". Fasteners must be placed
a minimum of 16" (406mm) and a maximum of 24"
(610mm) apart AND within 9" (230mm) of each end of
the rail/strut channel.
--SAVE THESE INSTRUCTIONS--
MODEL Maximum Weight Allowed
LVS1U 150 lbs
(68.0 kg)
LVSXU 150 lbs
(68.0 kg)
Installation Instructions LVS1U / LVSXU
3
TABLE OF CONTENTS
IMPORTANT SAFETY INSTRUCTIONS ....................................2
TABLE OF CONTENTS ...............................................................3
LEGEND ......................................................................................4
DIMENSIONS ..............................................................................5
TOOLS REQUIRED FOR INSTALLATION .................................6
PARTS .........................................................................................6
LET’S GET STARTED! Measurements You’ll Need ....................7
STRUT CHANNEL REQUIREMENTS (LVSXU) ..........................8
MOUNTING PATTERN OFFSET CALCULATION ......................8
ATTACHING STRUT CHANNEL OR RAIL .................................9
HANGING LVS1U/LVSXU MOUNT ON RAIL .............................10
Preparing Strut Channel (LVSXU only) ..................10
Hanging Mounts .....................................................10
INSTALLING INTERFACE BRACKETS ......................................11
ADDING DISPLAYS TO MOUNTS ..............................................11
ADJUSTMENTS ..........................................................................12
COMPLETING THE INSTALLATION ..........................................14
Cable Management Clips .......................................14
Security ...................................................................14
FASTENER INSTALLATION METHODS ....................................14
Wood Stud ..............................................................14
Concrete .................................................................14
Plywood-Backed Steel Stud ...................................15
SERVICE .....................................................................................16
Extending and Retracting Mount ............................16
Interface Bracket Kickstands ..................................16
RapidDraw Display Release ...................................16
