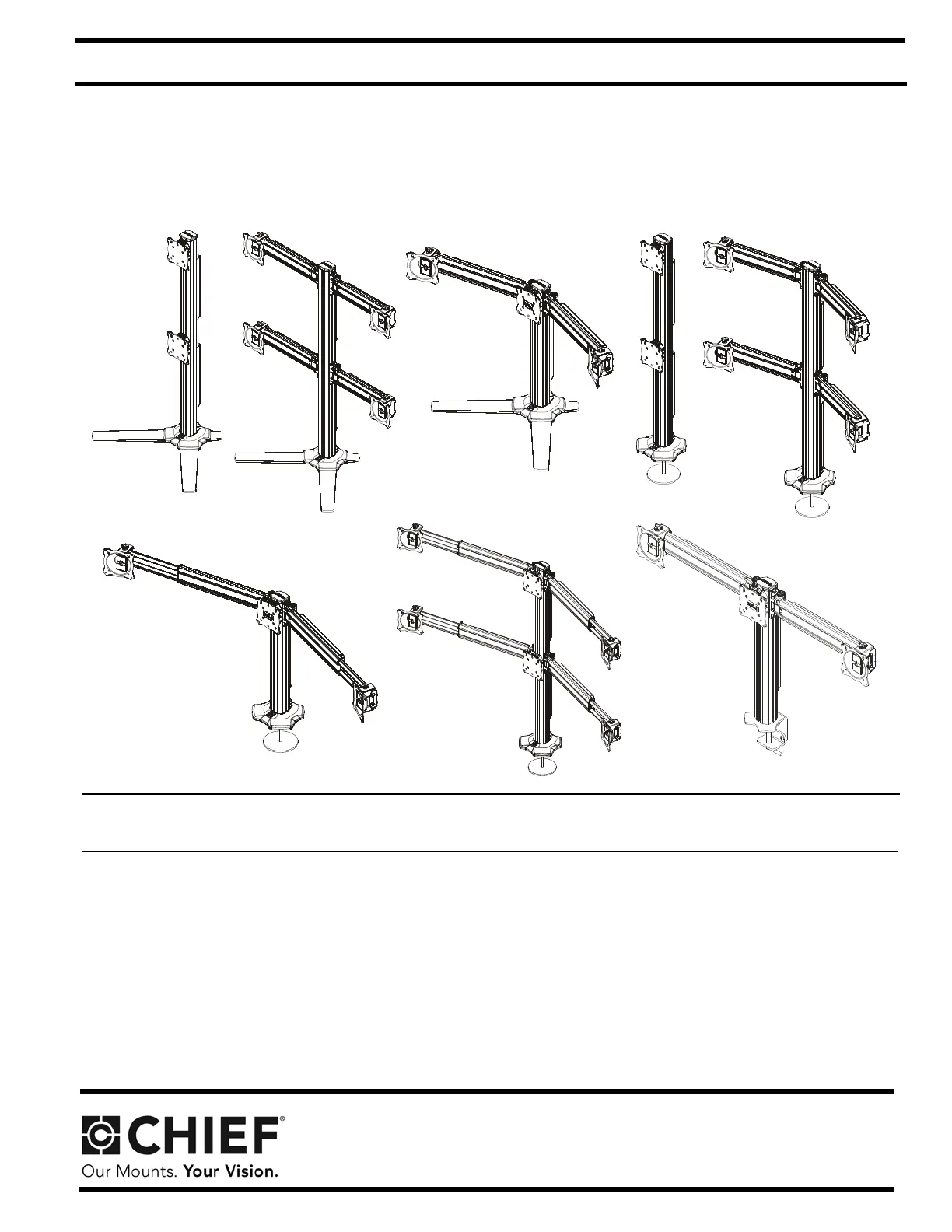

I N S T A L L A T I O N I N S T R U C T I O N S
K3F120
K3F220
K3G310
K3G120 K3G220
K3F310
K3G320
Kontour™ Array Arm Series
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
K3 Series
K3 Series Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively “Milestone”), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Failure to provide adequate structural strength
for this component can result in serious personal injury or
damage to equipment! It is the installer’s responsibility to
make sure the structure to which this component is attached
can support five times the combined weight of all equipment.
Reinforce the structure as required before installing the
component.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! It is the
installer’s responsibility to make sure the combined weight of
all components located on the K3 Series mount up to (and
including) the display does not exceed 15 lbs (6.8 kg) per
display for the K3F220, K3G220, K3F310, K3G310 and
K3G320 mounts or 25 lbs (11.34 kg) per display for the
K3F120 and K3G120 mounts.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: The K3F120, K3F220 and K3F310 mounting
systems are intended for table top mounting ONLY!
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: Do not use this product outdoors.
--SAVE THESE INSTRUCTIONS--
Installation Instructions K3 Series
3
DIMENSIONS
464.7
18.29
921.9
MAX. MONITOR
CENTER HEIGHT
36.29
FROM SURFACE
TILT ADJUSTMENT
+/-10 DEGREES
VESA
100 X 100
75 X 75
COMPATIBLE
576.0
22.68
2.43
COLUMN WIDTH
61.6
0.31
7.9
BASE
THICKNESS
3.19
2.27
57.7
COLUMN
DEPTH
30.6
1.21
81.0
393.6
15.50
39.06
992.2
K3F120
DIMENSIONS: INCHES
[MILLIMETERS]
MAX. MONITOR CENTER
HEIGHT FROM SURFACE
14.66
372.4
MAX DISTANCE
BETWEEN MONITORS
VESA
100 X 100
75 X 75
COMPATIBLE
INTERFACE
TILT ADJUSTMENT
+/-12
22.68
576.0
2.43
COLUMN WIDTH
61.6
0.31
7.9
BASE THICKNESS
39.06
992.2
393.6
15.50
81.0
2.27
COLUMN DEPTH
57.7
3.19
1.21
30.6
15°
34.02
MAX ANGLE
864.1
1.60
40.6
K3F220
DIMENSIONS: INCHES
[MILLIMETERS]
