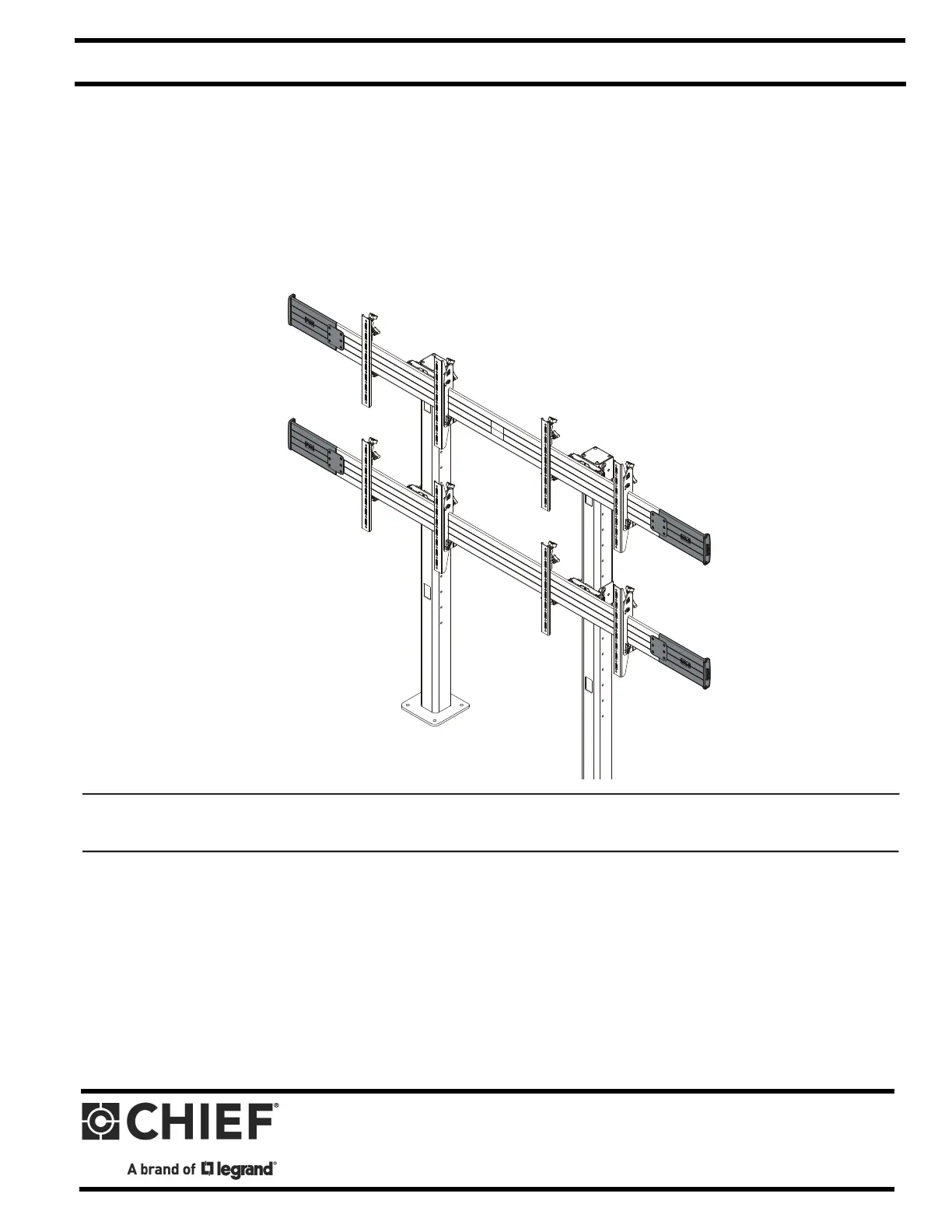

I N S T A L L A T I O N I N S T R U C T I O N S
Instrucciones de instalación
Installationsanleitung
Instruções de Instalação
Istruzioni di installazione
Installatie-instructies
Instructions d´installation
Video Wall Extenders
Spanish Product Description
German Product Description
Portuguese Product Description
Italian Product Description
Dutch Product Description
French Product Description
FCAX08/14/20
FCAX08/14/20 Installation Instructions
2
DISCLAIMER
Milestone AV Technologies and its affiliated corporations and
subsidiaries (collectively "Milestone"), intend to make this
manual accurate and complete. However, Milestone makes no
claim that the information contained herein covers all details,
conditions or variations, nor does it provide for every possible
contingency in connection with the installation or use of this
product. The information contained in this document is subject
to change without notice or obligation of any kind. Milestone
makes no representation of warranty, expressed or implied,
regarding the information contained herein. Milestone assumes
no responsibility for accuracy, completeness or sufficiency of
the information contained in this document.
Chief® is a registered trademark of Milestone AV Technologies.
All rights reserved.
IMPORTANT SAFETY INSTRUCTIONS
WARNING: A WARNING alerts you to the possibility of
serious injury or death if you do not follow the instructions.
CAUTION: A CAUTION alerts you to the possibility of
damage or destruction of equipment if you do not follow the
corresponding instructions.
WARNING: Failure to read, thoroughly understand, and
follow all instructions can result in serious personal injury,
damage to equipment, or voiding of factory warranty! It is the
installer’s responsibility to make sure all components are
properly assembled and installed using the instructions
provided.
WARNING: Exceeding the weight capacity can result in
serious personal injury or damage to equipment! Adding the
FCAX video wall extenders allows for wider screens to be
mounted but does not change the weight capacity listed for
the mount. Consult (Table 1) for mounting system’s weight
capacity details.
WARNING: Use this mounting system only for its intended
use as described in these instructions. Do not use
attachments not recommended by the manufacturer.
WARNING: Never operate this mounting system if it is
damaged. Return the mounting system to a service center for
examination and repair.
WARNING: RISK OF SERIOUS INJURY OR DEATH! Use
with televisions weighing more than the maximum weight
indicated may result in the cart collapsing or overturning onto
a person causing serious injury or death!
WARNING: Do not use this product outdoors.
NOTE: The FCAX08, FCAX14 and FCAX20 are intended to be
used with:
• LCM Video Wall Series
• LVM Video Wall Carts Series
• LBM Bolt-Down Video Wall Series
Table 1: Weight Capacities
MODEL Max Weight
Allowed for EACH
Display
Max Weight
Capacity of
Mounting System
LCM2X2U 125 lbs
(56.7 kg)
500 lbs
(226.8 kg)
LCM3X2U 125 lbs
(56.7 kg)
750 lbs
(340.2 kg)
LCM3X3U 85 lbs
(38.6 kg)
765 lbs
(347.0 kg)
LVM2X2U 125 lbs
(56.7 kg)
500 lbs
(226.8 kg)
LVM3X2U 125 lbs
(56.7 kg)
750 lbs
(340.2 kg)
LVM3X3U 100 lbs
(45.4 kg)
900 lbs
(408.2 kg)
LVM3X1UP 125 lbs
(56.7 kg)
375 lbs
(170.1 kg)
LVM2X2UP 100 lbs
(45.4 kg)
400 lbs
(181.4 kg)
LVM3X2UP 100 lbs
(45.4 kg)
600 lbs
(272.2 kg)
LBM2X2U 125 lbs
(56.7 kg)
500 lbs
(226.8 kg)
LBM3X2U 125 lbs
(56.7 kg)
750 lbs
(340.2 kg)
LBM3X3U 100 lbs
(45.4 kg)
900 lbs
(408.2 kg)
LBM3X1UP 125 lbs
(56.7 kg)
375 lbs
(170.1 kg)
LBM2X2UP 100 lbs
(45.4 kg)
400 lbs
(181.4 kg)
LBM3X2UP 100 lbs
(45.4 kg)
600 lbs
(272.2 kg)
Installation Instructions FCAX08/14/20
3
NOTE: The FCAX08, 14, 20 have no serviceable parts.
NOTE: The UL Listed FCAX horizontal extension brackets may
be used with UL Listed add-on row, FCA2X1U,
FCA3X1U and FCA3X1UP (not included).
--SAVE THESE INSTRUCTIONS--
