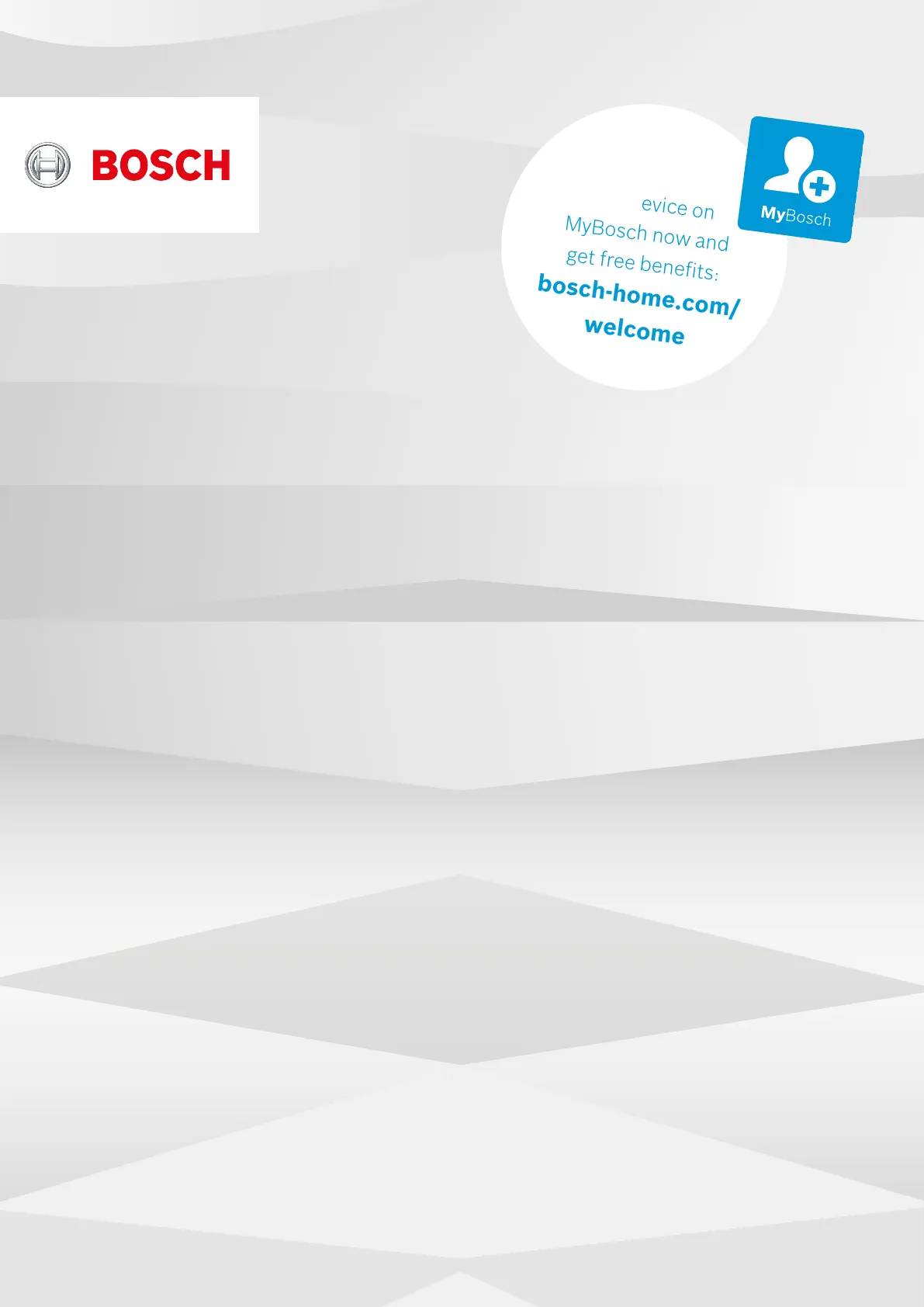

Register your
new d
Built-in gas hob
PMD82A31.. PMD83A31.. PMD93A31..
[en] User manual and installation instructions
en Safety
2
Table of contents
USER MANUAL
1 Safety....................................................................2
2 Avoiding property damage..................................4
3 Environmental protection and saving en-
ergy .......................................................................4
4 Applicable standards...........................................4
5 Familiarising yourself with your appliance ........5
6 Technical specifications......................................6
7 Using cookware ...................................................7
8 Basic operation ....................................................7
9 Cleaning and servicing........................................9
10 Troubleshooting...................................................9
11 Customer Service...............................................11
12 Installation and connection...............................11
12.1 Safe installation .................................................11
1 Safety
Observe the following safety instructions.
1.1 General information
¡Read this instruction manual carefully.
¡Keep the instruction manual and the
product information safe for future refer-
ence or for the next owner.
¡Do not connect the appliance if it has been
damaged in transit.
1.2 Intended use
This appliance is designed only to be built
into kitchen units. Read the special installation
instructions.
The appliance can only be used safely if it is
correctly installed according to the safety in-
structions. The installer is responsible for en-
suring that the appliance works perfectly at its
installation location.
Only use this appliance:
¡To prepare meals and drinks.
¡Under supervision. Never leave the appli-
ance unattended when cooking for short
periods.
¡In private households and in enclosed
spaces in a domestic environment.
¡Up to an altitude of max. 2000m above
sea level.
Do not use the appliance:
¡On boats or in vehicles.
¡as a room heater.
¡with an external timer or a remote control.
1.3 Restriction on user group
This appliance may be used by children aged
15 or over and by people who have reduced
physical, sensory or mental abilities or inad-
equate experience and/or knowledge,
provided that they are supervised or have
been instructed on how to use the appliance
safely and have understood the resulting
dangers.
Children must not play with the appliance.
Children must not perform cleaning or user
maintenance unless they are at least 15 years
old and are being supervised.
Keep children under the age of 15 years
away from the appliance.
1.4 Safe use
WARNING‒Risk of suffocation!
Children may put packaging material over
their heads or wrap themselves up in it and
suffocate.
▶
▶
▶
▶▶ Keep packaging material away from chil-
dren.
▶
▶
▶
▶▶ Do not let children play with packaging ma-
terial.
Children may breathe in or swallow small
parts, causing them to suffocate.
▶
▶
▶
▶▶ Keep small parts away from children.
▶
▶
▶
▶▶ Do not let children play with small parts.
The use of a gas cooking appliance results in
the production of heat and moisture in the
room in which it is installed. Ensure that the
kitchen is well ventilated: keep natural ventila-
tion holes open or install a mechanical ventila-
tion device (mechanical extractor hood).
Prolonged intensive use of the appliance may
call for additional ventilation, for example
opening of a window, or more effective ventil-
ation, for example increasing the level of
mechanical ventilation where present.
Safety en
3
WARNING‒Risk of explosion!
Escaping gas may cause an explosion. WHAT
TO DO IF YOU SMELL GAS OR IF THERE
ARE FAULTS IN THE GAS INSTALLATION
▶
▶
▶
▶▶ Immediately shut off the gas supply or
close the gas cylinder valve.
▶
▶
▶
▶▶ Immediately extinguish all naked flames
and cigarettes.
▶
▶
▶
▶▶ Do not operate any light switches or appli-
ance switches.
▶
▶
▶
▶▶ Do not pull any plugs out of any sockets.
▶
▶
▶
▶▶ Do not use any telephones or mobile
phones within the building.
▶
▶
▶
▶▶ Open windows and ventilate the room.
▶
▶
▶
▶▶ Call the after sales service or the gas sup-
plier.
Escaping gas may cause an explosion. Small
amounts of gas can collect over a longer
period of time and ignite.
▶
▶
▶
▶▶ Close the safety valve for the gas supply
when the appliance is out of use for pro-
longed periods.
Escaping gas may cause an explosion. If the
liquefied gas bottle is not upright, liquefied
propane/butane can enter the appliance. In-
tense darting flames may therefore escape
from the burners. Components may become
damaged and start to leak over time so that
gas escapes uncontrollably.
▶
▶
▶
▶▶ Always use liquefied gas bottles in an up-
right position.
WARNING‒Risk of fire!
Leaving fat or oil cooking on an unattended
hob can be dangerous and may lead to fires.
▶
▶
▶
▶▶ Never leave hot oil or fat unattended.
▶
▶
▶
▶▶ Never attempt to extinguish a fire using wa-
ter; instead, switch off the appliance and
then cover with a lid or a fire blanket.
The appliance becomes very hot.
▶
▶
▶
▶▶ Never place flammable objects on the hob
or in its immediate vicinity.
▶
▶
▶
▶▶ Never store any objects on the hob.
The appliance will become hot.
▶
▶
▶
▶▶ Do not keep combustible objects or aero-
sol cans in drawers directly underneath the
hob.
▶
▶
▶
▶▶ Never store or use combustible materials
(e.g. spray cans or cleaning agents) under
the appliance or in its immediate vicinity.
The appliance becomes very hot, fabrics and
other objects may ignite.
▶
▶
▶
▶▶ Keep fabrics (e.g. garments or curtains)
away from the flames.
▶
▶
▶
▶▶ Never reach over the flames.
▶
▶
▶
▶▶ Do not place combustible objects (e.g. tea
towels or newspapers) on, next to or be-
hind the appliance.
Food may catch fire.
▶
▶
▶
▶▶ The cooking process must be monitored. A
short process must be monitored continu-
ously.
Escaping gas may ignite.
▶
▶
▶
▶▶ If the burner does not ignite after
15seconds, turn the control knob to the
"Off" position and open the door or window
in the room. Wait at least one minute be-
fore igniting the burner again.
▶
▶
▶
▶▶ In the event of the burner flames being ac-
cidentally extinguished, turn off the burner
control and do not attempt to re-ignite the
burner for at least one minute.
When gas burners are in operation without
any cookware placed on them, they can build
up a lot of heat. The extractor hood above it
may become damaged or catch fire.
▶
▶
▶
▶▶ Only operate the gas burners with cook-
ware on them.
WARNING‒Risk of burns!
The hob becomes hot during use.
▶
▶
▶
▶▶ Care should be taken to avoid touching the
heating elements.
▶
▶
▶
▶▶ Metallic objects such as knives, forks,
spoons and lids should not be placed on
the hob as they can become hot.
Empty cookware becomes extremely hot
when set on gas burners that are operating.
▶
▶
▶
▶▶ Never heat up empty cookware.
The appliance becomes hot during operation.
▶
▶
▶
▶▶ Allow the appliance to cool down before
cleaning.
WARNING‒Risk of injury!
The product is assembled by the factory.
Users are not allowed to assemble or modify
the structure. In case of failure, lack of spare
parts or replacement of spare parts, please
contact the after-sales service or local dealer,
and do not purchase spare parts by yourself
for replacement.
