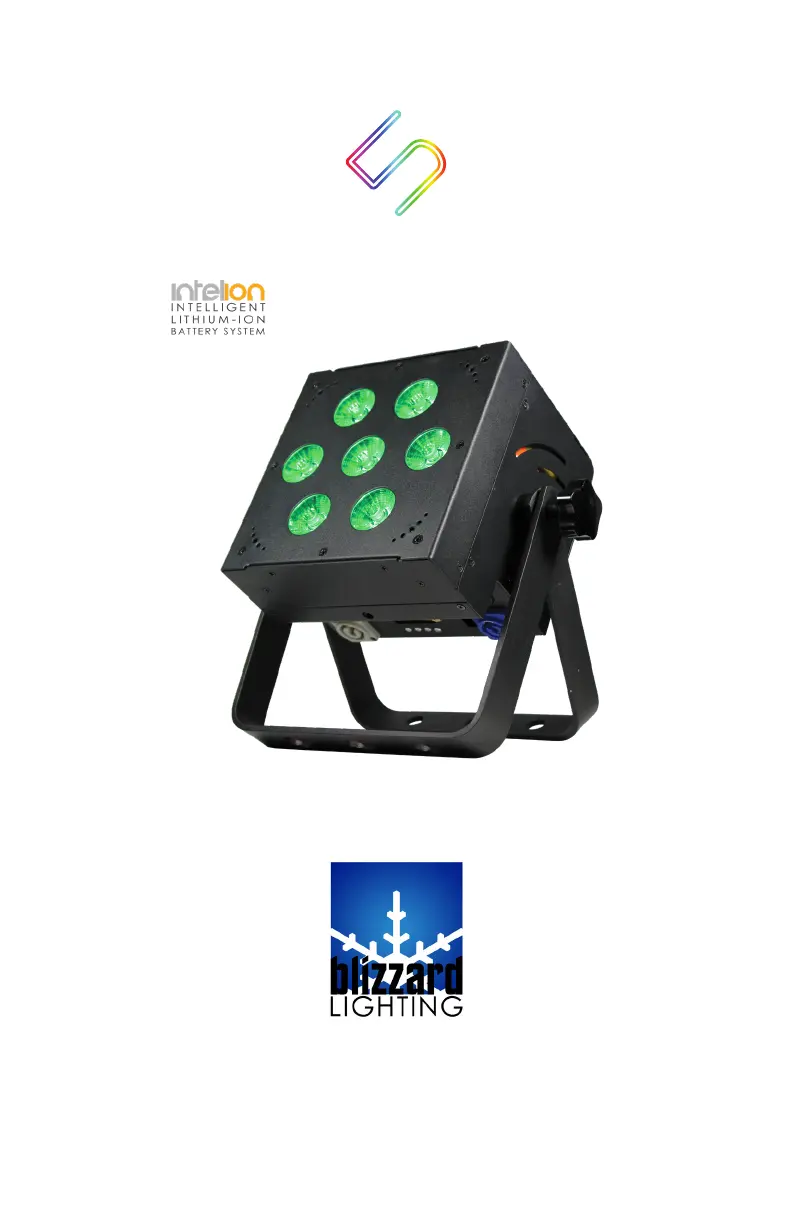

Strona 1/24
Blizzard Lighting, LLC
www.blizzardlighting.com
Waukesha, WI USA
Copyright (c) 2016
TM
SKYBOX
Page 2
SkyBox™ 5 User Manual Rev. E © 2016 Blizzard Lighting, LLC
TABLE OF CONTENTS
SkyBox™ 5 1
1. Getting Started 4
What’s In The Box? 4
Getting It Out Of The Box 4
Powering Up! 4
Getting A Hold Of Us 4
Safety Instructions (Don’t run with scissors!) 5
2. Meet The SkyBox™ 5 6
Features 6
DMX Quick Reference 6
The SkyBox™ 5 Pin-up Picture 7
3. Setup 8
Connecting A Bunch Of SkyBox™ 5 Fixtures 8
Data/DMX Cables 8
Cable Connectors 9
3-Pin??? 5-Pin??? Huh? 9
Take It To The Next Level: Setting up DMX Control 9
Fixture Linking (Master/Slave Mode) 10
Mounting/Rigging 10
Using the AnyFi™ Wireless DMX Receiver 11
Using the Intelion™ Battery System 13
4. Operating Adjustments 14
Navigating The Control Panel 14
Control Panel Menu Structure 15
DMX Mode 16
Set the Starting DMX Address 16
Select the DMX Channel Mode 16
Slave Mode 16
Auto Mode / Static Colors 16
Speed 16
Fade 16
Strobe 17
Manual Color Mixing 17
Sound Active Mode 17
Dimming Mode 17
Power Output Mode 17
Using the IR Remote Control 18
DMX Channel Values In-Depth 19
5. Appendix 20
A Quick DMX Lesson 20
Troubleshooting 20
Keeping Your SkyBox™ 5 As Good As New 21
Returns (Gasp!) 21
Shipping Issues 21
Tech Specs 22
Dimensional Drawings 23
Page 3
SkyBox™ 5 User Manual Rev. E © 2016 Blizzard Lighting, LLC
LITHIUM-ION BATTERY WARNINGS & INFO
YOU MUST READ THESE SAFETY INSTRUCTIONS AND WARNINGS BEFORE USING OR
CHARGING YOUR FIXTURES.
LI-ION BATTERIES ARE VOLATILE. FAILURE TO READ AND FOLLOW THE BELOW INSTRUC-
TIONS MAY RESULT IN FIRE, PERSONAL INJURY AND DAMAGE TO PROPERTY IF CHARGED
OR USED IMPROPERLY. BY PURCHASING AND USING THESE FIXTURES, YOU ASSUME ALL
RISKS ASSOCIATED WITH LITHIUM BATTERIES. IF YOU DO NOT AGREE WITH THESE CONDI-
TIONS, PLEASE CONSIDER RETURNING THE FIXTURES
1. WARNING! TO REDUCE THE RISK OF INJURY AND/OR EQUIPMENT DAMAGE, DO
NOT TAMPER WITH THE CHARGING CIRCUITRY IN THIS FIXTURE. The use of other
types of chargers may result in personal injury or equipment damage. Under no circumstanc-
es attempt to connect the battery pack to any power supplies or other equipment that is not
specically and expressly designated for use with this model battery pack.
2. NEVER CHARGE UNATTENDED. When charging Li-Ion batteries, you must always re-
main in constant observation in order to react to potential problems which may occur. Failure
to do so may result in re. Put the battery in a reproof container, and charge in an isolated
area, away from ammable materials. Always have a re extinguisher ready for emergency
use.
3. USE THE LITHIUM ION BATTERY PACK ONLY WITH EQUIPMENT SPECIFICALLY
AND EXPRESSLY DESIGNATED FOR USE WITH THIS MODEL BATTERY PACK. Use with
other equipment may result in re, electric shock, personal injury, and/or damage to equip-
ment.
4. AVOID DANGEROUS CONDITIONS AND ENVIRONMENTS. Do not charge the battery
pack in damp or wet conditions. Avoid using the pack in direct exposure to rain or snow. Do
not use the battery pack or charger in the presence of explosive gases or ammable materi-
als.
5. AVOID USING OR STORING THE BATTERY PACK IN EITHER EXTREME COLD OR
EXTREME HOT TEMPERATURES. The battery pack will disable itself under conditions of
extreme heat (above 60 °C) and may not function to full performance under conditions of
extreme cold (below –20 °C). Storage at elevated temperatures (above 25 °C) will shorten
the life of the battery pack.
6. DO NOT BURN OR INCINERATE BATTERY PACKS. Battery packs may explode causing
personal injury, re, and/or damage. Fumes resulting from burning of battery packs may be
toxic.
7. DO NOT DROP, CRUSH, IMPACT, OR MECHANICALLY ABUSE BATTERY PACKS.
Cease use of xtures that have suered a sharp impact, been dropped, run over, or damaged
in any other way. Such impacts may cause internal damage that is not externally visible and
that, over time, may cause short circuits, battery cell leakage, or other
events that may lead to re, personal injury, and or equipment damage.
8. DO NOT DISASSEMBLE BATTERY PACK. There are no user serviceable parts within
battery packs. Disassembly may result in short circuiting or other damage that may cause
re, personal injury, and/or other damage.
9. AVOID CONTACT WITH BATTERY CHEMICALS. If a battery pack leaks battery chemi-
cals, avoid any contact with skin, eyes, or mouth. In the event of contact with skin, wash
immediately with soap and water and rinse with vinegar. For eye contact, begin ushing with
clean water, immediately call for medical help, and continue ushing for 20 minutes or until
medical help arrives.
10. STORE IN A COOL, DRY PLACE. Avoid leaving the xture in direct sunlight, vehicle
cabs, compartments, or unventilated storage buildings during hot summer conditions. Under
extreme temperature conditions damage may occur. Elevated temperatures in general
shorten the life of your battery pack.
