Strona 1/4

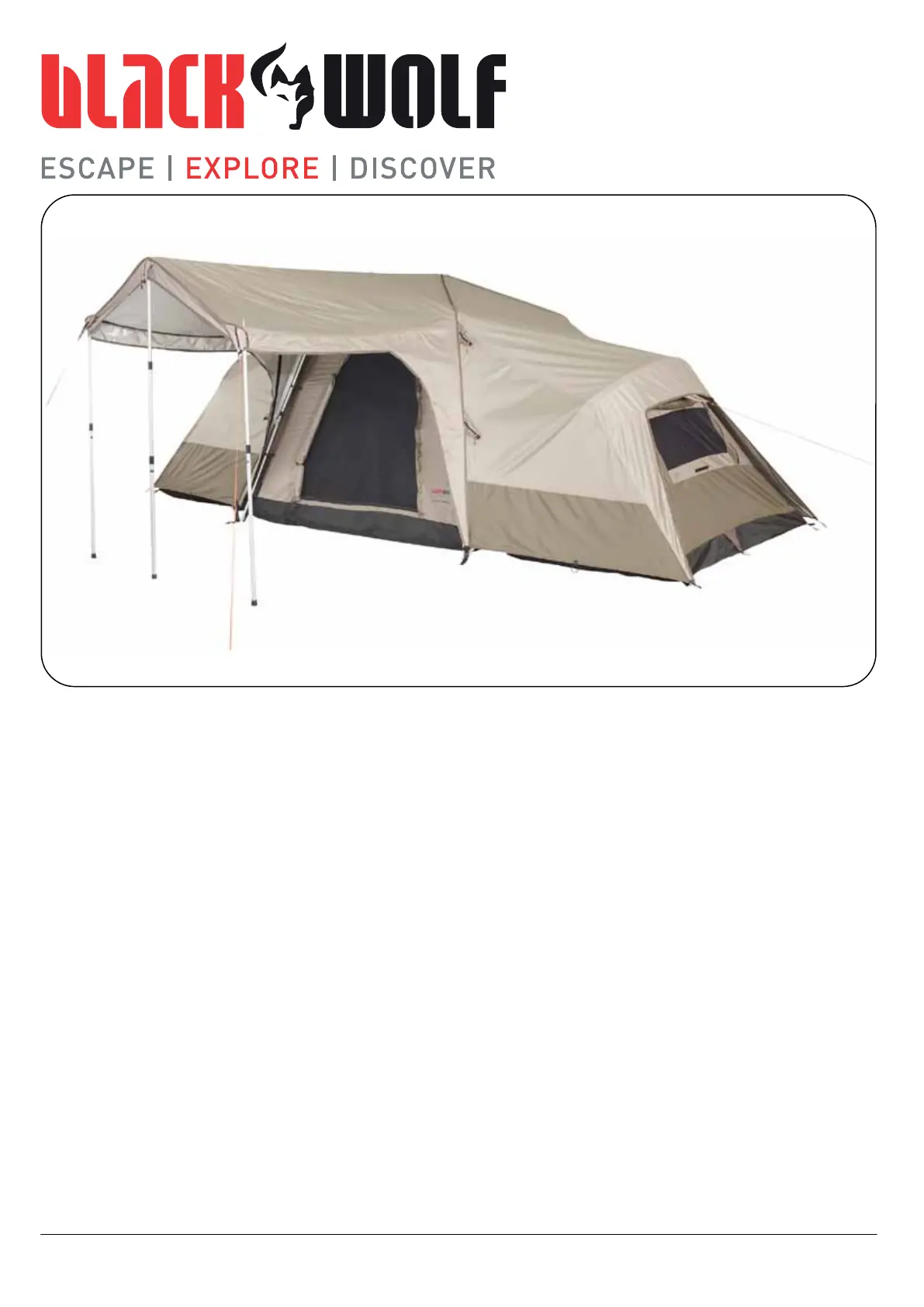

TURBO LITE
TWIN TENT
www.blackwolf.com.au
Congratulations on choosing a BlackWolf Turbo tent,
please read through this instruction booklet thoroughly
before using your new tent.
BEFORE YOUR FIRST CAMPING TRIP
We strongly recommend you pitch your tent before you
take it away for the first time to familiarise yourself with
the process and to double check that all the components
are included.
We recommend you weather your tent by hosing it
thoroughly, the stitching in the bound seams will swell
and this will help seal the stitching holes. Please note and
fully understand that no tent can be guaranteed 100%
waterproof. Whilst the fabric your tent is made from is
waterproof in certain weather conditions such as strong
wind and driven rain can cause some leakage through
seams and zippers.
USING YOUR TENT
Always peg out all guy ropes at all times. In cool weather
or high humidity condensation can form inside your tent.
This is not coming through the fabric but is water vapour
that is inside the tent (created when you breathe and
perspire and also from evaporation o wet items inside
your tent). The best way to minimise condensation is to
maximise ventilation by opening windows, vents and
doors to allow air to flow through.
AFTER USE CARE
Where possible clean and dry your tent before packing it
away, if the weather is bad and you have to pack your
tent wet it is important to get it out and thoroughly dry it
as soon as possible. NEVER store your tent wet, mildew
can form on the fabric, pegs and other components can
corrode. After coastal camping trips it is a good idea to
rinse your gear in fresh water. Store your tent in a dry, well
ventilated place.
COMPONENT LIST
1 x Turbo Lite Twin tent with frame attached
1 x Turbo Lite Twin fly
13 x Guy ropes (already attached to your tent and packed
in fin pockets)
4 x Loose guy ropes for windows
5 x Awning poles & 1 x Awning ridge pole
2 x U-pole (2 x 2 segments, 2 curved poles)
36 x steel pegs in peg bag
1 x Turbo tent bag
WATCH AN ONLINE VIDEO DEMONSTRATION
OF TURBO PITCHING AT www.blackwolf.com.au
TURBO LITE TWIN TENT PITCHING INSTRUCTIONS
1
2
3
4
STRAPS
1. Choose a flat site, clear
away any sharp sticks or
stones that may damage your
tent floor. Remove your tent
from the carry bag and unclip
the strap around the tent (put
the strap back in the bag for
packing up the tent). Then
unclip the strap around the
top of the frame that holds
the pole bundle together.
2. Unroll the tent, pull the
corners into position so the
floor is taught and peg the
corners and the peg out
d-rings at the feet of the
Turbo frame.
3. Straighten the legs, the
lower knuckles will lock into
place
4. Un-zip the door and step
inside the tent, push the
centre hub up from under-
neath, it will “pop” into posi-
tion.
5. Take the four two section
poles and unfold, two straight
and two curved poles are for
each end. Thread the curved
section through the pole
sleeve on the top of one side
room. Attach a straight pole
to one end with the end
towards the Turbo frame of
the tent, then do the same on
the other side. The pole ends
should sit just next to the
tent floor, pull them back to
increase tension on the side
room until the walls and roof
are taught. Do the same on
the other side, the inner is
pitched.
TURBO LITE TWIN TENT PITCHING INSTRUCTIONS - continued
!
PHOENIX LEISURE GROUP
PO Box 1, Pyrm nt, NS 20 58 o W 09
T : 6 a 9 9622 el 02 9552 900 F x: 02 552
8
5
!
6. Un-fold the fly and lay it
over the tent, the awning is at
the front over the door. Clip
the fly in place at the feet of
the Turbo frame and peg out
the rear of the fly using the
elastic loops attached to the
fly. Secure the Velcro loops on
the inside of the fly to the
frame. Extend the awning roof
pole and place the curved
spigot into the hole at the
front of the hub.
7. Extend the 3 part awning
pole to approximately the
height of the centre hub and
thread the spigot through the
hole in the awning roof pole
and the centre front of the
awning. Extend the roof pole
until the fly fabric is taught
then tighten the black collar to
set the length.
8. Extend the 2 part awning
poles to approximately the
height of the upper knuckles
and thread the spigots
through the corner eyelets.
Unravel the guy ropes stored
in the zippered fin pockets
and peg out at approximately
45 degrees to the tent. The
centre awning guy rope should
be pegged directly in front of
the tent
Short guy ropes are supplied
for pegging out the gussetted
window flaps for ventilation.
67
TWIST
NOTE: IT IS ESSENTIAL THAT THE GUY ROPE FOR THE SIDE ROOMS IS KEPT
TAUGHT TO STOP WATER POOLING ON THE ROOF. BREAKAGE CAUSED BY NOT
KEEPING THIS GUY ROPE TIGHT WILL NOT BE COVERED BY WARRANTY.
Specyfikacje produktu
| Marka: | Black Wolf |
| Kategoria: | namiot |
| Model: | Turbo Lite Twin 240 |
