Strona 1/4

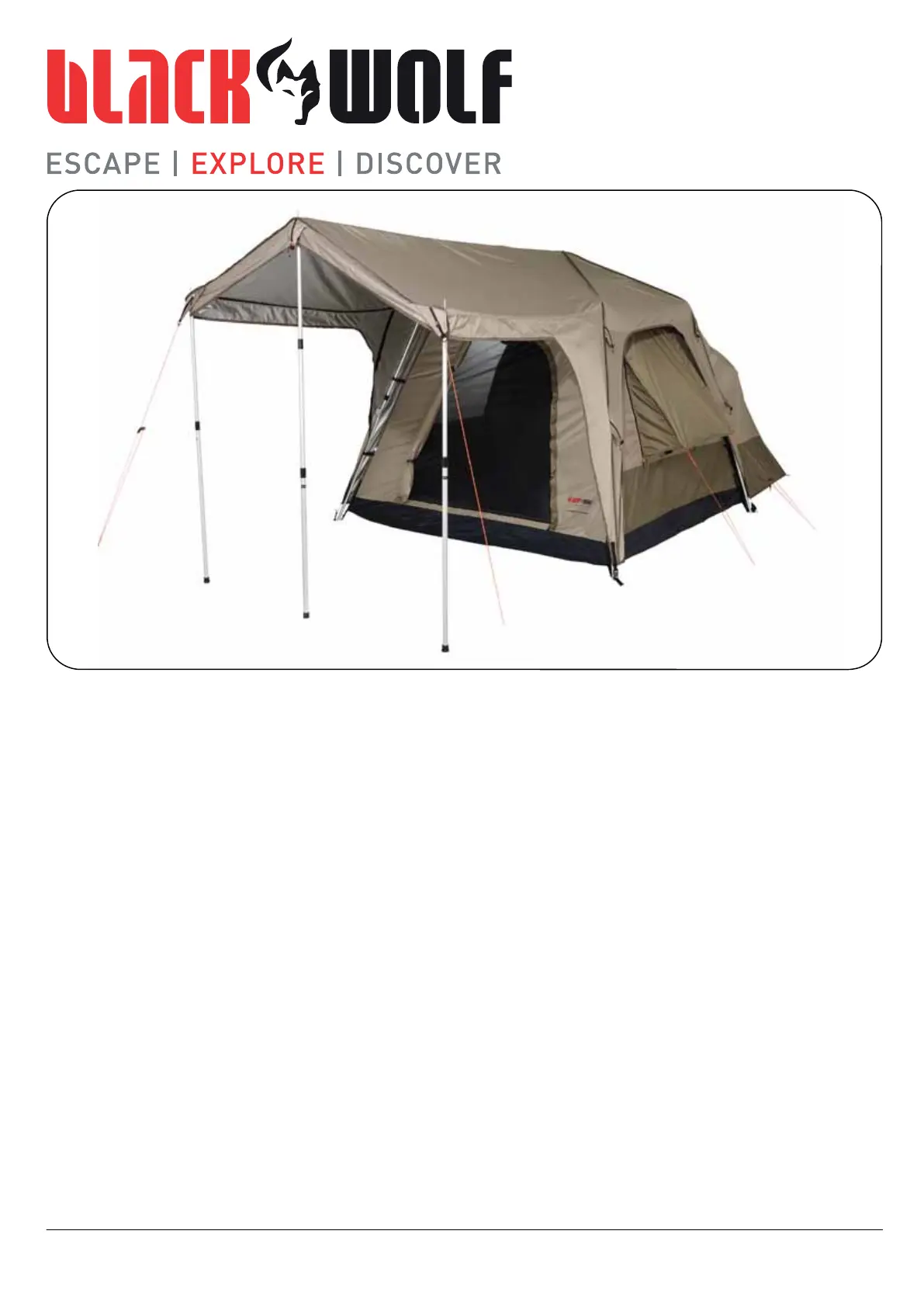

TURBO LITE
PLUS TENT
www.blackwolf.com.au
Congratulations on choosing a BlackWolf Turbo
tent, please read through this instruction booklet
thoroughly before using your new tent.
BEFORE YOUR FIRST CAMPING TRIP
We strongly recommend you pitch your tent before
you take it away for the first time to familiarise
yourself with the process and to double check that
all the components are included.
We recommend you weather your tent by hosing it
thoroughly, the stitching in the bound seams will
swell and this will help seal the stitching holes.
Please note and fully understand that no tent can be
guaranteed 100% waterproof. Whilst the fabric your
tent is made from is waterproof in certain weather
conditions such as strong wind and driven rain can
cause some leakage through seams and zippers.
USING YOUR TENT
Always peg out all guy ropes at all times. In cool
weather or high humidity condensation can form
inside your tent. This is not coming through the
fabric but is water vapour that is inside the tent
(created when you breathe and perspire and also
from evaporation o wet items inside your tent).
The best way to minimise condensation is to
maximise ventilation by opening gusseted
windows, vents and doors to allow air to flow
through.
AFTER USE CARE
Where possible clean and dry your tent before
packing it away, if the weather is bad and you have
to pack your tent wet it is important to get it out and
thoroughly dry it as soon as possible. NEVER store
your tent wet, mildew can form on the fabric, pegs
and other components can corrode. After coastal
camping trips it is a good idea to rinse your gear in
fresh water.
Store your tent in a dry, well ventilated place.
COMPONENT LIST
1 x Turbo Lite Plus tent with frame attached
1 x Turbo Lite Plus fly
11 x Guy ropes (already attached to your tent and
packed in fin pockets)
6 x Loose guy ropes for windows
3 x Awning poles & 1 x Awning ridge pole
1 x U-pole (2 x 2 segments, 2 curved poles)
28 x steel pegs in peg bag
1 x Turbo tent bag
TURBO PLUS TENT PITCHING INSTRUCTIONS LITE
1
2
3
4
STRAPS
WATCH AN ONLINE VIDEO DEMONSTRATION
OF TURBO PITCHING AT www.blackwolf.com.au
1. Choose a flat site, clear away
any sharp sticks or stones that
may damage your tent floor.
Remove your tent from the
carry bag and unclip the strap
around the tent (put the strap
back in the bag for packing up
the tent). Then unclip the strap
around the top of the frame
that holds the pole bundle
together.
2. Unroll the tent, pull the
corners into position so the
floor is taught and peg the
corners and the peg out d-rings
at the feet of the Turbo frame.
3. Straighten the legs, the
lower knuckles will lock into
place
4. Un-zip the door and step
inside the tent, push the centre
hub up from underneath, it will
“pop” into position.
5. Take the two, two section
poles and unfold. Thread the
two curved sections through
the pole sleeve on the top of
the rear room from each side
and join them to each other
within the pole sleeve. Attach a
two section pole to one end
with the other end on the
ground towards the Turbo
frame of the tent, then do the
same on the other side. The
pole ends should sit just next
to the tent floor, pull them
back to increase tension on the
back room until the walls and
roof are taught, the inner is
pitched.
TURBO PLUS TENT PITCHING INSTRUCTIONS LITE - continued
5
PHOENIX LEISURE GROUP
PO Box 1, Pyrm nt, NS 20 58 o W 09
T : 6 a 9 9622 el 02 9552 900 F x: 02 552
!
!
6. Un-fold the fly and lay it over the
tent, the awning is at the front over
the door. Clip the fly in place at the
feet of the Turbo frame and peg out
the rear of the fly using the elastic
loops attached to the fly. Secure the
Velcro loops on the inside of the fly
to the frame. Extend the awning
roof pole and place the curved
spigot into the hole at the front of
the hub.
7. Extend the 3 part awning pole to
approximately the height of the
centre hub and thread the spigot
through the hole in the awning roof
pole and the centre front of the
awning. Extend the roof pole until
the fly fabric is taught then tighten
the black collar to set the length.
8. Extend the 2 part awning poles to
approximately the height of the
upper knuckles and thread the
spigots through the corner eyelets.
Unravel the guy ropes stored in the
zippered fin pockets and peg out at
approximately 45 degrees to the
tent. The centre awning guy rope
should be pegged directly in front of
the tent
Short guy ropes are supplied for
pegging out the gussetted window
flaps for ventilation.
NOTE: IT IS ESSENTIAL THAT THE GUY ROPE FOR THE REAR ROOM IS KEPT
TAUGHT TO STOP WATER POOLING ON THE ROOF. BREAKAGE CAUSED BY NOT
KEEPING THIS GUY ROPE TIGHT WILL NOT BE COVERED BY WARRANTY.
6
8
7
TWIST
