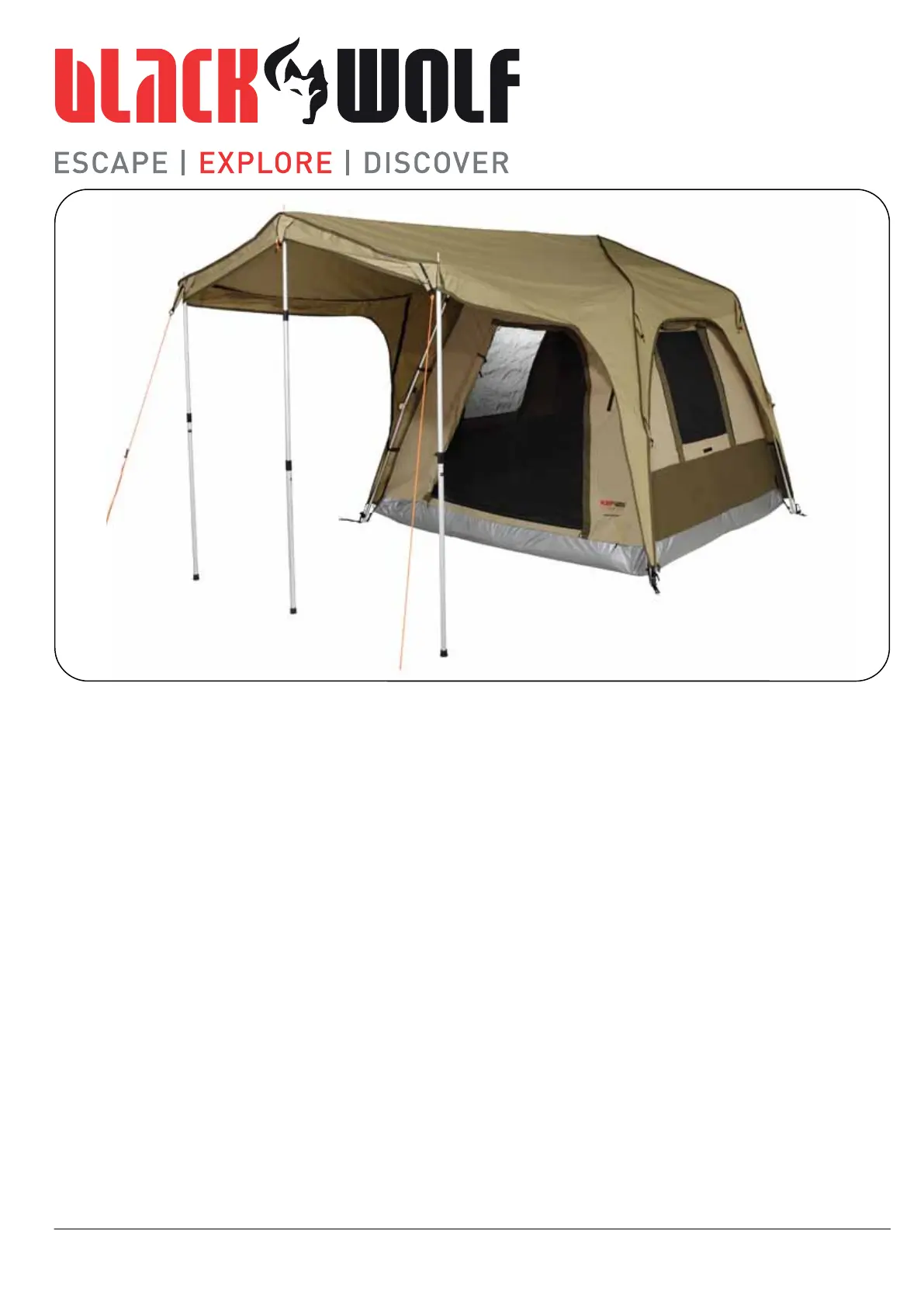

TURBO
TENT
www.blackwolf.com.au
Congratulations on choosing a BlackWolf Turbo tent,
please read through this instruction booklet
thoroughly before using your new tent.
BEFORE YOUR FIRST CAMPING TRIP
We strongly recommend you pitch your tent before
you take it away for the first time to familiarise
yourself with the process and to double check that all
the components are included.
We recommend you weather your tent by hosing it
thoroughly, the stitching in the bound seams will
swell and this will help seal the stitching holes.
Please note and fully understand that no tent can be
guaranteed 100% waterproof. Whilst the fabric your
tent is made from is waterproof in certain weather
conditions such as strong wind and driven rain can
cause some leakage through seams and zippers.
USING YOUR TENT
Always peg out all guy ropes at all times. In cool
weather or high humidity condensation can form
inside your tent. This is not coming through the
fabric but is water vapour that is inside the tent
(created when you breathe and perspire and also
from evaporation o wet items inside your tent).
The best way to minimise condensation is to
maximise ventilation by opening gusseted windows,
vents and doors to allow air to flow through.
AFTER USE CARE
Where possible clean and dry your tent before
packing it away, if the weather is bad and you have to
pack your tent wet it is important to get it out and
thoroughly dry it as soon as possible. NEVER store
your tent wet, mildew can form on the fabric, pegs
and other components can corrode. After coastal
camping trips it is a good idea to rinse your gear in
fresh water.
Store your tent in a dry, well ventilated place.
COMPONENT LIST
1 x Turbo tent with frame attached
1 x Turbo standard fly
10 x Guy ropes (already attached to your tent and
packed in fin pockets)
4 x Loose guy ropes for windows
3 x Awning poles & 1 x Awning ridge pole
18 x steel pegs in peg bag
1 x Turbo tent bag
TURBO TENT PITCHING INSTRUCTIONS
1
2
3
4
STRAPS
WATCH AN ONLINE VIDEO DEMONSTRATION
OF TURBO PITCHING AT www.blackwolf.com.au
1. Choose a flat site, clear
away any sharp sticks or
stones that may damage
your tent floor. Remove
your tent from the carry
bag and unclip the strap
around the tent (put the
strap back in the bag for
packing up the tent). Then
unclip the strap around the
top of the frame that holds
the pole bundle together.
2. Unroll the tent, pull the
corners into position so the
floor is taught and peg the
corner d-rings at the feet of
the Turbo frame.
3. Straighten the legs, the
lower knuckles will lock
into place.
4. Un-zip the door and step
inside the tent, push the
centre hub up from
underneath, it will “pop”
into position, the inner is
pitched.
TURBO TENT PITCHING INSTRUCTIONS - continued
6
PHOENIX LEISURE GROUP
PO Box 1, Pyrm nt, NS 20 58 o W 09
T : 6 a 9 9622 el 02 9552 900 F x: 02 552
8
5. Un-fold the fly and lay it over the tent, the awning is at the front over the door. Clip the fly in place
at the feet of the Turbo frame leave the straps loose. Secure the Velcro loops on the inside of the fly to
the frame.
6. Extend the awning roof pole and place the curved spigot into the hole at the front of the hub.
7. Extend the 3 part awning pole to approximately the height of the centre hub and thread the spigot
through the hole in the awning roof pole and the centre front of the awning. Extend the roof pole until
the fly fabric is taught then tighten the black collar to set the length.
8. Extend the 2 part awning poles to approximately the height of the upper knuckles and thread the
spigots through the corner eyelets. Unravel the guy ropes stored in the zippered fin pockets and peg
out at approximately 45 degrees to the tent. The centre awning guy rope should be pegged directly in
front of the tent
Short guy ropes are supplied for pegging out the gussetted window flaps for ventilation.
7
TWIST
