Instrukcja obsługi BDI Corridor 6521
Przeczytaj poniżej 📖 instrukcję obsługi w języku polskim dla BDI Corridor 6521 (5 stron) w kategorii Biuro. Ta instrukcja była pomocna dla 11 osób i została oceniona przez 2 użytkowników na średnio 4.5 gwiazdek
Strona 1/5
Product Registration
Registering your new BDI product allows us to send you important
product updates, service information and helpful hints related to
your BDI products. Register today and you will be entered to win
free a BINK table from BDI. www.bdiusa.com/product-registration/
Placement and Maintenance
Corridor® Office furniture is designed for indoor use on level floors.
Clean glass with glass cleaner, and steel parts and wood veneer
with a moist cloth.
Your Corridor® Office furniture is engineered for easy assembly.
Carefully follow this procedure to prevent any damage.
Do not use power tools for assembly of this product.
Step 1
Unpack and identify the parts listed below. The assembly
workspace should be a non-marring surface such as carpet. For
missing hardware pieces, please contact BDI Customer Service
at customerservice@bdiusa.com. For all other concerns, please
contact your BDI retailer.
Designed by Matthew Weatherly.
These distinctive product configurations are protected by US and international patents, trade dress, and/or
copyright laws. Corridor & BDI are trademarks of Becker Designed, Inc. All rights reserved. ©2015, BDI
Made in China. 12.08.2015 V2

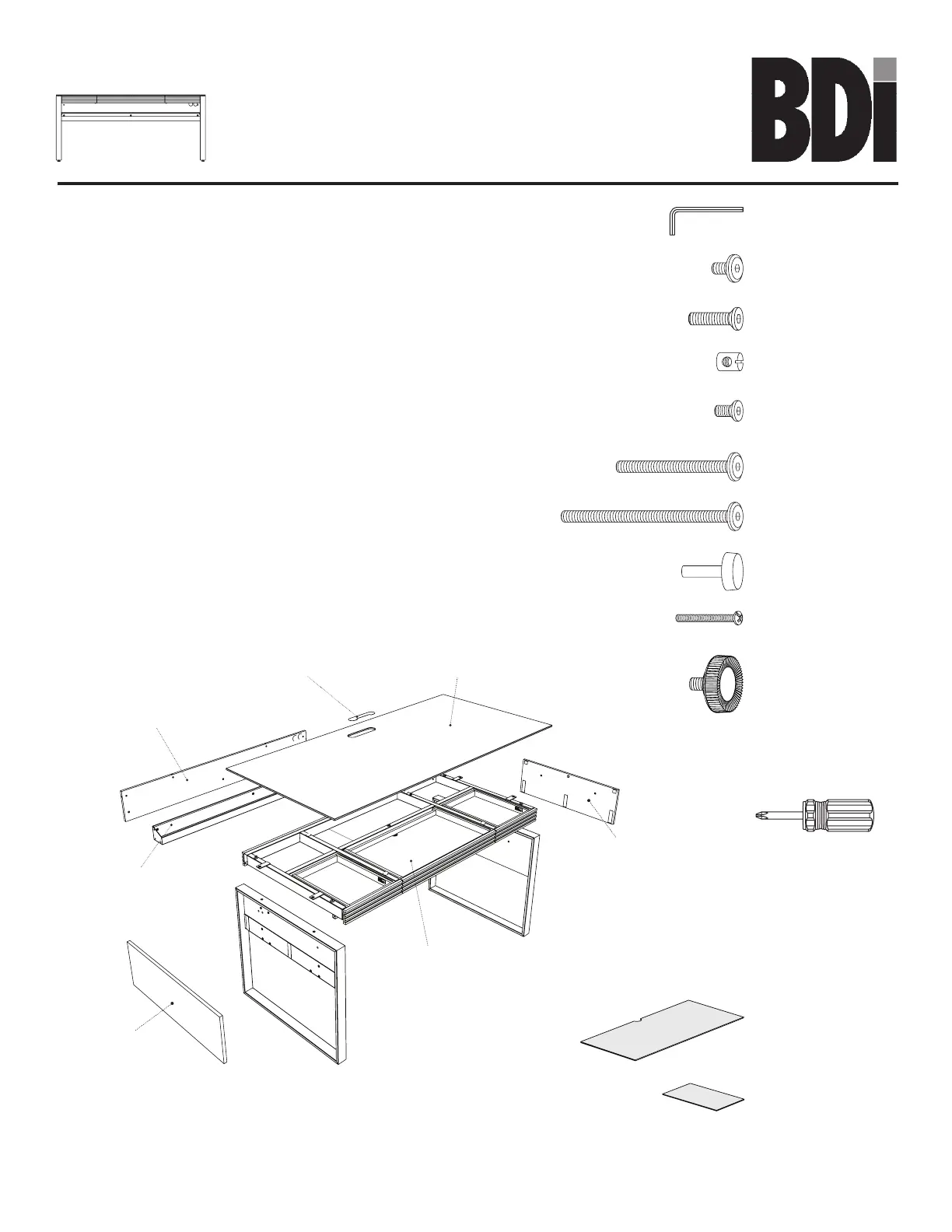

C1 Glass Panel
A1 Drawer
Assembly
A2 Left Leg
A3 Right Leg
C12 Removable
side panel x 2
C12 Removable
side panel x 2
A4 Wire Management
Trough
C10 Modesty Panel
C11 Wire Management Lid
C13 Center Drawer
Liner x 1
C14 Side Drawer
Liner x 2
T1 4mm Hex Wrench
H8 1/4-20 x 15mm
Screw x 4
H1 1/4-20 x 12mm
Screw x 3
H5 1/4-20 x 32mm
Screw x 6
H7 Barrel Nut x 4
H10 1/4-20 x 87mm
Screw x 2
H9 1/4-20 x 58mm
Screw x 6
H11 Bumper x 5
H13 Leveler x 4
H12 10-32 x 37mm
Screw x 4
Tool Required:
Phillips screwdriver
bdiusa.com
customerservice@bdiusa.com
CORRIDOR® 6521
EXECUTIVE DESK
bdiusa.com
customerservice@bdiusa.com
CORRIDOR 6521
EXECUTIVE DESK
2
Step 2 - Install Base
Aligning the attach Colored Dots on the same side, Wire Management Trough A4 Modesty Panel C8 to
using and Screw H1 Hex Wrench. Keep screws loose until Step 7.
Colored Dots
C10
A4 H1 (x3)
C10
A4
Step 3 - Match Colored Dot Right Leg A3 Colored Dot Modesty Panel Assembly on with on and attach
using Screws H5 and Hex Wrench T1 Left Leg A2 . Keep screws loose until Step 5. Repeat to attach to
Modesty Panel Assembly. Install to the bottom of . With the help of another person, Glides H13 Legs A2 & A3
turn desk upright onto its base.
H13 (x4)
Colored Dot
H5
A3
A2
H5 (x6)
bdiusa.com
customerservice@bdiusa.com
CORRIDOR 6521
EXECUTIVE DESK
3
Step 4 - Insert Barrel Nut H7 Modesty Panel C10 into holes of with the elongated slot sitting horizontally, and
secure with Screw H9 through side of Legs A2 & A3. Keep screws loose until Step 5.
H7
H9
H9
A3
A2
H9
Elongated slot in
Barrel Nut H7 aligns
with Screw H9
H7
H7
H9
H7
H10
Elongated slot in Barrel
Nut H7 aligns with
Screw (P)
H8 (x4)
H7
C10
Step 5 - Drawer Assembly A1 Screw H8 Hex Wrench T1Secure to Leg Assembly using and . Insert Barrel
Nut H7 Modesty Panel C10 into holes of with the elongated slot sitting vertically, and secure with Screw H10
through top of . Fully tighten all Drawer Assembly A1 Screws that have been installed in previous steps using
Hex Wrench.
H10
H10
H8
H8
H8
C10
A1
