LCD Monitor User Manual
C27V1Q C32V1Q LED backlight
www.aoc.com
©2018 AOC. All Rights Reserved.
2
Safety ........................................................................................................................................................................ 4
National Conventions ......................................................................................................................................... 4
Power 5................................................................................................................................................................
Installation .......................................................................................................................................................... 6
Cleaning 7.............................................................................................................................................................
Other .................................................................................................................................................................. 8
Setup 9........................................................................................................................................................................
Contents in Box ................................................................................................................................................. 9
Setup Base ...................................................................................................................................................... 10
Adjusting Viewing Angle ................................................................................................................................... 11
Connecting the Monitor .................................................................................................................................... 12
Adjusting ................................................................................................................................................................. 13
Setting Optimal Resolution .............................................................................................................................. 13
Windows 10 .............................................................................................................................................. 13
Windows 8 ................................................................................................................................................ 15
Windows 7 ................................................................................................................................................ 17
Hotkeys ............................................................................................................................................................ 19
OSD Setting ..................................................................................................................................................... 21
Luminance ................................................................................................................................................ 22
Image Setup ............................................................................................................................................. 23
Color Setup ............................................................................................................................................... 24
Picture Boost ............................................................................................................................................ 25
OSD Setup ............................................................................................................................................... 26
Extra ......................................................................................................................................................... 27
Exit ............................................................................................................................................................28
LED Indicator ................................................................................................................................................... 28
Driver ...................................................................................................................................................................... 29
Monitor Driver .................................................................................................................................................. 29
Windows 10 .............................................................................................................................................. 29
Windows 8 ................................................................................................................................................ 33
Windows 7 ................................................................................................................................................ 37
i-Menu .............................................................................................................................................................. 40
e-Saver ............................................................................................................................................................ 41
Screen+ ........................................................................................................................................................... 42
Troubleshoot ........................................................................................................................................................... 43
Specification ............................................................................................................................................................ 45
General Specification ....................................................................................................................................... 45
Preset Display Modes ...................................................................................................................................... 47
Pin Assignments .............................................................................................................................................. 48
Plug and Play ................................................................................................................................................... 50
Regulation ............................................................................................................................................................... 51
FCC Notice ...................................................................................................................................................... 51
WEEE Declaration ........................................................................................................................................... 52
WEEE Declaration for India ............................................................................................................................. 52
EPA Energy Star .............................................................................................................................................. 54
EPEAT Declaration .......................................................................................................................................... 54
3
Service .................................................................................................................................................................... 55
Warranty Statement for Europe ........................................................................................................................55
Warranty Statement for Middle East and Africa (MEA) ....................................................................................57
AOC International (Europe) B.V. ...................................................................................................................... 59
Warranty Statement for North & South America (excluding Brazil) ........................................................... 60
EASE PROGRAME ......................................................................................................................................... 62
4
Safe ty
National Conventions
The following subsections describe notational conventions used in this document.
Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in italic type.
These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: A NOTE indicates important information that helps you make better use of your computer system.
CAUTION: A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the
problem.
WARNING: A WARNING indicates the potential for bodily harm and tells you how to avoid the problem. Some
warnings may appear in alternate formats and may be unaccompanied by an icon. In such cases, the specific
presentation of the warning is mandated by regulatory authority.
5
Power
The monitor should be operated only from the type of power source indicated on the label. If you are not sure
of the type of power supplied to your home, consult your dealer or local power company.
Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect the
monitor from damage due to power surges.
Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate
configured receptacles marked between 100 - 240V ~, Min. 1.5A
The wall socket shall be installed near the equipment and shall be easily accessible.
6
Installati on
Do not place the monitor on an unstable cart, stand, tripod, bracket, or table. If the monitor falls, it can injure a
person and cause serious damage to this product. Use only a cart, stand, tripod, bracket, or table recommended by
the manufacturer or sold with this product. Follow the manufacturer’s instructions when installing the product and
use mounting accessories recommended by the manufacturer. A product and cart combination should be moved
with care.
Never push any object into the slot on the monitor cabinet. It could damage circuit parts causing a fire or
electric shock. Never spill liquids on the monitor.
Do not place the front of the product on the floor.
Leave some space around the monitor as shown below. Otherwise, air-circulation may be inadequate hence
overheating may cause a fire or damage to the monitor.
See below the recommended ventilation areas around the monitor when the monitor is installed on the wall or with
the stand:
7
Cleaning
Clean the cabinet regularly with cloth You can use soft-detergent to wipe out the stain, instead of .
strong-detergent which will cauterize the product cabinet.
When cleaning, make sure no detergent is leaked into the product. The cleaning cloth should not be too rough
as it will scratch the screen surface.
Please disconnect the power cord before cleaning the product.
8
Other
If the product is emitting a strange smell, sound or smoke, disconnect the power plug IMMEDIATELY and
contact a Service Center.
Make sure that the ventilating openings are not blocked by a table or curtain.
Do not engage the LCD monitor in severe vibration or high impact conditions during operation.
Do not knock or drop the monitor during operation or transportation.
For display with glossy bezel the user should consider the placement of the display as the bezel may cause
disturbing reflections from surrounding light and bright surfaces.
9
Setup
Contents in Box
Not all signal cab s (le Analog, HDMI, DP bles),CD manual will be provided for all countries and regions. ca
Please check with the local dealer or AOC branch office for confirmation.
CD Manual Warranty card Base Cover IO
Power Cable Analog Cable HDMI Cable DP Cable
Monitor
Setup Base

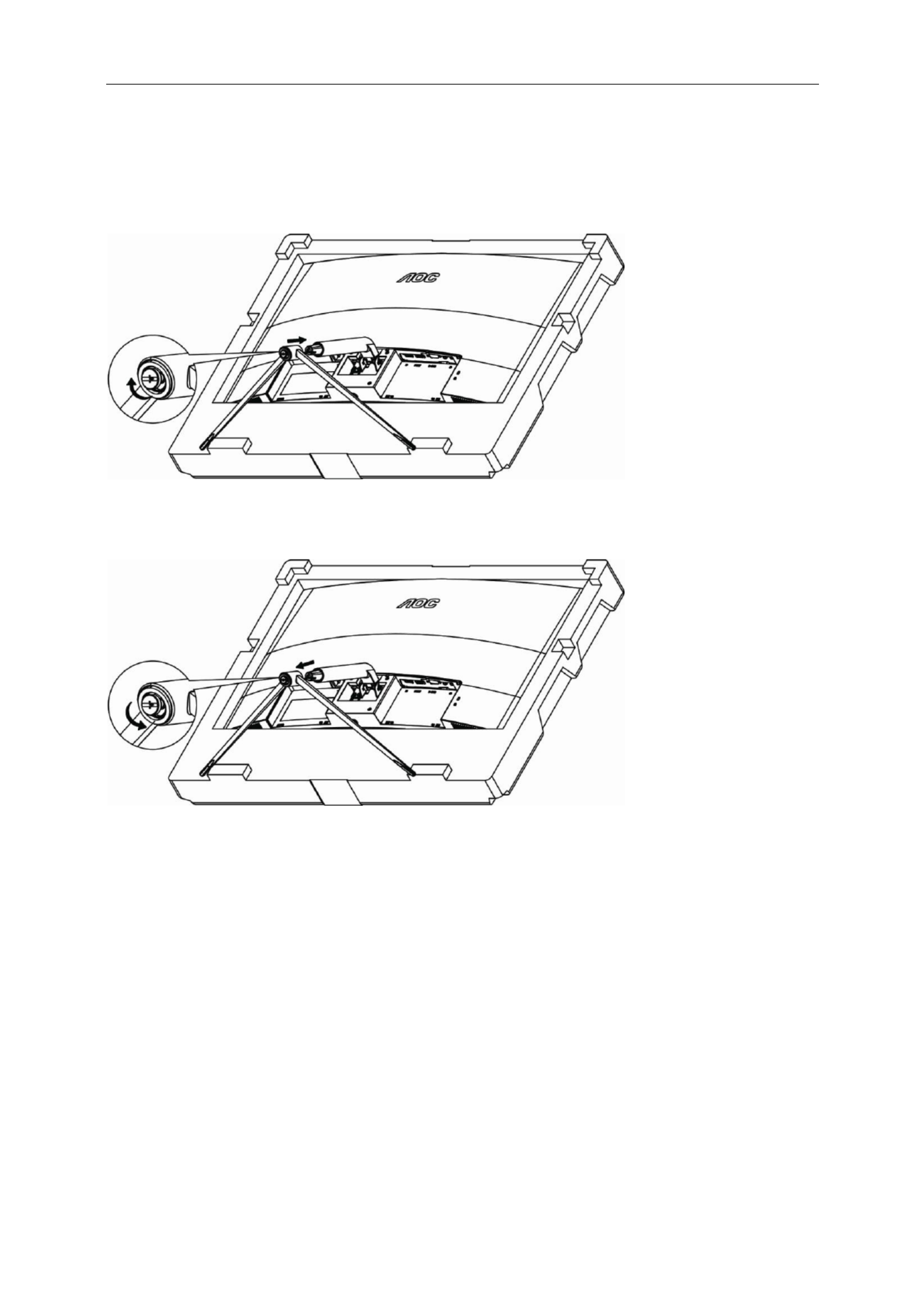

Please setup or remove the base following the steps as below.
Please place the monitor on the curve-surface foamed cushion to prevent the scratch.
Setup:
Remove:
11

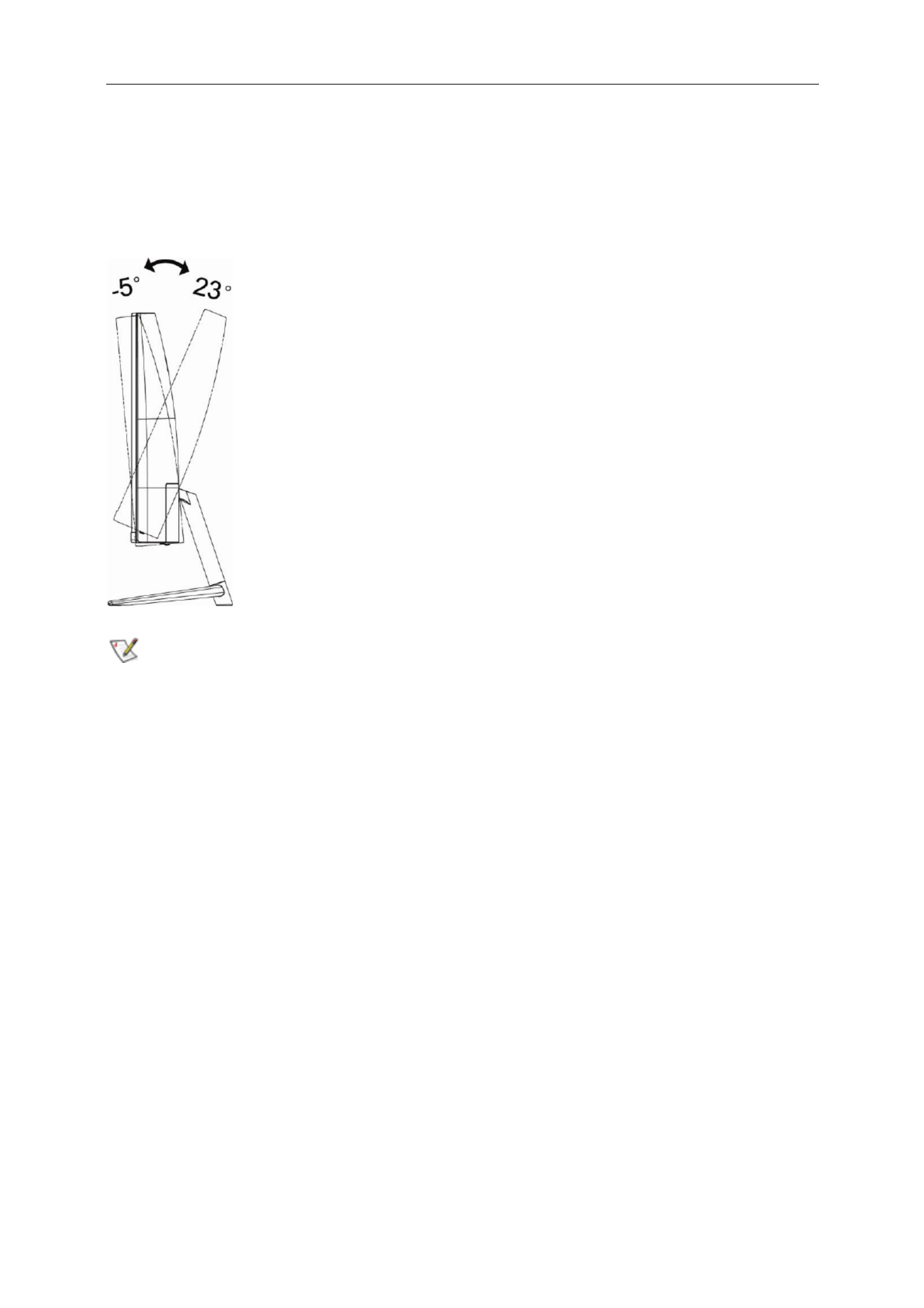

Adjusting Viewing Angle
For optimal viewing, it is recommended to look at the full face of the monitor, then adjust the monitor's angle to and
your own preference.
Hold the stand so you will not topple the monitor when you change the monitor's angle.
NOTE:
Do not adjust the viewing angle over 23 degrees in order to avoid damage.
Connecting the Monitor

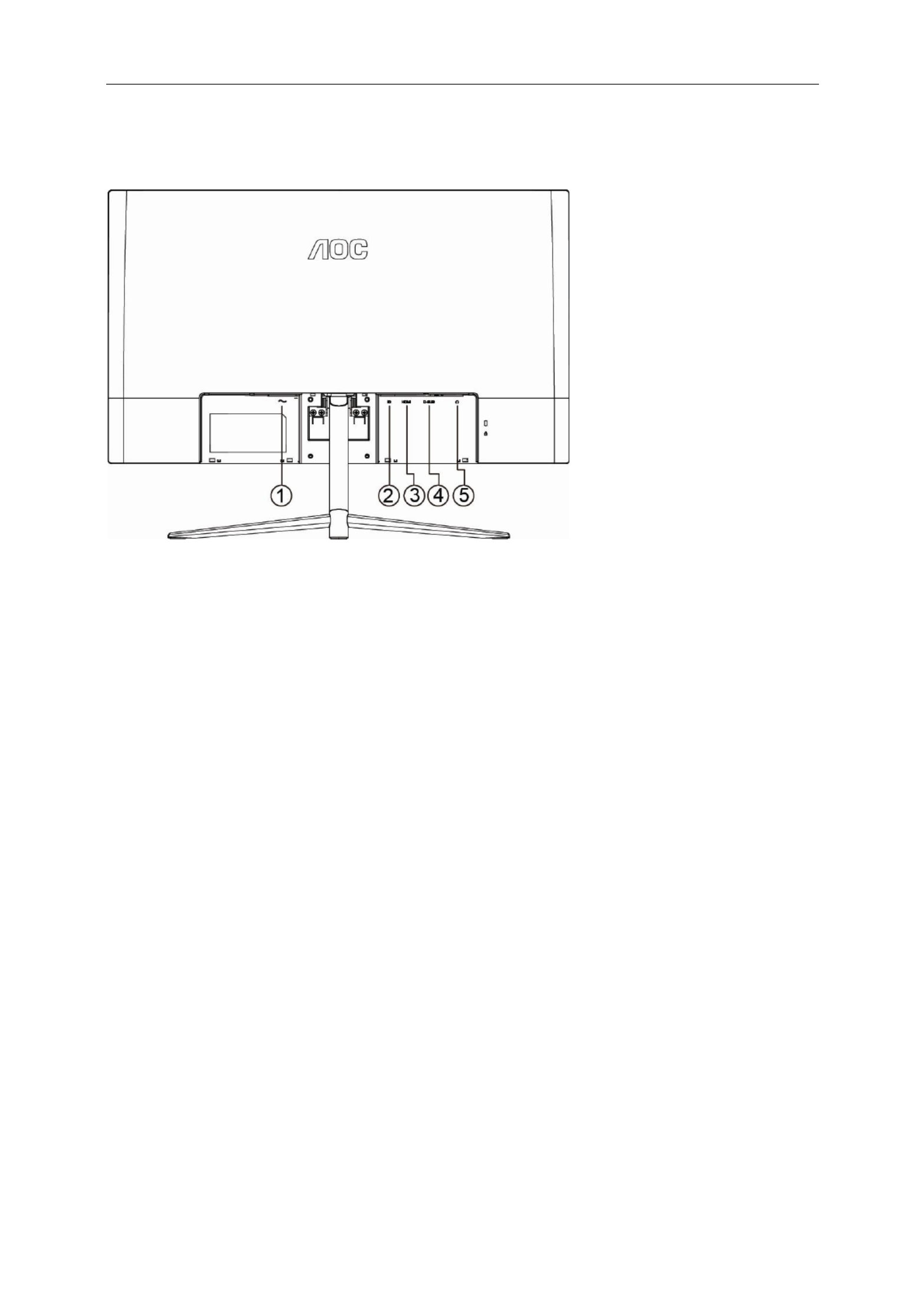

Cable Connections In Back of Monitor and Computer:
1 Power
2 DP
3 HDMI
4 Analog (D-Sub 15-Pin VGA cable)
5 Earphone out
To protect equipment, always turn off the PC and LCD monitor before connecting.
1 Connect the power cable to the DC port on the back of the monitor.
2 Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the
computer's D-Sub port .
3 Optional (Requires a video card with HDMI port Connect one end of the HDMI cable to the back of the )
monitor and connect the o HDMI port. ther end to the computer’s
4 Optional (Requires a video card with DP port Connect one end of the DP cable to the back of the monitor )
and connect the other end to the computer’s DP port.
5 Turn on your monitor and computer.
If your monitor displays an image, installation is complete. If it does not display an image, please refer
Troubleshooting.
Adjusting
Setting Optimal Resolution

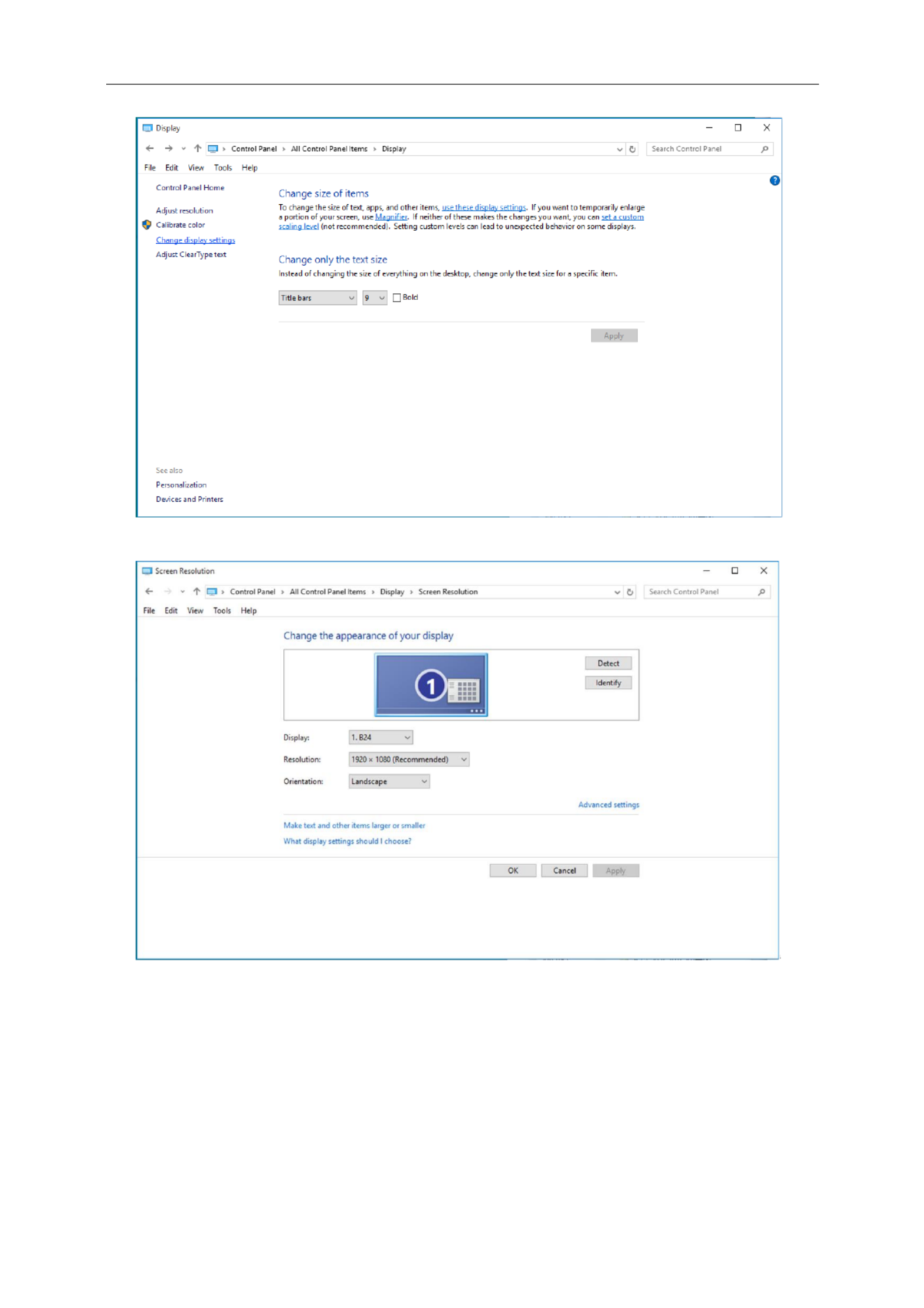

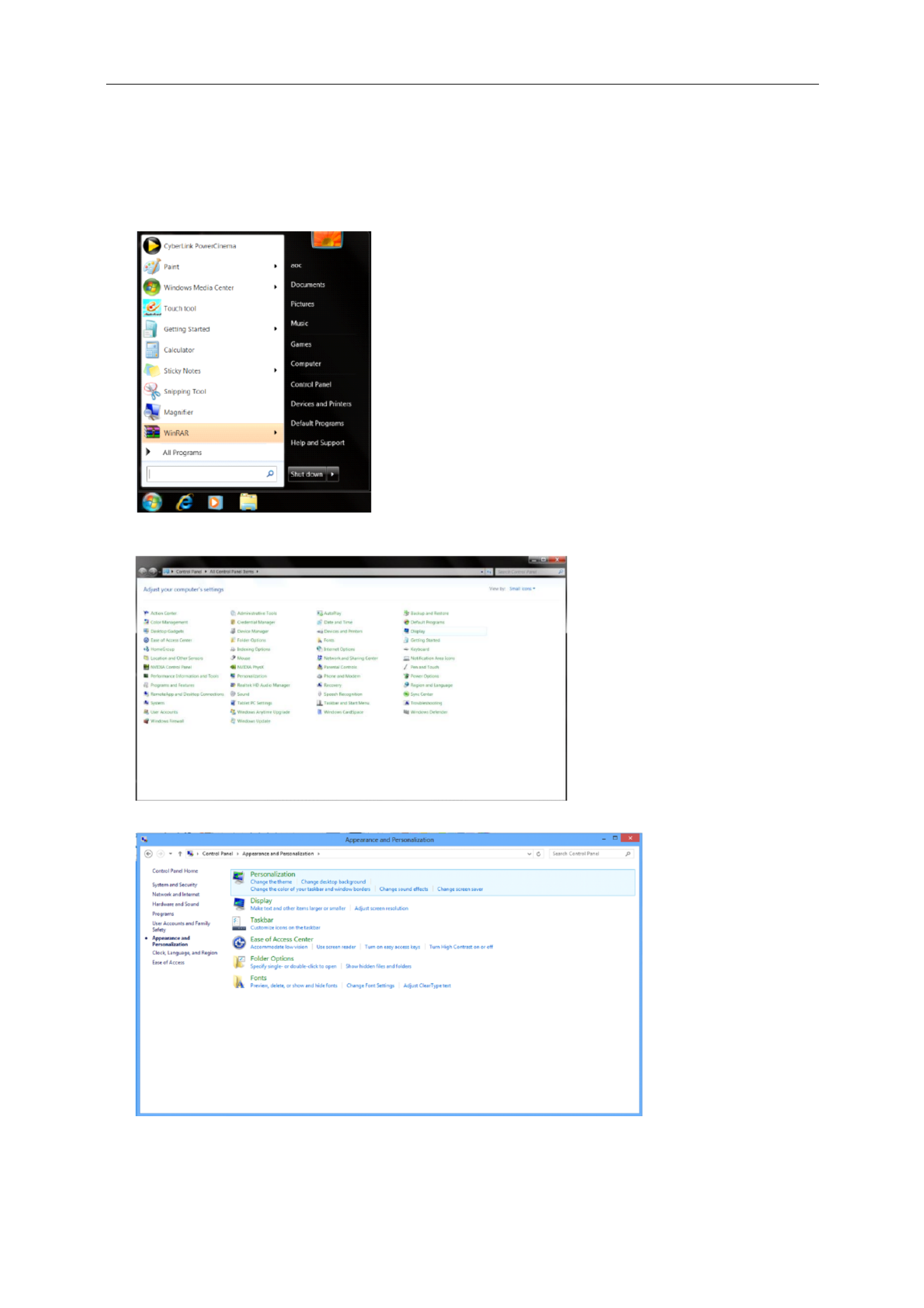

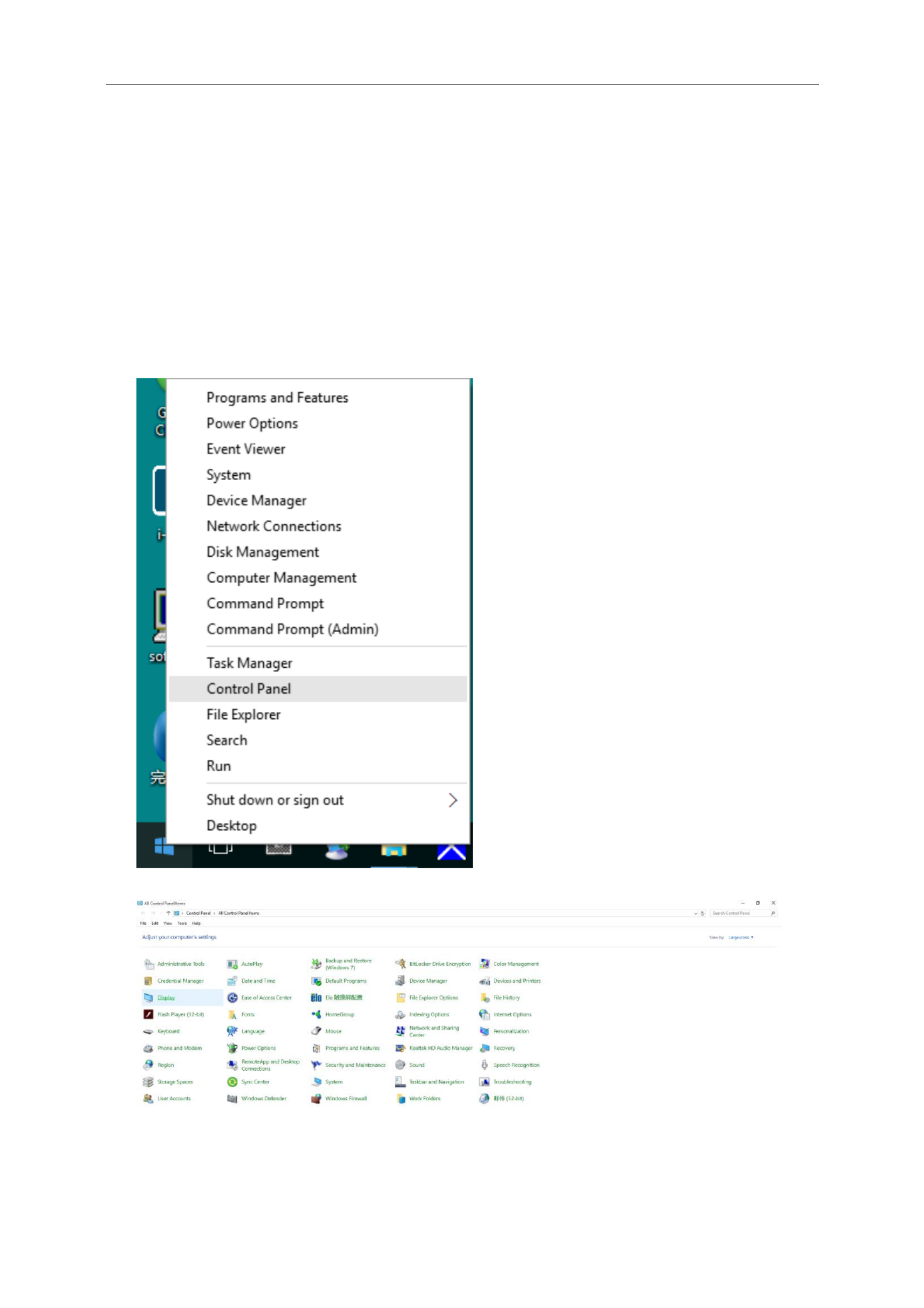

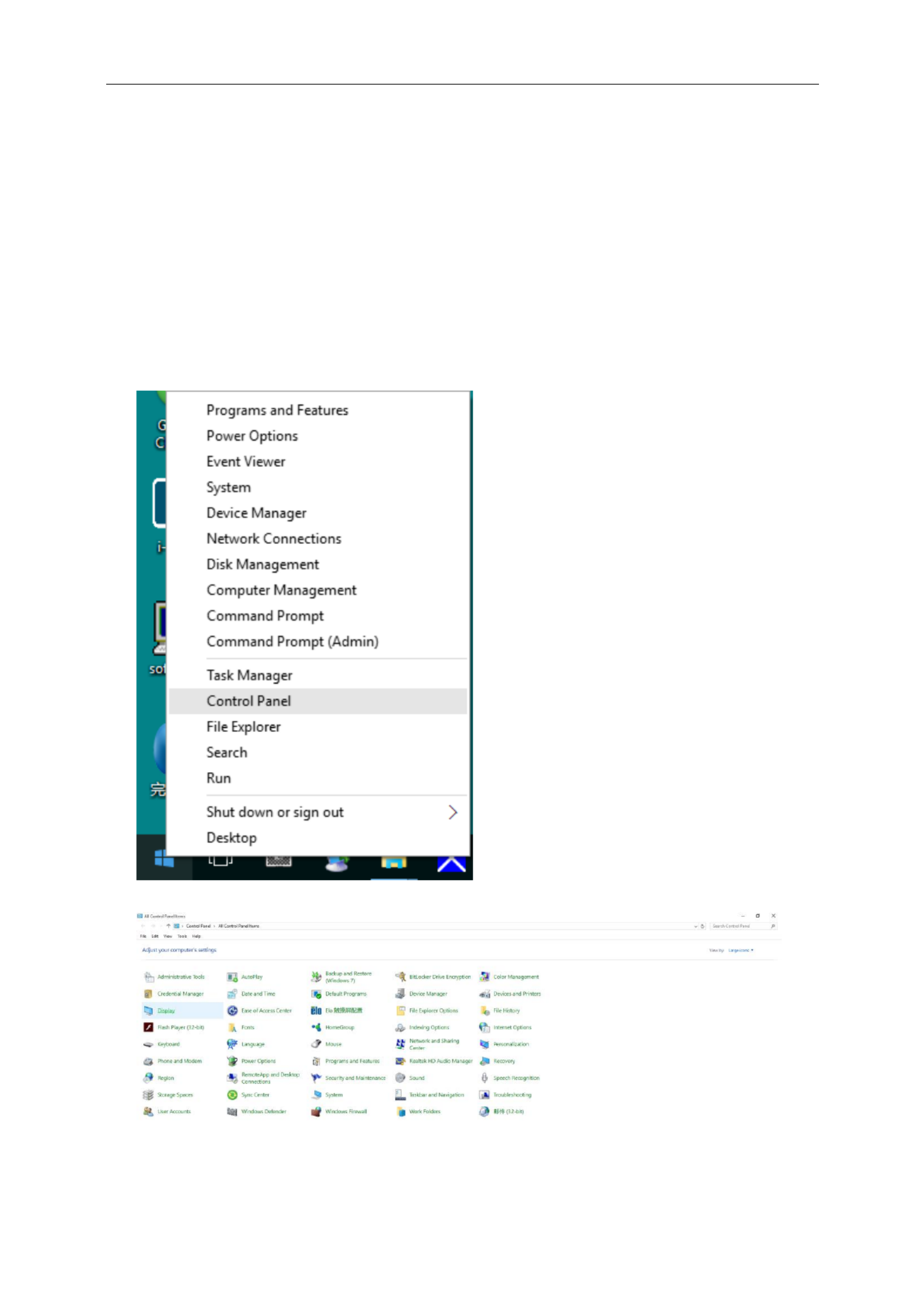

Windows 10
For Windows 10:
Right click START.
Click "CONTROL PANEL".
Click "DISPLAY" .
Click on the button. "Change display settings"
Set the resolution to Optimal preset resolution. SLIDE-BAR

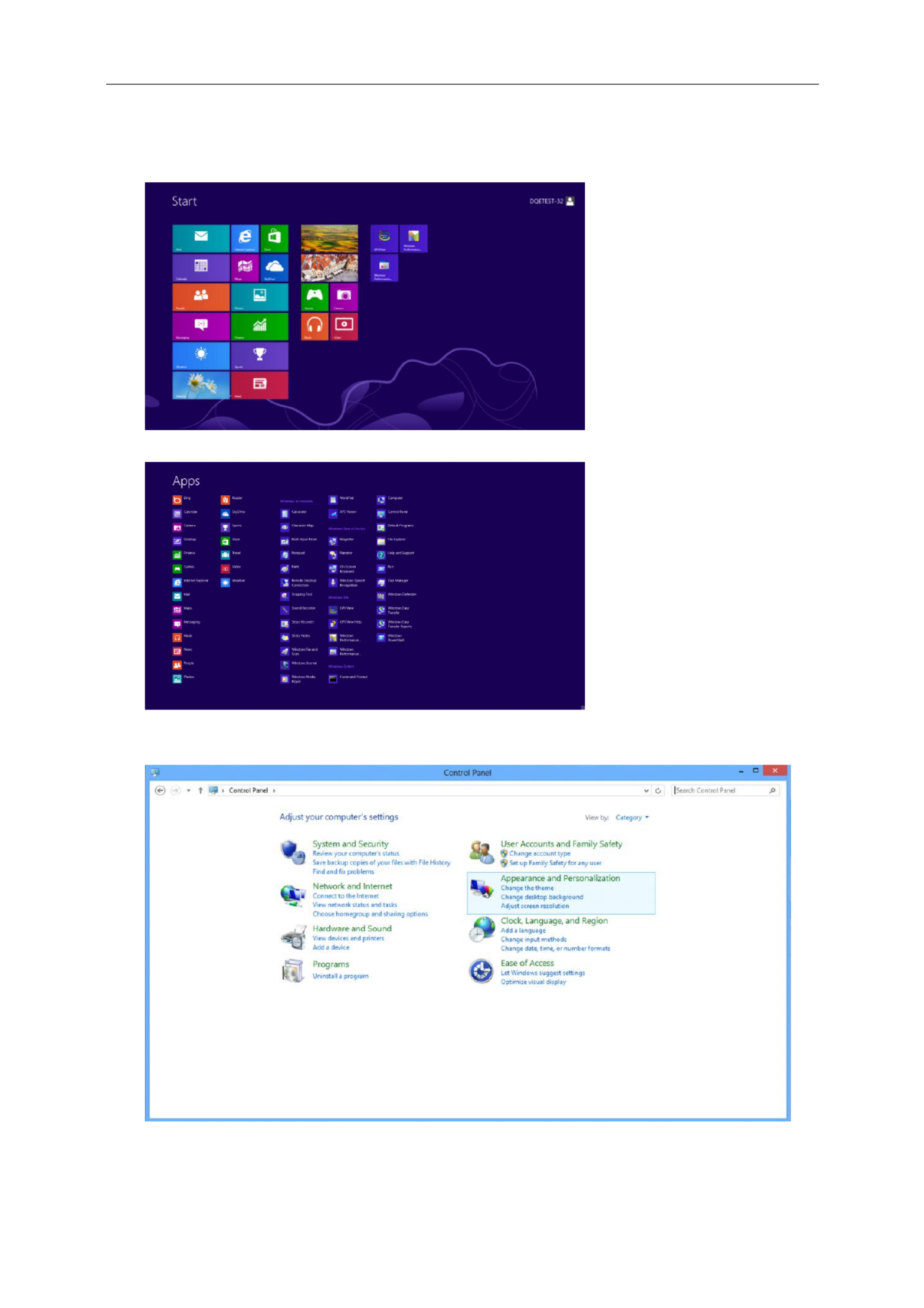

Windows 8
For Windows 8:
Right click and click All apps at the bottom-right of the screen.
Set the "View by" "Category" to .
Click "Appearance and Personalization" .
Click "DISPLAY" .
Set the resolution to Optimal preset resolution SLIDE-BAR

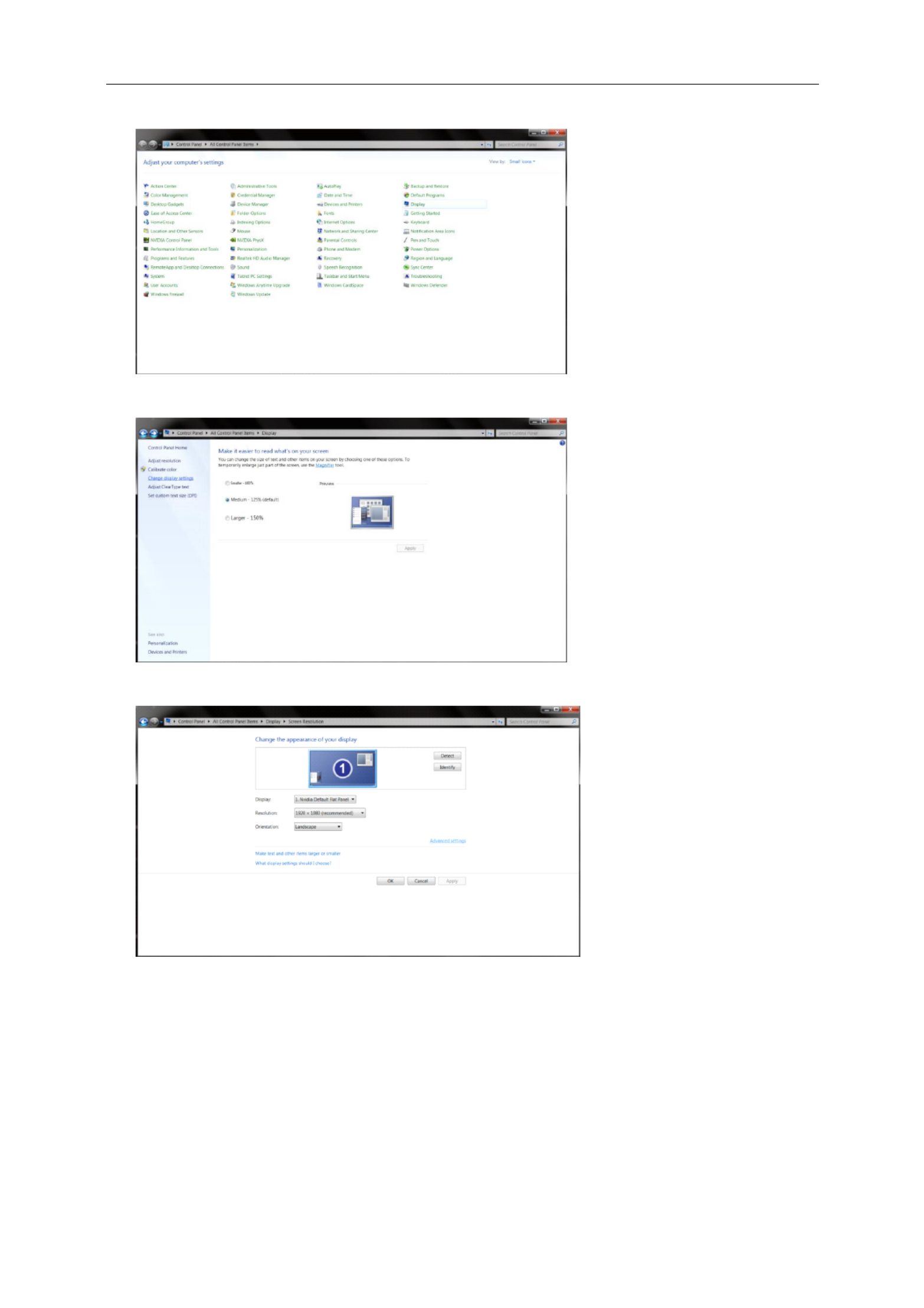

Windows 7
For Windows 7:
Click START.
Click "CONTROL PANEL".
Click "Appearance".
Click "DISPLAY" .
Hotkeys
1
Source/Auto/Exit/Up
2
Eco/ DCR/Down
3
Clear Vision/ Left
4
Image Ratio/Volume/ Right
5
Power/ Menu/Enter
Menu/Enter
Press to display the OSD or confirm the selection.
Power
Press the Power button to turn on/off the monitor.
Image Ratio/Volume/Right
When there is no OSD, Press Volume button to active volume adjustment bar, Press Left or to adjust volume. Right
When there is no OSD, press hotkey continuously to change 4:3 or wide image ratio. (If the product screen Right
size is 4:3 or input signal resolution is wide format, the hot key is disable to adjust).
Auto/Exit/Source hot key
When there is no OSD, Press Auto/Source button continuously about 2 second to do auto configure.
When the OSD is closed, press Source button will be Source hot key function. Press Source button continuously to
select the input source showed in the message bar, press Menu/Enter button to change to the source selected.
Eco / /DownDCR
When there is no OSD, Press this button to enter Eco/DCR adjustment. Then press Left Right or button to choose
different o/DCR. Ec
OSD Setting
Basic and simple instruction on the control keys.
1. Press the to activate the OSD window. MENU-button
2. Press to navigate through the functions. Once the desired function is highlighted, Left or Right
press the to activate there is a sub-menu, press MENU-button it. If Left or Right to navigate through the
sub-menu functions.
3. Press to change the settings of the selected function. Press Left or Right AUTO to exit If you want to adjust .
any other function, repeat steps 2-3.
4. OSD Lock Function: To lock the OSD, press and hold the while the monitor is off and then press MENU-button
power button to turn the monitor on. To un-lock the OSD - press and hold the while the monitor MENU-button
is off and then press to turn the monitor on. power button
Notes:
1. If the product has only one signal input, the item of "Input Select" is disabled.
2. If the product screen size is 4:3 or input signal resolution is native resolution, the item of "Image Ratio" is
disabled.
3. One of Clear vision, DCR, Color Boost, and Picture Boost functions is activated; the other three functions are
turned off accordingly.

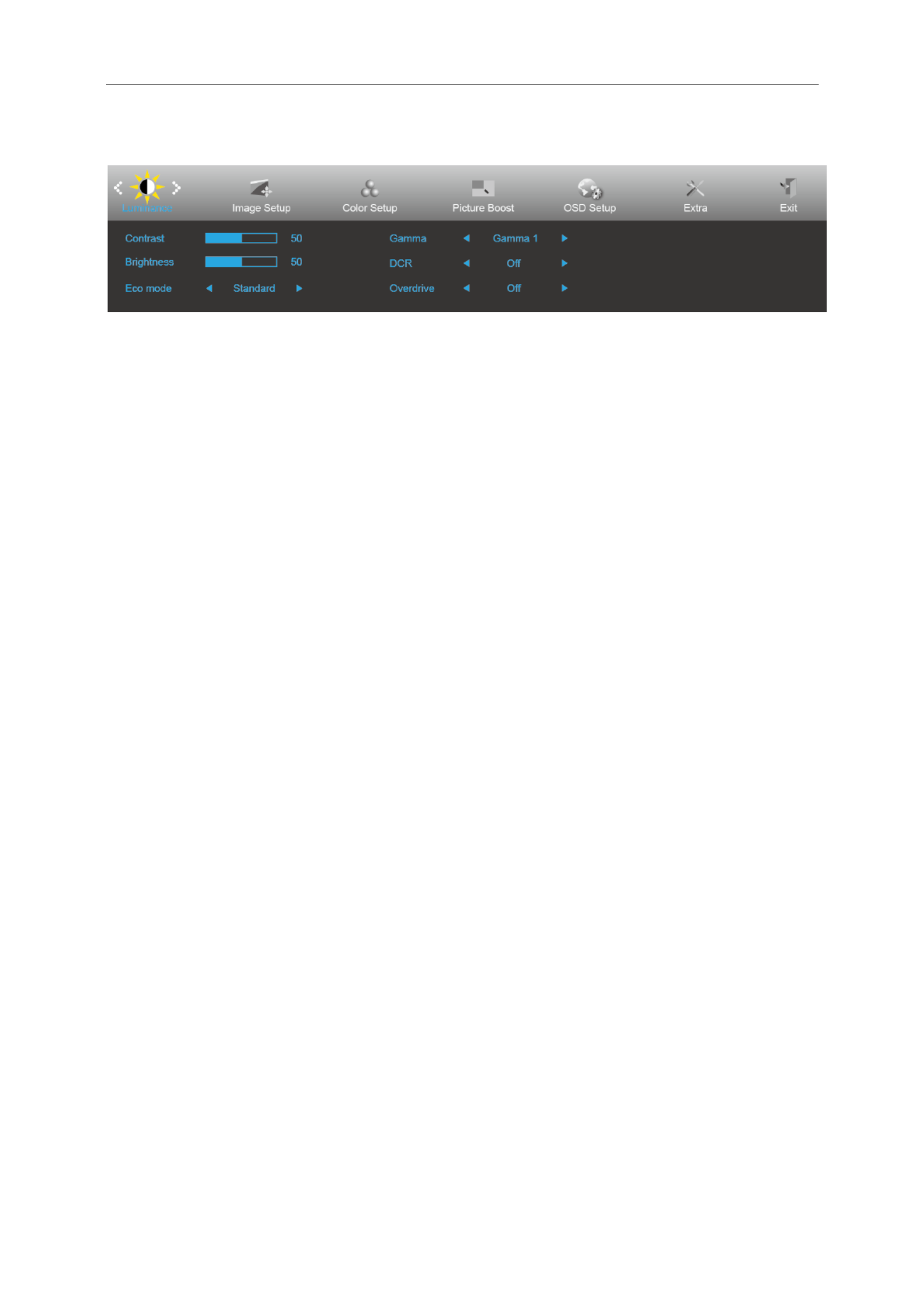

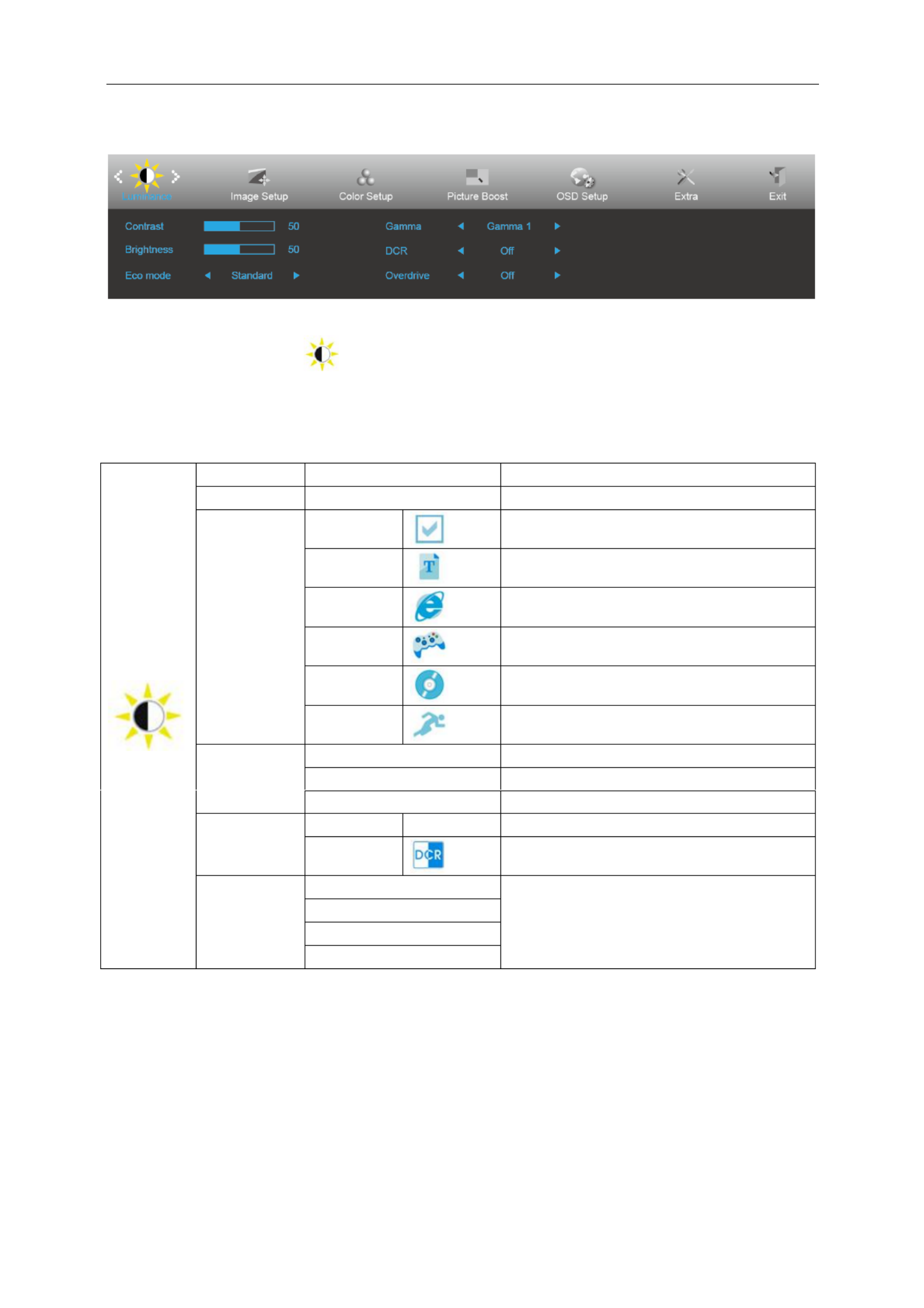

Luminance
1 Press (Menu) to display menu. MENU
2 Press Left to select (Luminance), and press or Right MENU to enter.
3 Press Left to select submenu. or Right
4 Press Left to adjust. or Right
5 Press AUTO to exit.
Contrast
0-100
Contrast from Digital-register.
Brightness
0-100
Backlight Adjustment
Eco mode
Standard
Standard Mode
Text
Text Mode
Internet
Internet Mode
Game
Game Mode
Movie
Movie Mode
Sports
Sports Mode
Gamma
Gamma1
Adjust to Gamma 1
Gamma2
Adjust to Gamma 2
Gamma3
Adjust to Gamma 3
DCR
Off
Disable dynamic contrast ratio
On
Enable dynamic contrast ratio
Overdrive
Weak
Adjust the response time.
Medium
Strong
Off

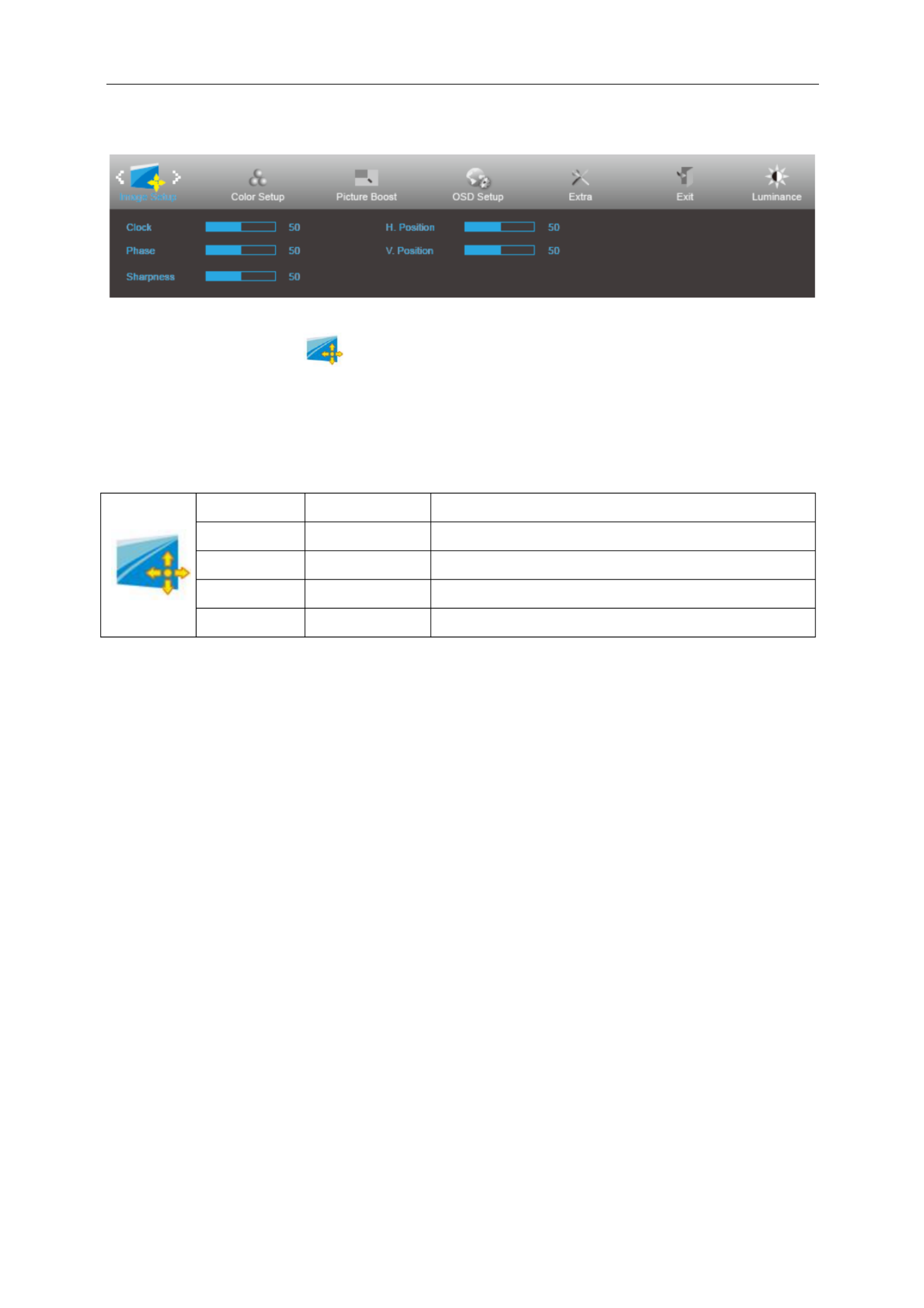

Image Setup
1 Press (Menu) to display menu. MENU
2 Press Left to select (Image Setup), and press to enter. or Right MENU
3 Press Left to select submenu. or Right
4 Press Left to adjust. or Right
5 Press AUTO to exit.
Clock
0-100
Adjust picture Clock to reduce Vertical-Line noise.
Phase
0-100
Adjust Picture Phase to reduce Horizontal-Line noise.
Sharpness
0- 100
Adjust picture sharpness.
H. Position
0-100
Adjust the horizontal position of the picture.
V. Position
0-100
Adjust the vertical position of the picture.
Color Setup
1 Press (Menu) to display menu. MENU
2 Press Left to select (Color Setup), and press to enter. or Right MENU
3 Press Left to select submenu. or Right
4 Press Left to adjust. or Right
5 Press AUTO to exit.
Color Tem p.
Warm
Recall Warm Color Temperature from EEPROM.
Normal
Recall Normal Color Temperature from EEPROM.
Cool
Recall Cool Color Temperature from EEPROM.
sRGB
Recall SRGB Color Temperature from EEPROM.
User
Recall User Color Temperature from EEPROM
DCB Mode
Full
Enhance
ON/OFF
Disable or Enable Full Enhance Mode.
Nature Skin
ON/OFF
Disable or Enable Nature Skin Mode.
Green Field
ON/OFF
Disable or Enable Green Field Mode.
Sky-blue
ON/OFF
Disable or Enable Sky-blue Mode.
AutoDetect
ON/OFF
Disable or Enable AutoDetect Mo de.
DCB Demo
ON/OFF
Disable or Enable Demo.
Red
0- 100
Red gain from Digital-register.
Green
0- 100
Green gain from Digital-register.
Blue
0- 100
Blue gain from Digital-register.
LowBlue Mode
Multimedia
Decrease blue light wave by controlling color
temperature
Internet
Office
Reading
Off
Picture Boost
1 Press (Menu) to display menu. MENU
2 Press Left to select (Picture Boost), and press to enter. or Right MENU
3 Press Left to select submenu. or Right
4 Press Left to adjust. or Right
5 Press AUTO to exit.
Bright Frame
ON/OFF
Enable/Disable Bright Frame
Frame Size
14-100
Adjust the Size of the Frame
Brightness
0-100
Brightness Adjustment for Enhance Area
Contrast
0-100
Contrast Adjustment for Enhance Area
H. position
0- 100
Adjust the horizontal position of the Frame
V. position
0- 100
Adjust the vertical position of the Frame
Note:
Adjust the brightness, contrast, and position of the Bright Frame for better viewing experience.
OSD Setup

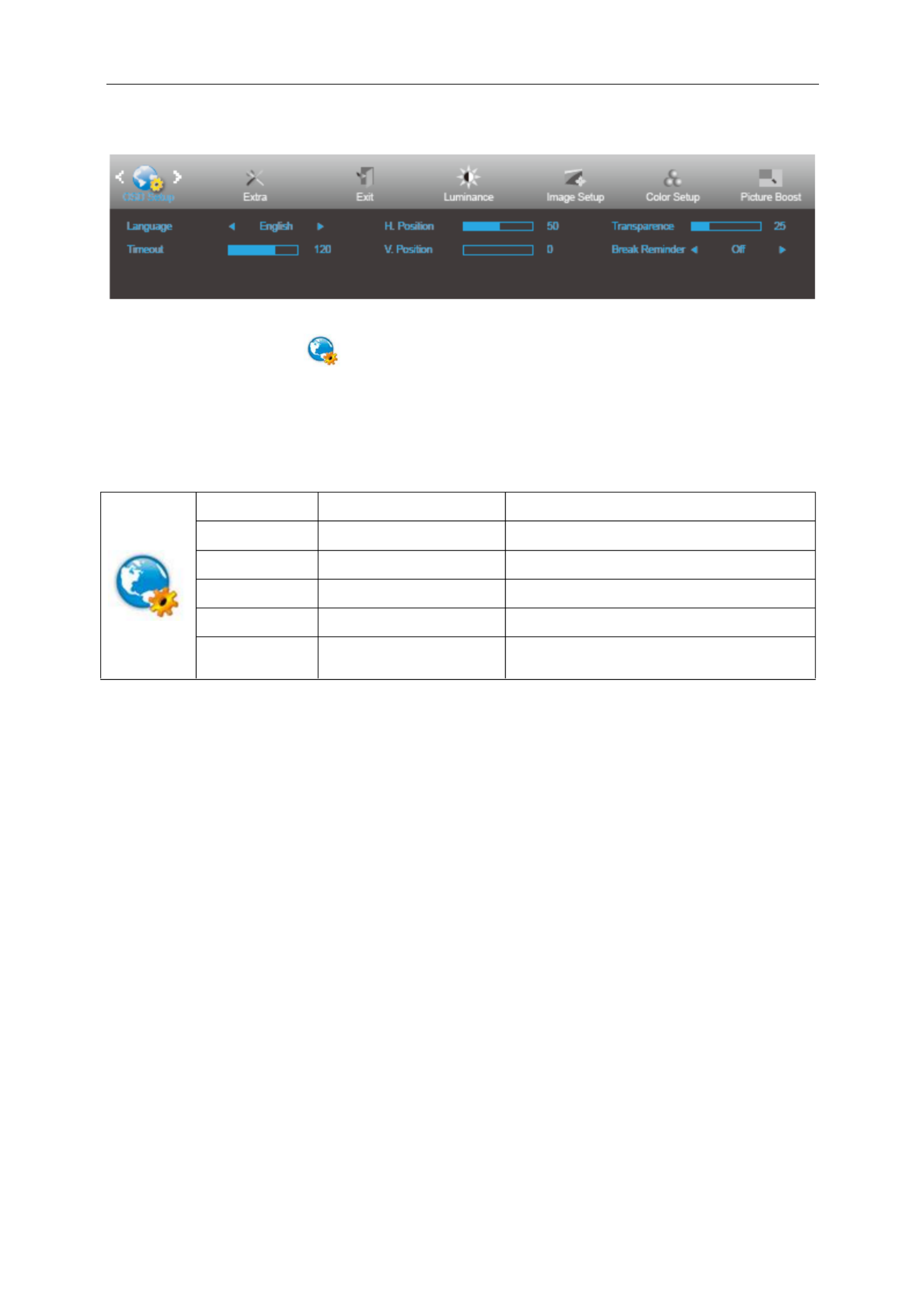

1 Press (Menu) to display menu. MENU
2 Press Left to select (OSD Setup), and press to enter. or Right MENU
3 Press Left to select submenu. or Right
4 Press Left to adjust. or Right
5 Press AUTO to exit.
Language
Select the OSD language.
Timeout
5- 120
Adjust the OSD timeout.
V. Position
0- 100
Adjust the vertical position of the OSD.
Transparence
0- 100
Adjust the OSD.
H. Position
0- 100
Adjust the horizontal position of the OSD.
Break Reminder
on or off
Break reminder if the user continuously work
for more than 1hrs.
Extra
1 Press (Menu) to display menu. MENU
2 Press Left to select (Extra), and press to enter. or Right MENU
3 Press Left to select submenu. or Right
4 Press Left to adjust. or Right
5 Press AUTO to exit.
Input Select
Auto/ D-SUB /HDMI/DP
Select signal source as input
Auto Config.
Yes o / N
Auto adjust.the picture to default.
Off Timer
0- hrs 24
Select DC off time.
Image Ratio
wide or 4:3
Select wide or 4:3 format for display.
DDC CI/
Yes o / N
Turn on or off /CI Support. DDC
Reset
Yes o / N
Reset the menu to default.
Exit

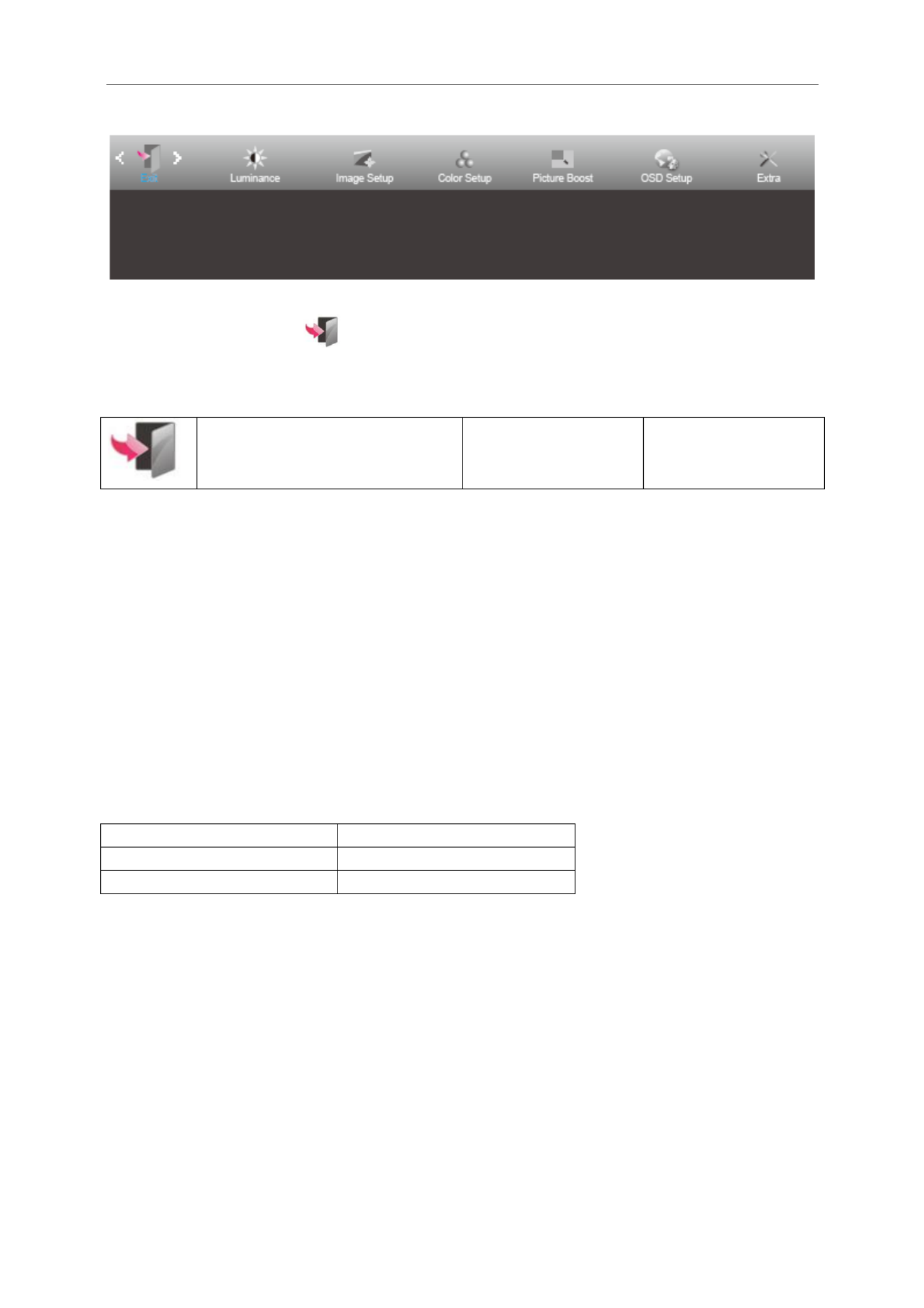

1 Press (Menu) to display menu. MENU
2 Press Left Rightor to select (Exit), and press MENU to enter.
3 Press AUTO to exit.
Exit
Exit the main OSD
LED Indicator
Status
LED Color
Full Power Mode
White
Power Saving
Orange
Driver
Monitor Driver
Windows 10
Start Windows ®10

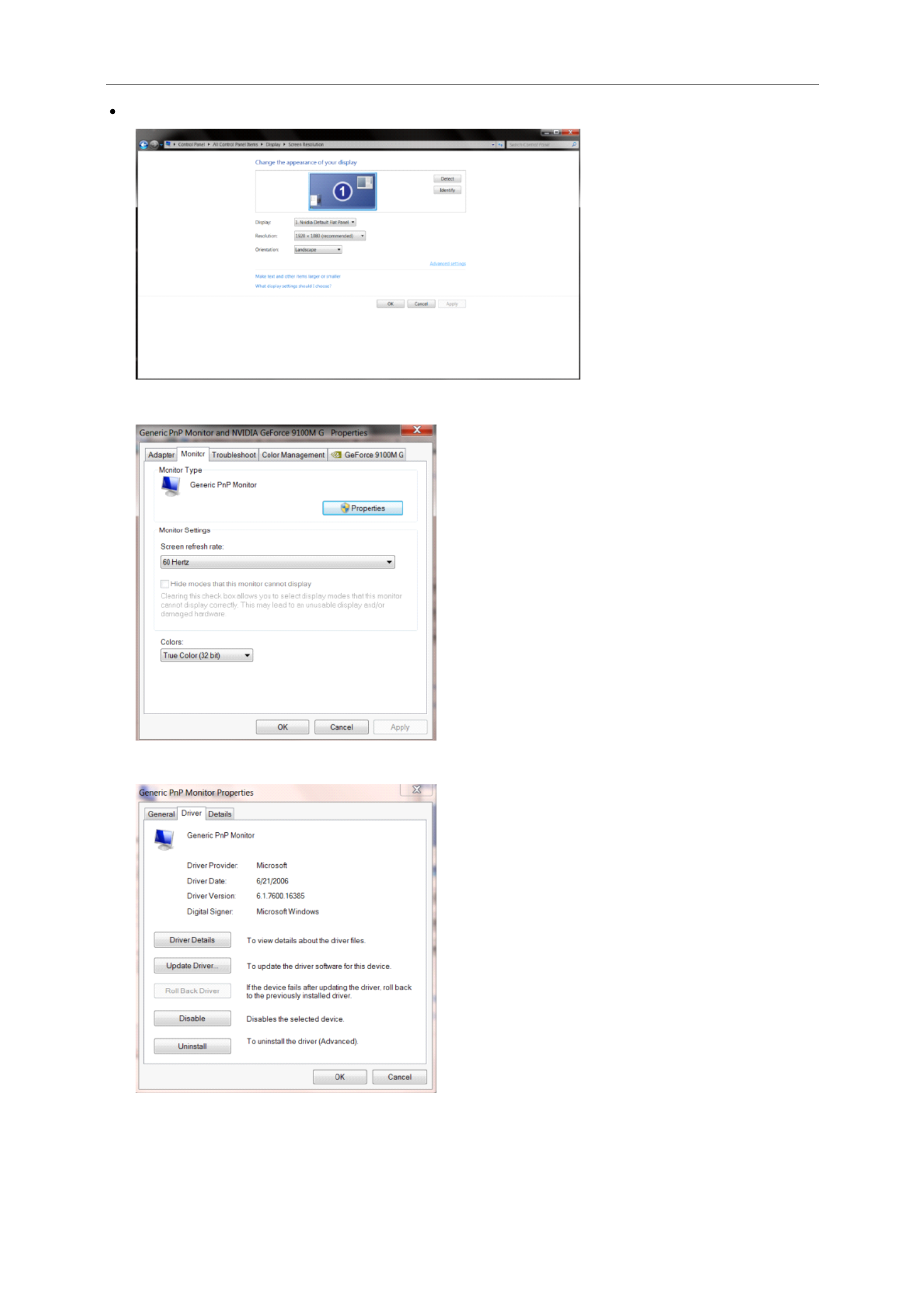

Right click START .
Click "Control Panel".
Click on the "Display" icon.
Click on the " " button Change display settings
Click the " " button. Advanced Settings
Click the tab and then click the"Monitor" "Properties" button.
Click the tab. "Driver"

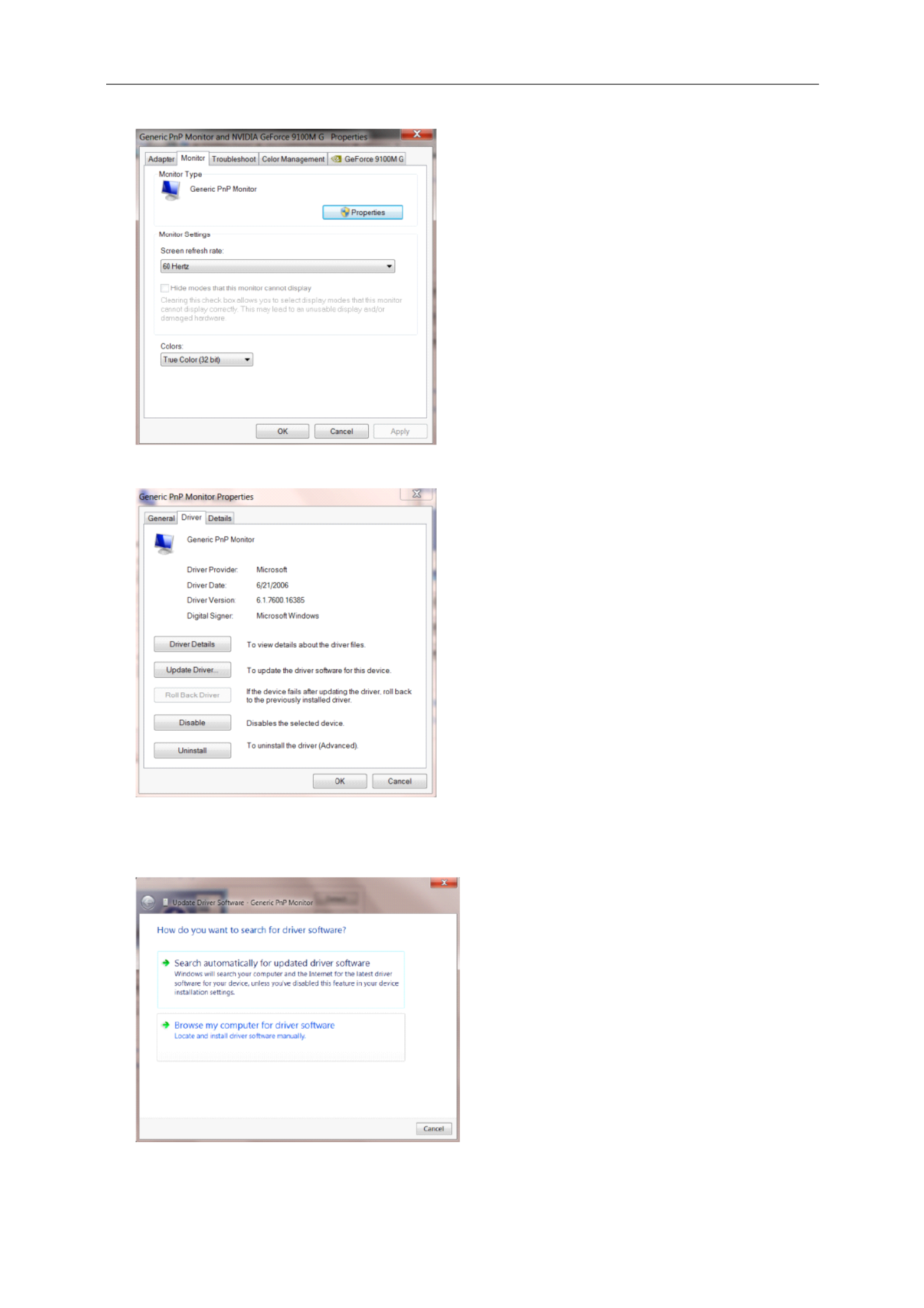

Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver... “and then
click the "Browse my computer for driver software" button.
Click on the icon."Display"
Click on the button."Change display settings"
Click the button"Advanced Settings" .
Click the tab and then click the ."Monitor" "Properties" button
Click the tab. "Driver"
Open the "Update Driver Software-Generic PnP Monitor" window by clicking on "Update Driver..." and
then click the "Browse my computer for driver software" button.
Click the button."Advanced Settings"
Click the tab and then click the"Monitor" "Properties" button.
Click the tab. "Driver"


Specyfikacje produktu

Marka: AOC
Kategoria: monitor
Model: Value-line C32V1Q

Potrzebujesz pomocy?

Jeśli potrzebujesz pomocy z AOC Value-line C32V1Q, zadaj pytanie poniżej, a inni użytkownicy Ci odpowiedzą




Instrukcje monitor AOC

AOC

AOC Q32G3SE Instrukcja

11 Stycznia 2025
AOC

AOC 24G2E5 Instrukcja

29 Grudnia 2024
AOC

AOC A2272PWH Instrukcja

29 Grudnia 2024
AOC

AOC I2490VXQ Instrukcja

29 Grudnia 2024
AOC

AOC E1670SWU Instrukcja

29 Grudnia 2024
AOC

AOC 24B1XH Instrukcja

29 Grudnia 2024

Instrukcje monitor

Najnowsze instrukcje dla monitor

Acer

Acer VG281K Instrukcja

15 Stycznia 2025
Acer

Acer V223W Instrukcja

15 Stycznia 2025
Orion

Orion R4N55RNF Instrukcja

15 Stycznia 2025
Orion

Orion 23REDPH Instrukcja

15 Stycznia 2025
Orion

Orion R4N46UNF Instrukcja

15 Stycznia 2025
Orion

Orion 21REDPH Instrukcja

15 Stycznia 2025
BenQ

BenQ G2750HM Instrukcja

14 Stycznia 2025
Hamlet

Hamlet HM27JF-VDR Instrukcja

14 Stycznia 2025
Hamlet

Hamlet HM24JF-VDR Instrukcja

14 Stycznia 2025
