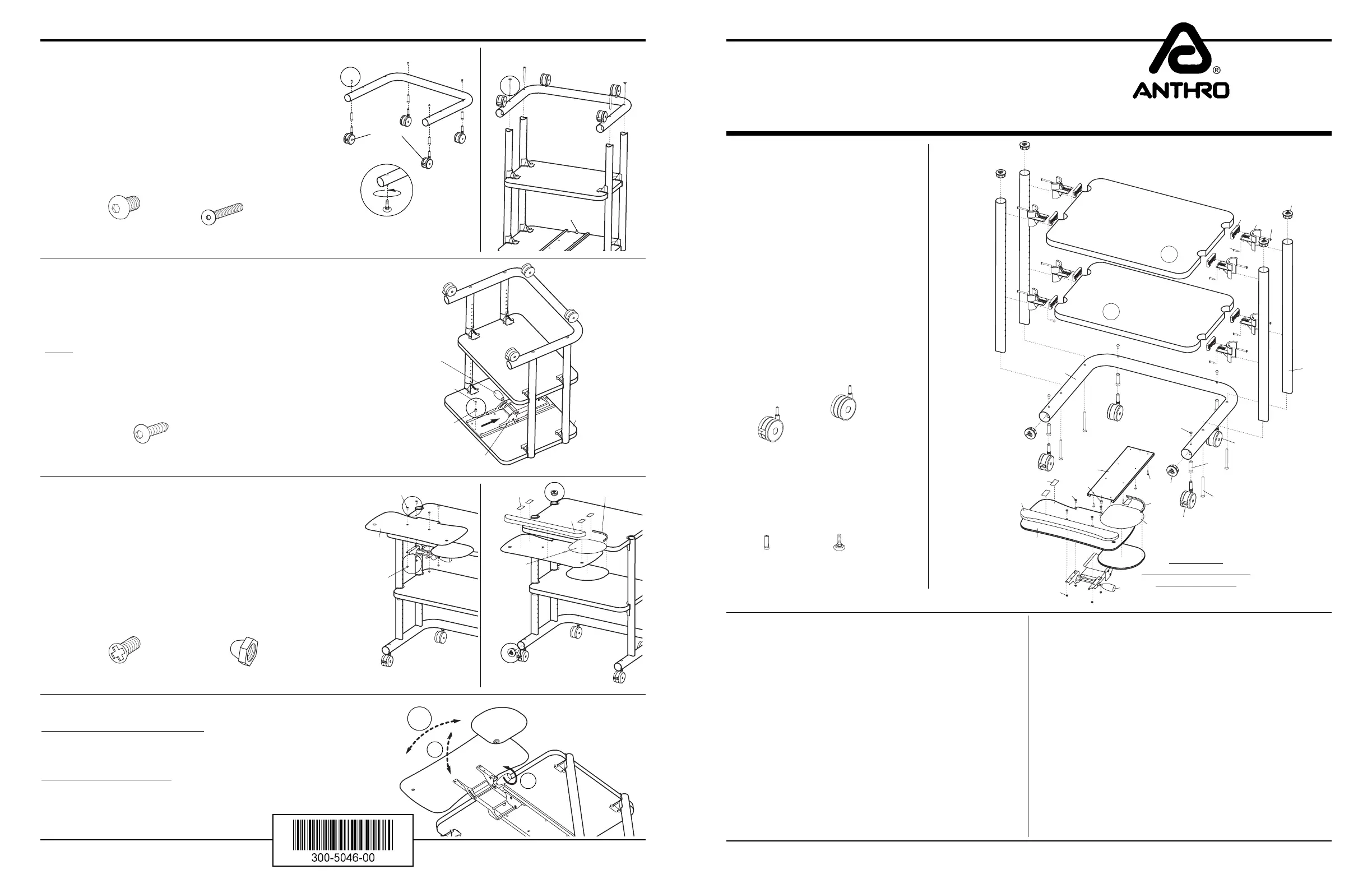

TECHNOLOGY FURNITURE®
UltraCompact Cart
Assembly Instructions
01– Caddy Tray ................................. Qty. 1 ................. 225-5046-00
02– Rubber Bumpers ..................... Qty. 2 ................. 175-5130-03
03– Caddy Screws........................... Qty. 4 ................. 575-5001-10
04– Keyboard Pads .......................... Qty. 4 ................. 575-5001-11
05– Wrist Rest ................................ Qty. 1 ................. 575-5001-01
06– Caddy Platform ........................ Qty. 1 ................. 575-5001-04
07– Acorn Nuts ............................... Qty. 4 ................. 325-5023-00
08– Caddy Mechanism ................... Qty. 1 ................. 575-5001-09
09– Mouse Pad................................. Qty. 1 ................. 575-5001-03
10– Mouse Rail................................. Qty. 1 ................. 575-5001-02
11– 3/4” Wood Screws .................... Qty. 10............... 325-5106-00
12– 1.75” Large End Caps ............. Qty. 2 .................. 175-5021-xx
13– 2 3/8” Locking Casters ............ Qty. 2 .............. 150-5003-00*
14– Base Tube Screws .................... Qty. 4 ................. 325-5000-00
15– Caster Inserts ........................... Qty. 4 ...............525-1000-00*
16– Insert Screws ............................ Qty. 4................. 325-5052-00
17– 2 3/8” Non-Locking Casters ... Qty. 2 .............. 150-5002-00*
18– Vertical Legs.............................. Qty. 4 ..................125-5049-xx
19– 1.5” Small End Caps ............... Qty. 4 ..................175-5020-xx
20– Clamp Screws........................... Qty. 8 .................325-5086-03
21– Shelf Supports .......................... Qty. 8 ..................175-5060-xx
22– Shelf Clamps ............................. Qty. 8 ..................175-5059-xx
23– Support Screws ........................ Qty. 8 .................325-5010-00
24– Ultra Compact Large Shelf .... Qty. 1 ..................100-6001-xx
25– Ultra Compact Small Shelf .... Qty. 1 ..................100-6005-xx
26– Ultra Compact Base Tube ...... Qty. 1 ..................125-5046-xx
All Screw quantities listed here are the minimum needed
for your Cart assembly. There may be a few extra Screws
included, which are not counted in the Parts List.
The following Tools (not shown) have been included with your Cart.
Hex Driver 5/32"......................... Qty. 1 ................. 375-5000-00
Hex Driver Bit 5/32"................... Qty. 1 ................. 375-5003-00
Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
SAVE THESE INSTRUCTIONS! Rev. B June 2003
Step 8
Install all four Caster Inserts into the Base Tube and
secure with one Insert Screw per Insert. Push the
Casters, (locking ones in front) into the Caster Inserts.
Next, place the Base Tube Assembly onto the Vertical Legs
of the Shelf Assembly. Attach the Base Tube to each Leg
using a total of four Base Tube Screws.
Step 9
Unpack the remaining Keyboard & Mouse Caddy items.
First, slide the Caddy Mechanism into the installed Tray
and push to the rear.
NOTE: If needed, rotate the Mechanism Handle and LIFT to
allow the Mechanism to slide to the rear.
Second, install the remaining Wood Screw and Rubber
Bumper into the front of the Tray.
1-800-325-3841
Hello! Thank you for choosing Anthro.
Before beginning assembly of your
UltraCompact Cart, please take a
moment to review the parts listed below
to verify that your shipment is complete.
It may be helpful to review the
assembly instructions of all Anthro
products you purchased and are
planning to include in this installation.
A Philips Head Screwdriver & Adjust-
able Crescent Wrench (not included)
will be required for this assembly.
4Does your Cart have 4” Casters?*
(Such as a 075xx4. Your Caster Part Num-
bers are given here.)
4Does your Cart have Glides?*
(Such as a 075xxGL. Your Glide and Glide
Insert Part Numbers are given here.)
4” Locking Caster
150-5011-00
4” Non-Locking Caster
150-5010-00
Glide Insert
525-1004-00 Glide
325-5042-00
Base Tube Screw
325-5000-00
Questions? 1-800-325-3841
12
13
15
16
18
14
19
17
23
21
22 20
26
24
25
Insert Screw
(small pink patch on end)
325-5052-00
3/4” Wood Screw
325-5106-00
GLIDES ONLY
Thread each Glide
into the Glide Inserts
Locking
Casters
Rubber Bumper
NOTE: The Rubber Bumper is located
towards the rear of the Cart
05
04 02
06
01
ITEMS 01-11
ARE BOXED SEPARATELY
FROM YOUR CART
03
08
07
10
09
11
Component list for part #
075xx , 075Lxx
Caddy Mechanism
Rubber Bumper
Rear
of
Cart
Wood Screw
Rotate Handle
to LIFT
(#10-24) Acorn Nut
325-5023-00
Step 10 (requires the Crescent Wrench & Screwdriver)
Carefully rotate your Cart back onto the Casters.
Pull the Mechanism to the front and place the Platform
onto the Mechanism. Secure the Platform using the four
Caddy Screws and Acorn Nuts.
Then, place the Mouse Rail, Pad & Wrist Rest onto the
Platform as best suits your personal preference.
Pop the Small End Caps into the Legs and the Large End
Caps into the Base Tube. Congratulations! Your assembly
is complete.
(#10-24) Caddy Screw
575-5001-10
Caddy Screws
Acorn
Nuts
Platform
Mouse
Pad
KB Pads
Wrist Rest
Mouse Rail
Adjust the Platform height & angle:
1. Rotate the Handle counterclockwise.
2. Reposition the Shelf, then retighten the Handle.
Adjust the Platform rotation:
1. Firmly grasp the Platform, then rotate to the desired angle.
Adjusting your Keyboard & Mouse Caddy
2
1
Rotate
Ultra Compact Cart
Assembly Instructions
Anthro® Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
Step 1
Before proceeding, please review the Assembly
Instructions of all Anthro Products you purchased
and are planning to include in this installation.
These Instructions will cover both the Ultra Compact
Cart and Universal Keyboard & Mouse Caddy assembly.
You may disregard the Keyboard & Mouse Caddy Instructions
that came in the separate packaging.
Step 3
Attach four Shelf Supports to both Shelves.
Begin by first installing a Shelf Clamp into the Shelf
notch. Be sure the pointed “barbs” face towards the
outer Shelf edge.
Slide a Shelf Support into the recesses of the Shelf
Clamp and Shelf. Push in as far as possible.
Secure with a Clamp Screw.
anthro.com
Step 4
Unpack the Universal Keyboard & Mouse Caddy items.
Align the ten Caddy Tray holes with those on the underside of
your Cart’s Large Shelf. Secure the Tray using eight Wood
Screws (installed on the edges of the Tray).
Finally, insert one Wood Screw through a Rubber Stop and
install the Stop towards the “rear” of your Cart.
NOTE: One hole will be left open.
Step 5
Loosely attach the Small Shelf to Hole 8 from the
bottom (coped end) of two Vertical Legs using two
Support Screws.
NOTE: Handle the Shelf Assembly carefully until the Cart is
fully assembled.
Step 6
Loosely attach the Large Shelf to Hole 2 from the
top (non-coped end) of the Vertical Leg Assembly
(from Step 5) using two Support Screws.
TIP: Use the holes in the Vertical Legs as a ruler to
ensure that your Support Screws are installed into the
correct locations.
Questions? 1-800-325-3841
First
Next
Last
Support Screw
325-5010-00
Clamp Screw
325-5086-03
Barbs
Step 2
Determine the best location for your Cart’s Shelves.
Your Cart is designed to have the Large Shelf installed
above the Small Shelf (as shown in these instructions).
For a Small Shelf location that is higher or lower than
16” from the floor, refer to the illustrations shown at
right to determine which hole to attach your Small Shelf.
Once assembled, it is very difficult to move a Shelf
without taking the Cart apart and starting over.
NOTE: These instructions will place your Small Shelf 16” from
the floor using the standard 2 3/8” Casters.
075xx, 075Lxx with 2 3/8” Casters shown
075xx
Ultra Compact Cart shown with
the Universal Keyboard & Mouse
Caddy and 2 3/8” Casters
(075Lxx available with Mouse
Caddy on left)
075xx4, 075Lxx4 with 4” Casters shown
075xxGL, 075LxxGL with Glides shown
Hole 9=17”
Hole 8=16” (measured from the coped end)
Hole 7=15”
Hole 8=17”
Hole 7=16”
Hole 6=15”
Hole 11=17”
Hole 10=16”
Hole 9=15”
REMINDER: You may want to
measure your equipment to
make sure it fits between the
selected Shelf locations.
Coped end
16”
16”
16”
Support Screw
325-5010-00
Step 7
Loosely attach the 3rd and 4th Vertical Legs to the Shelf Assem-
bly (from Step 6) using one Support Screw per Shelf Support.
Once all four Vertical Legs are attached, tighten all Support Screws.
TIP: Use the holes in the Vertical Legs as a ruler to ensure that your
Support Screws are installed into the correct locations.
In preparation for Step 8, rotate your Cart upside down.
Support Screw
325-5010-00
1/2” Wood Screw
325-5106-00
Do not install a Wood
Screw into this hole
NOTE: There is more
distance from the
Shelf Supports to the
Front Shelf edge
DON’T FORGET: The Keyboard
Caddy will require additional space
between the Shelves in order to fully
slide to the back of the Tray.
Rubber Bumper
Rubber Bumper
Rubber Bumper
Bottom (coped) end
Hole 8=16”
(using 2 3
/8” Casters)
Insert one Support Screw
through each Shelf Support
Top (non-coped) end
Hole 2
Bottom (coped) end
