R
01–Worksurface ...................................Qty. 1 ....................... (see below)
60" Wide Worksurface (F6029zz/xx3) ...............100-6434-00
72" Wide Worksurface (F7229zz/xx3) ...............100-6435-00
02–Front Lip ...........................................Qty. 1 ....................... (see below)
60" Wide Front Lip (F6029zz/xx3) ......................225-5555-00
72" Wide Front Lip (F7229zz/xx3) ......................225-5556-00
03– Support Bracket-B.......................Qty. 1 ...................225-2296-00
04– 22.875" Vertical Legs .................Qty. 4 ...................125-5213-00
05– Base Tubes .......................................Qty. 2 ..................125-5273-00
06– Cross Tubes ....................................Qty. 2 ....................... (see below)
60" Wide Cross Tube (F6029zz/xx3) ..................125-5221-00
72" Wide Cross Tube F7229zz/xx3) ....................125-5222-00
07– Insert Screws .................................Qty. 4 ...................325-5052-00
08– 2" Large End Caps .......................Qty. 4 ...................175-5157-00
09– 3" Locking Casters ......................Qty. 2 ...................150-5053-00
10– Caster Inserts ...............................Qty. 4 ...................525-5032-00
11– 5/16-18 Bolts ....................................Qty. 8 ...................325-5194-00
12– Tube Washers ................................Qty. 8 ..225-2050-00 or 225-3522-00

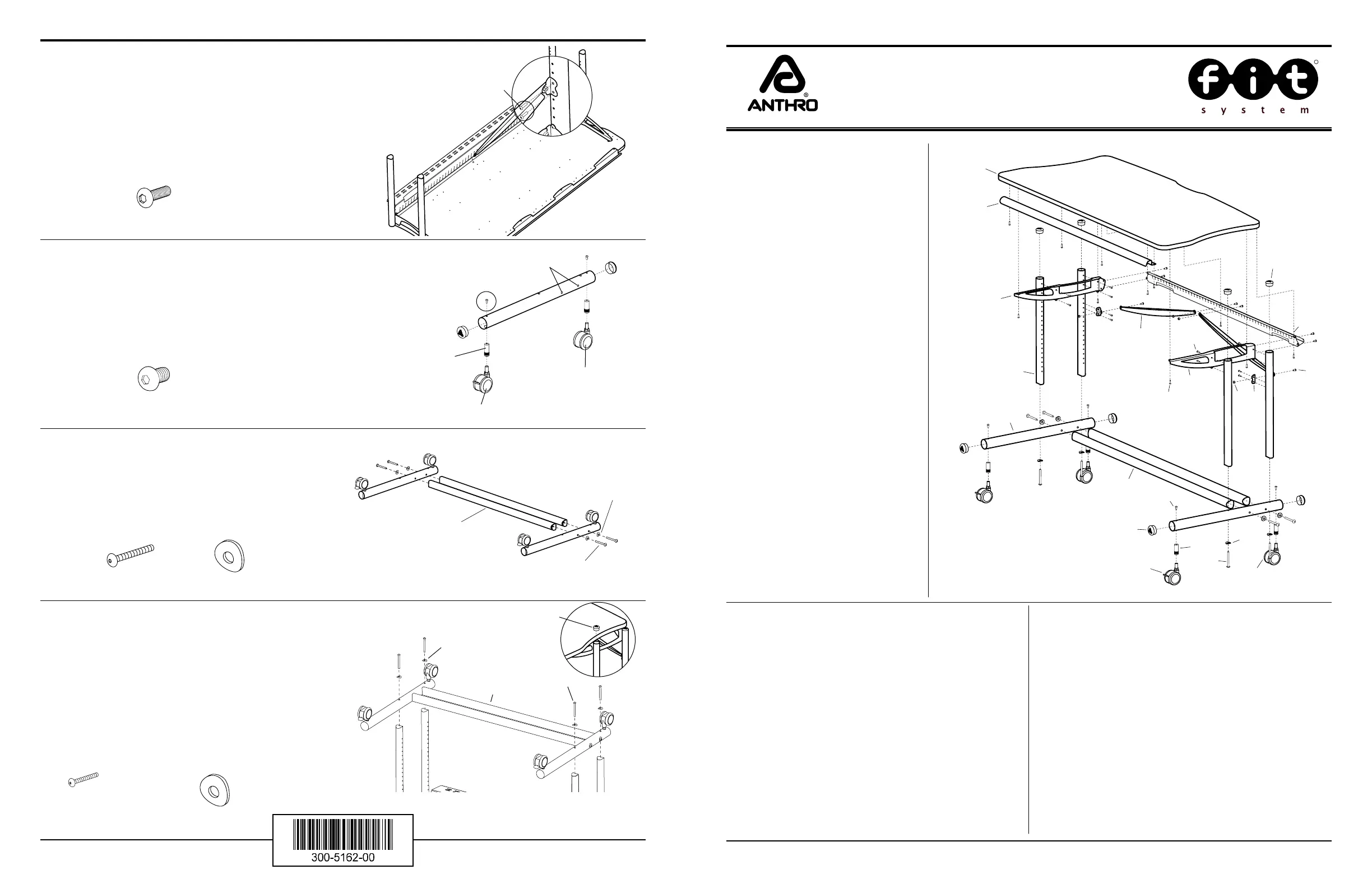

Components List for part #’s
F6029zz/xx3 & F7229zz/xx3
13– 3" Non-Locking Casters ...........Qty. 2 ...................150-5052-00
14– Buttress............................................Qty. 2 ....................... (see below)
60" Wide Buttress (F6029zz/xx3) ........................225-5549-00
72" Wide Buttress (F7229zz/xx3) ........................225-5550-00
15– Support Screws ............................Qty. 12 ................325-5010-00
16– 3/4" Wood Screws .........................Qty. 11 ................325-5106-00
17– Support Bracket-A ......................Qty. 1 ...................225-2295-00
18– 1/4-20 Keps Nuts ...........................Qty. 4 ...................325-5130-03
19– Cross Ends .....................................Qty. 2 ...................225-5334-00
20– 1/4-20 Button Head Screws ......Qty. 8 ...................325-5003-00
21– Back Trough ....................................Qty. 1 ....................... (see below)
60" Wide Back Trough (F6029zz/xx3) ................225-2293-00
72" Wide Back Trough (F7229zz/xx3) ................225-2294-00
22– 1.5" Small Caps .............................Qty. 4 ...................175-5156-00
All Screw quantities listed here are the minimum needed
for your Fit System assembly. There may be a few extra
Screws included, which are not counted in the Parts List.
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062 anthro.com
SAVE THESE INSTRUCTIONS! Rev. C January 2006
Step 12
Position a Cross Tube between the Base Tubes. Attach
by inserting a Bolt through a Tube Washer, then insert the
Bolt through the Base Tube and carefully thread into the
Cross Tube. Repeat for remaining Bolts, Tube Washers &
Cross Tube, then tighten all Bolts and Wood Screws.
Carefully, rotate your Standard Unit onto its Casters and
insert the four 1.5" End Caps into the Vertical Legs.
Congratulations! Your assembly is complete.
1-800-325-3841
Hello! Thank you for choosing Anthro.
Before beginning assembly of your
Standard Unit, please take a moment to
review the parts listed below to verify
that your shipment is complete.
Please review the assembly instructions
of all Anthro products you purchased and
are planning to include in this installation,
prior to beginning this assembly.
To make the assembly of your Standard
Unit even easier, we have included all
of the required tools. The handy Hex
Driver Bit can be used in your electric
drill in place of the Hex Driver.
Hex Driver 5/32" ..........375-5000-00
Hex Driver Bit 5/32" ....375-5003-00
8 oz. Rubber Mallet ....375-5022-00
3-Way Wrench ...........225-5196-03
Questions? 1-800-325-3841
(5/16-18 X 3.5") Bolt
325-5194-00
Tube Washer
225-2050-00 or 225-3522-00
04
07
08
03
02
10 12
06
01
09 13
18 19
16
20
11
17
Step 10
Install two Caster Inserts into each Base Tube and
secure with one Insert Screw per Caster Insert.
Insert one Locking and one Non-Locking Caster into
each Insert of a Base Tube as shown.
Insert two End Caps into the ends of both Base Tubes.
Insert Screw
(with pink threads)
325-5052-00
Locking
Caster
Caster Inserts placed
into the large holes
Leave these two side holes open
Non-Locking
Caster
Support Screw
325-5010-00
1.5" End Cap
Bolt
Tube
Washer
Cross Tube
05
21
14
22
15
Step 9 (requires the 3-Way Wrench)
Rotate the Buttress and Cross End upward to align the
holes on the Cross End with two corresponding holes
on a Vertical Leg. Secure the Cross End to the Vertical
Leg using two Support Screws.
Repeat Steps 7, 8 & 9 for the remaining Buttress and
Cross End on the opposite side. Then, tighten all Screws
& Keps Nuts.
Support Screws
Please return the enclosed Registration Card to receive
our product updates, new catalogs, and sale flyers.
Thank you for choosing Anthro!
60"/72" wide Standard Unit
Assembly Instructions
Detailed views of all Hardware are
provided with each Assembly Step.
Step 11
Attach a Cross Tube to a Base Tube by inserting a Bolt
through a Tube Washer, then insert the Bolt through the
Base Tube and carefully thread into the Cross Tube.
Repeat this procedure for other Cross Tube. Then
tighten all Bolts.
Tube Washer
225-2050-00 or 225-3522-00
Cross Tube
Tube Washer
(5/16-18 X 3.5") Bolt
325-5194-00
Bolt
Base Assembly
Anthro Corporation Technology Furniture® 10450 SW Manhasset Drive Tualatin, Oregon 97062
Step 1
Place your Worksurface onto the floor with the predrilled
holes facing upward.
Position the Support Brackets onto the Worksurface and
align two of the holes on each Bracket with the predrilled
holes on the Worksurface.
Loosely secure each Support Bracket to the Worksurface
using two Wood Screws per Support Bracket.
Step 2
Place the Front Lip onto the straight edge of the Shelf
and secure using four Wood Screws as shown.
anthro.com
Step 4
Determine the best height for your Worksurface.
These instructions will place your Worksurface 29" from
the floor using the standard 3" Casters. For a final Shelf
height that is lower than 29", adjust one hole down for
each inch of variance desired.
NOTE: Your Worksurface height may be changed after your
Standard Unit has been completely assembled by repeating
Steps 5, 6, 7, 8 & 9.
Step 5
Attach a Vertical Leg by installing two Support Screws
through the Support Bracket-A into holes 1 & 3 from the
top of a Vertical Leg. (non-coped end)
Repeat for the second Vertical Leg to be installed to
Support Bracket-A.
Support Screw
325-5010-00
Step 3
Position the Back Trough onto the Worksurface, between
the installed Support Brackets (as shown).
Align the two threaded holes on each end of the Back
Trough with the holes on both Support Brackets. Carefully,
thread one Button Head Screw through the Support
Bracket, into the Back Trough. Repeat for remaining three
Button Head Screws.
Install three Wood Screws through the holes on the Back
Trough flange (which should be aligned with three predrilled
holes on the Worksurface).
Step 6
Attach the remaining Vertical Legs to Support Bracket-B
using the same procedure used in Step 5.
NOTE: Make certain to install the Vertical Legs into the same
holes used in Step 5.
Support Screw
325-5010-00
3/4" Wood Screw
325-5106-00
3/4" Wood Screw
325-5106-00
3/4" Wood Screw
325-5106-00
(1/4-20 X .50") Button Head Screw
325-5003-00
29"
Questions? 1-800-325-384160"/72" wide Standard Unit
Step 7
Position a Buttress against the Back Trough, aligning the
holes on both Buttress and Back Trough.
Insert a Button Head Screw from the rear of the Trough, and
capture on the opposite side using a Keps Nut.
NOTE: Just hand tighten the Keps Nut at this point.
Step 8
Position a Cross End on the opposite end of the Buttress
installed during Step 7.
Insert a Button Head Screw from the rear of the Buttress,
through the Cross End and capture on the opposite side
using a Keps Nut.
NOTE: Just hand tighten the Keps Nut at this point.
(1/4-20 X .50") Button Head Screw
325-5003-00
(1/4-20) Keps Nut
325-5130-03
(1/4-20 X .50") Button Head Screw
325-5003-00
(1/4-20) Keps Nut
325-5130-03
Hole 1=29" Final Worksurface Height
Support Bracket-A
Support Bracket-B
Hole 1
Top
(non-coped)
end
Bottom
(coped)
end
Hole 3
Hole 1
Hole 3
Top
(non-coped)
end
Bottom
(coped)
end
Support Bracket-A
Support Bracket-B
Front Lip
Back Trough
Threaded holes
FIRST: Install the
Button Head Screws
SECOND: Install
the Wood Screws
Back Trough flange
NOTE: Make certain
to install the Back
Trough in front of the
Support Brackets
Keps Nut
Button Head Screw
Keps Nut
Button Head Screw
Straight Edge
Buttress flange
faces towards
the front
Cross End
