At Antec, we continually refine and improve our products to ensure the highest quality. So it's

possible that your new case may differ slightly from the descriptions in this manual. This isn't

a problem; it's simply an improvement. As of the date of publication, all features, descriptions,

and illustrations in this manual are correct.

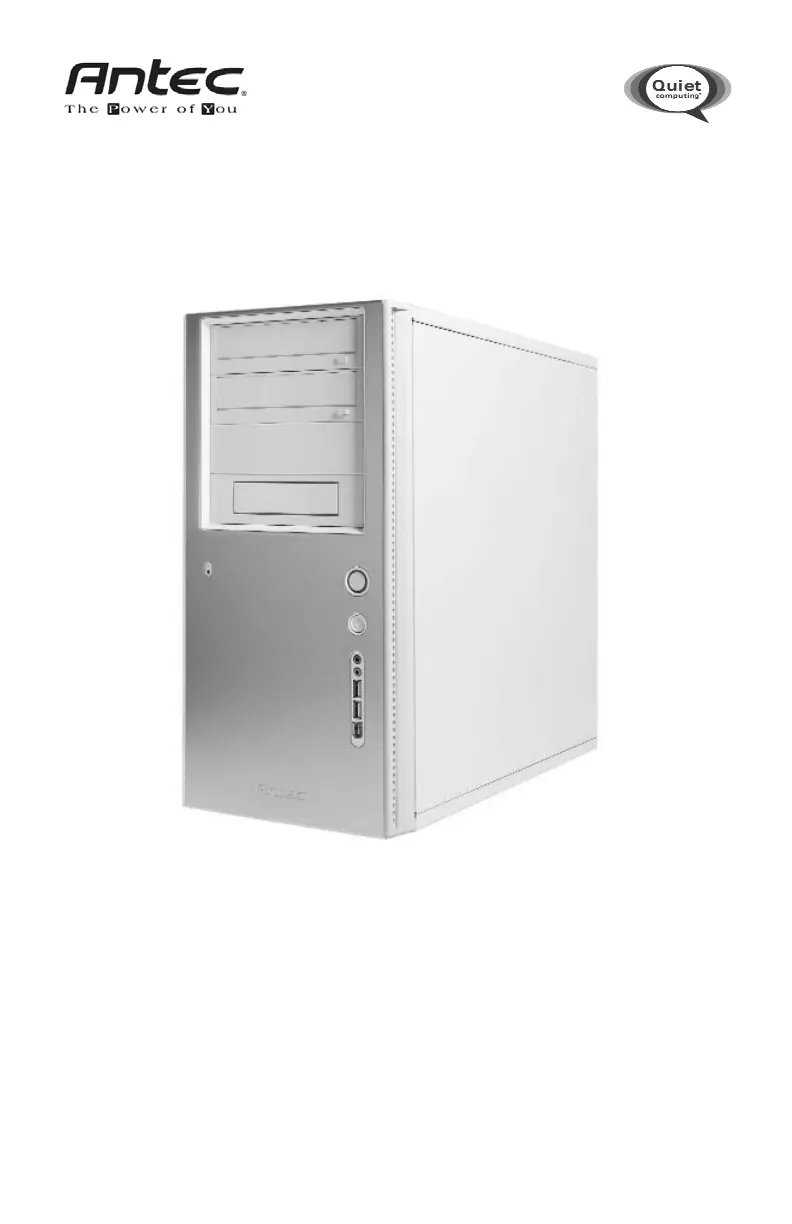

P150 — SUPER QUIET MINI TOWER CASE

USER'S MANUAL

The P150 is designed with Quiet Computing™ in mind. Apart from the solid steel structure

(1.0 mm thick steel), there are several unique design features that make this case quiet and cool.

1. Two-layer (steel/plastic) side and top panels to deaden noise.

2. Dual hard drive mounting system for maximum noise reduction.

3. Quiet 120mm TriCool rear fan.

4. Dual front 92mm fan mounts for spot cooling hard drives

5. Intake vents along the sides of the front bezel to prevent noise from leaking toward to the user.

6. Built-in cable organizer to tuck away cables.

7. Neo HE 430 high efficiency power supply.

NEO HE Power Supply

The Neo HE 430 power supply installed in this case supports the newest ATX12V version 2.2

specifications. Enhanced output power distribution supports the newest Intel and AMD

processor requirements. Three +12V outputs deliver safer and more reliable power to your

system's components. With up to 85% efficiency, this power supply saves energy and money on

your electrical bill compared to typical power supplies. Neo HE power supplies

generate less heat because of the high efficiency which keeps the power supply cooler and

prolongs its working life. Also included are a variety of industrial-grade protective circuitries:

OCP (over current protection), OPP (over power protection), OVP (over voltage protection),

SCP (short circuit protection), and UVP (under voltage protection).

Special Quiet Computing Fan Operation

Neo HE power supplies feature an innovative design that decreases noise during normal use, but

which allows for superior cooling capabilities as loads increase. Owing to its ultra high efficiency

and low heat generation, Neo HE can utilize an 80mm exhaust fan that rotates slowly and

quietly to blow hot air out of the power supply, speeding up as heat increases.

This power supply includes Universal Input and Active Power Factor Correction (PFC).

Universal Input allows you to connect your Neo HE power supply to any AC power outlet

between 100~240V without having to worry about setting a voltage switch. Active PFC

improves the power factor value of the power supply by altering the input current wave shape,

helping the power plant provide power to users more efficiently.

Disclaimer

This manual is intended only as a guide for Antec's Computer Enclosures. For

more comprehensive instructions on installing your motherboard and peripherals,

please refer to the user's manuals which come with your components and drives.

Connectors: Neo HE power supplies are ATX12V version 2.2 form factor compatible. The Neo

HE430 includes a 24-pin main power connector with detachable 4-pin connector, and a 4-pin

+12V power connector. In addition, Neo HE includes six 4-pin peripheral connectors, four

15-pin Serial ATA Connectors, and PCI Express Power Connector.

Power Switch: This power supply comes with a main power switch. Make sure you turn the switch

to the ON ( I ) position before you boot up your computer for the first time. In normal

operation there is no need to turn the switch to the OFF (O) position since the power supply is

equipped with a soft on/off feature which turns your computer on and off through the soft

switch on your computer case. You may need to turn the switch to the OFF position

occasionally should your computer crash and you cannot shut it down with the soft switch.

Advanced Cable Management System - Neo HE power supplies feature Antec's Advanced Cable

Management System. It allows you to use only the power cables that you need, thereby reducing

clutter and improving airflow inside your case. Inside the package, apart from a power cord, you

will find the following cables (see Picture 1):

Picture 1

Attached to the power supply, you'll find the following:

1. Five 6-pin output sockets, for use with the wire sets to power your drives and other

peripherals.

2. 4-pin +12V connector

3. A 24-pin configurable main power connector with detachable 4-pin section for 20-pin

applications.
