Strona 1/99
NSD-4301Q & NSD-5501Q LCD Display
User Manual
www.agneovo.com
TABLE OF CONTENTS
SAFETY INFORMATION 1 ..............................................................................
Federal Communications Commission (FCC) Notice (U.S. Only) 1 ............................................................
CE 1 ............................................................................................................................................................
Electric, Magnetic and Electromagnetic Fields (“EMF”) 2 ...........................................................................
Information for U.K. only 3 ...........................................................................................................................
North Europe (Nordic Countries) Information 4 ...........................................................................................
End-of-Life Disposal 5 .................................................................................................................................
Waste Electrical and Electronie Equipment-WEEE 5 ..................................................................................
Turkey RoHS ............................................................................................................................................ 6
Ukraine RoHS 6 ..........................................................................................................................................
PRECAUTIONS 7 ............................................................................................
Cautions When Setting Up 7 .......................................................................................................................
Cautions When Using 8 ...............................................................................................................................
Cleaning and Maintenance 8 .......................................................................................................................
Notice for the LCD Display 9 .......................................................................................................................
CHAPTER 1: PRODUCT DESCRIPTION 10 .....................................................
1.1 Unpacking 10 ..........................................................................................................................................
1.2 Package Contents 10 ..............................................................................................................................
1.3 Preparing for the Installation .............................................................................................................. 11
1.4 Wall Mounting Installation ................................................................................................................... 11
1.4.1 VESA Grid 12 ...............................................................................................................................
1.4.2
Ventilation Requirements for Enclosure Locating 12 .......................................................................
1.5 Using the Remote Sensor and Power Status Indicator 13 ......................................................................
1.6 LCD Display Overview 14 .......................................................................................................................
1.6.1 Control Panel 14 ...........................................................................................................................
1.6.2 Input/Output Terminals ............................................................................................................ 16
1.7 Remote Control 18 ..................................................................................................................................
1.7.1 General Functions 18 ...................................................................................................................
1.7.2 ID Remote Control 20 ...................................................................................................................
1.7.3 Remote Control buttons on Android source 21 ............................................................................
1.7.4 Inserting the Batteries in the Remote Control 23 .........................................................................
1.7.5 Handling the Remote Control 23 ..................................................................................................
1.7.6 Operating Range of the Remote Control 23 .................................................................................
CHAPTER 2: MAKING CONNECTIONS 25 ......................................................
2.1 Connecting the Power 25 ........................................................................................................................
2.2 Connecting a Computer 26 .....................................................................................................................
2.2.1 Using VGA Input 26 .....................................................................................................................
2.2.2 Using DVI Input 27 .......................................................................................................................
2.2.3 Using HDMI Input 28 ....................................................................................................................
2.3 Connecting External Equipment (Video Player) 29 .................................................................................
2.3.1 Using HDMI Video Input 29 ..........................................................................................................
TABLE OF CONTENTS
2.4 Connecting Audio Equipment 30 .............................................................................................................
2.4.1 Connecting an External Audio Device 30 .....................................................................................
2.5 Using the Card Reader 31 .......................................................................................................................
2.6 Connecting Multiple Displays in a Daisy-chain Conguration ............................................................ 32
2.6.1 Display Control Connection 32 .....................................................................................................
2.7 IR Connection 33 .....................................................................................................................................
2.8 IR Pass-Through Connection 33 .............................................................................................................
CHAPTER 3: USING THE LCD DISPLAY 34 ....................................................
3.1 Turning on the Power 34 .........................................................................................................................
3.1.1 Initial Setup 34 ..............................................................................................................................
3.2 Selecting the Input Source Signal 35 ......................................................................................................
3.3 Adjusting the Volume 35 ..........................................................................................................................
3.4 Changing the Picture Format 36 .............................................................................................................
CHAPTER 4: MULTIMEDIA MENU 37 ..............................................................
4.1 Accessing the Multimedia Menu 37 .........................................................................................................
4.2 Media Player 38 ......................................................................................................................................
4.2.1 Creating a Playlist 38 ...................................................................................................................
4.2.2 Modifying a Playlist 40 ..................................................................................................................
4.2.3 Playing Files in a Playlist 40 .........................................................................................................
4.2.4 Media Player Settings 41 .............................................................................................................
4.3 Browser 42 ..............................................................................................................................................
4.3.1 Adding an URL ........................................................................................................................ 42
4.3.2 Managing URLs List 44 ................................................................................................................
4.4 Cloud Content Management Software (Cloud CMS) 45 .........................................................................
4.5 PDF Player 46 .........................................................................................................................................
4.5.1 Creating a Playlist 46 ...................................................................................................................
4.5.2 Modifying a Playlist 48 ..................................................................................................................
4.5.3 Displaying PDF Files in a Playlist 48 ............................................................................................
4.5.4 PDF Player Settings 48 ................................................................................................................
4.6 Custom 49 ...............................................................................................................................................
4.6.1 Entering the Admin Mode 49 ........................................................................................................
4.6.2 System Settings 50 ......................................................................................................................
4.6.3 Accessing Apps in Admin Mode .............................................................................................. 52
4.6.4 Displaying Content via CMS App 52 ............................................................................................
4.6.5 Installing Apps to the LCD Display 55 ..........................................................................................
4.6.6 Accessing Network Settings in Admin Mode 55 ...........................................................................
4.6.7 Managing Storage in Admin Mode 56 ..........................................................................................
CHAPTER 5: ON SCREEN DISPLAY MENU 57 ...............................................
5.1 Using the OSD Menu 57 .........................................................................................................................
5.2 OSD Menu Tree 59 .................................................................................................................................
TABLE OF CONTENTS
CHAPTER 6: ADJUSTING THE LCD DISPLAY 61 ..........................................
6.1 Picture Settings 61 ..................................................................................................................................
6.2 Screen Settings 65 ..................................................................................................................................
6.3 Audio Settings .................................................................................................................................... 67
6.4 Conguration1 Settings ...................................................................................................................... 69
6.5 Conguration2 Settings ...................................................................................................................... 73
6.6 Advanced option Settings 75 ...................................................................................................................
CHAPTER 7: APPENDIX .............................................................................. 86
7.1 Warning Messages 86 .............................................................................................................................
7.2 Supported Media Formats 86 ..................................................................................................................
7.3 Input Mode 88 .........................................................................................................................................
7.4 Cleaning 90 .............................................................................................................................................
7.5 Troubleshooting .................................................................................................................................. 91
7.6 Transporting the LCD Display 92 ............................................................................................................
CHAPTER 8: SPECIFICATIONS 94 ..................................................................
8.1 Display Specications ........................................................................................................................ 94
8.2 Display Dimensions 95 ............................................................................................................................
1
Federal Communications Commission (FCC) Notice (U.S. Only)
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a residential area is likely
to cause harmful interference in which case the user will be required to correct the interference
at his own expense.
Changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
Use only an RF shielded cable that was supplied with the display when connecting this display to a computer
device.
To prevent damage which may result in re or shock hazard, do not expose this appliance to rain or excessive
moisture.
THIS CLASS A DIGITAL APPARATUS MEETS ALL REQUIREMENTS OF THE CANADIAN INTERFERENCE
CAUSING EQUIPMENT REGULATIONS.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
CE
WARNING: This equipment is compliant with Class A of EN55032/CISPR 32. In a residential
environment this equipment may cause radio interference.
SAFETY INFORMATION
2
SAFETY INFORMATION
Electric, Magnetic and Electromagnetic Fields (“EMF”)
• We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in
general have the ability to emit and receive electromagnetic signals.
• One of our leading Business Principles is to take all necessary health and safety measures for our
products, to comply with all applicable legal requirements and to stay well within the EMF standards
applicable at the time of producing the products.
• We are committed to develop, produce and market products that cause no adverse health effects.
• We conrm that if its products are handled properly for their intended use, they are safe to use according to
scientic evidence available today.
• We play an active role in the development of international EMF and safety standards, enabling us to
anticipate further developments in standardization for early integration in its products.
3
SAFETY INFORMATION
Information for U.K. only
WARNING - THIS APPLIANCE MUST BE EARTHED.
(A)
(B)
Important:
This apparatus is supplied with an approved moulded 13A plug. To
change a fuse in this type of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fit new fuse which should be a BS 1362 5A,A.S.T.A. or BSI
approved type.
3 Ret the fuse cover.
If the tted plug is not suitable for your socket outlets, it should be cut
off and an appropriate 3-pin plug tted in its place.
If the mains plug contains a fuse, this should have a value of 5A. If a
plug without a fuse is used, the fuse at the distribution board should
not be greater than 5A.
Note:
The severed plug must be
destroyed to avoid a possible shock
hazard should it be inserted into a
13A socket elsewhere.
4
SAFETY INFORMATION
How to connect a plug
The wires in the mains lead are coloured in accordance with the following code:
BLUE - “NEUTRAL” (“N”)
BROWN - “LIVE” (“L”)
GREEN & YELLOW - “EARTH” (“E”)
• The GREEN & YELLOW wire must be connected to the terminal in the plug which is marked with the letter
“E” or by the Earth symbol or coloured GREEN or GREEN & YELLOW.
• The BLUE wire must be connected to the terminal which is marked with the letter “N” or coloured BLACK.
• The BROWN wire must be connected to the terminal which marked with the letter “L” or coloured RED.
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not
simply over the three wires.
North Europe (Nordic Countries) Information
Placering/Ventilation
VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU
STÄLLER DIN UTRUSTNING PÅPLATS.
Placering/Ventilation
ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT
TILGÆNGELIGE.
Paikka/Ilmankierto
VAROITUS: SIJOITA LAITE SITEN, ETTÄ VERKKOJOHTO VOIDAAN TARVITTAESSA HELPOSTI
IRROTTAA PISTORASIASTA.
Plassering/Ventilasjon
ADVARSEL: NÅR DETTE UTSTYRET PLASSERES, MÅ DU PASSE PÅ AT KONTAKTENE
FOR STØMTILFØRSEL ER LETTE Å NÅ.
5
SAFETY INFORMATION
End-of-Life Disposal
Your new Public Information Display contains materials that can be recycled and reused. Specialized
companies can recycle your product to increase the amount of reusable materials and to minimize the amount
to be disposed of.
Please nd out about the local regulations on how to dispose of your old display from your local dealer.
(For customers in Canada and U.S.A.)
This product may contain lead and/or mercury. Dispose of in accordance to local-state and federal regulations.
For additional information on recycling contact www.eia.org (Consumer Education Initiative).
Waste Electrical and Electronie Equipment-WEEE
Attention users in European Union private households
This marking on the product or on its packaging illustrates that, under European Directive
2012/19/EU governing used electrical and electronic appliances, this product may not be
disposed of with normal household waste. You are responsible for disposal of this equipment
through a designated waste electrical and electronic equipment collection. To determine the
locations for dropping o such waste electrical and electronic, contact your local government
ofce, the waste disposal organization that serves your household or the store at which you
purchased the product.
Attention users in United States:
Please dispose of according to all Local, State and Federal Laws. For the disposal or recycling information,
contact: www.mygreenelectronics.com or www.eiae.org.
End of Life Directives-Recycling
Your new Public Information Display contains several materials that can be recycled for new
users.
Please dispose of according to all Local, State, and Federal laws.
Restriction on Hazardous Substances statement (India)
This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent
chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1
weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.
E-Waste Declaration for India
This symbol on the product or on its packaging indicates that this product must not be disposed
of with your other household waste. Instead it is your responsibility to dispose of your waste
equipment by handing it over to a designated collection point for the recycling of waste electrical
and electronic equipment . The separate collection and recycling of your waste equipment at
the time of disposal will help to conserve natural resources and ensure that it is recycled in a
manner that protects human health and the environment.
7
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
Symbols used in this manual
This icon indicates the existence of a potential hazard that could result in personal injury
or damage to the product.
This icon indicates important operating and servicing information.
Notice
• Read this User Manual carefully before using the LCD display and keep it for future reference.
•The product specifications and other information provided in this User Manual are for reference only All.
information is subject to change without notice. Updated content can be downloaded from our web site at
www.agneovo.com.
• o protect your rights as a consumer, do not remove any stickers from the LCD display. Doing so mayT
aect the determination of the warranty period.
Cautions When Setting Up
• Do not place the LCD display near heat sources, such as a heater, exhaust vent, or in direct sunlight.
• Do not cover or block the ventilation holes in the housing.
• Place the LCD display on a stable area. Do not place the LCD display where it may subject to vibration or
shock.
• Place the LCD display in a well-ventilated area.
• Do not place the LCD display outdoors.
• To avoid the risk of shock or permanent damage to the set, do not expose the display to dust, rain, water or
an excessively moist environment.
• Do not spill liquid or insert sharp objects into the LCD display through the ventilation holes. Doing so may
cause accidental re, electric shock or damage the LCD display.
PRECAUTIONS
8
PRECAUTIONS
Warning:
Unplug the power cord
from the power outlet and
refer to qualied service
personnel under the following
conditions:
♦When the power cord is
damaged.
♦If the LCD display has been
dropped or the housing has
been damaged.
♦If the LCD display emits smoke
or a distinct odor.
Cautions When Using
• Use only the power cord supplied with the LCD display.
• The power outlet should be installed near the LCD display and
be easily accessible.
• If an extension cord is used with the LCD display, ensure that the
total current consumption plugged into the power outlet does not
exceed the ampere rating.
• Do not allow anything to rest on the power cord. Do not place the
LCD display where the power cord may be stepped on.
• If the LCD display will not be used for an indenite period of time,
unplug the power cord from the power outlet.
• To disconnect the power cord, grasp and pull by the plug head.
Do not tug on the cord; doing so may cause re or electric shock.
• Do not unplug or touch the power cord with wet hands.
• When turning o the display by detaching the power cord, wait 6
seconds before re-attaching the power cord for normal operation.
• Do not knock or drop the display during operation or
transportation.
Cleaning and Maintenance
• To protect your display from possible damage, do not put
excessive pressure on the LCD panel. When moving your
display, grasp the frame to lift; do not lift the display by placing
your hand or ngers on the LCD panel.
• Unplug the display if you need to clean it with a slightly damp
cloth. The screen may be wiped with a dry cloth when the power
is o. However, never use organic solvent, such as, alcohol, or
ammonia-based liquids to clean your display.
• If your display becomes wet, wipe it with dry cloth as soon as
possible.
• If a foreign substance or water gets in your display, turn the
power o immediately and disconnect the power cord. Then
remove the foreign substance or water, and send the unit to the
maintenance center.
• In order to maintain the best performance of your display and
ensure a longer lifetime, we strongly recommend using the
display in a location that falls within the following temperature
and humidity ranges.
♦Temperature: 5°C-40°C (41°F-104°F)
♦Humidity: 20-80% RH
9
PRECAUTIONS
Notice for the LCD Display
• In order to maintain the stable luminous performance, it is recommended to use low brightness setting.
• Due to the lifespan of the lamp, it is normal that the brightness quality of the LCD display may decrease
with time.
• When static images are displayed for long periods of time, the image may cause an imprint on the LCD
display. This is called image retention or burn-in.
♦To prevent image retention, do any of the following:
• Set the LCD display to turn o after a few minutes of being idle.
• Use a screen saver that has moving graphics or a blank white image.
• Execute the ANTI-BURN-IN function of the LCD display. See Conguration 1 > > Panel Saving
ANTI-BURN-IN section.
• Switch desktop backgrounds regularly.
• Adjust the LCD display to low brightness settings.
• Turn o the LCD display when the system is not in use.
♦Things to do when the LCD display shows image retention:
• Turn o the LCD display for extended periods of time. It can be several hours or several days.
• Use a screen saver and run it for extended periods of time.
• Use a black and white image and run it for extended periods of time.
• There are millions of micro transistors inside the LCD display. It is normal for a few transistors to be
damaged and to produce spots. This is acceptable and is not considered a failure.
• IMPORTANT: Always activate a moving screen saver program when you leave your display unattended.
Always activate a periodic screen refresh application if the unit will display unchanging static content.
Uninterrupted display of still or static images over an extended period may cause “burn in”, also known
as “after-imaging” or “ghost imaging”, on your screen. This is a well-known phenomenon in LCD panel
technology. In most cases, the “burned in” or “after-imaging” or “ghost imaging” will disappear gradually
over a period of time after the power has been switched o.
• WARNING: Severe “burn-in” or “after-image” or “ghost image” symptoms will not disappear and cannot be
repaired. This is also not covered under the terms of your warranty.
10
1.2 Package Contents
When unpacking, check if the following items are included in the
package. If any of them is missing or damaged, contact your dealer.
Power cord
displa ys.ag n e .co movo
NSD- 4301Q/NSD- 5501Q_Quick Guide_V010
Qui Start Guideck
NSD- 4301Q & N SD- 5501Q LC D Displ ay
NSD-4301Q & NSD-5501Q
Quick Start Guide
LCD Display
Note:
♦Remote control is shipped with
the supplied AAA batteries.
♦For all other regions, apply a
power cord that conforms to
the AC voltage of the power
socket and has been approved
by and complies with the safety
regulations of the particular
country (Type H05W-F, 2G or
3G, 0.75 or 1 mm2 should be
used).
♦You might like to save the
package box and packing
material for shipping the
display.
♦The pictures are for reference
only. Actual items may vary
upon shipment.
HDMI cable
CHAPTER 1: PRODUCT DESCRIPTION
1.1 Unpacking
• This product is packed in a packaging box which contains
standard accessories.
• Any other optional accessories will be packed separately.
• Considering the size and weight of the display, it is recommended
that this product is carried out by two persons.
• After opening the packaging box, ensure that the included items
are in good condition and complete.
Remote control
RS232 cable
11
PRODUCT DESCRIPTION
1.4 Wall Mounting Installation
To mount this display to a wall, you will have to obtain a standard
wall-mounting kit (commercially available). We recommend using
a mounting interface that complies with TUV-GS and/or UL1678
standard in North America.
To wall-mount the LCD display, screw the mounting bracket to the
VESA holes at the rear of the LCD display.
NSD-4301Q
200mm
200mm
400mm
400mm
NSD-5501Q
200mm
400mm
400mm
1.3 Preparing for the Installation
• Due to the high power consumption, always use the plug
exclusively designed for this product. If an extended line is required,
please consult your service agent.
• The product should be installed on a at surface to avoid tipping.
The distance between the back of the product and the wall should
be maintained for proper ventilation. Avoid installing the product in
the kitchen, bathroom or any other places with high humidity so as
not to shorten the service life of the electronic components.
• The product can normally operate only under 3000m in altitude. In
installations at altitudes above 3000m, some abnormalities may be
experienced.
Warning:
♦Do not press too hard on the
LCD panel or edge of the
frame, as this may cause the
device to malfunction.
Note:
♦Avoid the wall-mounting kit to
block the ventilation holes on
the back of the display.
♦Secure the LCD display on a
solid wall strong enough to bear
its weight.
♦Lay a protective sheet on a
table, which was wrapped
around the display when it was
packaged, beneath the screen
surface so as not to scratch the
screen face.
♦Ensure you have all
accessories for mounting this
display (wall mount, ceiling
mount, etc).
♦Follow the instructions that
come with the base mounting
kit. Failure to follow correct
mounting procedures could
result in damage to the
equipment or injury to the user
or installer. Product warranty
does not cover damage caused
by improper installation.
12
PRODUCT DESCRIPTION
Note:
♦For the wall-mounting kit, use
M6 mounting screws (having
a length 10 mm longer than
the thickness of the mounting
bracket) and tighten them
securely.
♦Unit without base weight:
NSD-4301Q=8.7 kg / NSD-
5501Q=16.0 kg.
The equipment and its
associated mounting means
still remain secure during the
test. For use only with UL
Listed Wall Mount Bracket with
minimum weight/load:
NSD-4301Q=13.4 kg / NSD-
5501Q=22.2 kg.
1.4.1 VESA Grid
Model Name VESA Grid
NSD-4301Q 200(W) x 200(H)mm /
400(W) x 400(H)mm
NSD-5501Q 200(W) x 400(H)mm /
400(W) x 400(H)mm
Caution:
To prevent the display from falling:
♦For wall or ceiling installation, we recommend installing the
display with metal brackets which are commercially available.
For detailed installation instructions, see the guide received
with the respective bracket.
♦To lessen the probability of injury and damage resulting from fall
of the display in case of earthquake or other natural disaster,
be sure to consult the bracket manufacturer for installation
location.
1.4.2
Ventilation Requirements for Enclosure Locating
To allow heat to disperse, leave space between surrounding
objects as shown in the diagram below.
100 mm 100 mm
100 mm
100 mm
13
PRODUCT DESCRIPTION
1.5 Using the Remote Sensor and Power Status Indicator
• If you want to obtain a better reception of remote control function, please adjust the indicator location to
easily check the power status indicator.
• If you want to mount the display to the wall, please push the indicator switch inward (NSD-4301Q) or upwards
(NSD-5501Q) before installation.
• When adjusting the indicator location, make sure to push/pull the indicator switch rmly until it clicks into
place.
NSD-4301Q
Push outward to
reveal the indicator
Pull inward to hide the
indicator
NSD-5501Q
Push downward to
reveal the indicator
Pull upward to hide
the indicator
14
PRODUCT DESCRIPTION
1.6 LCD Display Overview
1.6.1 Control Panel
NSD-4301Q
MUTE INPUT MENU
1
9
2345678
NSD-5501Q
MUTE INPUT MENU
1
9
2 3 4 5 6 7 8
15
PRODUCT DESCRIPTION
1[ ] Power
Turn the display on or put the display
to standby.
2MUTE
Switch the audio mute ON/OFF.
3INPUT
Choose the input source.
4[ ] Increase
• Enter the submenu.
• Increase the audio output level while
OSD menu is o.
5[ ] Decrease
• Return to the previous menu.
• Decrease the audio output level
while OSD menu is o.
6[ ] Up
Move the highlight bar up to select an
option or increase the adjustment while
OSD menu is on.
7[ ] Down
Move the highlight bar down to select an
option or decrease the adjustment while
OSD menu is on.
8MENU
• Activate the OSD menu when OSD menu
is o.
• Hide the OSD menu while OSD menu is
on.
9Remote control sensor and power
status indicator
• Receive command signals from the
remote control.
• Indicate the operating status of the
display:
- Lights green when the display is turned
on
- Lights red when the display is in
standby mode
- Blinks green and red when “Advanced
option, Schedule” is enabled
- Blinks red when a failure has been
detected
- Lights o when the main power of the
display is turned o
16
PRODUCT DESCRIPTION
1.6.2 Input/Output Terminals
NSD-4301Q
1 2 3 4 5 6 7 8
10
11
14
15
12
13
9
NSD-5501Q
1 2 3 4 5 6 7 8
10
11
14
15
12
13
9
17
PRODUCT DESCRIPTION
1AC IN
AC power input from the wall outlet.
2Main power switch
Switch the main power on/o.
3RS232 IN
RS232 network input for the loop-
through function.
4RS232 OUT
RS232 network output for the loop-
through function.
5RJ45
LAN control function for the use of
remote control signal from the control
center.
6IR IN
IR signal input for the loop-through
function.
Note:
♦This display’s remote control sensor
will stop working if the [IR IN] jack is
connected.
♦To remotely control your A/V device via
this display, see page 33 for IR Pass-
Through connection.
7IR OUT
IR signal output for the loop-through
function.
8DVI IN
DVI-D video input.
9HDMI1/HDMI2 IN
HDMI video/audio input.
10 VGA IN (D-Sub)
VGA video input.
11 AUDIO IN
Audio input from external AV device
(3.5mm phone jack).
12 AUDIO OUT
Audio output to external AV device (RCA).
13 USB 2.0/3.0 PORT
Connect your USB storage device.
14 MICRO SD CARD SLOT
Insert a micro SD card into the slot.
15 SECURITY LOCK
Used for security and theft prevention.
18
PRODUCT DESCRIPTION
1.7 Remote Control
1.7.1 General Functions
12
13
14
15
16
1
2
3
5
6
8
9
10
11
7
4
1
[ ] POWER
Turn the display on or to put the display into
standby mode.
2 PLAY
• Control playback in multimedia mode.
• Freeze feature
- : Freeze hot key for all inputs content.
- : Unfreeze hot key for all input content.
3 [ ] SOURCE
Root Menu: Go to Video source OSD.
4 [ ] HOME
• Root Menu: Access the OSD menu.
• Others: Exit the OSD menu.
5 [ ] LIST
No function.
6 NAVIGATION buttons
[ ]
• Root Menu: Go to Smart picture OSD.
• Main Menu: Move the highlight bar up to
adjust the selected item.
• IR Daisy Chain Menu: Increase controlled
Group ID number.
[ ]
• Root Menu: Go to Audio source OSD.
• Main Menu: Move the highlight bar down to
adjust the selected item.
• IR Daisy Chain Menu: Decrease controlled
Group ID number.
[]
• Main Menu: Return to the previous menu
page.
• Source Menu: Exit the source menu.
• Volume Menu: Decrease the volume level.
[ ]
• Main Menu: Enter the submenu or conrm a
selection.
• Source Menu: Conrm the selected source.
• Volume Menu: Increase the volume level.
7 [ ] OK
• Root Menu: Go to IR daisy chain OSD in
Primary/Secondary mode.
• Main Menu: Conrm an entry or selection.
8 [ ] ADJUST
Go to Auto Adjust OSD (for VGA input only).
20
PRODUCT DESCRIPTION
1.7.2 ID Remote Control
You can set the remote control ID when you
want to use this remote control on one of several
dierent displays.
To set the remote control ID:
1 ID Press the button. The red LED blinks
twice.
2 ID SET Press the button for more than
1 second to enter the ID mode. The red
LED lights up.
Press the button again will exit ID SET
the ID mode. The red LED lights off.
3 Press the digit numbers [0] ~ [9] to
select the display you want to control.
For example:
• Display ID #1: press [0], [1]
• Display ID #11: press [1], [1]
The numbers available are from [01] ~
[255].
• Not pressing any button within 10
seconds will exit the ID mode.
• If an error pressing of buttons other
than the digits occured, wait 1
second after the red LED lights o
and then lights up again, then press
the correct digits again.
4 Press the button ENTER to conrm.
The red LED blinks twice and then
lights o.
Note:
♦Press the button. The green LED NORMAL
blinks twice, indicating the remote control
returns to normal operation.
♦It is necessary to set up the ID number for
each display before selecting its ID number.
22
PRODUCT DESCRIPTION
3
[ ] SOURCE
Choose input source.
The button is only controlled by Scalar.
4 [ ] HOME
Access the OSD menu.
The button is only controlled by Scalar.
5 [ ] LIST
• In the content of the web page, move the
focus up to the next clickable item.
• Move the focus up to the next control or
widget such as buttons.
6 NAVIGATION buttons
• Navigate through menus and choose items.
• In the content of the web page, press the
following button to control the scroll bar of the
screen:
» / : Move the vertical scroll bar up or down.
» / : Move the horizontal scroll bar left or
right.
• When browsing the PDF les:
» In Zoom mode, press the [ ]/[ ]/[ ]/[ ]
button to adjust the position of the screen.
» In Viewing mode, press the [ ]/[ ] button
to go to the previous/next page.
7 [ ] OK
Conrm an entry or selection.
8 [ ] ADJUST
• In the content of the web page, move the
focus down to the next clickable item.
• Move the focus down to the next control or
widget such as buttons.
9 [ ] MUTE
Turn the mute function on/o.
The button is only controlled by Scalar.
10 [ ] [ ] [ ] [ ] COLOR
• / : No function on Android source.
These two buttons are only controlled by
Scalar.
• When browsing the PDF les:
» : Perform zoom-in.
» : Perform zoom-out.
» After zoom-in or zoom-out, press the
button to revert the pdf le to the original
size.
11 [Number/ ID SET/ ENTER]
• ID SET ENTER/ : No function on Android
source. These two buttons are only controlled
by Scalar.
• When browsing the PDF les, enter the page
number by pressing number buttons and then
press the button to jump to the specic
page.
12 [ ] FORMAT
Change the aspect ratio.
The button is only controlled by Scalar.
13 [ ] BACK
Return to the previous menu or exit from the
previous function.
14 [ ] INFO
• Display information about current input signal.
It is shown by Scalar.
• Media Player Compose > > edit or new add
playlist > choose any media les > press
the button to show the information of the
chosen media le.
15 [ ] OPTIONS
Open toolbar in Media Player or PDF Player.
• Media Player Compose > > edit or new add
playlist > press the button to open toolbar.
Toolbar is displayed on the left side of the
screen.
• PDF Player Compose > > edit or new add
playlist > press the button to open toolbar.
Toolbar is displayed on the left side of the
screen.
16 [ ] [ ] VOLUME
Adjust the volume level. The buttons are only
controlled by Scalar.
23
PRODUCT DESCRIPTION
1.7.4 Inserting the Batteries in the Remote Control
The remote control is powered by two 1.5V AAA batteries.
To install or replace batteries:
1 Press and then slide the cover to open it.
2 Align the batteries according to the (+) and (-) indications
inside the battery compartment.
3 Replace the cover.
1.7.5 Handling the Remote Control
• Do not subject to strong shock.
• Do not allow water or other liquid to splash the remote control. If
the remote control gets wet, wipe it dry immediately.
• Avoid exposure to heat and steam.
• Other than to install the batteries, do not open the remote control.
1.7.6 Operating Range of the Remote Control
Point the top of the remote control toward the display’s remote control
sensor (on the left or right side) when pressing a button.
When using the remote control, the distance from the remote control
to the sensor on the display should be less than 8m/26ft, and the
horizontal and vertical angles should be less than 30˚.
NSD-4301Q
30° 30°
Caution:
The incorrect use of batteries can
result in leaks or bursting. Be sure
to follow these instructions:
♦Place “AAA” batteries
matching the (+) and (–) signs
on each battery to the (+)
and (–) signs of the battery
compartment.
♦Do not mix battery types.
♦Do not combine new batteries
with used ones. It causes
shorter life or leakage of
batteries.
♦Remove the dead batteries
immediately to prevent them
from liquid leaking in the
battery compartment. Don’t
touch exposed battery acid, as
it can damage your skin.
Note:
♦If you do not intend to use
the remote control for a long
period, remove the batteries.
♦The remote control may not
function properly when the
remote control sensor on this
display is under direct sunlight
or strong illumination, or when
there is an obstacle in the path
of signal transmission.
24
PRODUCT DESCRIPTION
NSD-5501Q
30° 30°
25
2.1 Connecting the Power
1 Connect one end of the power cord to the AC IN connector at the rear of the LCD display.
2 Connect the other end of the power cord to a power outlet or a power supply.
3 Main Power Set the switch to ON.
Caution:
♦Make sure that the LCD display is not connected to the power outlet before making any connections.
Connecting cables while the power is ON may cause electric shock or personal injury.
♦When unplugging the power cord, hold the power cord by the plug head. Never pull by the cord.
CHAPTER 2: MAKING CONNECTIONS
NSD-4301Q
NSD-5501Q
26
MAKING CONNECTIONS
2.2 Connecting a Computer
2.2.1 Using VGA Input
Connect one end of a D-sub cable to the VGA IN connector of the LCD display and the other end of a D-sub
cable to the VGA OUT (D-Sub) connector of the computer.
For audio input, connect one end of an audio cable to the AUDIO IN connector of the LCD display and the
other end of an audio cable to the AUDIO OUT connector of the computer.
VGA OUT
D-Sub 15 pin
VGA IN
AUDIO
OUT
AUDIO IN
Computer
NSD-4301Q
VGA OUT
D-Sub 15 pin
VGA IN
AUDIO
OUT
AUDIO IN
Computer
NSD-5501Q
27
MAKING CONNECTIONS

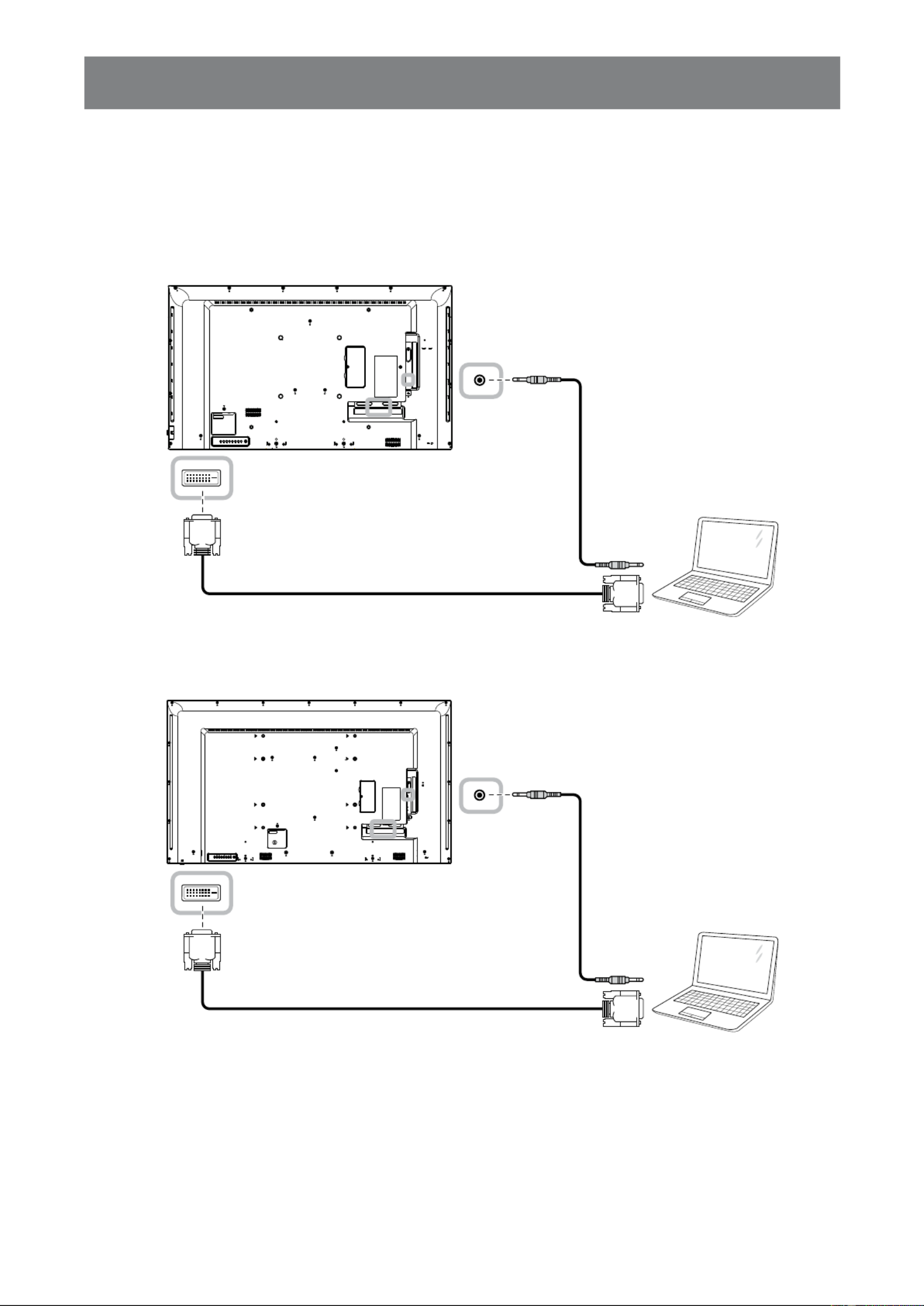

2.2.2 Using DVI Input
Connect one end of a DVI cable to the DVI IN connector of the LCD display and the other end of a DVI cable
to the DVI connector of the computer.
DVI OUT
DVI IN AUDIO
OUT
AUDIO IN
Computer
NSD-4301Q
DVI OUT
DVI IN AUDIO
OUT
AUDIO IN
Computer
NSD-5501Q
28
MAKING CONNECTIONS
2.2.3 Using HDMI Input
Connect one end of an HDMI cable to the HDMI IN connector of the LCD display and the other end of an
HDMI cable to the HDMI OUT connector of the computer.
HDMI IN
Computer
HDMI OUT
NSD-4301Q
HDMI IN
Computer
HDMI OUT
NSD-5501Q
29
MAKING CONNECTIONS
HDMI IN
HDMI OUT
Video Player
2.3 Connecting External Equipment (Video Player)
2.3.1 Using HDMI Video Input
Connect one end of an HDMI cable to the HDMI IN connector of the LCD display and the other end of an
HDMI cable to the HDMI OUT connector of the video player.
NSD-4301Q
HDMI IN
HDMI OUT
NSD-5501Q
Video Player
30
MAKING CONNECTIONS
2.4 Connecting Audio Equipment
2.4.1 Connecting an External Audio Device
Connect one end of an audio cable to the AUDIO OUT connectors of the LCD display and the other end of an
audio cable to the AUDIO IN connectors of the audio device.
AUDIO
OUT
Audio Device
AUDIO
IN
NSD-4301Q
AUDIO
OUT
Audio Device
AUDIO
IN
NSD-5501Q
31
MAKING CONNECTIONS
2.5 Using the Card Reader
Insert a micro SD card into the slot.
MICRO
SD CARD
SLOT
Micro SD
NSD-4301Q
MICRO
SD CARD
SLOT
Micro SD
NSD-5501Q
32
MAKING CONNECTIONS
2.6 Connecting Multiple Displays in a Daisy-chain Conguration
You can interconnect multiple displays to create a daisy-chain conguration for applications such as a video
wall.
Caution:
To avoid unnecessary strain on the bezel, it is highly recommended to keep a minimum space of 0.5mm in
which a business card is able to slip between all displays on all sides.
0.5 mm
2.6.1 Display Control Connection
Connect the RS232 OUT connector of DISPLAY 1 to the RS232 IN connector of DISPLAY 2.
DISPLAY 1
PC
DISPLAY 2
[RS232 IN]
[RS232]
[RS232 OUT] [RS232 IN]
33
MAKING CONNECTIONS
2.7 IR Connection
Connect the IR sensor cable to the IR IN connector of the LCD display.
[IR IN]
External
IR Receiver
DISPLAY
Note:
♦This display’s remote control sensor will stop working if the [IR IN] is connected.
♦IR loop through connection can support up to 9 displays.
♦IR in daisy chain via RS232 connection can support up to 9 displays.
2.8 IR Pass-Through Connection
Connect one end of an IR extender cable to the IR OUT connector of the LCD display and the other end of an
IR extender cable to the IR IN connector of the video player.
Video Player
(Video Player)
Remote Control
[IR OUT]
[IR IN]
DISPLAY
34
3.1 Turning on the Power
1 Plug the power cord to a power
outlet or power supply.
2 Press the button to turn the
LCD display on.
When the LCD display is
turned on, press the button
to turn o the LCD display.
Note:
♦The LCD display still consumes
power as long as the power
cord is connected to the power
outlet. Disconnect the power
cord to completely cut o
power.
CHAPTER 3: USING THE LCD DISPLAY
POWER button
3.1.1 Initial Setup
After you turn on the LCD display, a Welcome screen opens. You
are prompted to select the default OSD language, congure network
settings, and more. Follow the on-screen instructions to complete the
initial setup.
Start
Welcome
Deutsch
English
Español
35
USING THE LCD DISPLAY
3.2 Selecting the Input Source Signal
Note:
♦After pressing the button,
a menu with available input
sources will be displayed on the
screen.
HDMI1
HDMI2
DVI-D
VGA
Media Player
Browser
Cloud CMS
PDF Player
Custom
♦If the selected input source
signal is not connected to the
LCD display or is turned off, the
screen will display multi-color
screen.
1 Press the button.
2 Press the or button to choose a device, then press the
button.
SOURCE button
3.3 Adjusting the Volume
Press the or button to adjust the volume.
Note:
♦After pressing the or
button, the volume icon is
displayed on the screen
automatically.
Volume
27
♦Press the button to mute the
audio.
VOLUME buttons
36
USING THE LCD DISPLAY
3.4 Changing the Picture Format
Press the button repeatedly to change the picture format.
Note:
The available picture formats
include:
♦Full: Restores the correct
proportions of pictures
transmitted in 16:9 using the full
screen display.
♦4:3: The picture is reproduced
in 4:3 format and a black band
is displayed on either side of
the picture.
♦Real: This mode displays the
image pixel-by-pixel on screen
without scaling the original
image size.
♦21:9: The picture is reproduced
in 21:9 format and a black band
at the top and bottom.
♦Custom: Choose to apply the
custom zoom settings set in
the > Screen Custom zoom
submenu.
FORMAT button
37
4.1 Accessing the Multimedia Menu
Note:
♦ The control buttons described in this section are on the remote control.
♦ Press the button once in any menu to return to the previous menu or repeatedly to return to the Hint
screen as illustrated below.
The multimedia menu consists of ve items, such as Media Player, Browser, Cloud CMS, PDF Player, and
Custom. To access the multimedia menu items, do the following:
HDMI1
HDMI2
DVI-D
VGA
Media Player
Browser
Cloud CMS
PDF Player
Custom
1 Press the button to open a list of input sources.
2 Press the or button to select from Media Player Browser Cloud CMS PDF Player Custom, , , , or
the list.
3 Press the button on the remote control to open the item.
CHAPTER 4: MULTIMEDIA MENU
38
MULTIMEDIA MENU
4.2 Media Player
Use the Media Player to play your favorite photo, video, and/or music les. The les can be grouped into
playlists from various storage devices, such as internal storage, USB storage, and SD card. The total number
of playlists can be up to seven but the media content of a single playlist is not limited.
Media Player
Media Player
1920x1080@60Hz
Compose
Settings
Play
4.2.1 Creating a Playlist
To create a playlist, do the following:
1 Copy your photo, video, and/or music les on the storage device to the following paths respectfully:
— Photo: {root dir of storage}/agn/photo/
— Video: {root dir of storage}/agn/video/
— Music: {root dir of storage}/agn/music/
Note:
♦ Music les can be selected and used as background music for a slideshow.
2 Connect the storage device to the LCD display (if necessary).
3 Media Player Set the input source to . See “4.1 Accessing the Multimedia Menu”.
4 Press the or button to select the tab and then press the Compose button to open the PlayList
menu.
PlayLis
t
File 1
File 2
File 3
File 4
File 5
File 6
File 7
5 File 1 File 7 Press the or button to select a le among to where you want to add your media les
and then press the button.
6 Press the or button to select a storage device where are saved your media les and then press
the button.
Note:
♦ Press the button again if prompted to conrm the path.
39
MULTIMEDIA MENU
A le browser opens where your media les on the storage device are displayed in the Source
column and the content of the playlist is displayed in the Playlist column.
7 Press the or button to select the or folder and then press the button. The folder Photo Video
content is displayed in the Source column.
Select Info Toolbar
OK
8 Press the or button to select a media le for reviewing (if necessary). Press any of the following
buttons:
— Select: To select a single le. Press the button again to deselect the le.
— Info: To review the detailed information on the media le.
9 Option Press the button to start adding or modifying the playlist.
Select Info Toolbar
OK
Then press the or button and press the button to select any of the following actions:
— Select all: Select all the visible media les on the storage device.
— Delete all: Delete all the media les in the playlist.
— Add/Remove: Add or remove the selected les from the playlist.
— Sort: Sort the media les in the playlist one by one. The Sort menu opens.
a) Press the or button and then press the button to select the le. Next to the selected le
appears icon.
b) Press the or button to adjust the le order in the Slideshow.
— Save/Abort: Save the playlist or discard the modications. Press the or button to select or Save
Abort and then press the button to conrm. If you have added to the playlist only photos then you
are prompted to add background music to the slideshow. Press the or button to select or Yes No
and press the button to conrm. If you decide to add background music to the slideshow, you are
prompted to select a music le from the Music folder.
— Back: Close the toolbar.
10 Repeat steps 1 to 9 for creating more playlists.
40
MULTIMEDIA MENU
4.2.2 Modifying a Playlist
To modify a playlist, do the following:
1 Media Player Set the input source to . to “4.1 Accessing the Multimedia Menu”.
2 Press the or button to select the tab and then press the Compose button to open the PlayList
menu.
3 Press the or button to select the playlist that you want to modify and then press the button.
Note:
♦ You can modify only playlists that have the icon next to the , where “#” is the le number. File #
PlayLis
t
File 1
File 2
Those playlists that do not have the icon are empty.
4 Press the or button to select or the playlist and then press the button to Edit Delete
conrm.
5 Perform any of the modications as described in steps 7 and 9 in “4.2.1 Creating a Playlist” section.
4.2.3 Playing Files in a Playlist
To play les in a playlist, do the following:
1 Media Player Set the input source to . See “4.1 Accessing the Multimedia Menu”.
2 Press the or button to select the tab and then press the Play button to open the PlayList
menu.
3 Press the or button to select the playlist that you want to play and then press the button.
Note:
♦ You can play only playlists that have the icon next to the , where “#” is the le number. File #
PlayLis
t
File 1
File 2
Those playlists that do not have the icon are empty.
42
MULTIMEDIA MENU
4.3 Browser
Use the Browser app to save up to seven bookmarks (URLs) manually or import a list of URLs from a storage
device, such as internal storage, USB storage, and SD card.
Browser
Browser
1920x1080@60Hz
Settings
4.3.1 Adding an URL
To add an URL, do the following:
1 Browser Set the input source to . See “4.1 Accessing the Multimedia Menu”.
2 Press the button to open the Settings tab. A list of URLs opens.
Option OK Cancel
1
2
3
4
5
6
7
Enter Url
Enter Url
Enter Url
Enter Url
Enter Url
Enter Url
Enter Url
3 Do any of the following to add an URL:
— Adding an URL manually
a) Press the or button to select an available URL eld (Enter url) and then press the
button.
b) Press the button again to open the virtual keyboard.
2
3
4
5
6
7
E
nter
U
r
l
E
nter
U
r
l
43
MULTIMEDIA MENU
c) Press the , , , and/or button to pick each character that appears in the URL name. After
selecting a character, press the button to enter the character. Continue this step until all
the characters in the URL are entered.
d) Press the button to close the virtual keyboard.
e) Press the button and select OK to save the URL or Cancel to discard the modications.
Then press the button to conrm the selection.
— Adding a URL automatically
a) Save a list of URLs in a text-le with the extension “*.txt” where “*” is the le name.
b) Copy the text-le with the URLs to the storage device to the following path:
{root dir of storage}/agn/browser/
c) Connect the storage device to the LCD display (if necessary).
d) Press the button repeatedly to scroll through the URLs in the list and access the Option
button on the screen. Then press the button. A toolbar opens on the screen.
e) Press the or button to select and then press the button.Import
Option OK Cancel
1
2
3
4
5
6
7
Enter Url
Enter Url
Enter Url
Enter Url
Enter Url
Enter Url
Enter Url
Import
Export
Delete all
Back
f) Press the button to select a storage device where is saved your text-le and then or
press the button.
Note:
♦Press the button again if prompted to conrm the path.
A Please choose le menu opens.
browser
g) Press the button to open the folder.browser
44
MULTIMEDIA MENU
h) Press the button to select the text-le where are saved the URLs. Then press the or
button. You are prompted to conrm importing the le or cancel the procedure.
i) Press the or button to select Import or Cancel and then press the button. After
importing the text-le, the URLs appear in the URLs’ list in the Browser app.
4.3.2 Managing URLs List
To manage URLs list on Browser app, do the following:
1 Browser Set the input source to . See “4.1 Accessing the Multimedia Menu”.
2 Press the button to open the Settings tab. A list of URLs opens.
3 To modify or open an URL, press the or button. button and select an URL. Then press the
You are prompted to modify the URL or open the web page.
Note:
♦You need an active Internet connection to open a web page. To congure the network
parameters, see “4.6.6 Accessing Network Settings in Admin Mode” on page 55.
Press the or button and then press the button to do any of the following:
— Edit: Modify the URL. See “— Adding an URL manually” on page 42 steps c to d.
— Play: Open the webpage on the screen.
4 To perform other actions with the URLs list, such as export the list or delete all the entries, press the
button repeatedly until you can select the button. Then press the Option button. A toolbar opens
on the screen.
5 Press the or button and then press the button to do any of the following:
Press the — Export: or button to select the storage device where you want to save the current
URLs list. Then press the button. After selecting the storage device, you are prompted to
conrm the location and the le name of the URLs list. Press the or button to Save Cancel or
the procedure.
Note:
♦If you wish to save the URLs list to an external storage device, make sure to connect the
storage device to the LCD display before exporting the le.
— Delete all: Delete all the URL entries in the list.
— Back: Close the toolbar.
45
MULTIMEDIA MENU
4.4 Cloud Content Management Software (Cloud CMS)
At Cloud CMS, you can create and schedule signage campaigns, manage devices, and update content from
any device with an internet browser.
Ensure that your LCD display is properly connected to the internet. Then set the input source to Cloud CMS.
A “Device Registration” message will appear on the screen.
Device code
You need to enter the “device code” in order to register your device to Cloud CMS.
Note:
♦To access Cloud CMS, register your device, and manage the signage campaigns, visit
https://login.neovosignage.com. For detail information and settings, please refer to the Neovo Signage
Installation Guide.
After you successfully added your device to Cloud CMS, the “ ” message will not appear on Device Registration
the screen when you switch the input source to Cloud CMS. The signage campaign will automatically display
on the screen when it is published from Cloud CMS.
46
MULTIMEDIA MENU
4.5 PDF Player
Use the PDF Player to display your PDF les on the screen. The les can be grouped into playlists from
various storage devices, such as internal storage, USB storage, and SD card. The total number of playlists
can be up to seven but the PDF le content of a single playlist is not limited.
PDF Player
PDF Player
1920x1080@60Hz
Compose
Settings
Play
4.5.1 Creating a Playlist
To create a playlist, do the following:
1 Copy your PDF les on the storage device to the following path:
— {root dir of storage}/agn/pdf/
2 Connect the storage device to the LCD display (if necessary).
3 PDF Player Set the input source to . See “4.1 Accessing the Multimedia Menu”.
4 Press the or button to select the tab and then press the Compose button to open the PlayList
menu.
PlayLis
File 1
File 2
File 3
File 4
File 5
File 6
5 File 1 File 7 Press the or button to select a le among to where you want to add your PDF les
and then press the button.
6 Press the or button to select a storage device where are saved your PDF les and then press
the button.
Note:
♦Press the button again if prompted to conrm the path.
A le browser opens where your PDF les on the storage device are displayed in the Source column
and the content of the playlist is displayed in the Playlist column.
48
MULTIMEDIA MENU
4.5.2 Modifying a Playlist
To modify a playlist, do the following:
1 PDF Player Set the input source to . See “4.1 Accessing the Multimedia Menu”.
2 Press the or button to select the tab and then press the Compose button to open the PlayList
menu.
3 Press the or button to select the playlist that you want to modify and then press the button.
Note:
♦You can modify only playlists that have the icon next to the , where “#” is the le number. File #
PlayLis
t
File 1
File 2
Those playlists that do not have the icon are empty.
4 Press the or button to select or the playlist and then press the button to Edit Delete
conrm.
5 Perform any of the modications as described in steps 7 to 9 in “4.5.1 Creating a Playlist” section.
4.5.3 Displaying PDF Files in a Playlist
To display the PDF les in a playlist, do the following:
1 PDF Player Set the input source to . See “4.1 Accessing the Multimedia Menu”.
2 Press the or button to select the tab and then press the Play button to open the PlayList
menu.
3 Press the or button to select the playlist that you want to display and then press the button.
Note:
♦You can display only playlists that have the icon next to the , where “#” is the le number. File #
PlayLis
t
File 1
File 2
Those playlists that do not have the icon are empty.
4.5.4 PDF Player Settings
To congure PDF Player settings, do the following:
1 PDF Player Set the input source to . See “4.1 Accessing the Multimedia Menu”.
2 Press the or button to select the tab and then press the Settings button to open the Settings
menu.
52
MULTIMEDIA MENU
— System > Date & time: Access to Select time zone NTP Server and review .
— System > About: Set location for , review , , System updates Legal information Android version
Kernel version Build number, and .
— System > Developer options: Congure advanced system settings (for Android system developers).
4.6.3 Accessing Apps in Admin Mode
To access installed apps in Admin Mode, do the following:
1 Enter the Admin Mode. See “4.6.1 Entering the Admin Mode” on page 49.
2 Press the or button to select the tab and then press the button. The apps screen Apps
opens.
3 Press the or button to select the app and then press the button to open the app.
4.6.4 Displaying Content via CMS App
Using the CMS app, you can display any signage campaigns created by using the CMS software installed in
your computer or imported the campaigns from a storage device.
Installing the CMS Software
1 Go to the Download Centre in displays.agneovo.com to download the CMS software. Then
following the on-screen instructions to complete the installation.
2 Launch the software.
53
MULTIMEDIA MENU
3 Enter the account name and password.
Note:
♦Default access information:
Account name: admin
Password: admin
4 Create a campaign, congure the schedule, and publish the campaign. For more information on how
to use the software, please refer to its documentation.
Note:
♦To obtain the software user guide, go to the Download Centre in displays.agneovo.com.
♦Before publishing the campaign, you have to congure the settings rst so that your computer
can act as a CMS Server. See “Using a CMS Server for Content Source” section.
Using a CMS Server for Content Source
To access the content from a CMS Server (via the sofware installed in your computer), your LCD display
needs to be connected to the same network segment with the CMS Server and you need to congure the
connection parameters on your LCD display.
To congure your LCD display for displaying a content from a CMS Server, do the following:
1 Connect your LCD display to the network.
2 Custom Set the input source to . See “4.1 Accessing the Multimedia Menu”.
3 Enter the Admin Mode. See “4.6.1 Entering the Admin Mode” on page 49.
4 Press the or button to select the tab and then press the button.Settings
5 Press the or button and then press the button to select Signage Display > Source settings
> CMS > Settings.
6 Press the or button and then press the button to select and congure the CMS Server
connection parameters, such as / / Settings Server > Account PIN Code.
CMS
Settings
Server
10.0.20.91
Account
admin
PIN Code
0281
Version
Ver.3
Content
Internal storage
SD card
USB storage
54
MULTIMEDIA MENU
Note:
♦Enter your computer IP address in the Server eld. You can obtain the account name and pin
code data from the CMS software (in the section).DEVICE
♦After the connection parameters are congured on the LCD display, the CMS Server will
automatically detect a new device. The CMS Server manager can schedule the content
displaying for the LCD display.
♦When adding the LCD display as a new device to the CMS Server, it is recommended to use the
Signage Display name as a Device Name.
7 To view the content from the CMS Server, exit Settings Apps CMS and select the tab. Then select .
Displaying Content from an Attached Storage Device
You can congure the LCD display to use content from a storage device, such as internal storage, USB
storage, and SD card.
To congure your LCD display to display CMS content from a storage device, do the following:
1 Copy the source les to the storage device in the following path:
— {root dir of storage}/agn/CMS/
2 Connect the storage device to the LCD display (if necessary).
2 Custom Set the input source to . See “4.1 Accessing the Multimedia Menu”.
3 Enter the Admin Mode. See “4.6.1 Entering the Admin Mode” on page 49.
5 Press the or button to select the tab and then press the button.Settings
6 Press the or button and then press the button to select Signage Display > Source settings
> CMS > Content.
7 Press the or button to select the storage device where the CMS content is saved and then press
the button.
8 To view the content, exit Settings Apps CMS and select the tab. Then select .
60
ON SCREEN DISPLAY MENU
Main Menu Submenu Remarks
3. Audio • Balance
• Treble
• Bass
• Volume
• Audio out (line out)
• Maximum volume
• Minimum volume
• Mute
• Audio source
• Audio reset
• Audio Out Sync
See page 67.
4. Conguration1 • Switch on state
• Panel saving
• RS232 routing
• Boot on source
• WOL
• RGB Range
• Conguration1 reset
• Factory reset
See page 69.
5. Conguration2 • OSD turn off
• OSD H position
• OSD V position
• Information OSD
• Logo
• Monitor ID
• Heat status
• Monitor information
• HDMI Version
• Conguration2 reset
See page 73.
6. Advanced option • IR control
• Power LED light
• Keyboard control
• Off Timer
• Date and time
• Schedule
• HDMI with One Wire
• Language
• OSD transparency
• Power Save
• Advanced option reset
See page 75.
